ZXI 12" High Excursion Subwoofer Quad Stacked Magnets | 1000W RMS DVC 2-Ohm

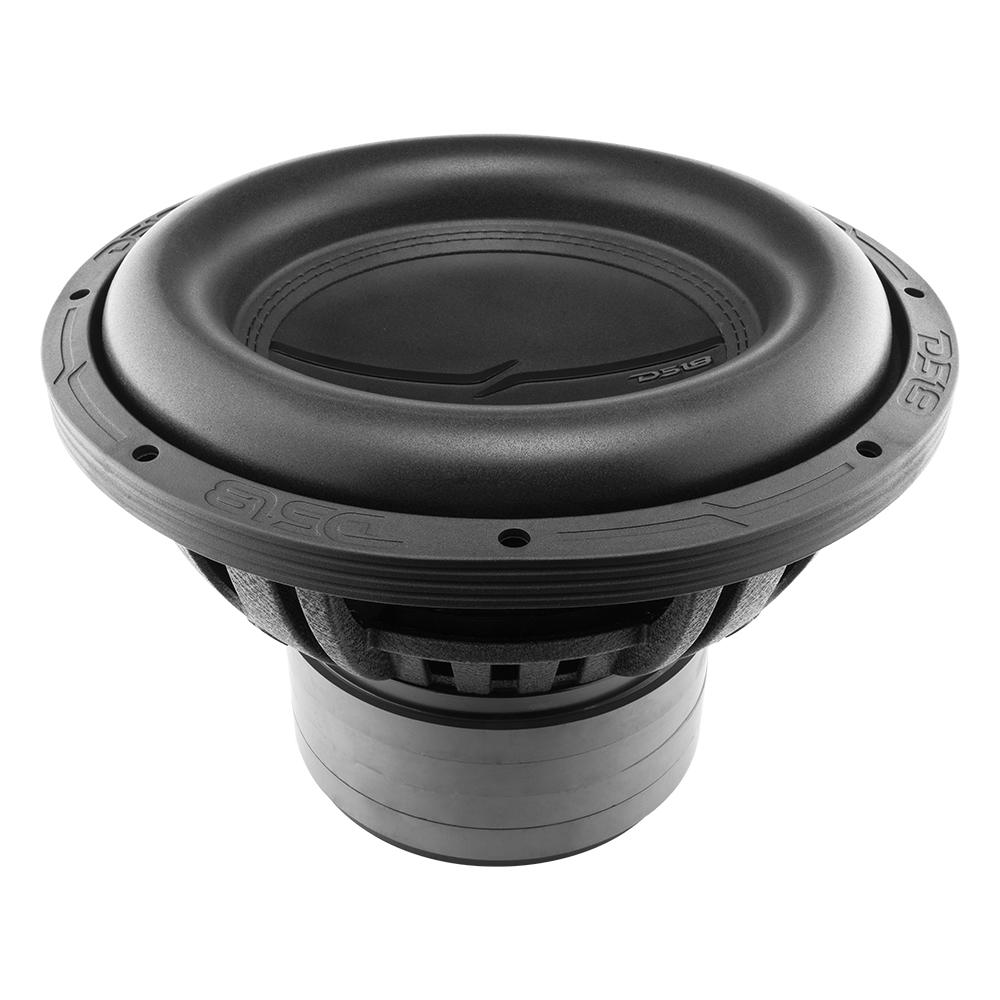

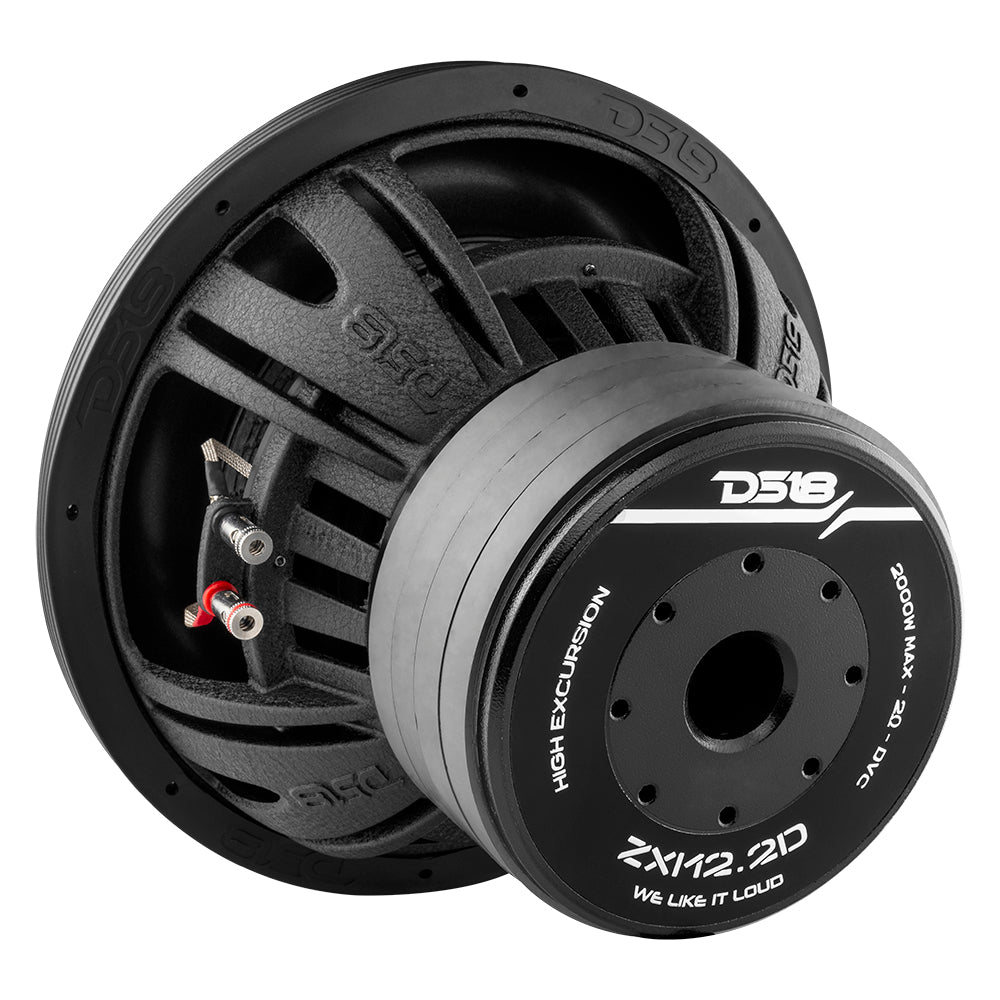

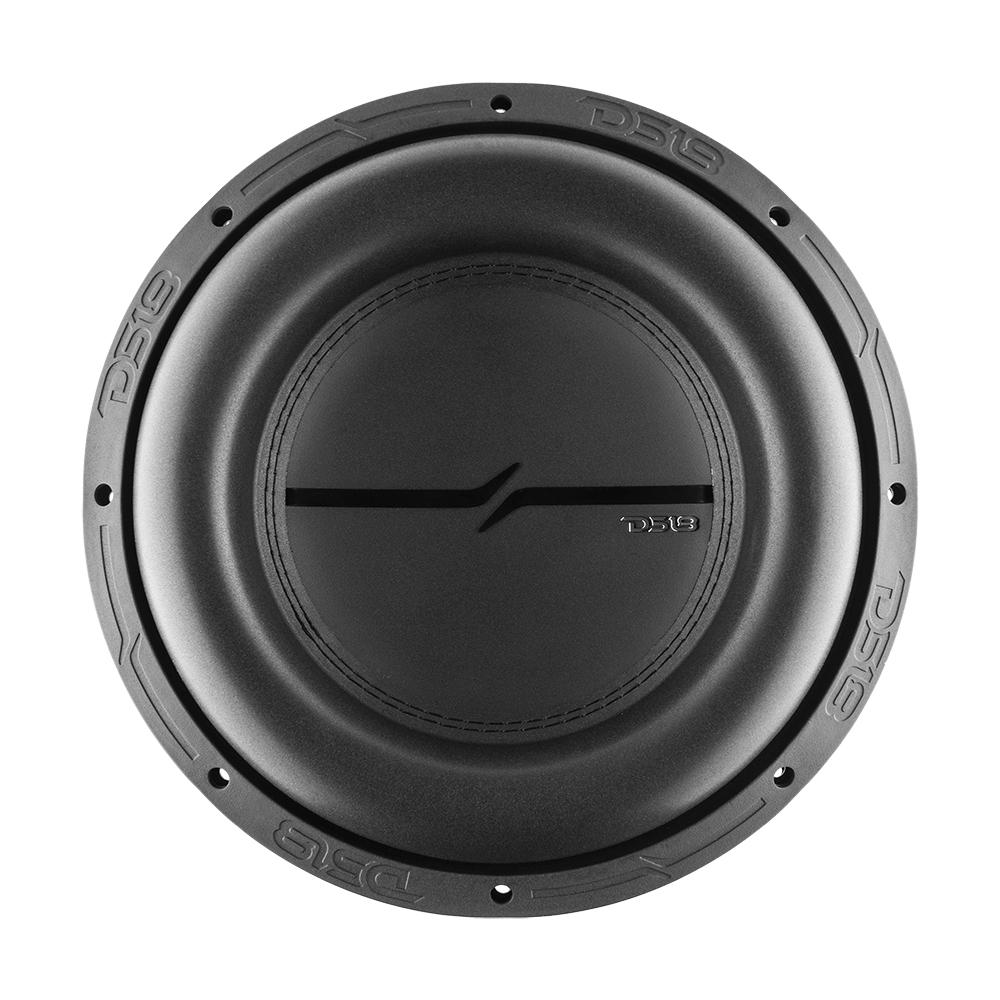

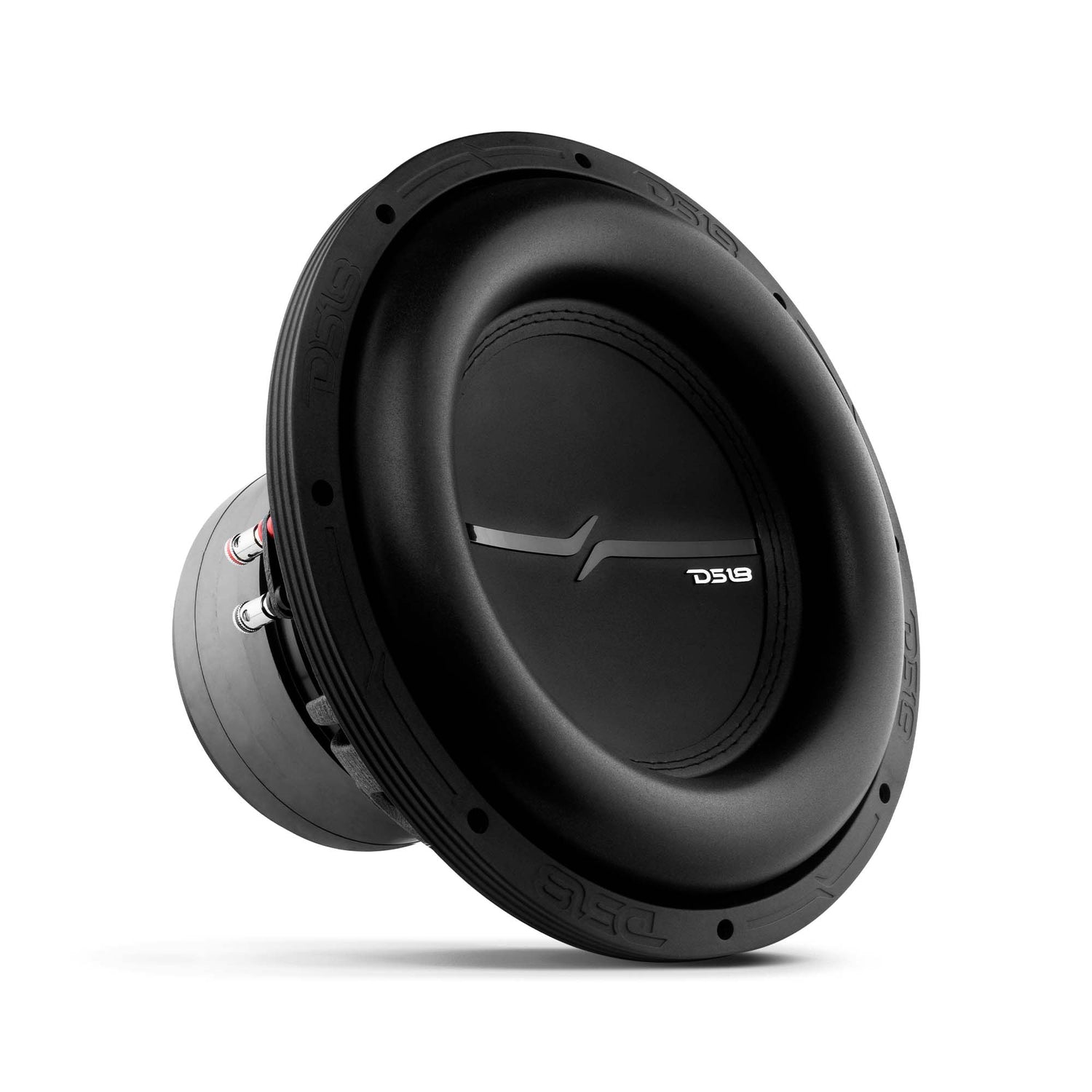

DS18 ZXI12.2D High Excursion 12" Car Subwoofer
2000 Watts 2-Ohm DVC Quad Stacked Magnets

More Power, More Bass!

Designed to provide thumping power that shakes everyone’s mirrors, the ZXI12.2D is a newly designed subwoofer that could only be defined as a monster of a machine. It packs a 3-inch voice coil that’s made to withstand high amounts of power with unparalleled efficiency, while producing thunderous bass that’s free from distortion. Don’t get it twisted, this sub is versatile enough to play higher frequencies under 1.7KHz down to 15Hz with incredible clarity and accuracy!

Order the DS18 ZXI12.2D today to turn up the bass with thunderous power!

Powerful Bass!

The majority of subs that produce this much bass usually have enormous power requirements to get to maximum XMAX and deliver crazy loud bass. The ZXi12.2D sets itself apart since it has an extremely efficient coil that handles large power with a higher dB rating than most subs at 89.2 dB. This sub is also conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling, making it capable of handling anything you throw at it!

Product Highlights

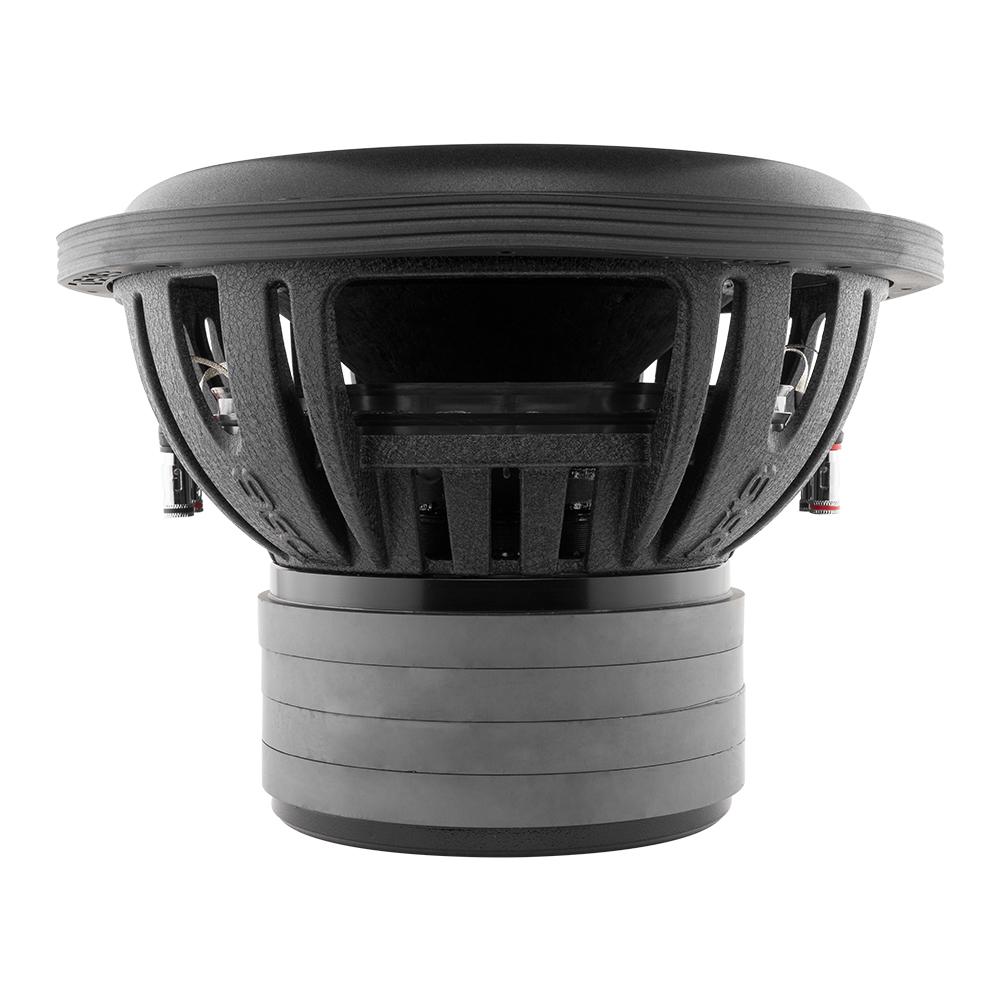

• Long ferrite motor structure allows for maximum excursion and former clearance with quad stacked magnets.
• High Excursion Surround to help produce maximum a 32mm (one-way) XMAX without damage to the cone and surround.
• Conservatively rated at 1000W RMS Power Handling and 2000W MAX Power Handling so you can get the high-powered thunderous bass you crave.
• 3-inch voice coil to absorb and produce the highest heat to power ratio all while pumping out thumping head turning bass.
• Low FS of 30.8Hz so the sub can play ultra-low frequencies all while still retaining the versatility of a traditional subwoofer.
• Ultra-low frequency response of 15Hz-1.7KHz to ensure great lows and you will be able to have hard hitting bass that plays with authority.

Technical Details

ZR12.2D Product Manual

SPECIFICATIONS
Nominal Diameter	12" / 304.8 mm
Nominal Impedance	2 + 2 Ohms
RMS Power Handling	1000 W
MAX Power Handling	2000 W
Sensitivity (1w/1m)	89.2 dB
Frequency Response	15Hz - 1.7KHz
Recommended Lo Pass Crossover	90 Hz
MOTOR
Voice Coil Diameter	3” / 76.5 mm
Voice Coil Former Material	Black Aluminum
Winding Material	CCAW
Cone Material	Non Pressed Paper
Dust Cap Material	PPI
Surround Material	Foam
Basket Material	Aluminum
Basket Color | Finish	Black Sandblasted
Magnet Material	Ferrite
Magnet Weight	224 Oz (4 x 56 Oz)
Displacement Volume	0.14 ft3 / 3.99 L
THIELE & SMALL PARAMETERS
Equivalent Volume	15.23 L / 0.53 ft3
Excursion (one way)	32 mm
Free Air Resonance	30.8 Hz
Mechanical Factor	5.268
Electrical Factor	0.576
Total Factor	0.528
Moving Mass	242.643 g
Compliance	0.075mm/N
Bl Factor	15.55
Voice Coil Inductance	12.6 mH
Diaphragm Area	530.93 cm2
DC Resistance	2+2 ohms
Efficiency Bandwidth Product	53.4
RECOMMENDED ENCLOSURES
Sealed Internal Volume	21.2L / 1.4ft3
Ported Box Output Response	42 Hz
Ported Internal Volume	39.6L / 1.4ft3
Port Size *Square (WxHxLong)	1.23"x12.28"x24.35"
Port Tunning Frequency	32 Hz
Ported Box Output Response	26 Hz

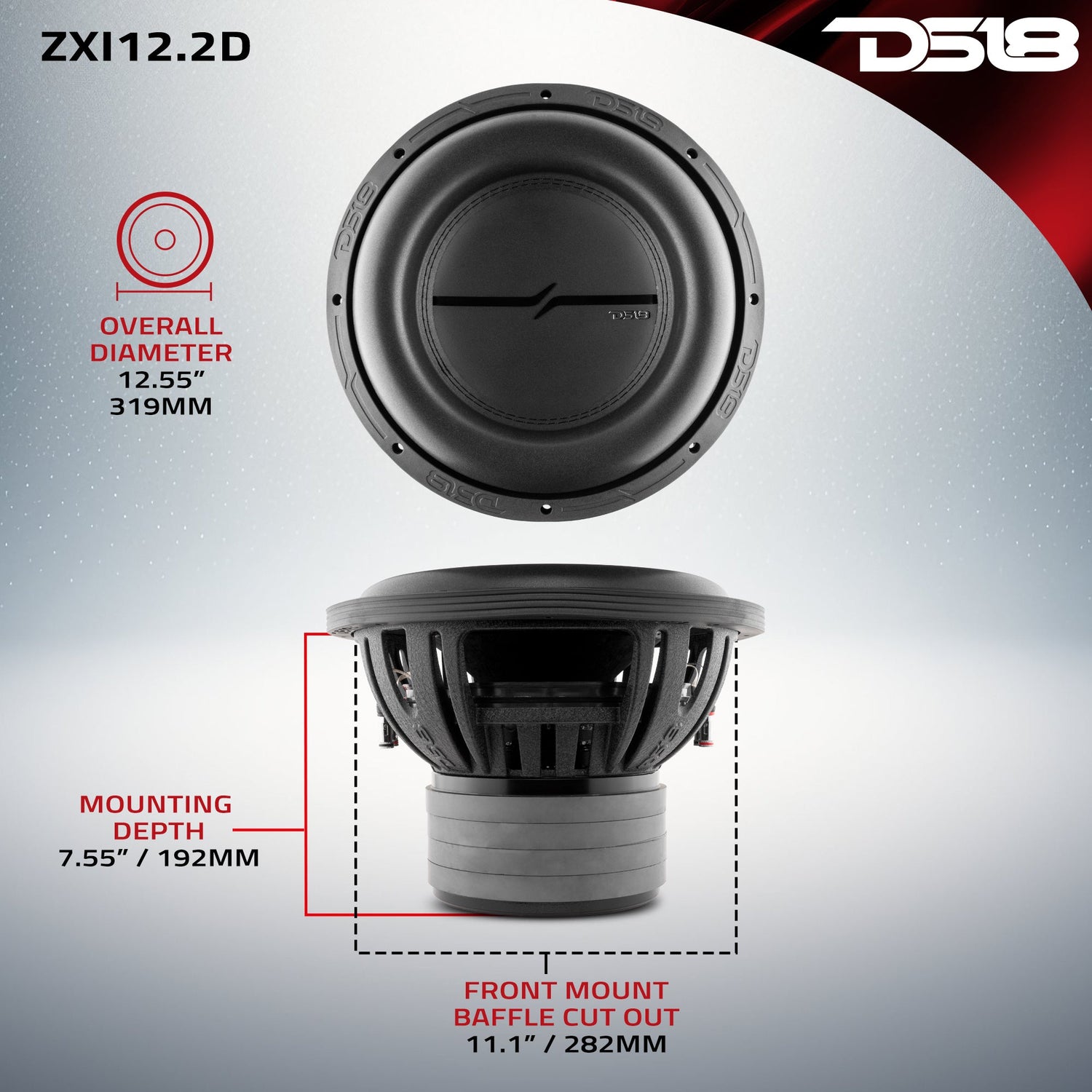

MEASUREMENT
Overall Diameter	12.55” / 319 mm
Overall Depth	9.13” / 232 mm
Front Mount Baffle Cutout	11.1” / 282 mm
Mounting Depth	7.55” / 192 mm
Motor Diameter	7.08" / 180 mm
