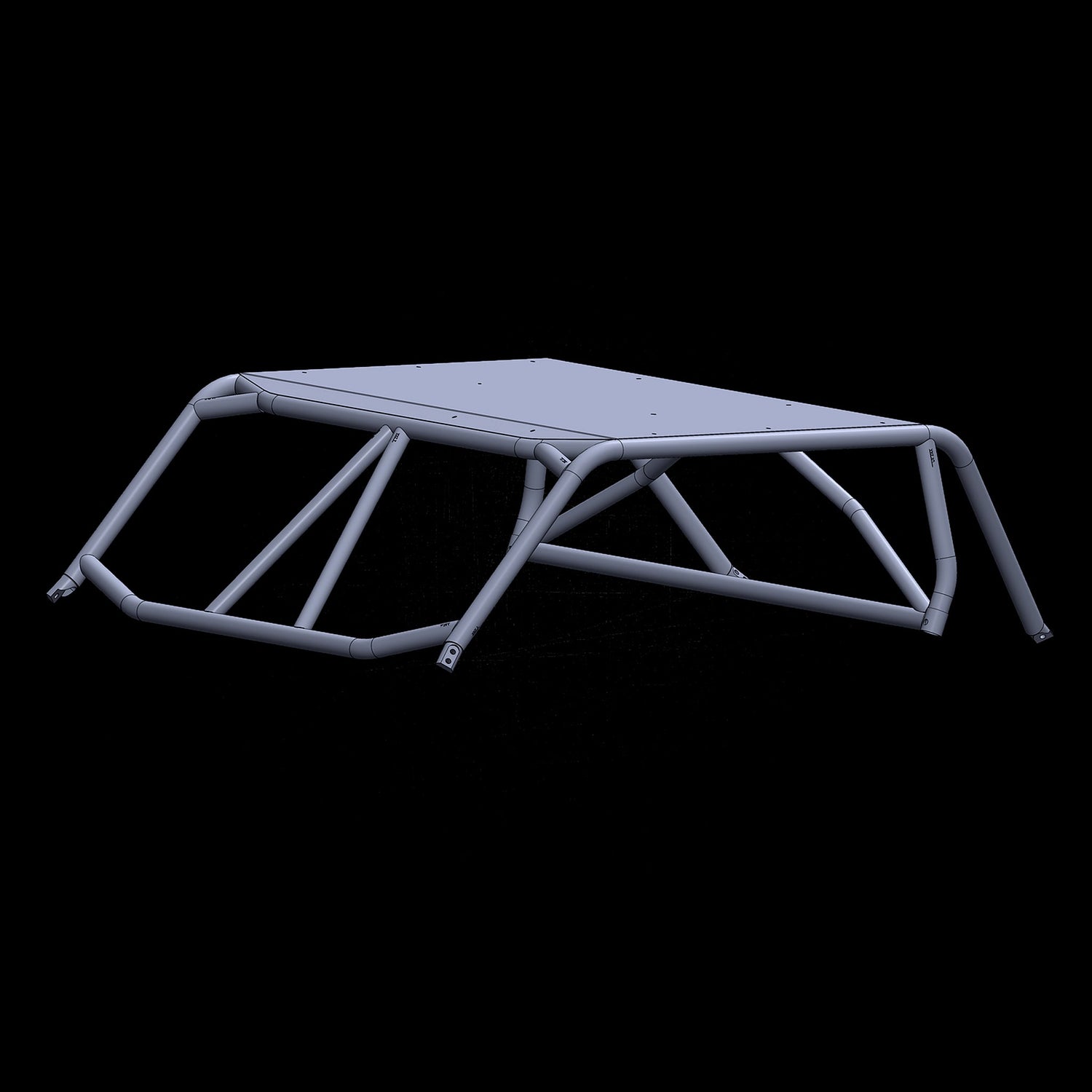

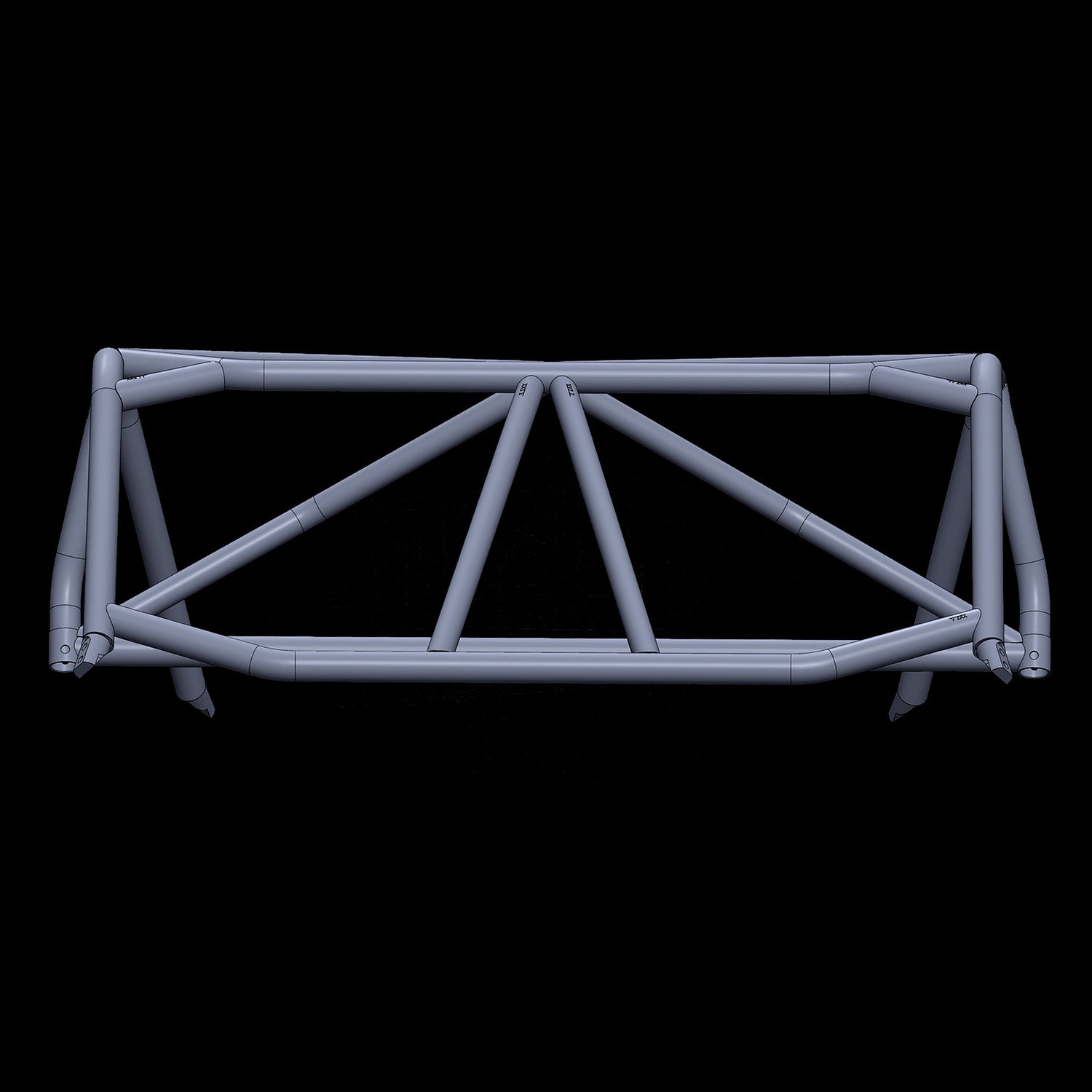

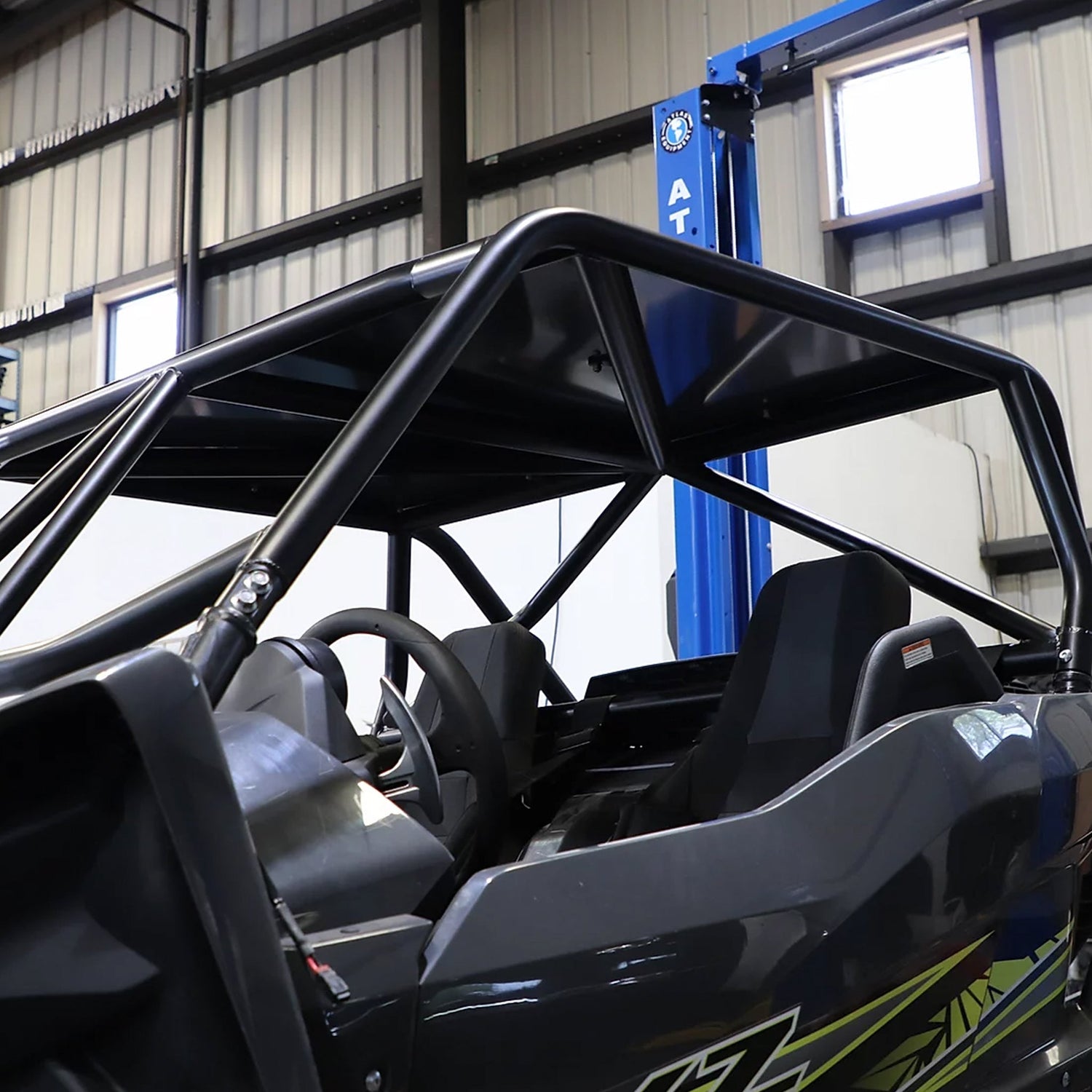

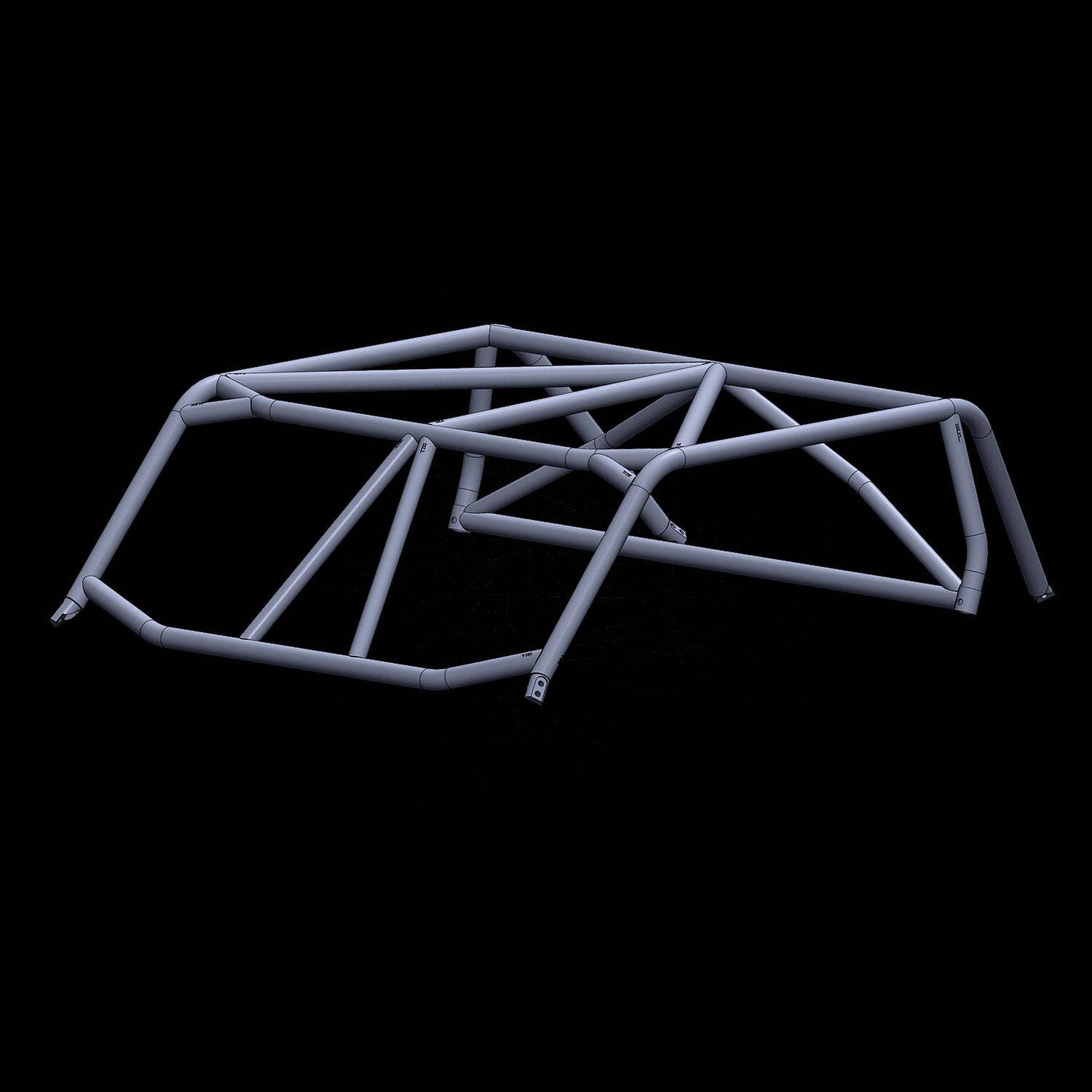

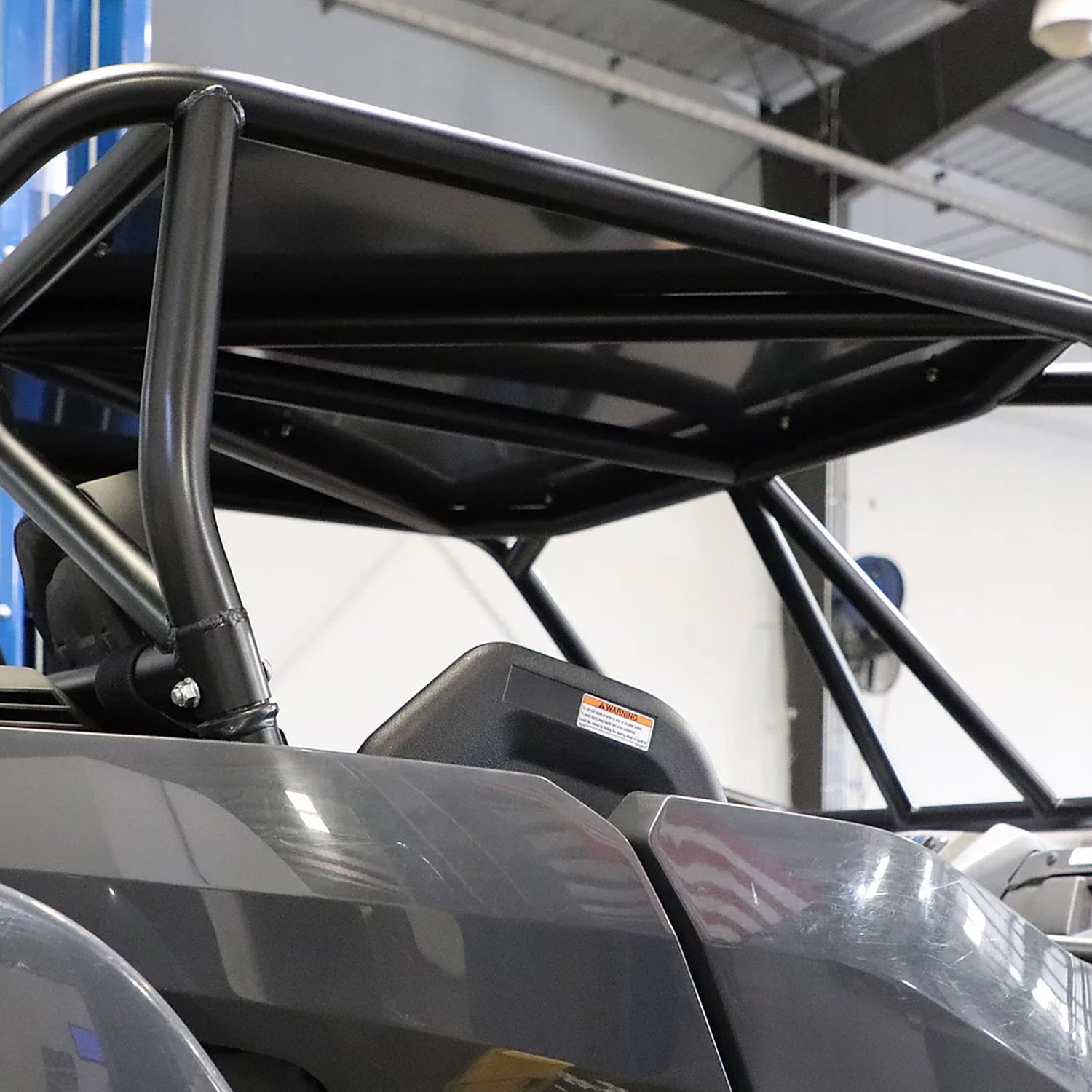

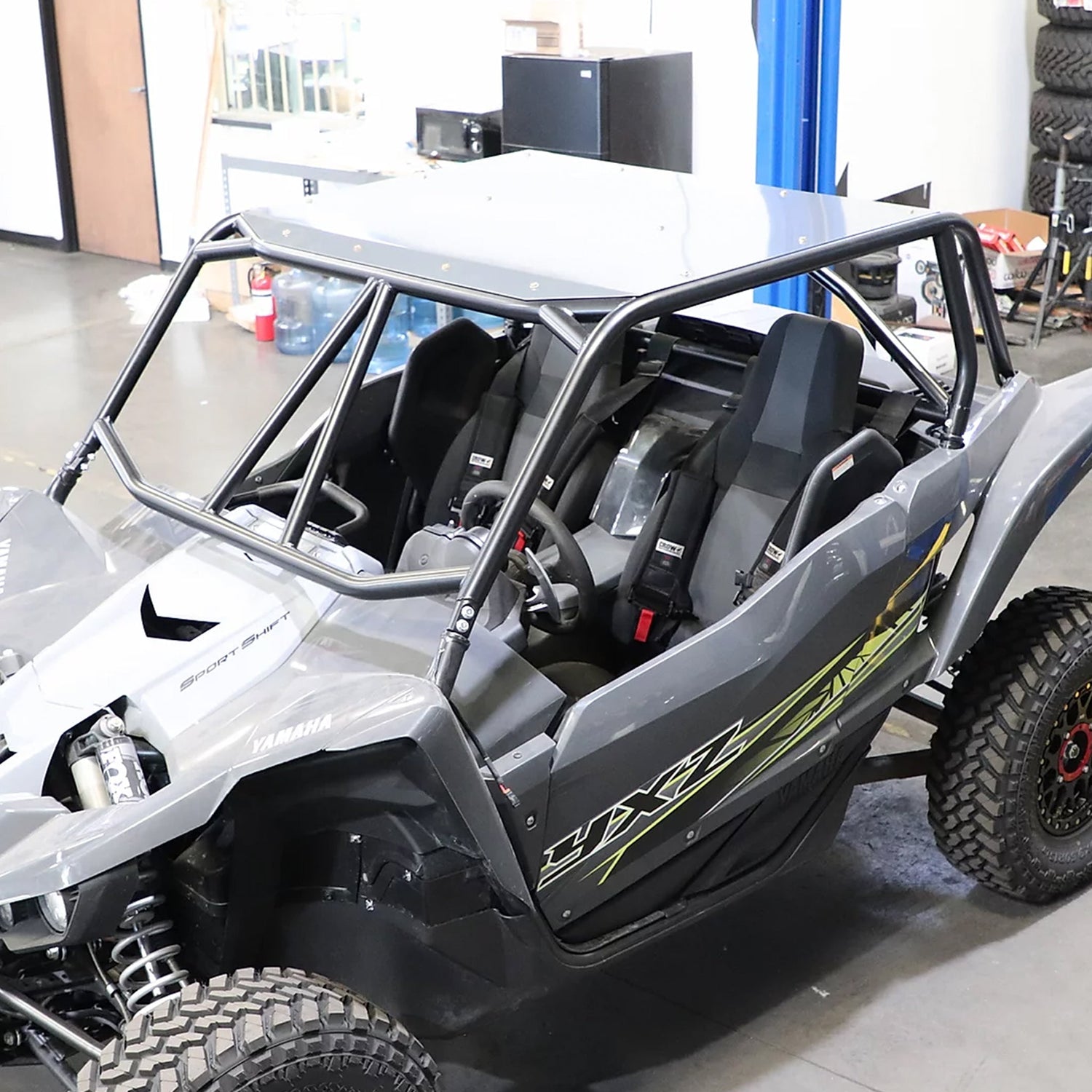

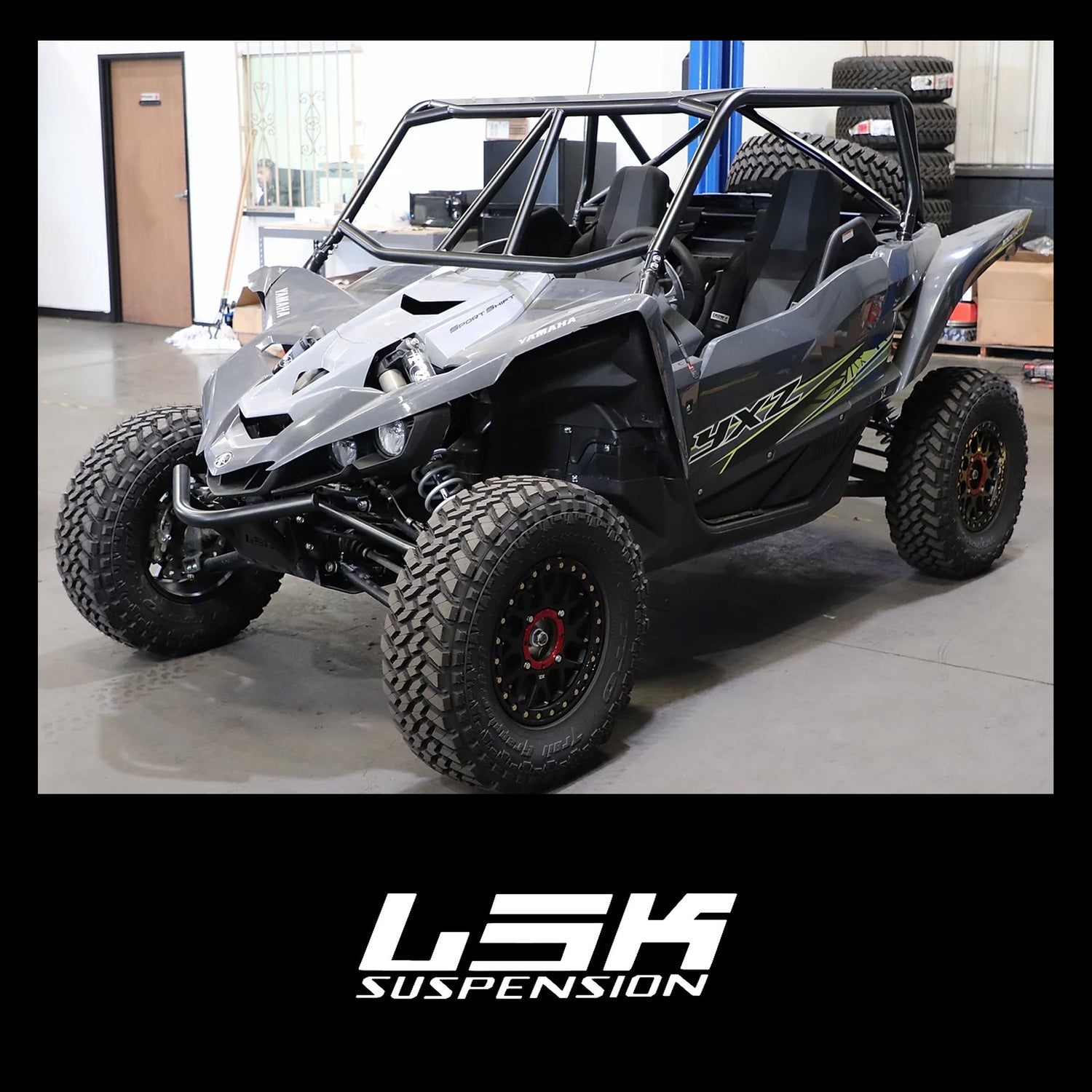

LSK Yamaha YXZ1000R Flat Roll Cage Kit

Introducing the weld it yourself cage kit for the Yamaha YXZ! This cage is built with .095" DOM tubing that can be either MIG or TIG welded without the use of a specialized fixture - just install the supplied connectors to the stock cage locations and piece together the cage on the vehicle.  For adding whips or antennas add some Whip Tabs to your order.

WE NOW OFFER FULL INSTALLS OF THIS PRODUCT AT OUR SIGNAL HILL, CA LOCATION (WELDING, CUSTOMIZATION, INSTALL & POWDERCOAT)

CONTACT US TO SCHEDULE AN APPOINTMENT

Includes:

•17 Laser cut tube pieces with laser etched part numbers on each component

•1.75" OD .095 Wall DOM Tubing for main structure

•1.50" OD .095 Wall DOM Tubing for windshield cross bars

•(4) A or C Pillar clamps & (2) B Pillar clamps to attach to OEM cage location

Requires:

•Welding - This kit can be welded together once configured on the vehicle

•For those who wish to compete with their UTV in the LUCAS OIL OFFROAD RACING SERIES, 0.120 wall main supports (from A to C pillar) ARE REQUIRED to race. We've added this convenient option to help teams with their cage needs

Upgrades:

•Aluminum Roof - .06 thick roof w/ small visor bend - Complete with weld on tabs and 1/4" grade 8 hardware

•.120 wall upgrade - All tubes are cut out of .120 wall DOM tubing for increased strength for racing applications (ADDITIONAL LEAD TIME)

Notes:

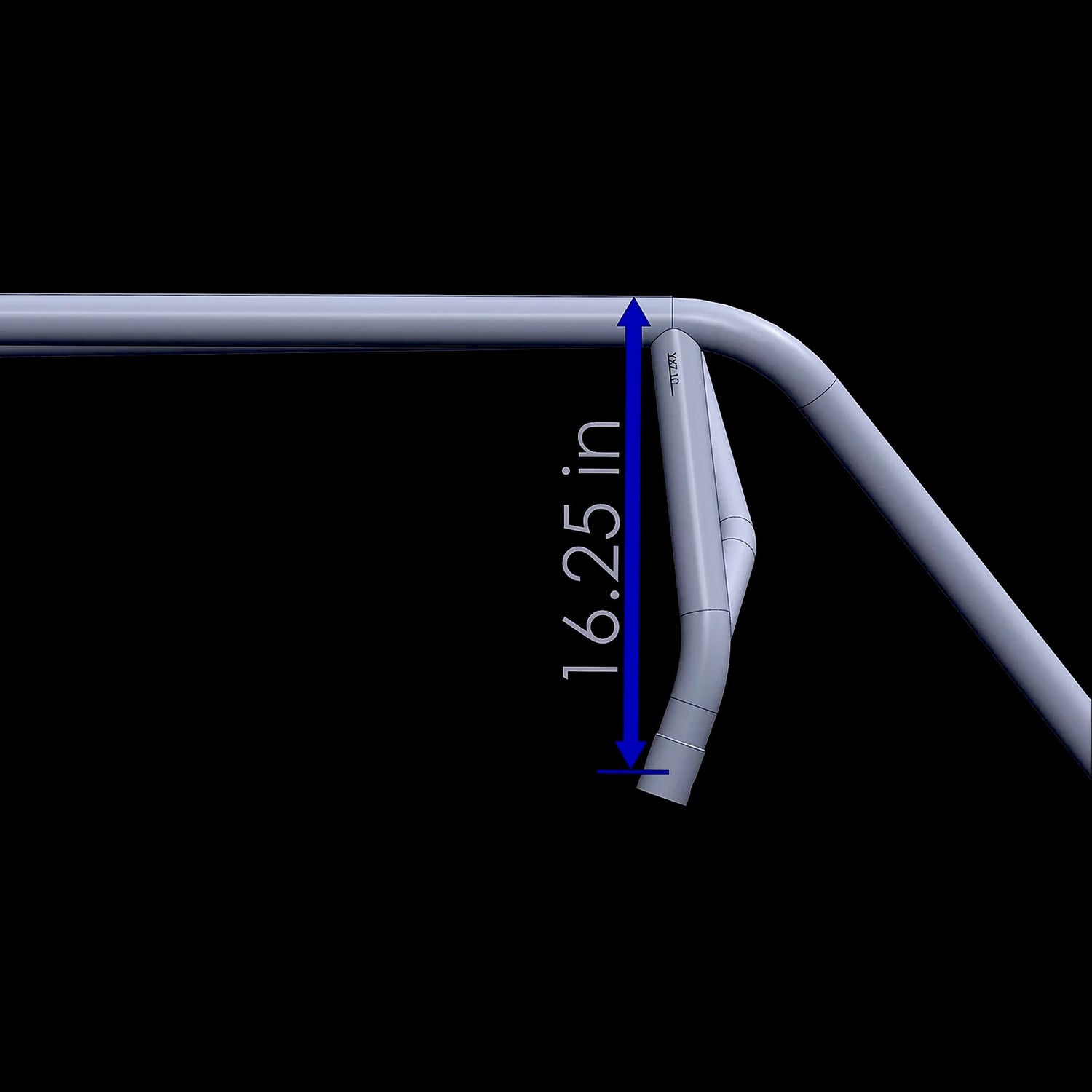

•This cage sits 16.25" (41.27cm) tall from center of B pillar through bolt

•Aluminum roof upgrade is a single piece of .06 aluminum with a slight visor bend up front to match the cage radius
