Orion XTR500.1D 500W RMS Monoblock Amplifier
Orion XTR500.1D 500W RMS Monoblock Amplifier est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
ORION XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier
Unleash Audio Excellence
The ORION XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier brings your sound to life. With advanced features and precision engineering, this amplifier elevates your audio experience, delivering exceptional power, clarity, and control.
Immersive Sound Reproduction
Rediscover your music with precision and depth. Every note and beat – from the softest to the most dynamic – is faithfully reproduced for an immersive listening journey.
Power and Clarity Combined
Experience the synergy of power and precision. The ORION XTR500.1D XTR Series Amplifier seamlessly integrates raw power with exceptional audio quality, crafting a sonic landscape that resonates deeply.
Elevate Your Drive
Step into a world of sonic brilliance with the ORION XTR500.1D XTR Series 500W RMS 1-Channel Class-D Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.
Class D Amplification - Embrace the efficiency and precision of Class D amplification for powerful and accurate sound reproduction.
500 Watts RMS - Experience dynamic power with 500 Watts RMS, delivering remarkable audio performance.
Precision Audio Control - The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.
Customized Bass Enhancement - Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.
Advanced Protection Measures - Equipped with protection circuitry, the amplifier ensures longevity by safeguarding against overheating and short circuits.
Compact and Efficient Design - The amplifier's compact form ensures versatile installation options without sacrificing performance.
Engineered Excellence - Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.
All MOSFET Power Supply & Output Stage
Heavy Gauge / High Current Custom Power and Speaker Terminals
12dB Octave Low-Pass Filter

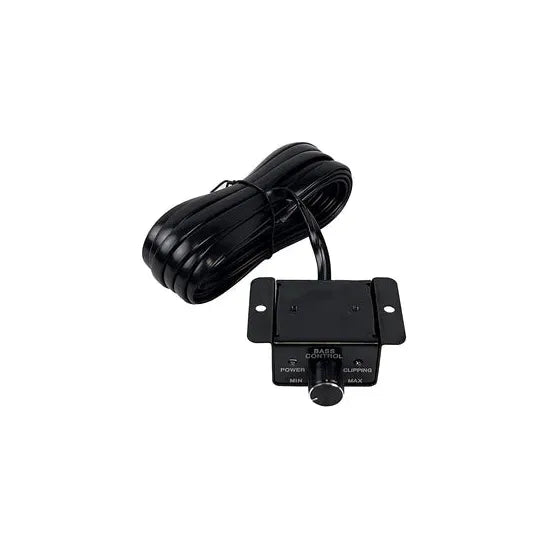

Remote Gain Controller Included
Electronic Crossover Network
Bass Boost Circuit
Power and Protection LED Indicators
Soft Turn-on/Turn-off Turn-On Delay
Fault and Protection Monitoring
4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage
- RMS Power @ 4 Ohms @ 0.5% THD+N: 125W
- RMS Power @ 2 Ohms @ 0.5% THD+N: 250W
- RMS Power @ 1 Ohm @ 0.5% THD+N: 500W
POWER TERMINAL MANAGEMENT
Positive Terminals: 1 x 4 AWG.
Negative Terminals: 1 x 4 AWG.
Remote Turn-ON Signal: 12 AWG.
Speaker Output Terminals: 12 AWG.
- Frequency Response: 15Hz - 250Hz
- Linear Bandwidth 15Hz to 250Hz +/- 3 dB
- Low Pass Crossover: 30Hz - 300Hz
- Supply Voltage: 9 - 16V
- Amplifier Efficiency: >80%
- Damping Factor: 200dB
- Signal to Noise Ratio: >90dB
- T.H.D. & Noise: 0.5%
- Phase Shift: 0 - 180
- Bass Boost: 0-18dB Variable
- Subsonic Filter: 10 - 25Hz
- Variable Input Level Control: 0.2V - 6.0V
- Fuses: **A recommended (* x **A ATC Fuses)
- Dimensions (L x W x H): 7.1" x 9.25" x 2.75" (180x235x70mm)
