Description
Description

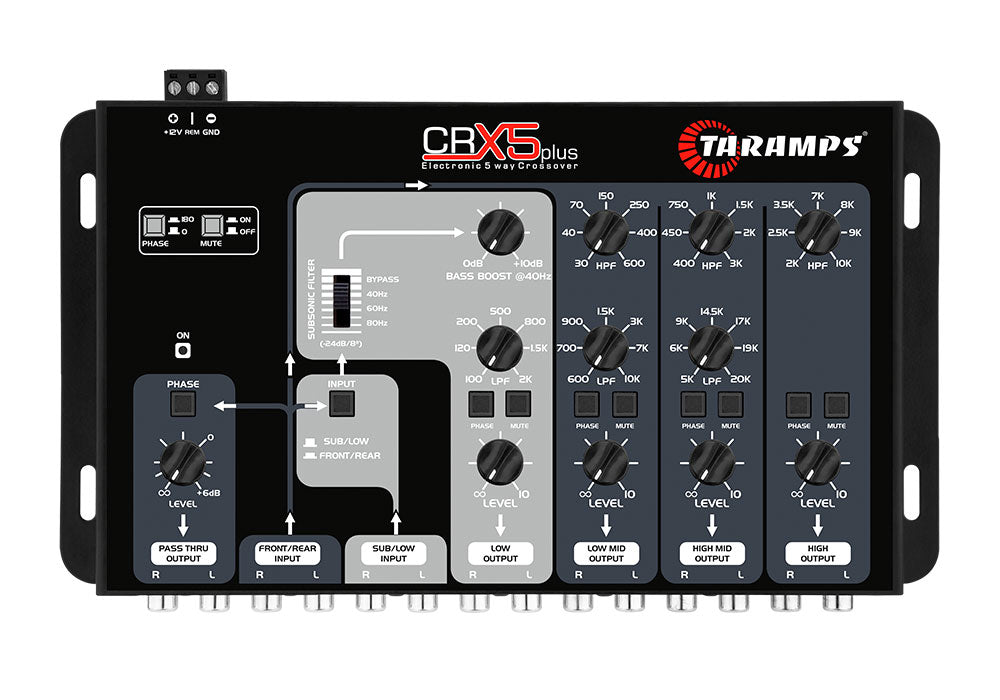

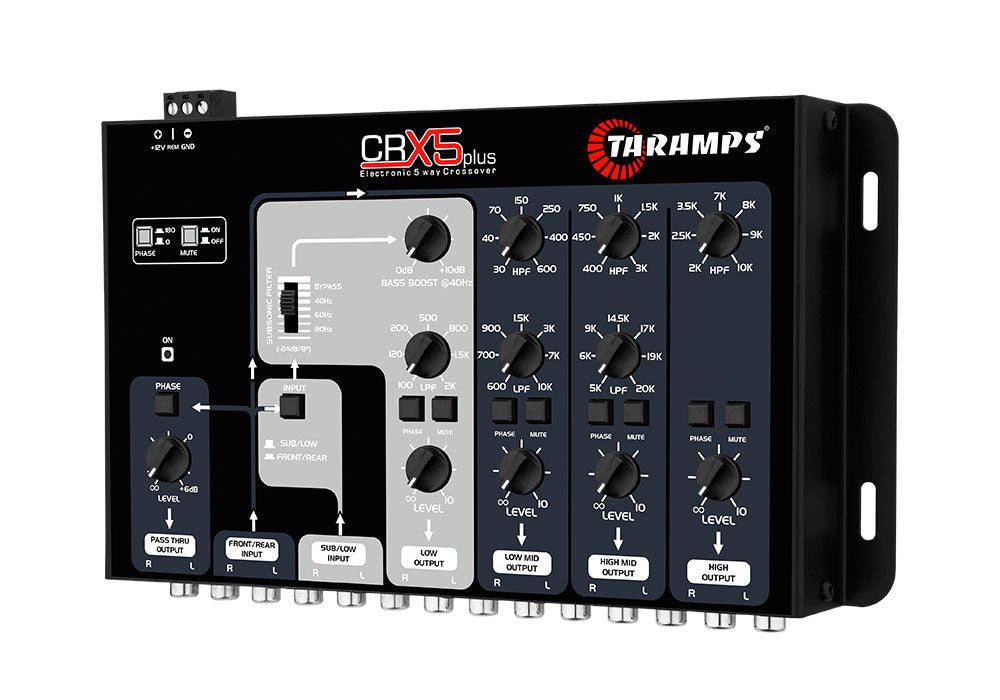

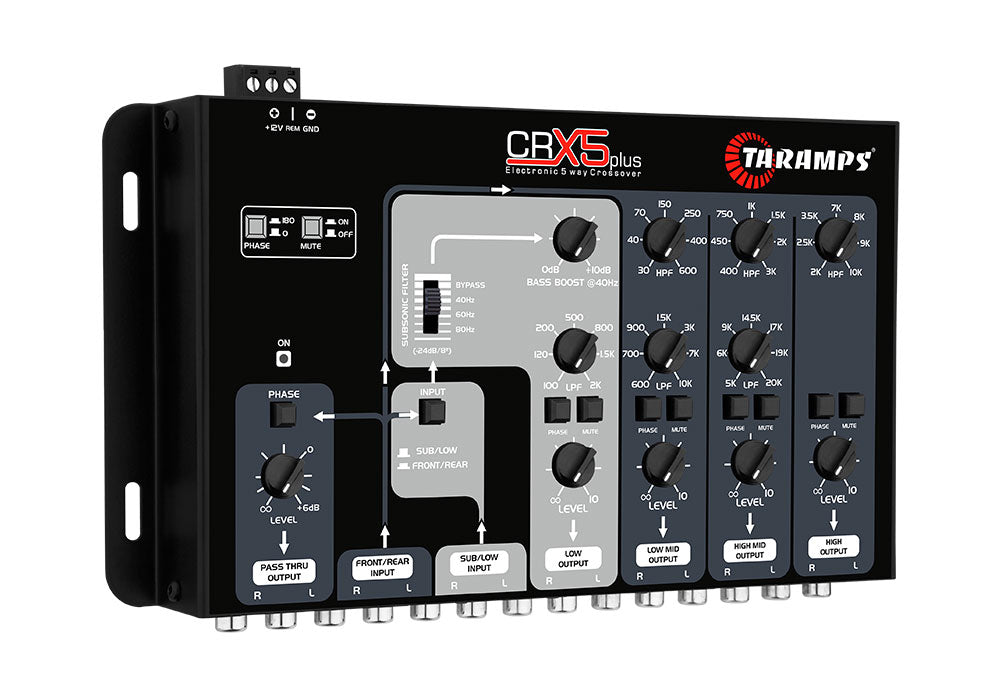

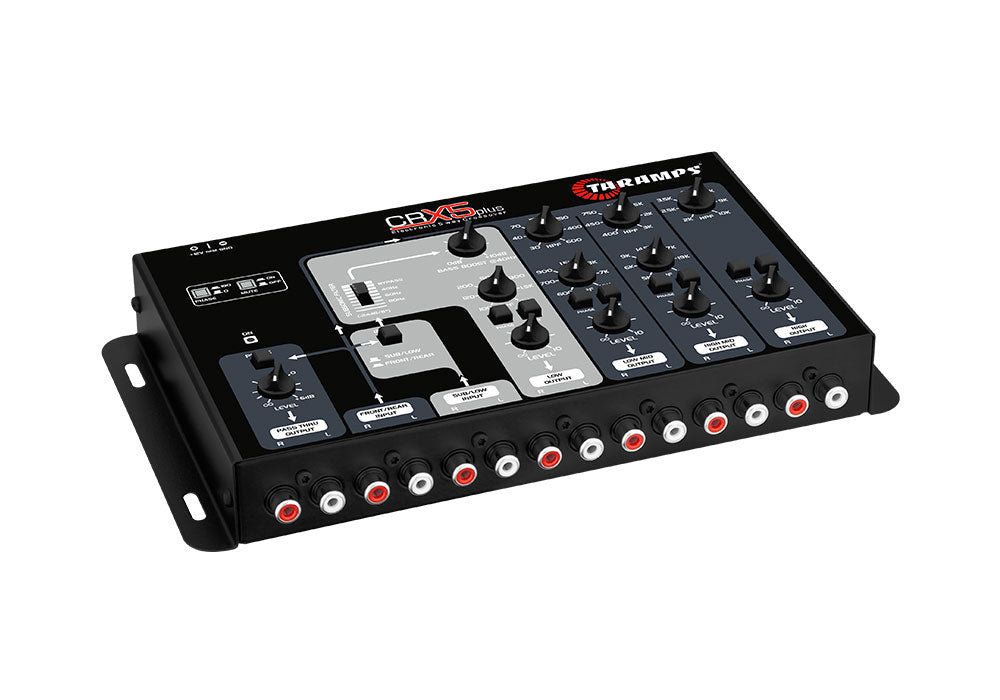

Enhance your car audio system with the Taramps CRX-5 PLUS active crossover. Its 5 independent channels, including the PASS THRU channel, are divided into LOW, LOW MID, HIGH MID, and HIGH, allowing practical and precise adjustment of the crossover points for multiple amplifiers and ensuring that your speakers receive only the ideal frequencies. In addition, all channels have Level and Phase adjustment (0° or 180°), also featuring the Bass-Boost function, which allows you to boost the 40Hz central frequency by up to 10 dB, providing even more performance for subwoofers. With a supply voltage range of 10.5 to 16 VDC and a maximum output level of 9.3 VRMS, the CRX-5 PLUS offers the versatility, quality, and performance you are looking for.
| Number of Channels | 4 + 1 Pass Thru |
|---|---|
| Output impedance | 470K Ohms |
| Maximum input level | R/L: 4.57V RMS @ (+15.4 dBu) |
| Maximum output level | R/L: 9.3V RMS @ (+21.6 dBu) Pass Thru R/L: 9.3V RMS @ (+21.6 dBu) |
| Total Harmonic Distortion | <0.01% ~1KHz |
| Crosstalk (separation between channels) | 85dB |
| protection system | Polarity Inversion |
| Via Low | Low Way (R+L) Mono Subsonic Filter: Selectable (Bypass/40/60/80Hz) (-24dB/8ª butterworth) Low Pass Filter: Variable 100Hz ~ 2KHz (-12dB/8ª Linkwitz-Riley) Bass Boost: Variable 0 ~ +10 dB (40Hz) Selectable Phase: 0/180 degrees Variable Level: -infinite ~ +10dB |
| Via Low Mid | Mid Low Way (R+L) Mono High Pass Filter: Variable 30Hz ~ 600Hz (-12dB/8ª Linkwitz-Riley) Low Pass Filter: Variable 600Hz ~ 10KHz (-12dB/8ª Linkwitz-Riley) Selectable Phase: 0/180 degrees Variable Level: -infinite ~ +10dB |
| Via High Mid | Mid High Way (R and L) Stereo High Pass Filter: Variable 400Hz ~ 3KHz (-12dB/8ª Linkwitz-Riley) Low Pass Filter: Variable 5KHz ~ 20KHz (-12dB/8ª Linkwitz-Riley) Selectable Phase: 0/180 degrees Variable Level: -infinite ~ +10dB |
| Via High | High Way (R and L) Stereo High Pass Filter: Variable 2KHz ~ 10KHz (-12dB/8ª Linkwitz-Riley) Selectable Phase: 0/180 degrees Variable Level: -infinite ~ +10dB |
| POWER SUPPLY VOLTAGE (POWER) | 10.5 ~ 16VDC |
| Dimensions (W x H x D) | 9.37” x 1.57” x 5.71” (238 x 40 x 145 mm) |
| Weight | 1.54lb (0.70 Kg) |
| EAN | 7898556841153 |
