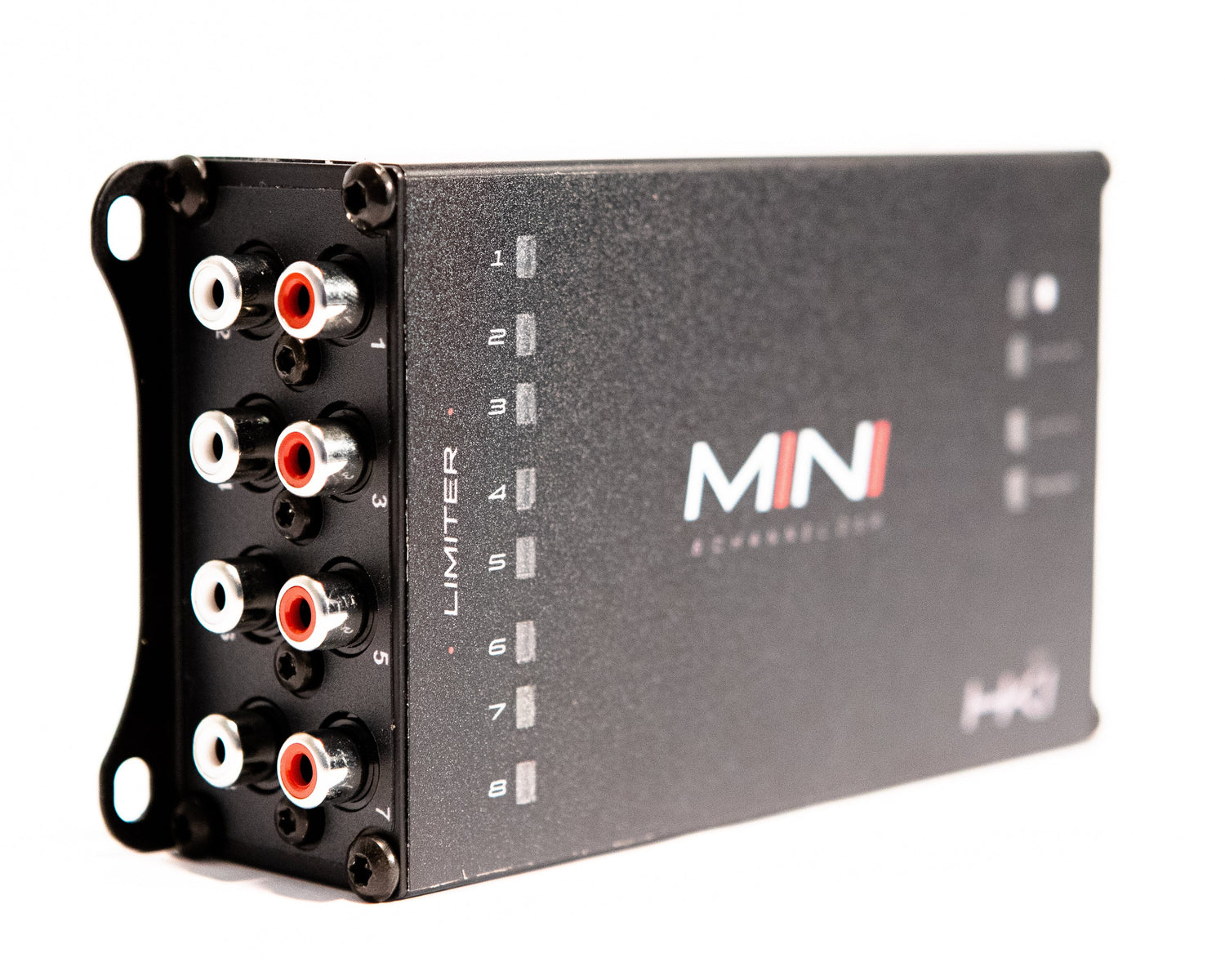

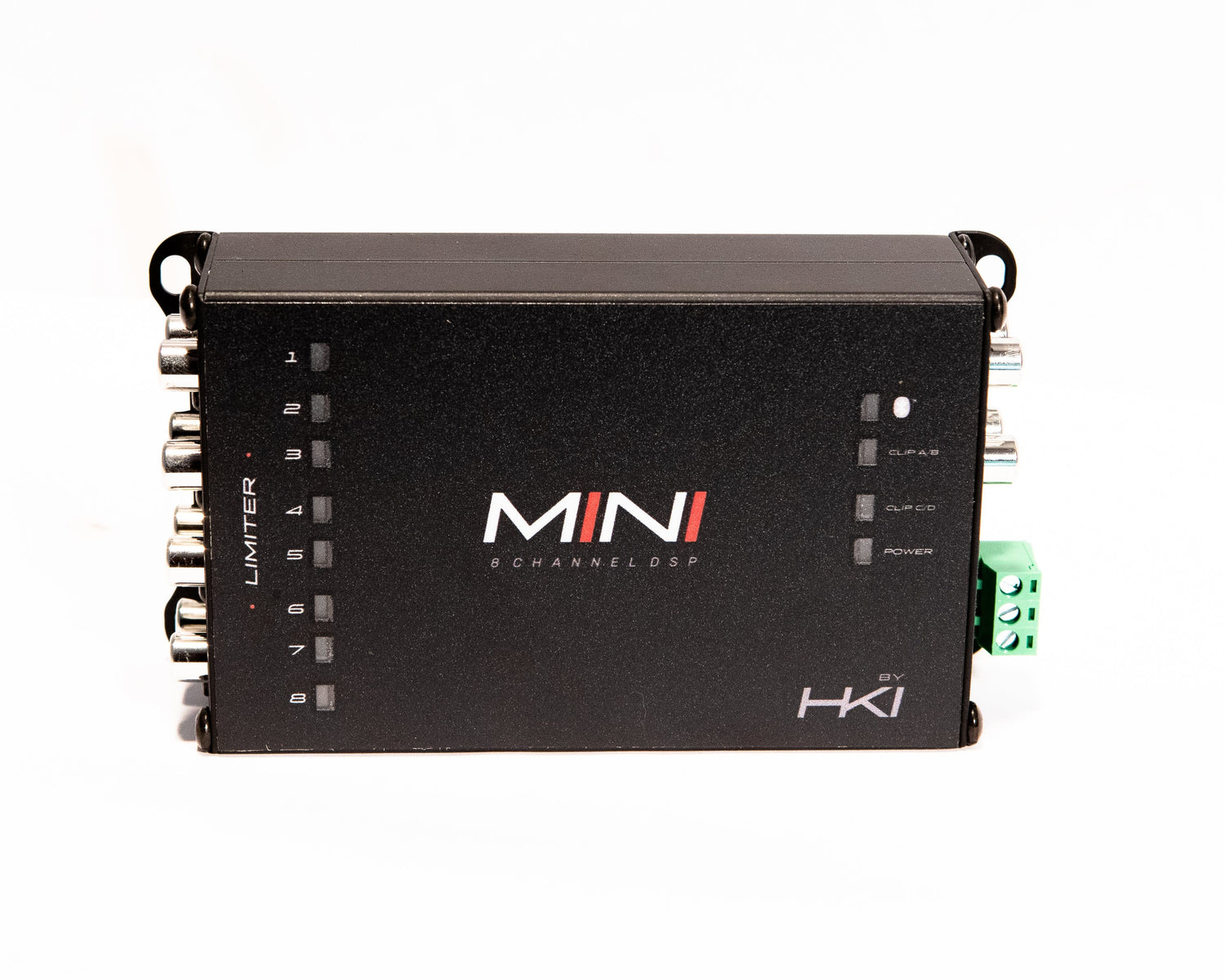

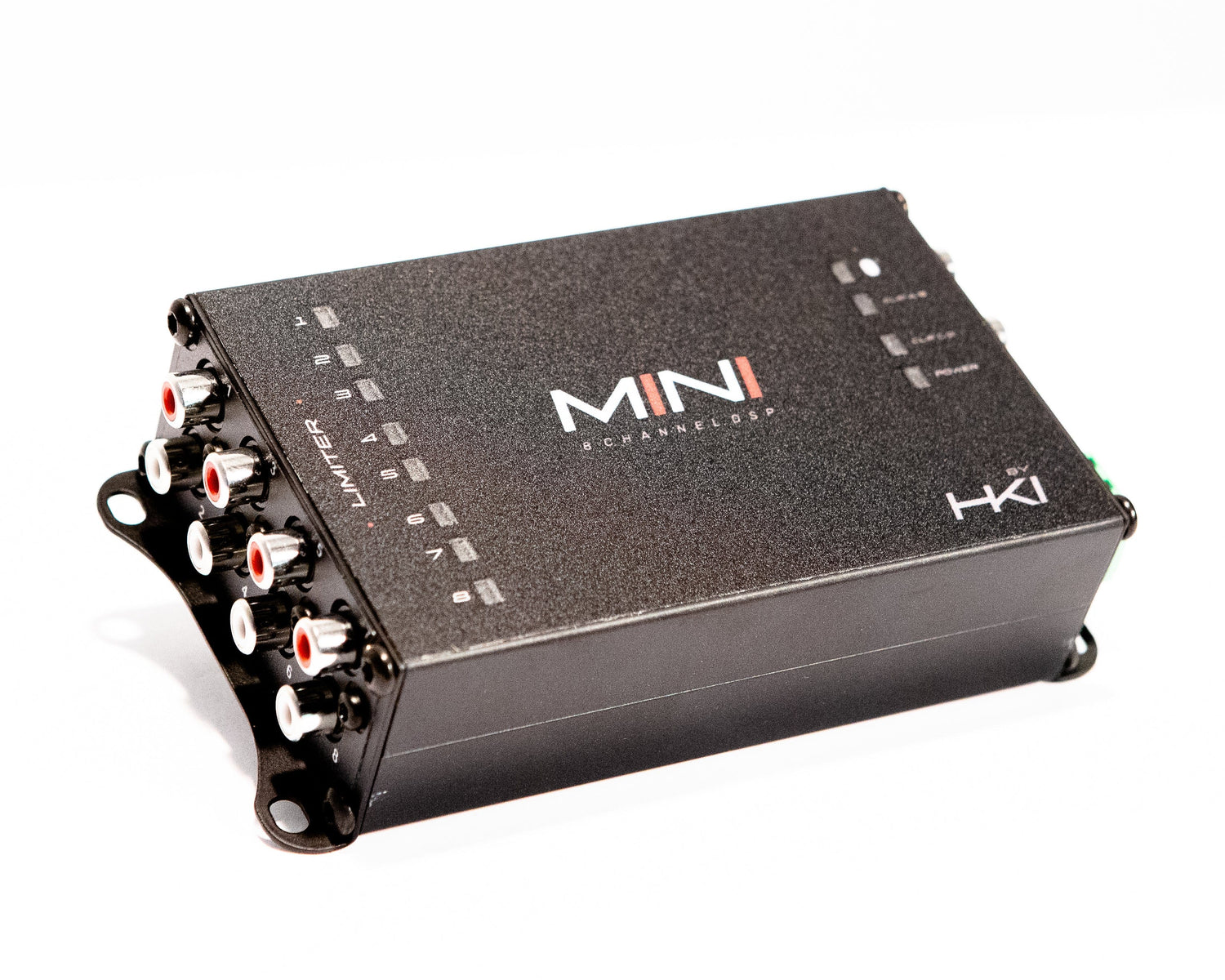

SOUNDIGITAL HKI MINI - DIGITAL SOUND PROCESSOR - DSP

4 in / 8 out processor that is designed for smartphone programming, low level integration with enough EQ and adjustment capability to tune a majority of builds out there. We knew that this processor would find a home in multiple styles of builds, so we also had the board conformal coated to help protect it in less than ideal environments.

• 8 Channel DSP
• 4 Balances RCA Inputs
• Max Input Level: 4Vrms(+14dBu)
• Input Impedance: 100KΩ
• 8 RCA Outputs
• Max Output Level: 3.5Vrms(+13dBu)
• Frequency Response: 10 Hz to 24 kHz (-1dB)
• THD+N: <0.01%
• Bit Rate: 32 Bits
• Sampling Frequency: 96 kHz
• Types of Crossovers: Linkwitz-Riley / Butterworth / Bessel (up to 48dB/oct)
• Input EQ: 15 bands
• Output EQ: 8 bands per channel (Q Factor: 0.6 to 0.99)
• Time Alignment: 0 to 18.95ms
• Limiter Threshold: -54 to +6 dB
• Attack: 1 to 200 ms
• Release: 1 to 988ms
• Phase Control
• 3 Presets
• Dimensions: 5.9 x 4.3 x 1.7 inches
