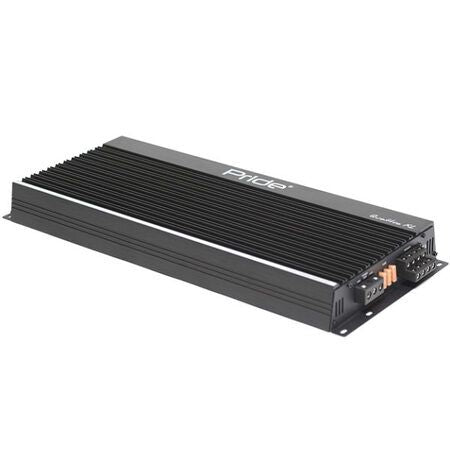

Amplifier Pride Quattro XL
Stylish and powerful 4-channel car amplifier with a developed crossover. This amplifier is created for true fans of the Pride brand who want to achieve maximum results in their speaker system. Due to the fact that the Pride Quattro XL belongs to the class AB amplifiers, you can get excellent sound quality from your system with proper setup.
Pride Quattro XL is a 4-channel AB class amplifier. Stably works at a load of 2 ohms per channel, or 4 ohms in the “bridge switching mode” of the channels. The power of each of the four channels is 175 W for a load of 4 Ohms or 300 W for a load of 2 Ohms, at a voltage of 14.4 V and K.N.I. 1%.
The Quattro X is equipped with 3 40 A fuses, as well as high and low frequency filters with a wide operating range.
Amplifier Quattro X has excellent heat dissipation due to the massive aluminum case, more than 500 mm in length.

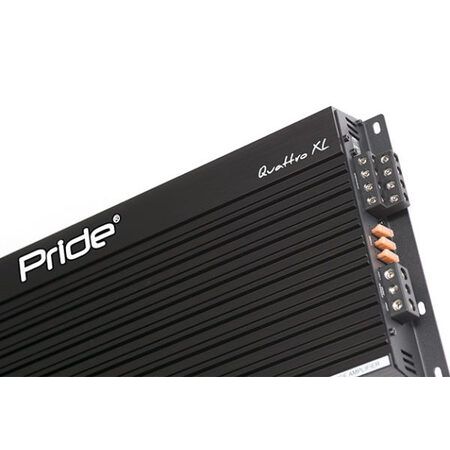

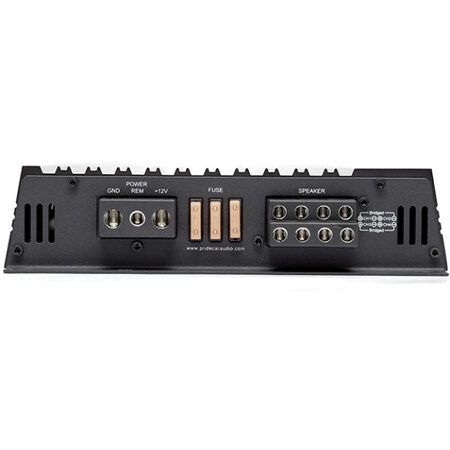

The Pride Quattro XL is equipped with practical terminals for secure cable fixation and guarantees a high level of reliability and assembly. The updated version features improved temperature protection and filter multipliers.
RMS rated power of 2 ohms, number of channels x W 4 x 300
RMS rated power at 4 ohms, number of channels x W 4 x 175
RMS rated power at 4 ohms (mono), W 600
Range of reproduced frequencies, Hz 15 – 30000
You can install a quality solution for Your car and connect 4 channel speakers or Twitters. It is possible to work in 2 Ohms.
Our products are available in the USA and you can buy the best car audio equipment right now!
Part number: Q.150XL
| Technical feature | |
|---|---|
| 2 Ohm Power | 300 W x 4 |
| 4 Ohm Power | 175 W x 4 |
| 4 Ohm Power Mono | 600 W x 2 |
| Frequency Response | 15 Hz - 30 KHz |
| Signal to Noise | 100 dB |
| Efficiency @ 4ohm | Over 65% |
| Damping Factor | > 200 |
| Input Sensitivity | 8V-0,3V |

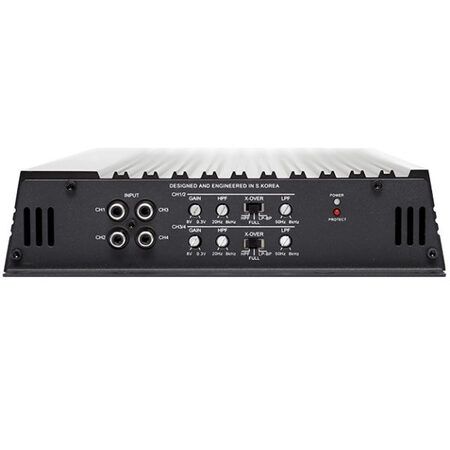

| High Pass Filter | 20 Hz - 8 KHz |
| Low Pass Filter | 50 Hz - 8 KHz |
| Strap Connection | No |
| Fuse Rating | 120 A (3 x 40A) |
| Physical feature | |
| Length | 500 mm/19,6" |
| Height | 53 mm/2" |
| Width | 220 mm/8,6" |
| Color | Black |
