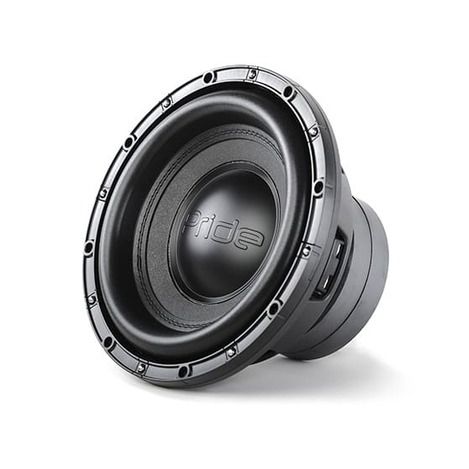

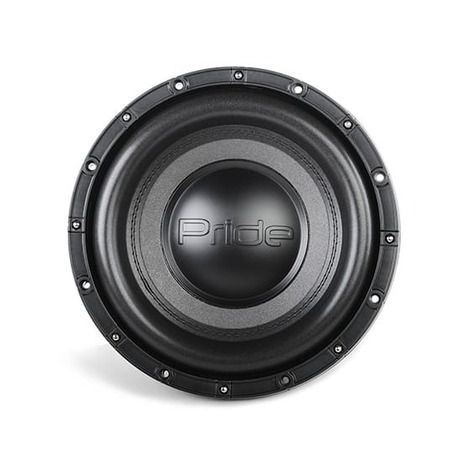

Subwoofer Pride M9.10

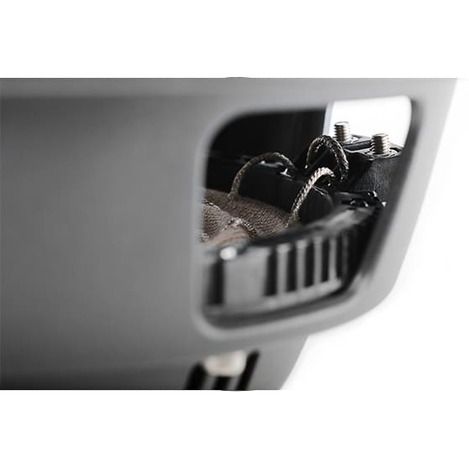

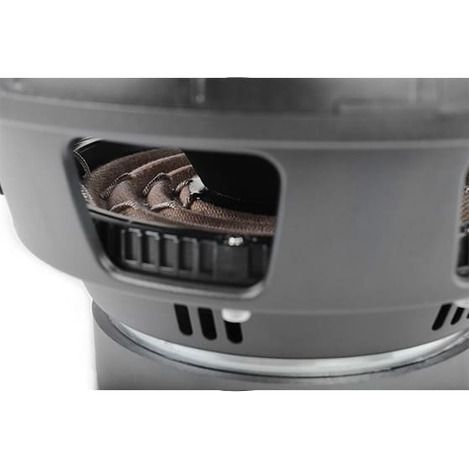

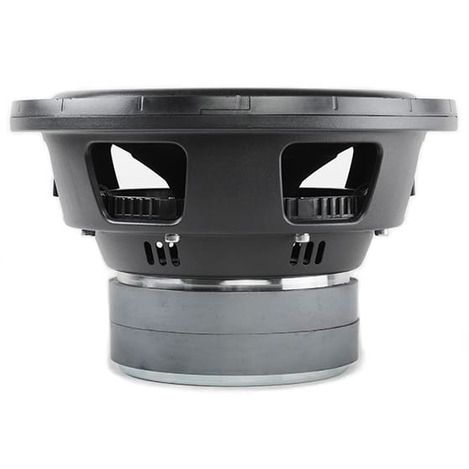

Subwoofer speaker Pride M9.10 with a unique modular design from Pride. The design of the basket with a magnetic system radiator provides effective distribution of air flows for maximum cooling effect. Magnetic system made of ferrite of the highest standard, calculated by the finite element method with high induction in the gap.
High temperature 2.5″ voice coil wound with copper wire gives the highest possible heat resistance.
A subwoofer is a low-frequency speaker designed to reproduce the lowest frequencies, approximately 20 to 63 Hz, and serves as an addition to a car’s audio system.
RMS – 900W
Size – 10”
Subwoofers manufactured by the leading company Pride stand out among their analogues with the following advantages:
Hot pressing of the washers and the use of woven material for the centering washers allows you to realize the full potential of the speaker under various operating conditions.
Automated gluing of magnetic systems to test the magnetic system according to all characteristics.
Special glue for each unit of the Pride acoustics allows for maximum strength and elasticity of the moving units.
Acoustic meshes are designed individually for the entire model range, therefore they effectively protect diffusers from mechanical damage
Please yourself with powerful bass, clear sound and reliable equipment with Pride Car Audio!
Subwoofer available in the USA!
Product number: M9.10D18
| General feature | |
|---|---|
| Power Handling (RMS) | 900 W |
| VC diameter / material | 2,5" round copper |
| VC wire insulation | Polyimide |
| Frame material | Steel |
| Magnet size and q-ty | 156*24mm x 2 pcs / 6,14*0,94" x 2 pcs |
| Spider diameter and q-ty | 193mm x 3 pcs / 7,6" x 3 pcs |
| Cone material | Paper with glass fiber |
| Dust cap material | Hi-temp ABS |
| Parameters | |
| DC Resistance (Re) | 1,8+1,8 Ω |
| Free Air Resonance (Fs) Hz | 33,6 |
| Moving Mass (Mms) g | 205 |
| BL Tm | 15,9 |
| Total Speaker “Q” (Qts) | 0,58 |
| Electrical Q (Qes) | 0,65 |
| Mechanical Q (Qms) | 5,15 |
| Equivalent Compliance (Vas) L | 17,2 |
| One-Way Linear Excursion (Xmax) (BL 50%) mm | 17 |
| Sensitivity (1 W / 1 m) dB | 84,1 |
| Effective Piston Area (Sd) cm² | 337 |
| Physical Specifications | |
| Overall Diameter | 275mm / 10,83" |
| Mounting Hole Diameter | 242mm / 9,53" |
| Mounting Depth | 149mm / 5,87" |
| Driver Displacement | 2 l / 0,53 Gal |
| Net Weight | 7,7 kg / 16,98 lbs |
