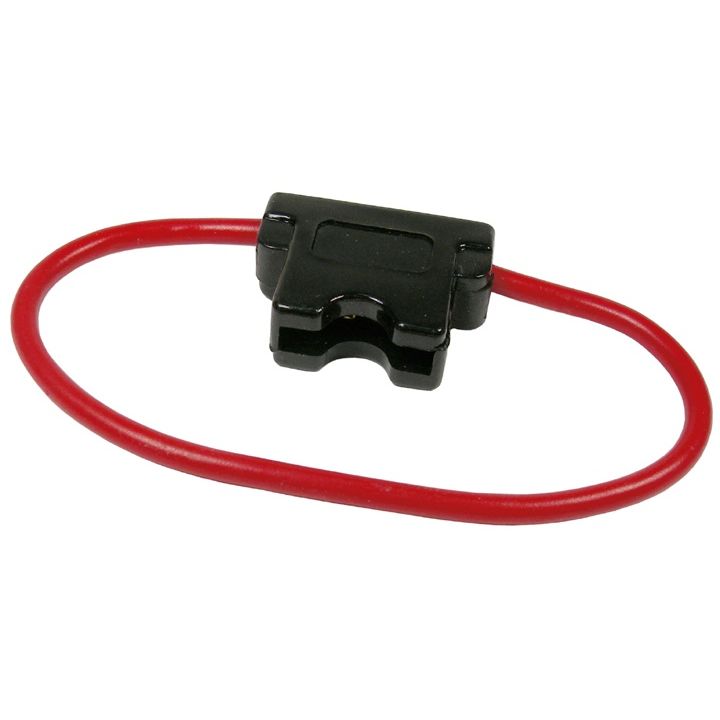

PICO 0963X Waterproof 12GA ATC/ATO Fuse Holder

PICO 0963X – 12-Gauge Waterproof Inline Fuse Holder for ATC/ATO Fuses (20A Rated, 7" Wire Loop)

The PICO 0963X is a rugged waterproof inline fuse holder designed for ATC/ATO blade fuses in 12V–24V DC systems. Constructed with durable thermoplastic housing and a snap-seal waterproof cap, this fuse holder protects circuits in harsh environments while ensuring safe, dependable power distribution. Pre-wired with a 7-inch loop of 12-gauge copper wire, it's ideal for marine, automotive, powersports, off-road, and trailer wiring applications.

Specifications:

• Model: 0963X

• Wire Gauge: 12 AWG stranded copper

• Fuse Type: ATC/ATO standard blade fuse (20A max recommended)

• Wire Length: 7" total loop (approx. 3.5" each side)

• Voltage Rating: Up to 32V DC

• Current Rating: 20 Amps max

• Housing Material: High-temp thermoplastic with waterproof cap

• Color: Typically black body with red wire leads

Features:

• Waterproof design with snap-fit cap for outdoor and wet environments

• Heavy-duty 12GA wire supports up to 20A safely

• Compatible with standard automotive and marine blade fuses

• Easy installation – splice inline for quick protection

• Ideal for trailer lights, off-road vehicles, boats, RVs, and 4x4s

Built to handle vibration, moisture, and the elements, the PICO 0963X ensures long-lasting circuit protection in demanding applications.
