Orion XTR750.2 - 750 Watt RMS 2 Channel Class A/B Amplifier

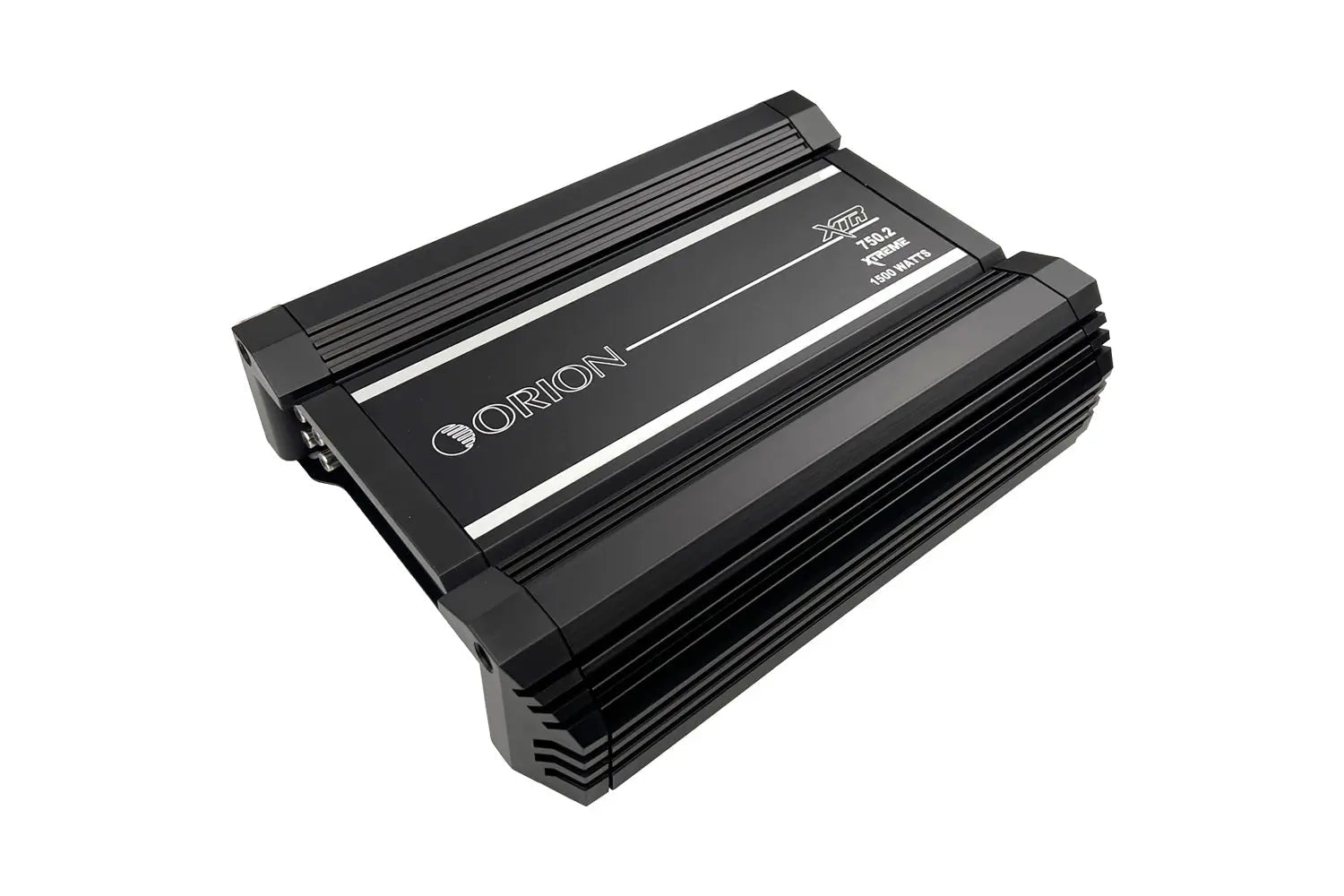

ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier

Unleash Auditory Excellence: The ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier empowers your audio experience. With advanced features and precision engineering, this amplifier transcends conventional boundaries, delivering a fusion of power, accuracy, and control to your car audio system.

Immersive Sound Reproduction: Rediscover your music in its truest form. Every note, beat, and melody – from the softest to the most dynamic – is faithfully reproduced for an immersive and authentic listening experience.

Power and Precision Combined: Experience your music with remarkable power and precision. The ORION XTR750.2 XTR Series Amplifier seamlessly blends commanding power with exceptional audio quality, creating an unforgettable auditory journey.

Elevate Your Drive: Step into a world of sonic magnificence with the ORION XTR750.2 XTR Series 750W RMS 2-Channel Class-AB Amplifier. Elevate your audio journey, redefine your driving soundtrack, and immerse yourself in an elevated level of musical satisfaction. It's time to embrace sound in its purest form.

Class AB Amplification: Experience the harmonious blend of efficiency and precision with Class AB amplification for powerful and accurate sound reproduction.

750 Watts RMS: Immerse yourself in a world of audio excellence with 750 Watts RMS, delivering dynamic and clear sound performance.

Precision Audio Control: The adjustable built-in crossover allows meticulous calibration of audio frequencies, optimizing speaker performance.

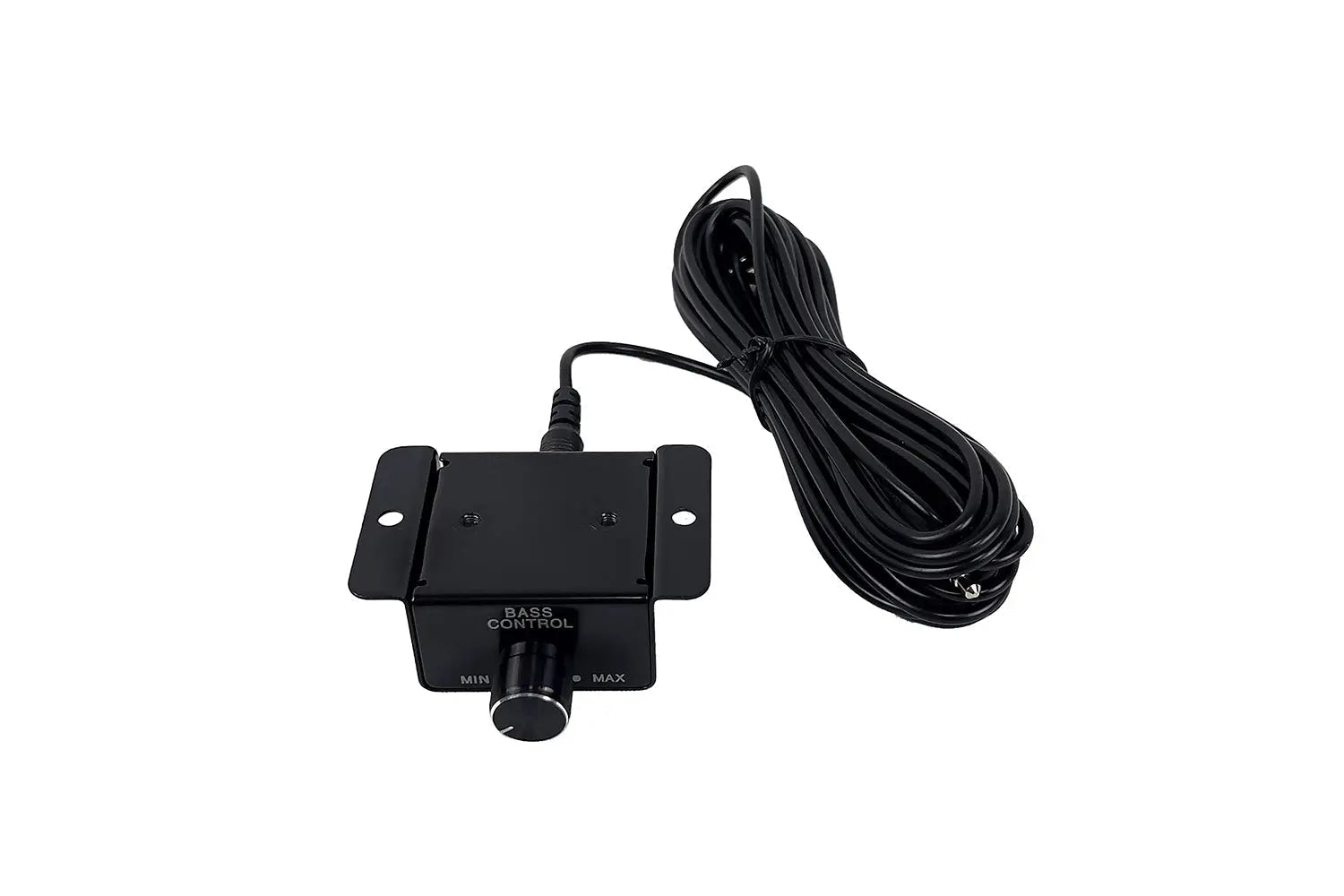

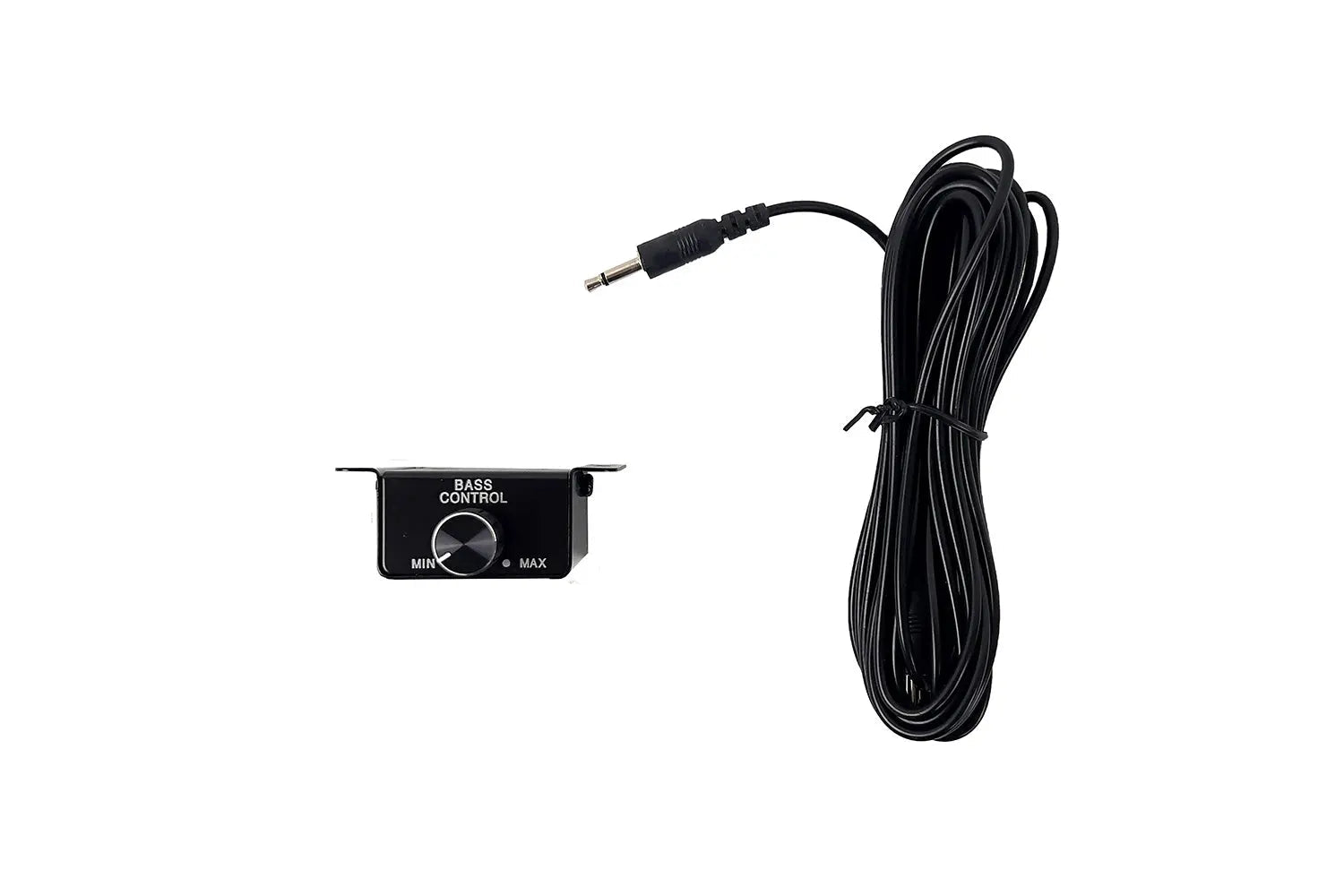

Customized Bass Enhancement: Elevate your low frequencies with the adjustable bass boost feature, delivering impactful and resonant bass notes.

Advanced Protection Measures: Equipped with protection circuitry, the amplifier safeguards against overheating and short circuits, ensuring durability.

Compact and Efficient Design: The amplifier's compact design offers versatile installation options without sacrificing performance.

Engineered Excellence: Meticulously engineered for optimal audio precision, power efficiency, and steadfast operation.

-All MOSFET Power Supply & Output Stage

-Heavy Gauge / High Current Custom Power and Speaker Terminals

-2-Ohm Stable

-RCA Out Throughput

-12dB Octave Low-Pass Filter

-Electronic Crossover Network

-Bass Boost Circuit

-Intelligent Power and

-Protection LED Indicator

-Soft Turn-on/Turn-off

-Turn-On Delay

-Fault and Protection Monitoring

-4-Way Protection- Thermal, DC offset, Short Protection, under & over voltage.

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 225W

- RMS WATTS @ 2 Ohms @ 0.5% THD+N: 2 x 375W

- RMS WATTS @ 4 Ohms @ 0.5% THD+N: 1 x 750W

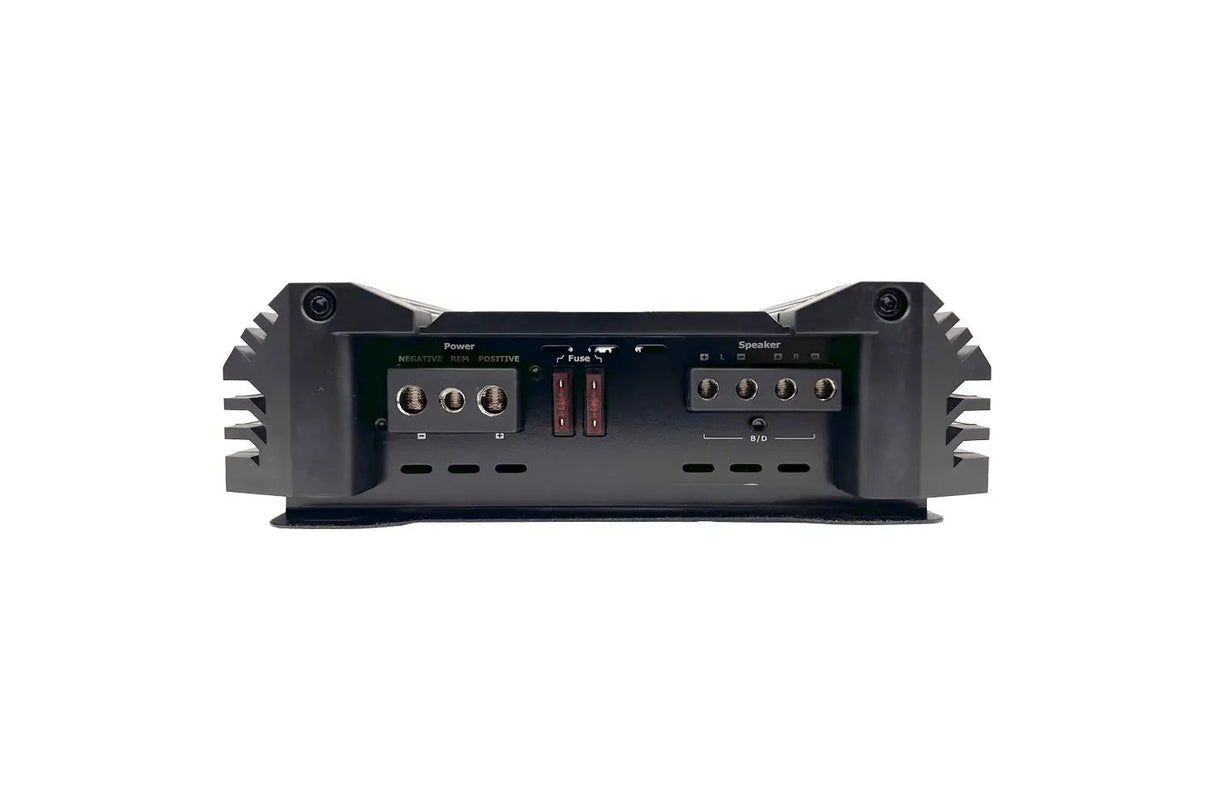

 POWER TERMINAL MANAGEMENT

  Positive Terminals: 1 x 4 AWG.

  Negative Terminals: 1 x 4 AWG.

  Remote Turn-ON Signal: 10 AWG.

  Speaker Output Terminals: 12 AWG.

Frequency Response: 10Hz - 35kHz

Linear Bandwidth 20Hz to 65kHz +/- 3 dB

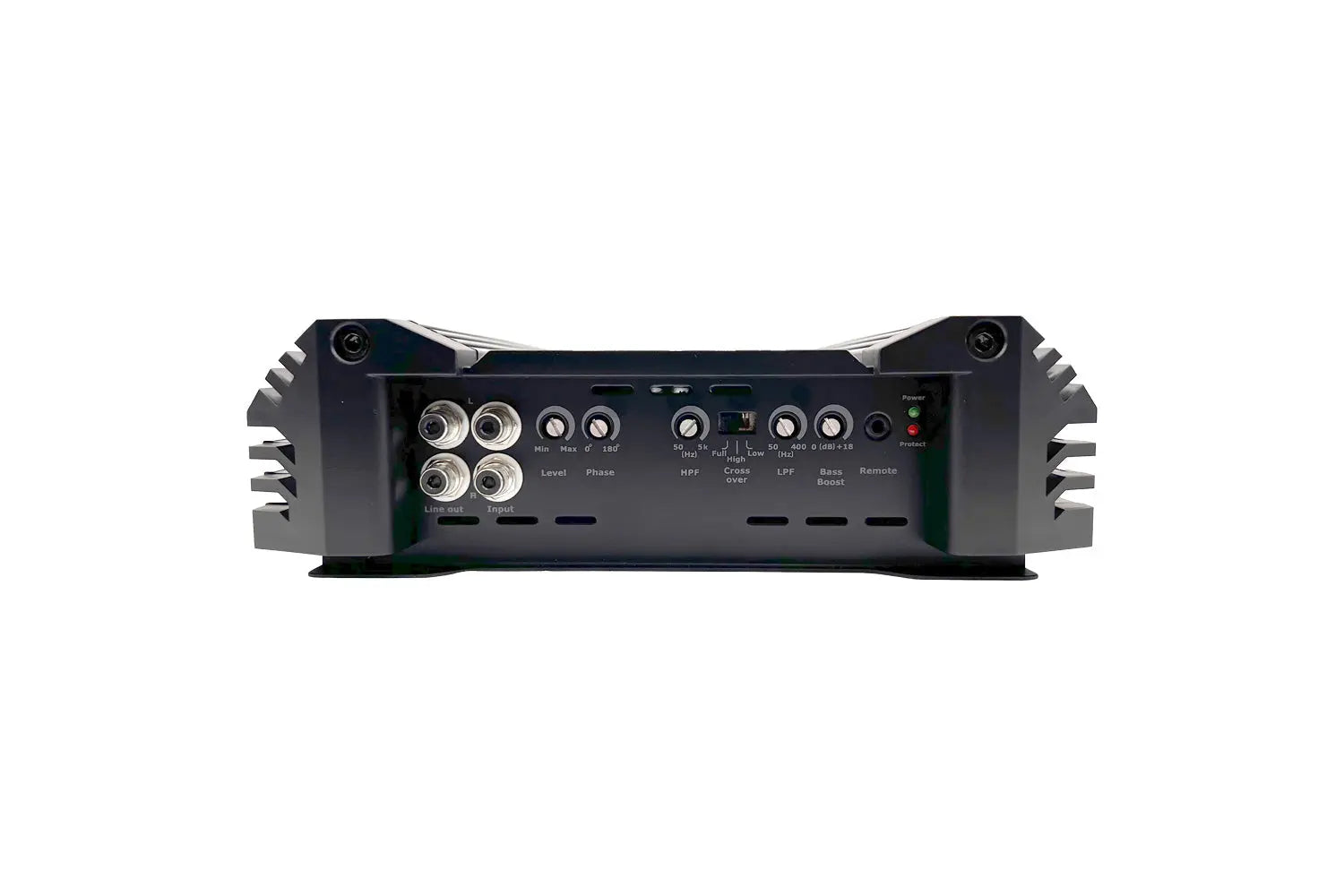

High Pass Crossover Continuously variable (50-1.5kHz/500-15kHz)

Low Pass Crossover Continuously variable (50-400Hz)

Supply Voltage: 9 - 16V

Amplifier Efficiency: >80%

Damping Factor: 100dB

Signal to Noise Ratio: >95dB

T.H.D. & Noise: 0.5%

Phase Shift: 0 - 180

Bass Boost: 0-18dB Variable

Variable Input Level Control: 0.2V - 6.0V

Fuses: 80A recommended (2 x 40A ATC Fuses)

Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
