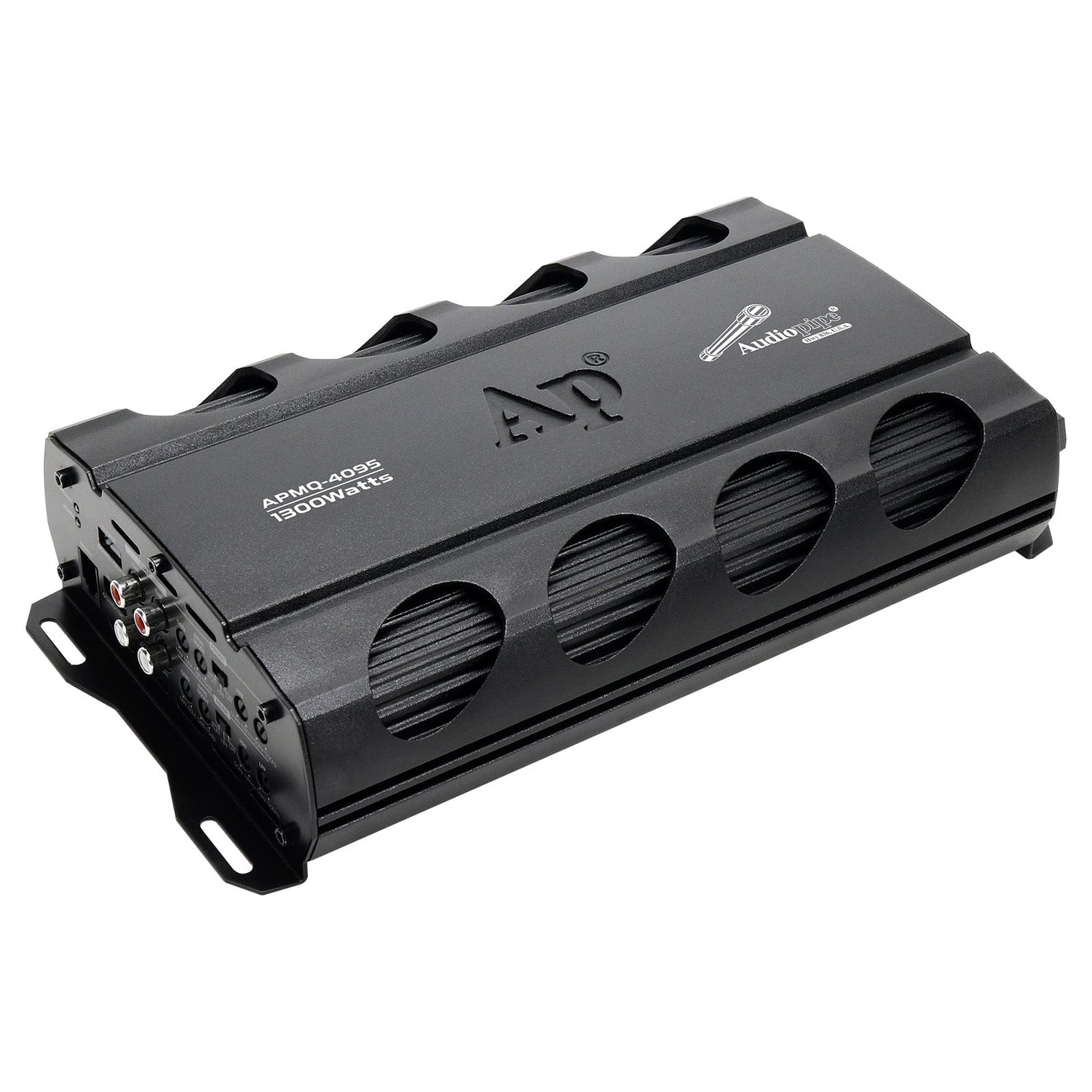

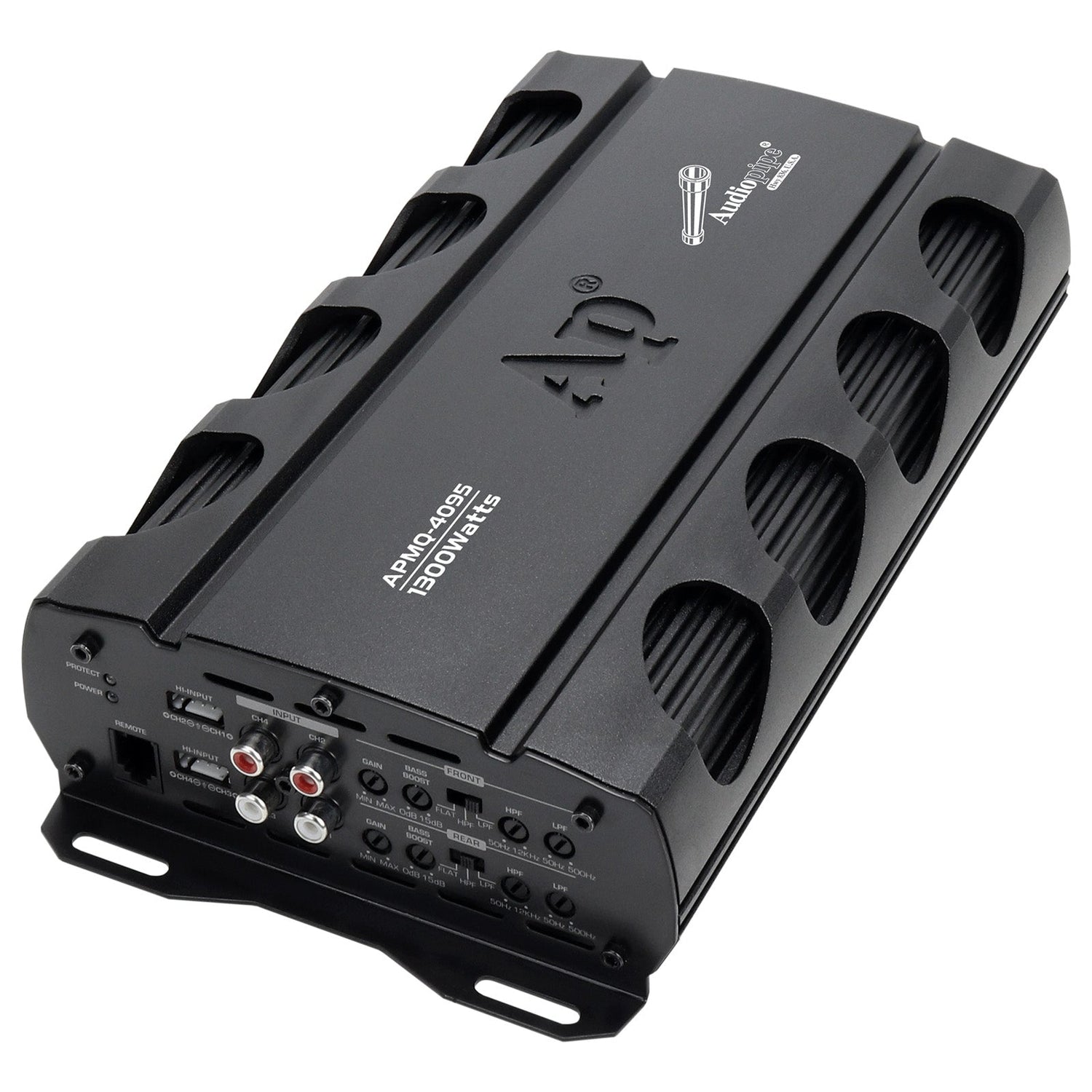

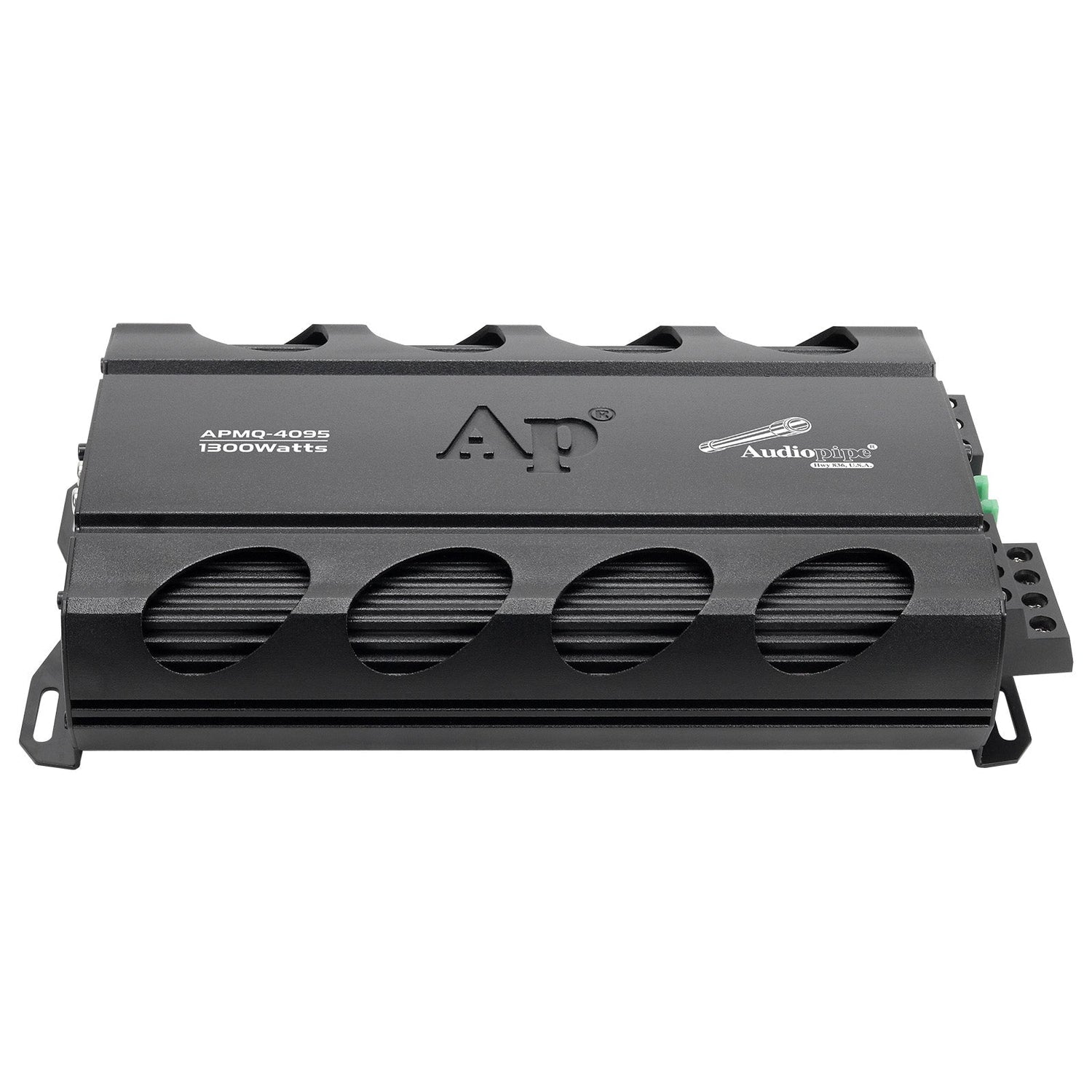

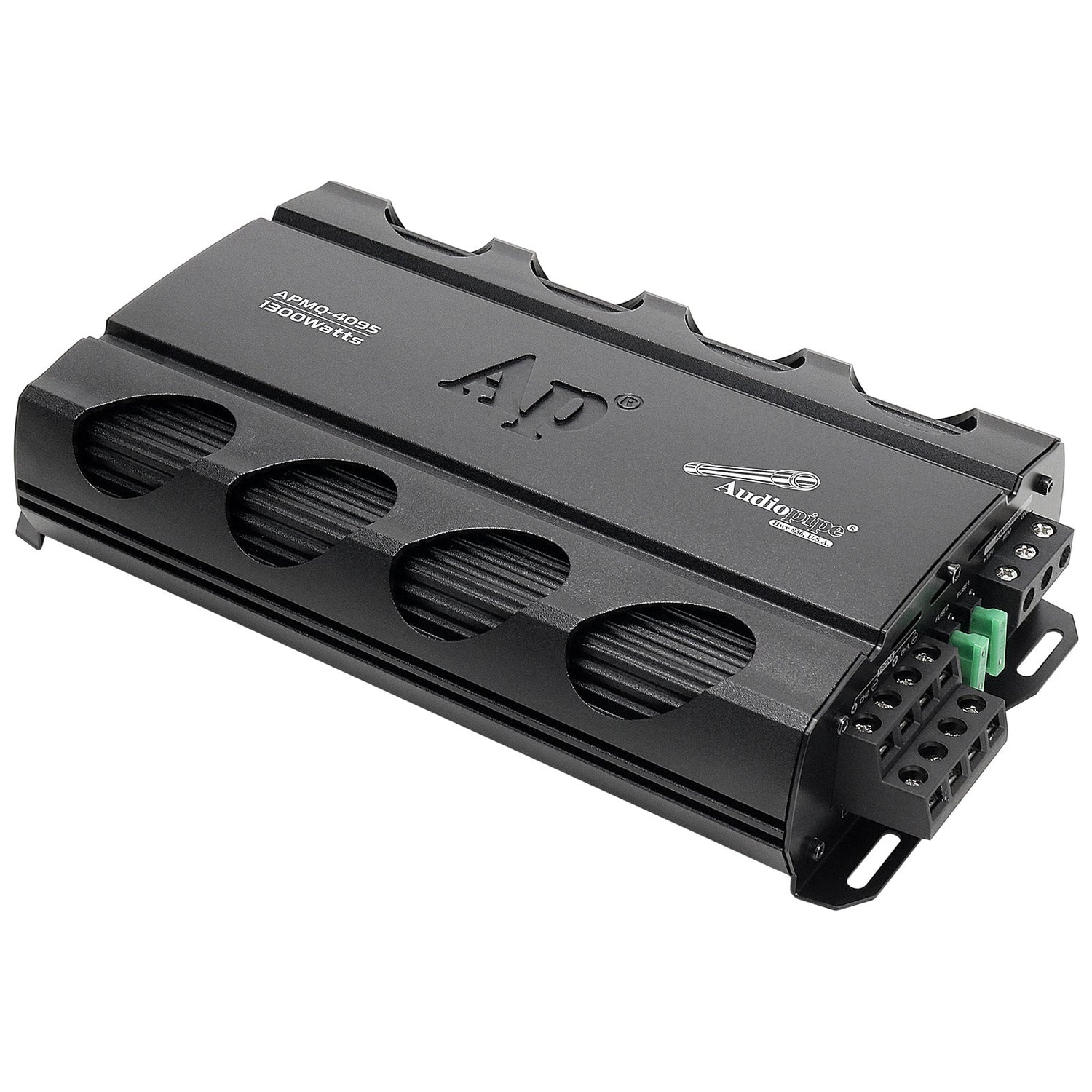

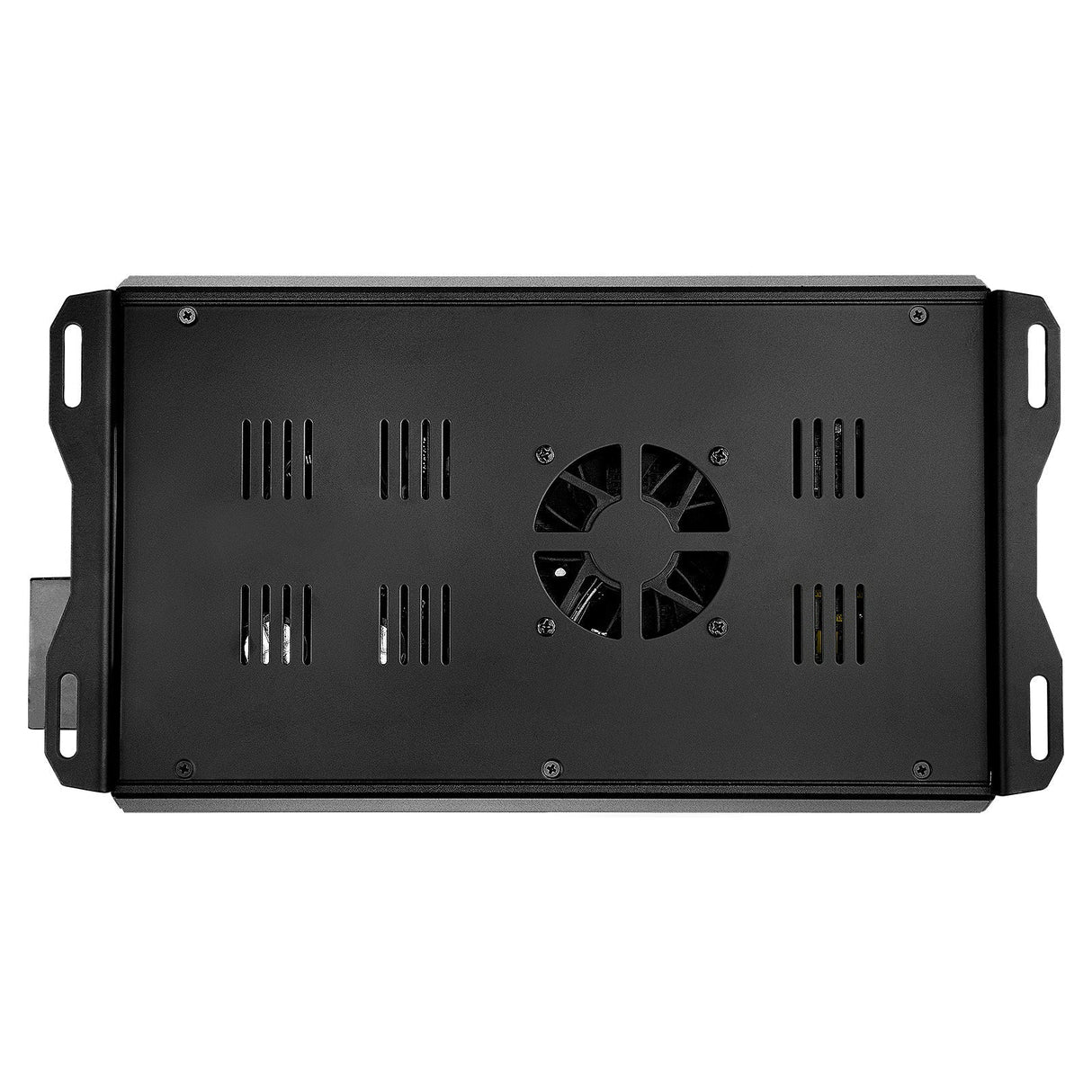

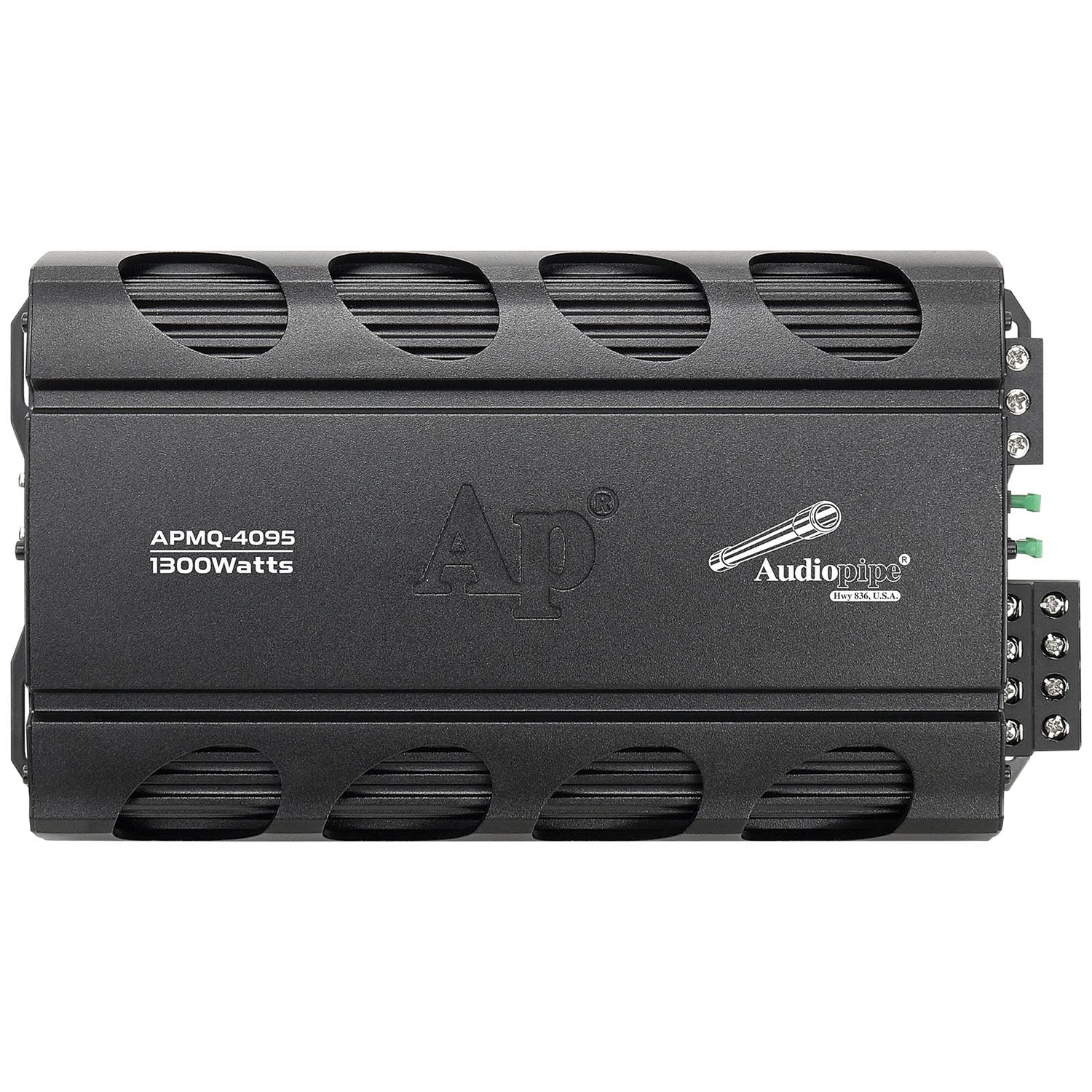

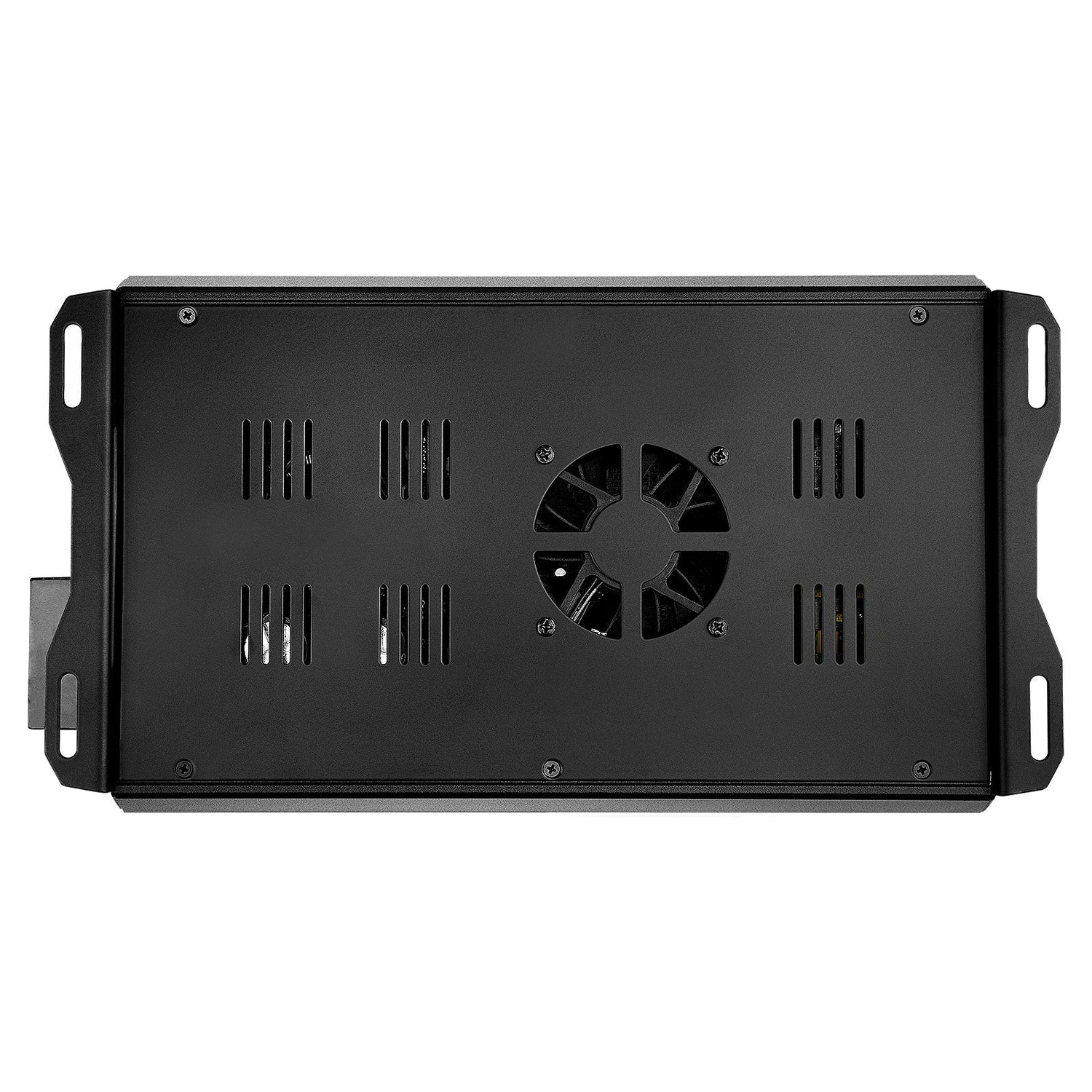

Mini Design 4 Channel Mosfet Amplifier (APMQ-4095)

• CLASS A/B AMPLIFIER: The APMQ-4095 features a Class A/B circuit design that delivers clean, powerful, and detailed audio output without sacrificing tonal quality or overall performance.
• COMPACT DESIGN: Engineered with a space-saving footprint for easy installation in cars, motorcycles, UTVs, golf carts, and off-road vehicles, offering flexibility for any limited-space interior.
• DESIGNED WITH ADVANCED MOSFET CIRCUITRY: Built with MOSFET power management for stable power flow, low distortion, and reliable multi-channel performance—ideal for full-range speakers and subwoofer support.
• CONTINUOUS POWER OUTPUT:
  RMS @ 2 Ohm (<1% Distortion): 4 x 100W
  RMS @ 4 Ohm (<1% Distortion): 4 x 90W
  OUTPUT POWER @ 4 Ohm BRIDGED: 2 x 225W
• PEAK POWER: 1300 WATTS
• FREQUENCY RESPONSE: 20Hz-20kHz
• INPUT SENSITIVITY LEVEL: 0.2V-4V
• S/N RATIO: >90dB
• THD (ALL CHANNELS DRIVEN): <0.8%
• VARIABLE HIGH-PASS / LOW-PASS FILTER: Precisely tune the crossover frequencies to optimize speaker performance and overall system clarity.
• LED STATUS INDICATOR: Built-in LED indicators for protection and power status allow real-time operation monitoring for user convenience and safety.
• RELIABLE PROTECTION CIRCUITS: Includes overload, overheating, short circuit, and low-voltage protection for long-term dependable operation.

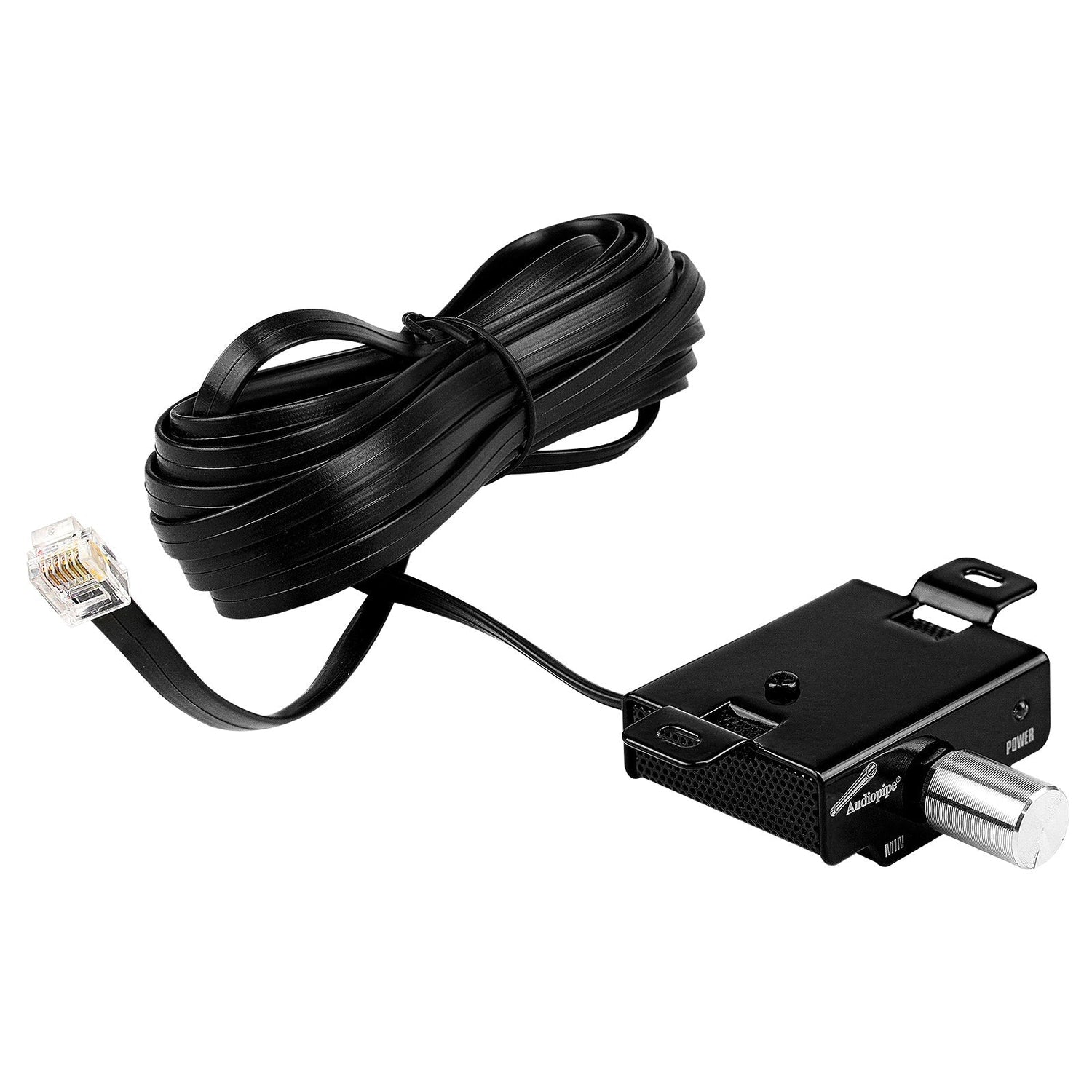

• REMOTE BASS LEVEL CONTROL: Comes with a remote bass knob for quick bass adjustment directly from the driver’s seat.
• WORKING VOLTAGE: 9V-16V
• DIMENSIONS: 9.88” x 6.3” x 2.3” (L x W x H) / 251 x 160 x 57 mm


Description:

Experience powerful, clean, and immersive audio with the APMQ-4095 Mini Class A/B 4-Channel MOSFET Power Amplifier. Engineered for versatility and clarity, this compact amplifier delivers stable output at both 2-ohm and 4-ohm configurations, with bridgeable channels for enhanced power. The improved S/N ratio and efficient MOSFET circuitry ensure high-definition sound with low distortion, while the built-in protection system provides long-lasting reliability. With adjustable crossover filters and a remote bass controller, this amplifier is the perfect upgrade for users looking to achieve customizable and professional-grade in-car audio.
