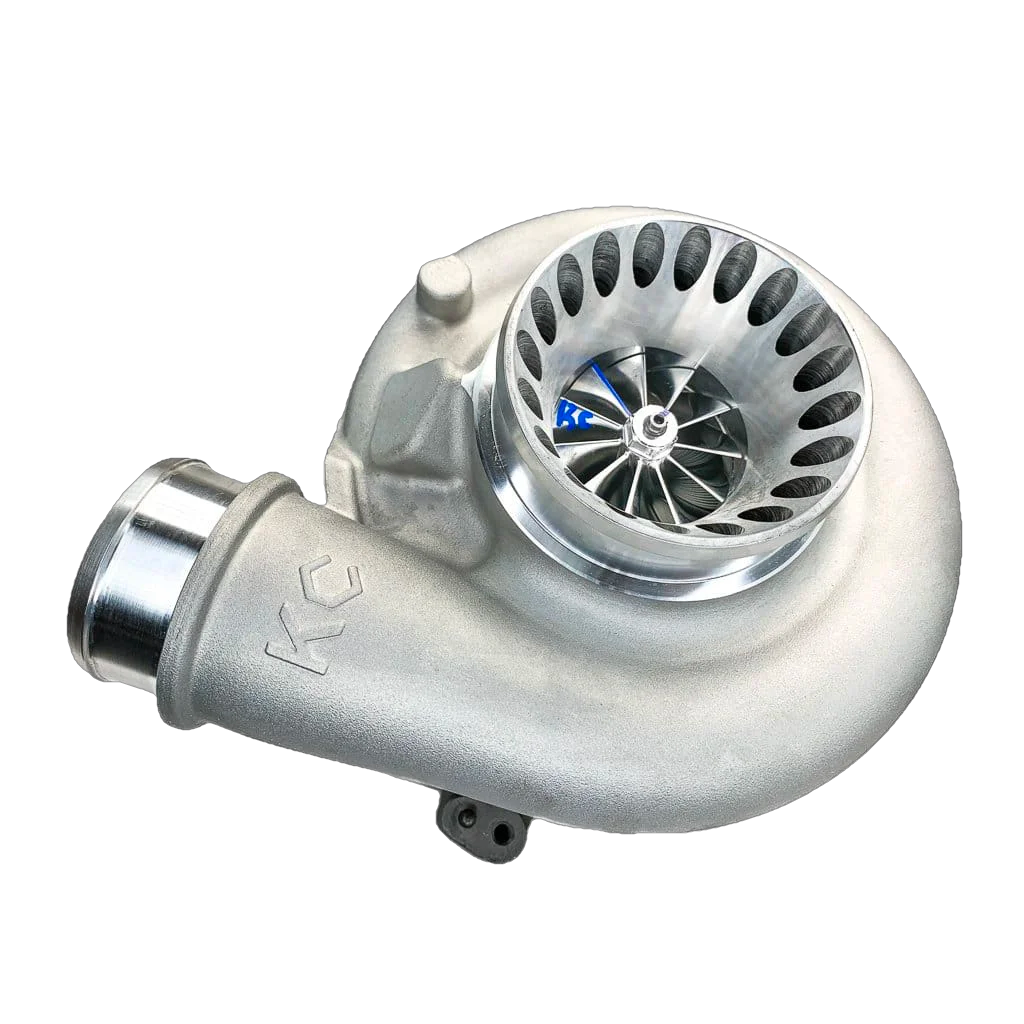

KC Stage 1.5 Turbo

*Discontinued*

Recommended injectors: 155cc/30%

Maximum injectors: 175cc/30%

Minimum injectors: Stock

Features & Details:

• 475 to 525 HP
• 63.5x88mm single plane billet wheel with extended tips
• .70ar race compressor cover
• 72.5x66 13 blade turbine wheel
• New high flowing billet vanes
• Stainless steel unison ring
• Upgraded 360 thrust bearing
• 100% drop in

Description:

This is an awesome turbo for those looking to upgrade their stock truck and are looking for a little more power than stock, but still want to tow with ease, amazing drive ability, and quick spooling. This turbo will not whistle like the 10 Blade turbos. The only downside is this turbo is only meant for moderate injectors (stock up to 155cc/30). It pairs best with 155/30 so you can take advantage of the extra power.

**We highly recommend Custom SCT tuning to go with your turbo**

**Polished covers can take a 1-2 week lead time**

NOTE:  These turbos are based off of the 2004-2007 turbo mounting style, to run this on a 2003 pedestal we will have to cut off the 3rd mounting bracket on the back of the turbo.

**EXHAUST BRAKES:  We get asked a lot about exhaust brakes and if they work with our turbos.  We have found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aide in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.**
