NMEA 2000® Network, MFD Data Interface for MediaMaster® MM105 & MM105-HR

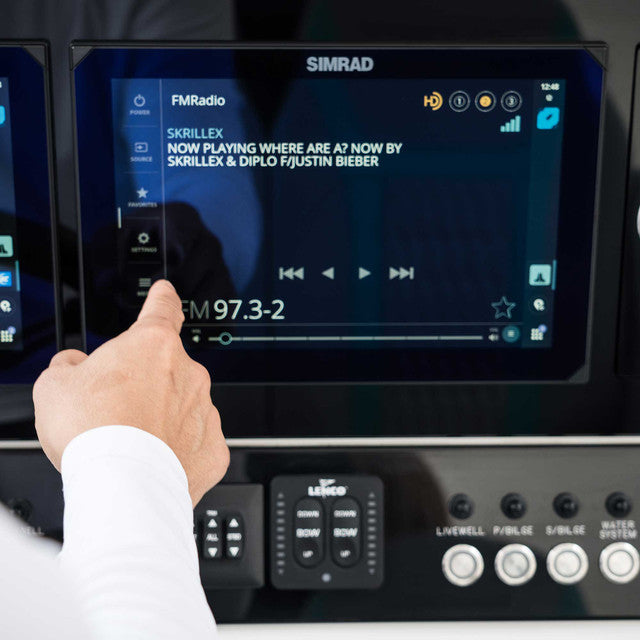

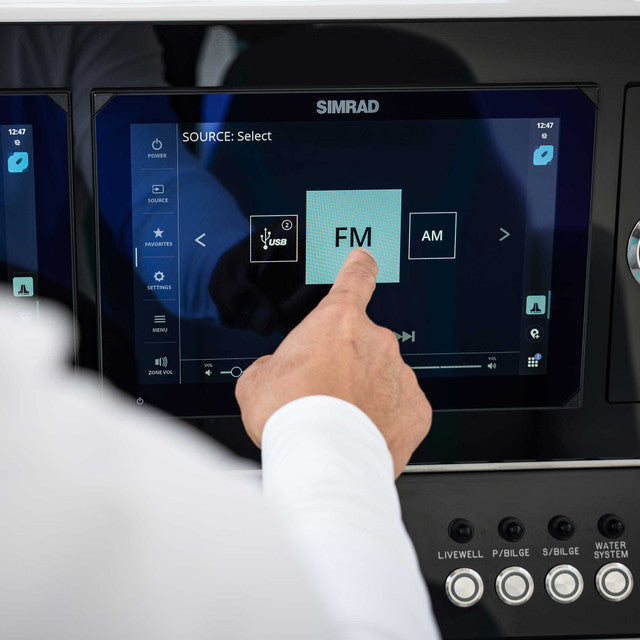

The MMA-1-HTML is a NMEA 2000® certified data interface engineered to generate MediaMaster® themed UI navigation and controls directly onto your vessel's compatible MFD (Multi-Function Display). Exclusively designed for use with MM105 and MM105-HR source units, the MMA-1-HTML allows you to pilot your boat and control your MediaMaster® seamlessly, via your helm's MFD display.

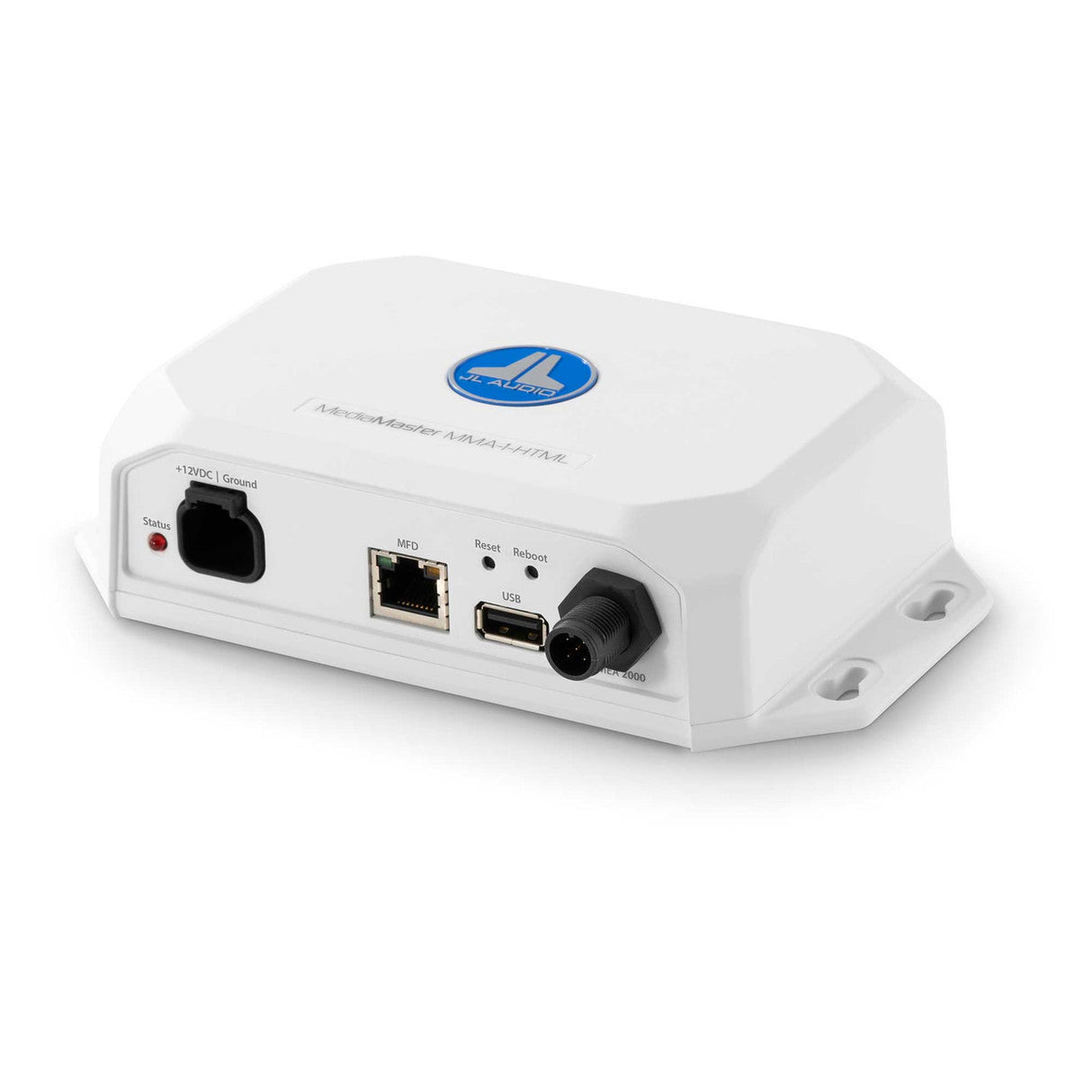

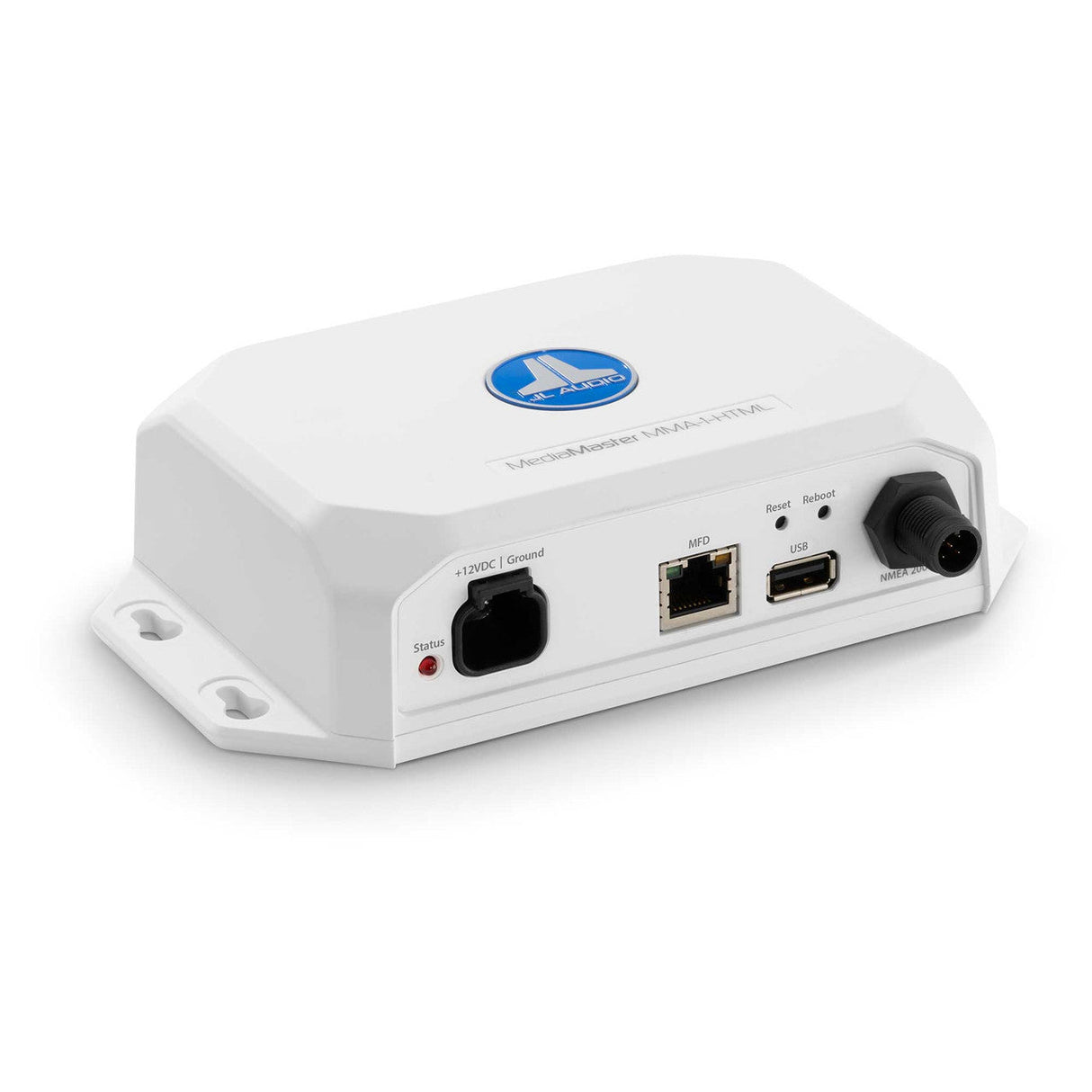

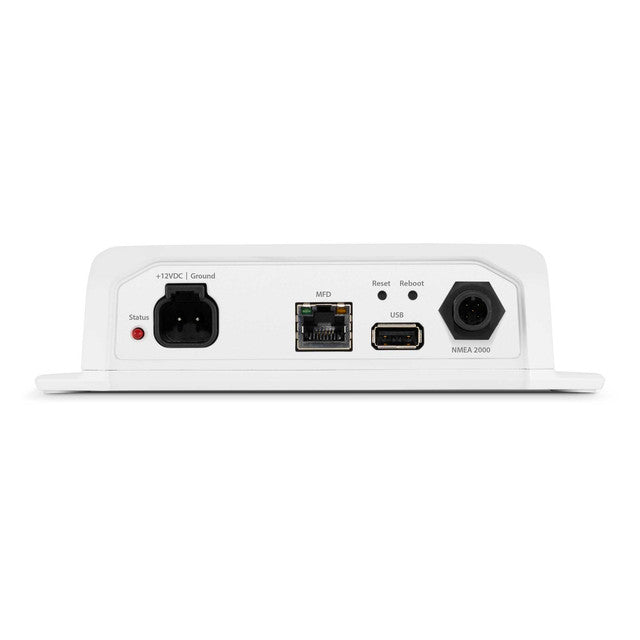

Outfitted with a NMEA 2000® Micro-C connector (LEN 1), the MMA-1-HTML interfaces with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included). The MMA-1-HTML automatically recognizes the host MediaMaster® source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster® user experience.
Note: Functionality of the MMA-1-HTML is derived from the host source unit and connected MFD. The MMA-1-HTML requires connection to a NMEA 2000® network or use of a MMC-PN2K powered network cable (sold separately) to simulate an isolated, stand-alone NMEA 2000® network.
General Specifications
| Operating Voltage | 14.4V DC (10V – 15.9V) |
| Operating Temp Range | -4 F to +149 F (-20 C to +65 C) |
| Current Draw / Fuse Value | 150 mA (max) / 1 A |
| NMEA 2000® LEN | 1 (Micro-C connector) |
| Compatible MFDs* | Simrad, B&G, Lowrance, Garmin |
| Dimensions | 6.77 in. x 3.98 in. x 1.73 in. (172 mm x 101 mm x 44 mm |
