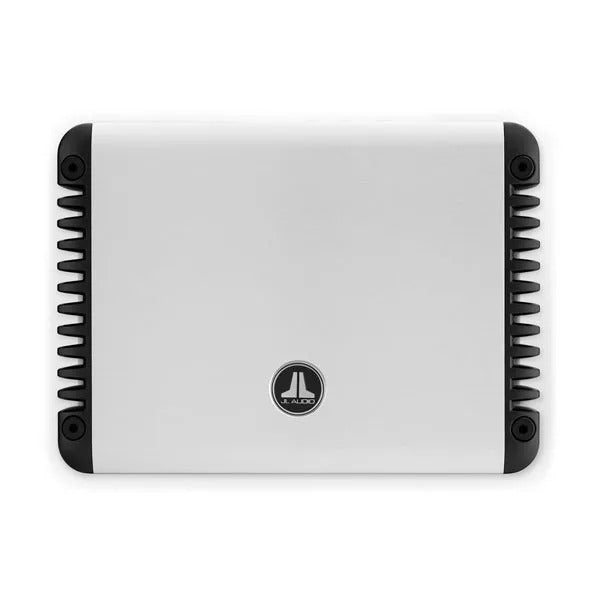

JL Audio HD900/5 | 5-Channel Amplifier
JL Audio HD900/5 | 5-Channel Amplifier est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio HD900/5 | 5-Channel Amplifier
JL Audio HD900/5 | 5-Channel Amplifier est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Channels | 5 |
|---|---|
| Physical dimensions (Height) | 1.93" (49 mm) |
| Physical dimensions (Width) | 10.74" (273 mm) |
| Physical dimensions (Depth) | 7.85" (199 mm) |
| Weight |
6.85 lbs (3.11 kg) |
| Operating voltage | 11-14.5 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) | Main: 75 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) | Main: 100 W x 4/Sub: 500 x 1 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) | Main: 75 W x 4/Sub: 500 x 1 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 108 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | 88 dB |
| Damping factor @ 4 Ω | >400/50 Hz |
| Damping factor @ 2 Ω | >200/50 Hz |
| THD+N @ Rated Power: Main Channels | <0.03% @ 4Ω |
| THD+N @ Rated Power: Subwoofer Channel | <0.05% @ 4Ω |
| Frequency response (+0, -1dB): Main Channels | 12 Hz-28 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 12 Hz-10 kHz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | 60 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off or High-pass only |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 | Off or High-pass only |
| Filter Slope(s): Channels 3 & 4 | 12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Off or Low-pass only |
| Filter slope(s): Subwoofer Channel | 12/24 dB/octave |
| Filter frequency range: Subwoofer Channel | 50 Hz-500 Hz |
| Detented, calibrated filter frequent potentiometers | |
| Infrasonic filter: Subwoofer Channel | 30 Hz, Defeatable |
| Remote level control | Optional (HD-RLC) |
| Remote level modes | Sub Channels only |
| Channel input mode switch | yes (2/4/6 Channels) |
| Pass-through preamp output | Buffered |
