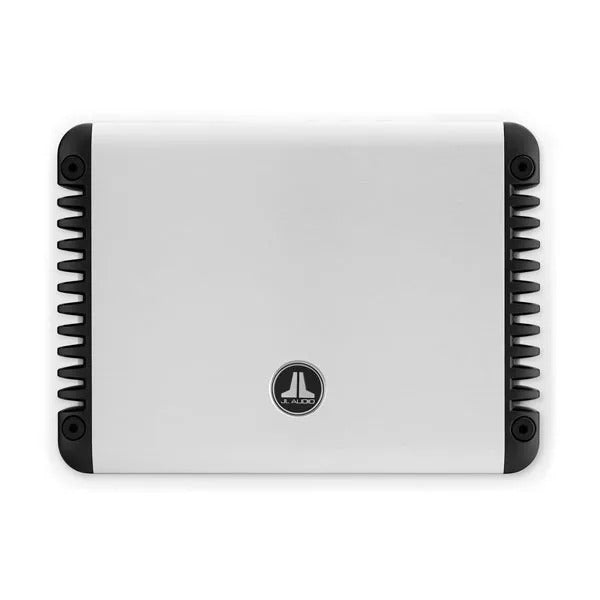

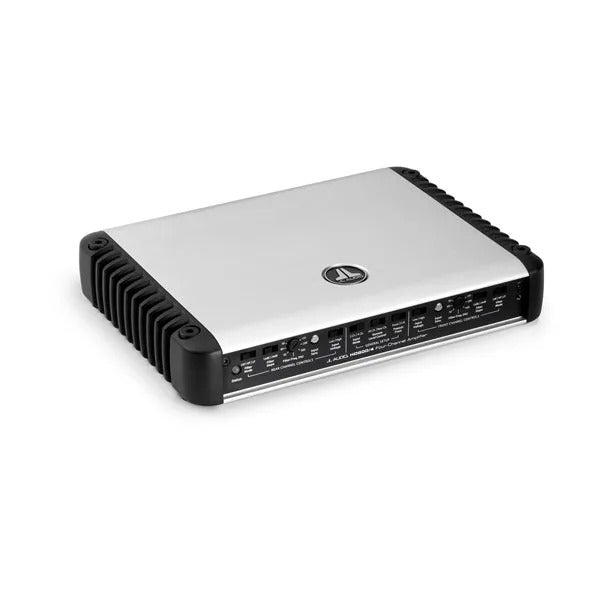

JL Audio HD600/4 | 4-Channel Amplifier
JL Audio HD600/4 | 4-Channel Amplifier est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio HD600/4 | 4-Channel Amplifier
JL Audio HD600/4 | 4-Channel Amplifier est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Channels | 4 |
|---|---|
| Physical dimensions (Height) | 1.93" (49 mm) |
| Physical dimensions (Width) | 10.74" (273 mm) |
| Physical dimensions (Depth) | 7.85" (199 mm) |
| Operating voltage | 11-14.5 VDC |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
150 W x 4/300 W x 2 (Bridged) |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
150 W x 4/300 W x 2 (Bridged) |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 110 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs | 82.2 dB |
| Damping factor @ 4 Ω | 300/50 Hz |
| Damping factor @ 2 Ω | 150/50 Hz |
| THD+N @ Rated Power | <0.03% @ 4Ω |
| Frequency response (+0, -1dB) | 6 Hz-30 kHz |
| Input voltage range @ RCA inputs | Switchable from 200mV-2V RMS (Low) to 800mV-8V RMS (High) |
| Fuse rating | 50 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off, Low-pass or High-pass |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12/24 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz-500 Hz |
| Filter mode(s): Channels 3 & 4 | Off, Low-pass or High-pass |
| Filter Slope(s): Channels 3 & 4 | 12/24 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
