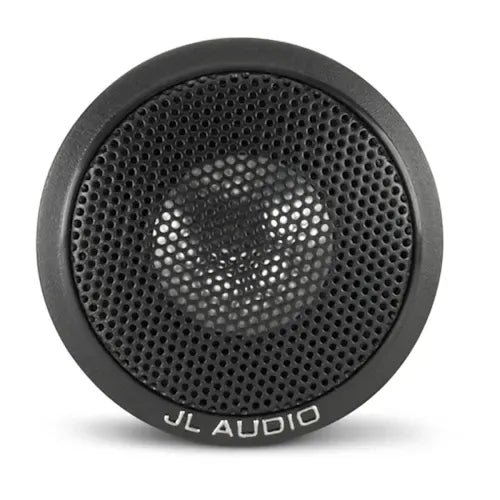

JL Audio C1-100ct 1" Aluminum Tweeters (Pair)
JL Audio C1-100ct 1" Aluminum Tweeters (Pair) est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio C1-100ct 1" Aluminum Tweeters (Pair)
JL Audio C1-100ct 1" Aluminum Tweeters (Pair) est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.

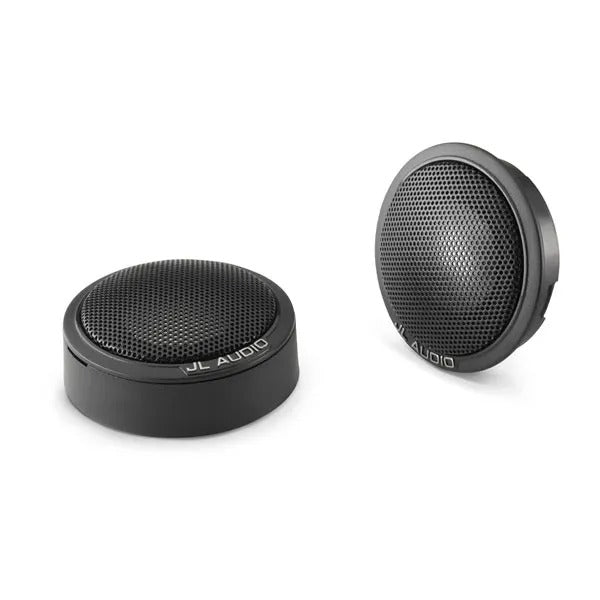

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These fliters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability.
Sold as a pair.
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power* | 150 W |
| Recommended Amplifier Power (RMS) | 20 - 60 W / Ch. |
| System Efficiency | 91.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 3.6 kHz - 22 KHz ± 3 dB |
Tweeter Physical Specifications
| Flush Mount Fixture Diameter (A1) | 1.97 in / 50 mm |
| Surface Mount Fixture Diameter (A2) | 2.01 in / 51 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.75 in / 45 mm |
| Flush Mount Mounting Depth (C) | 0.40 in / 10 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.87 in / 22 mm |
Crossover Physical Specifications
| Width (W) | 1.96 in / 50 mm |
| Depth (D) | 1.34 in / 34 mm |
| Height (H) | 0.90 in / 23 mm |
