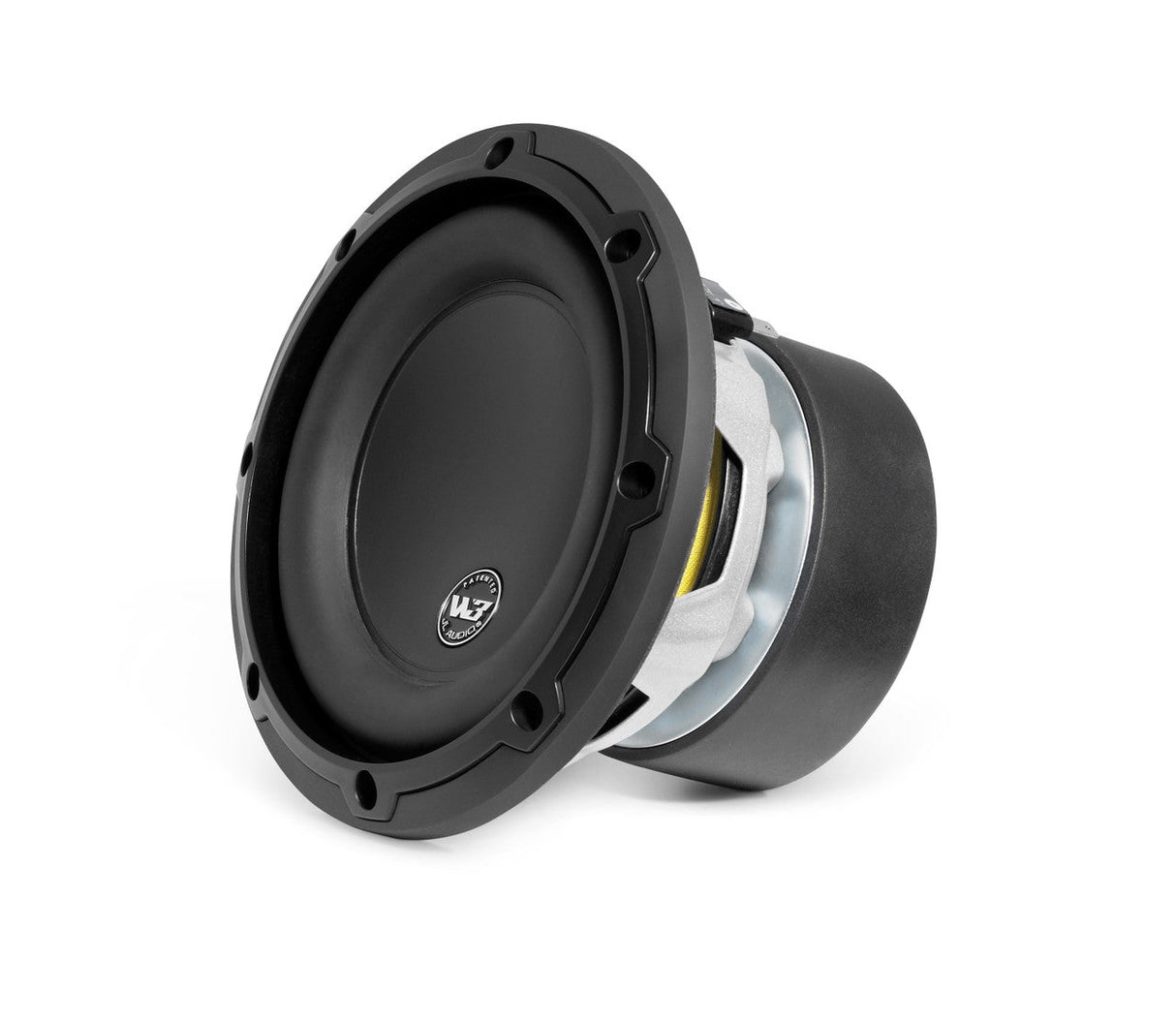

JL Audio 6W3v3 | 6.5" 150W RMS Subwoofer SVC
JL Audio 6W3v3 | 6.5" 150W RMS Subwoofer SVC - 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio 6W3v3 | 6.5" 150W RMS Subwoofer SVC
JL Audio 6W3v3 | 6.5" 150W RMS Subwoofer SVC - 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Continuous Power Handling (RMS) | 150 W |
| Recommended Amplifier Power (RMS) | 50 - 150 W |
| Nominal Impedance (Znom) | 4 Ω or 2 Ω |
Physical Specifications
| Nominal Diameter | 6.5 in / 165 mm |
| Overall Diameter (A) | 6.85 in / 174 mm |
| Mounting Hole Diameter (B) | 5.5 in / 140 mm |
| Bolt Hole Circle Diameter (C) | 6.125 in / 156 mm |
| Motor Outer Diameter (D) | 4.25 in / 108 mm |
| Mounting Depth (E) | 4.25 in / 108 mm |
| Driver Displacement | 0.02 cu ft / 0.57 L |
| Net Weight | 6.1 lb / 2.8 kg |
Parameters
| Free Air Resonance (Fs) | 41.80 Hz |
| Electrical “Q” (Qes) | 0.533 |
| Mechanical “Q” (Qms) | 11.027 |
| Total Speaker “Q” (Qts) | 0.508 |
| Equivalent Compliance (Vas) | 0.181 cu ft / 5.13 L |
| One-Way Linear Excursion (Xmax)* | 0.35 in / 8.89 mm |
| Reference Efficiency (no) | 0.07% |
| Efficiency (1 W / 1 m)** | 80.49 dB SPL |
| Effective Piston Area (Sd) | 17.36 sq in / 0.0112 sq m |
| DC Resistance (Re) | 3.476 Ω |
