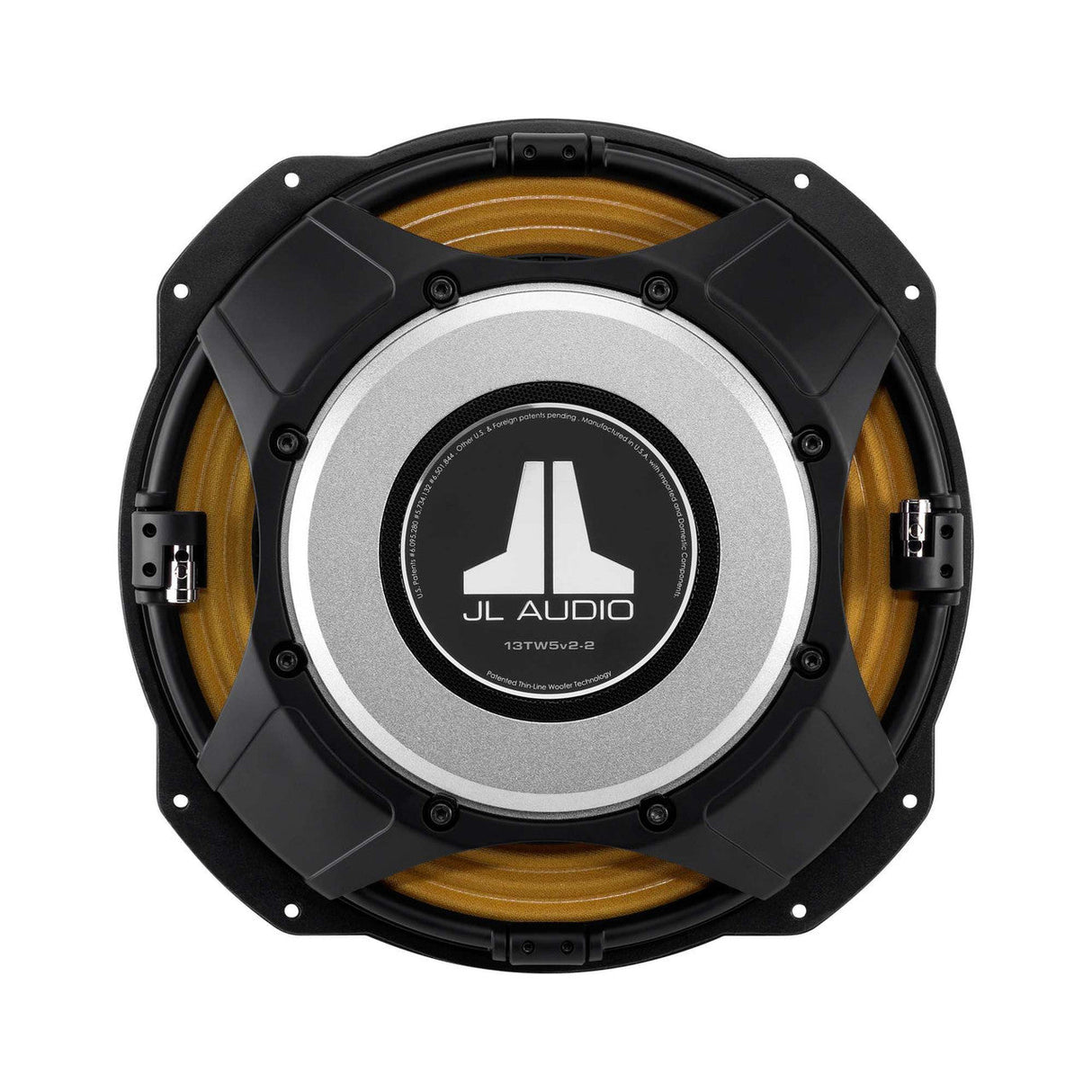

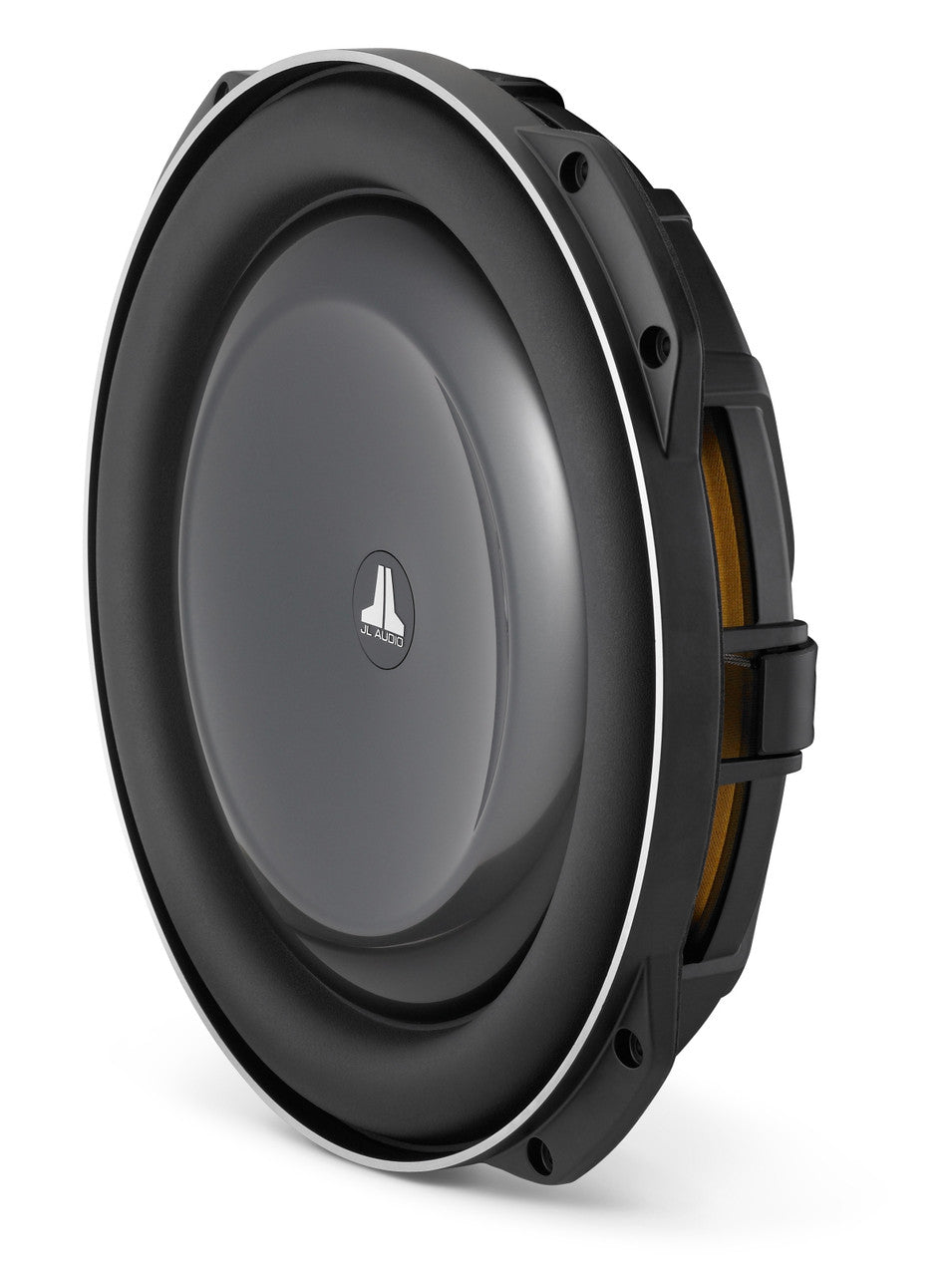

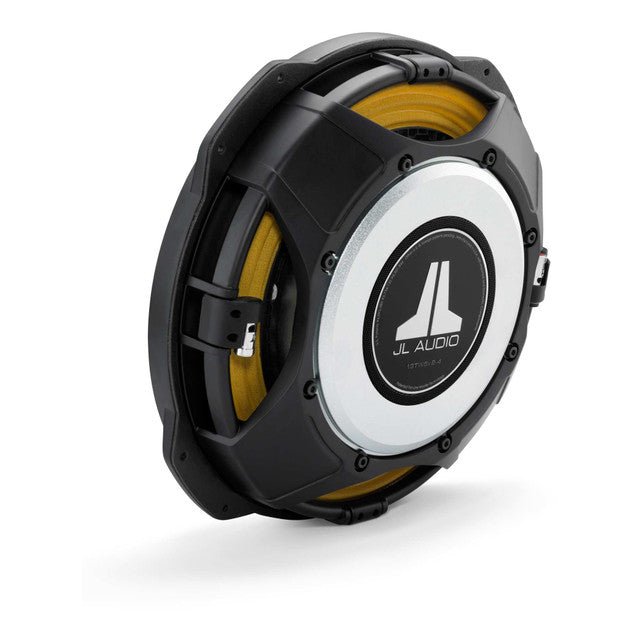

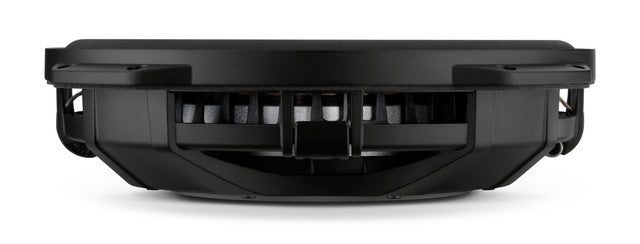

JL Audio 13TW5v2 | 13.5" 600 Watt RMS Shallow Subwoofer SVC
JL Audio 13TW5v2 | 13.5" 600 Watt RMS Shallow Subwoofer SVC - 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Sizes | 13.5" |
|---|---|
| Weight |
20.5 lbs (9.3 kg) |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 2 Ω: 85.51 dB 4 Ω: 85.63 dB |
| Nominal impedance | 2 Ω |
| Recommended amplifier power (RMS) | 250-600 W |
| Cone material | Mineral-filled polypropylene |
Networking & Connections |
|
| Speaker connections | Push-button terminal |
|---|---|
Mounting Dimensions |
|
| Frame outer diameter | Max: 14.2" (361mm) Min: 13.0" (330 mm) |
|---|---|
| Mounting depth clearance | 2.625" (67 mm) |
| Mounting hole | 12.5" (318 mm) |
| Bolt hole circle | 13.5" (343 mm) |
| Motor outer diameter | 6.75" (171 mm) |
| Driver displacement | 0.052 cu ft (1.47 L) |
Parameters |
|
| Free Air Resonance (FS) | 2 Ω: 25.95 Hz 4 Ω: 27.61 Hz |
|---|---|
| Electrical “Q” (Qes) | 2 Ω: 0.51 4 Ω: 0.553 |
| Mechanical “Q” (Qms) | 2 Ω: 10.648 4 Ω: 10.692 |
| Total “Q” (Qts) | 2 Ω: 0.479 4 Ω: 0.526 |
| Equivalent Compliance (Vas) | 2 Ω: 2.26 cu ft (64 L) 4 Ω: 2.13 cu ft (60.31 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 0.433" (11 mm) |
| Reference Efficiency (NO) | 0.23% |
| Effective piston area (SD) | 98.26 in² (0.0634 m²) |
| DC resistance (RE) | 2 Ω: 2.100 Ω 4 Ω: 3.513 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 0.75" (19 mm) |
|---|---|
| Front baffle thickness | 0.75" (19 mm) |
| Volume (net int.) | 0.80 cu ft (22.66 L) |
| External width (W) | 19" (483 mm) |
| External height (H) | 15" (381 mm) |
| External depth (D) | 7.75" (197 mm) |
| -3 dB cutoff frequency (F3) | 2 Ω: 41.18 Hz 4 Ω: 41.42 Hz |
| System resonance (FC) | 2 Ω: 50.75 Hz 4 Ω: 52.84 Hz |
| System Q at resonance (QTC) | 2 Ω: 0.937 4 Ω: 1.007 |
