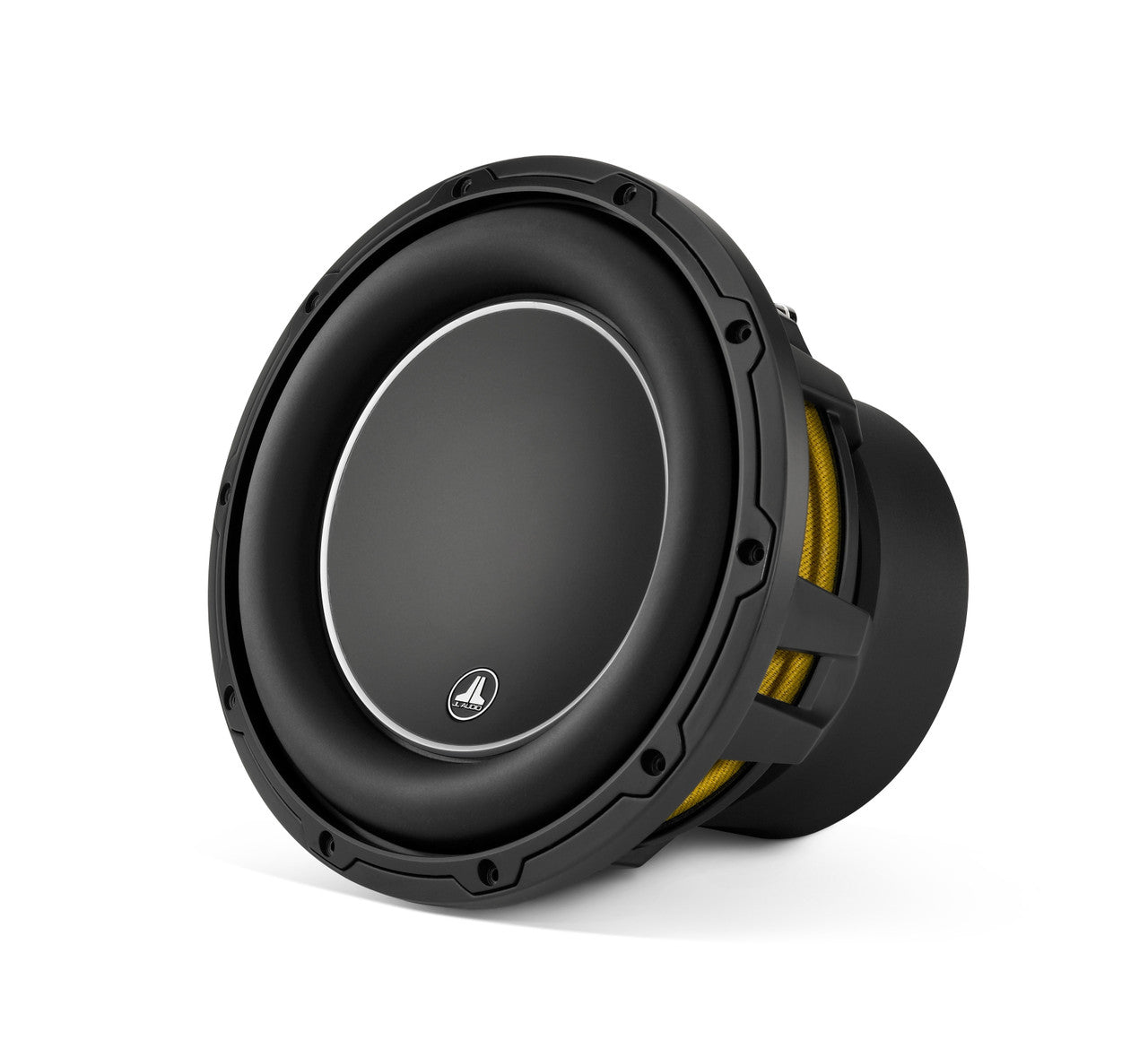

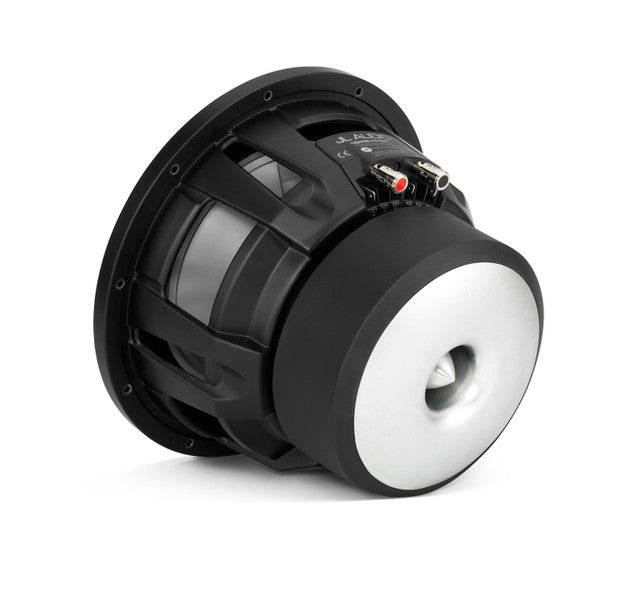

JL Audio 12W6v3-D4 | 12" 600W RMS Subwoofer DVC 4-Ohm
JL Audio 12W6v3-D4 | 12" 600W RMS Subwoofer DVC 4-Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio 12W6v3-D4 | 12" 600W RMS Subwoofer DVC 4-Ohm
JL Audio 12W6v3-D4 | 12" 600W RMS Subwoofer DVC 4-Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 200 - 600 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
Physical Specifications
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.5 in / 318 mm |
| Mounting Hole Diameter (B) | 11.02 in / 280 mm |
| Bolt Hole Circle Diameter (C) | 11.86 in / 301 mm |
| Motor Outer Diameter (D) | 7.0 in / 178 mm |
| Required Pole Vent Clearance | 0.50 in / 13 mm |
| Mounting Depth (E) | 7.52 in / 191 mm |
| Driver Displacement | 0.105 cu ft / 297 L |
| Net Weight | 25.6 lb / 11.6 kg |
Parameters
| Free Air Resonance (Fs) | 26.919 Hz |
| Electrical “Q” (Qes) | 0.487 |
| Mechanical “Q” (Qms) | 9.365 |
| Total Speaker “Q” (Qts) | 0.463 |
| Equivalent Compliance (Vas) | 1.920 cu ft / 54.37 L |
| One-Way Linear Excursion (Xmax)* | 0.75 in / 19 mm |
| Reference Efficiency (no) | 0.11% |
| Efficiency (1 W / 1 m)** | 85.4 dB SPL |
| Effective Piston Area (Sd) | 75.338 sq in / 0.0486 sq m |
| DC Resistance (Re)*** | 6.493 Ω |
