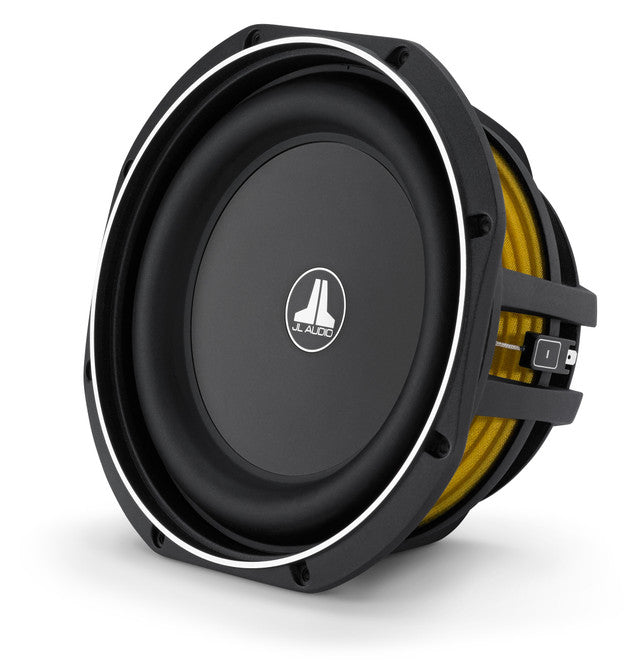

JL Audio 12TW1 | 12" 300W RMS Shallow Subwoofer SVC
JL Audio 12TW1 | 12" 300W RMS Shallow Subwoofer SVC - 2 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
"concentric tube" structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of a large motor structure further forward in the speaker than with conventional designs.

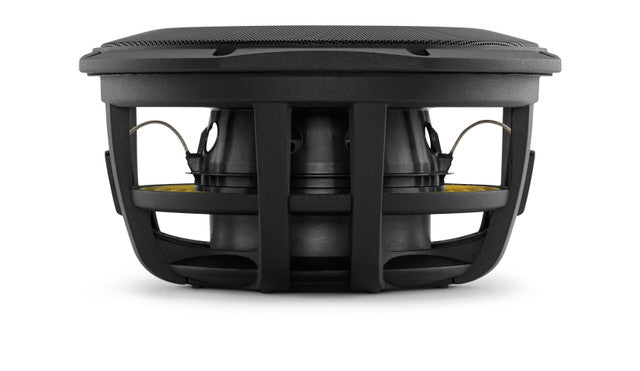

The 12TW1 also features a clever frame design that minimizes the frontal clearance required for the excursion of the driver. This is accomplished by recessing the suspension attachment surface, so that most of the forward excursion occurs within the frame's dimensions. Thanks to this feature, the 12TW1 requires only 0.87 inches (22 mm) of frontal clearance, even with its grille installed. This allows for more efficient use of space and increased enclosure volume within a given overall depth.
Even though the 12TW1 is optimized for an enclosure much smaller than any other JL Audio twelve-inch subwoofer driver, it never sounds like a big woofer struggling in a tiny box...instead, it delivers all the rich, deep, controlled bass you have come to expect from a JL Audio subwoofer system.
- Very shallow mounting depth (4.62 in / 117 mm)
- No pole vent: permits mounting close to rear wall of enclosure
- Extremely small sealed enclosure volume requirements
- Long linear excursion capability (0.40 in / 10 mm, one-way)
- DMA-optimized motor design
- Patented "concentric tube" architecture
- Patented "floating cone attach method" technology
- Cast alloy frame with flat edges for tight driver grouping
- Injection molded, mica-filled polypropylene cone
- Rubber surround

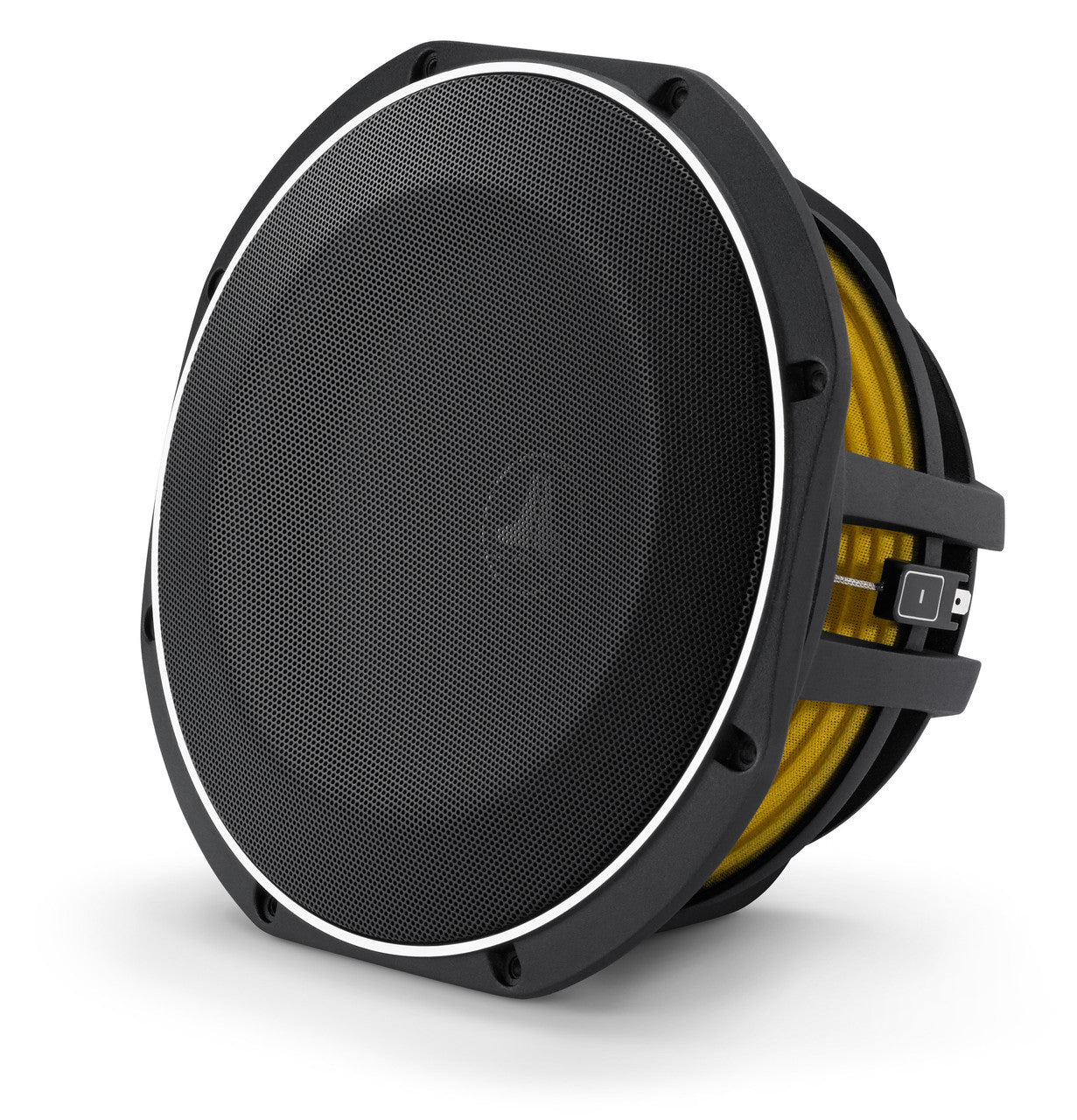

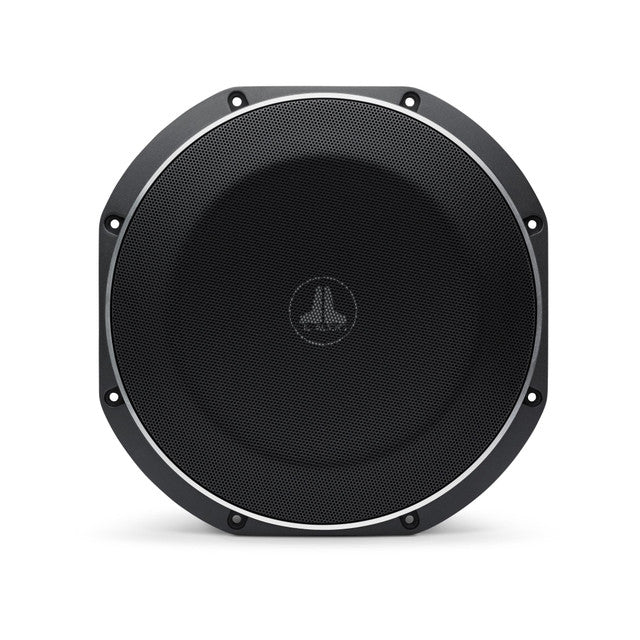

- Steel mesh grille included with each driver
- Precision-built in USA with Global Components at JL Audio's Miramar, Florida factory
General Specifications
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 Ω or 2 Ω |
Physical Specifications
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.375 in / 314 mm |
| Mounting Hole Diameter (B) | 11.0625 in / 281 mm |
| Bolt Hole Circle Diameter (C) | 11.7 in / 297 mm |
| Motor Outer Diameter (D) | 5.71 in / 145 mm |
| Mounting Depth (E) | 4.62 in / 117 mm |
| Front Grille Protrusion (F) | 0.87 in / 22 mm |
| Driver Displacement | 0.072 cu ft / 2.04 L |
| Net Weight | 16.5 lb / 7.5 kg |
Parameters
| Free Air Resonance (Fs) | 35.06 Hz |
| Electrical “Q” (Qes) | 0.61 |
| Mechanical “Q” (Qms) | 10.662 |
| Total Speaker “Q” (Qts) | 0.577 |
| Equivalent Compliance (Vas) | 1.008 cu ft / 28.54 L |
| One-Way Linear Excursion (Xmax)* | 0.40 in / 10.0 mm |
| Efficiency (1 W / 1 m)** | 85.07 dB SPL |
| Effective Piston Area (Sd) | 67.608 sq in / 0.0436 sq m |
| DC Resistance (Re) | 3.514 Ω |
