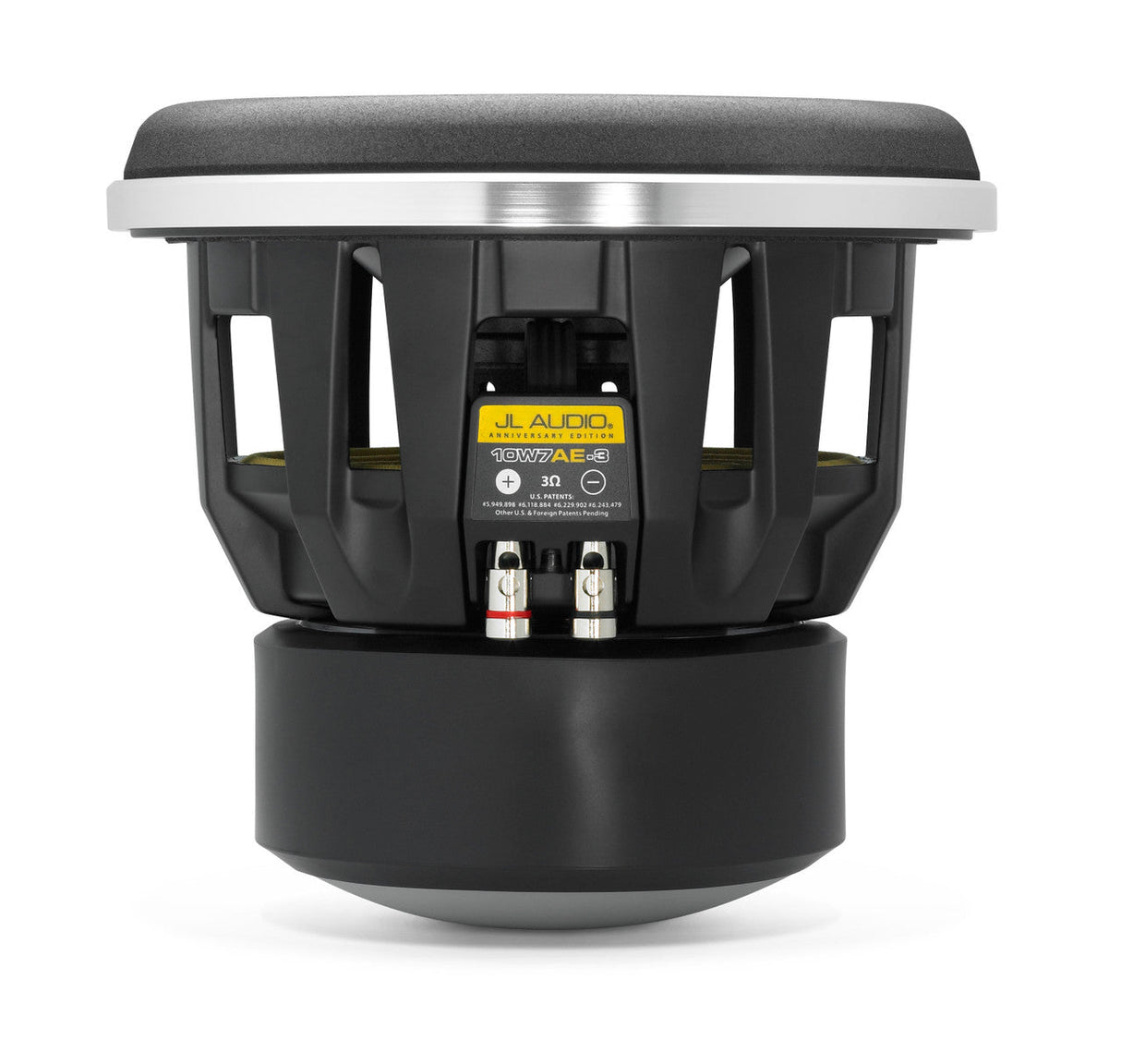

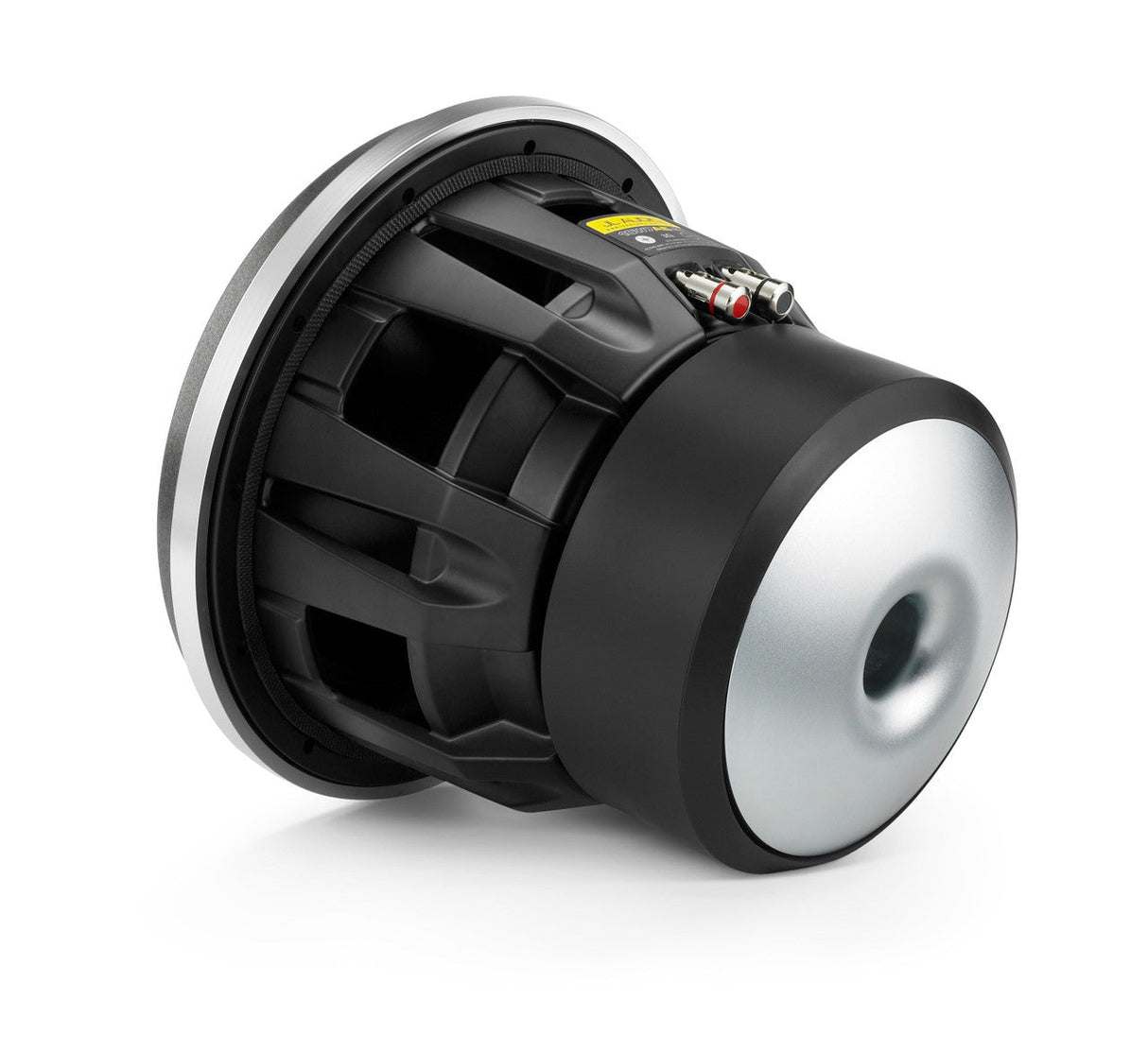

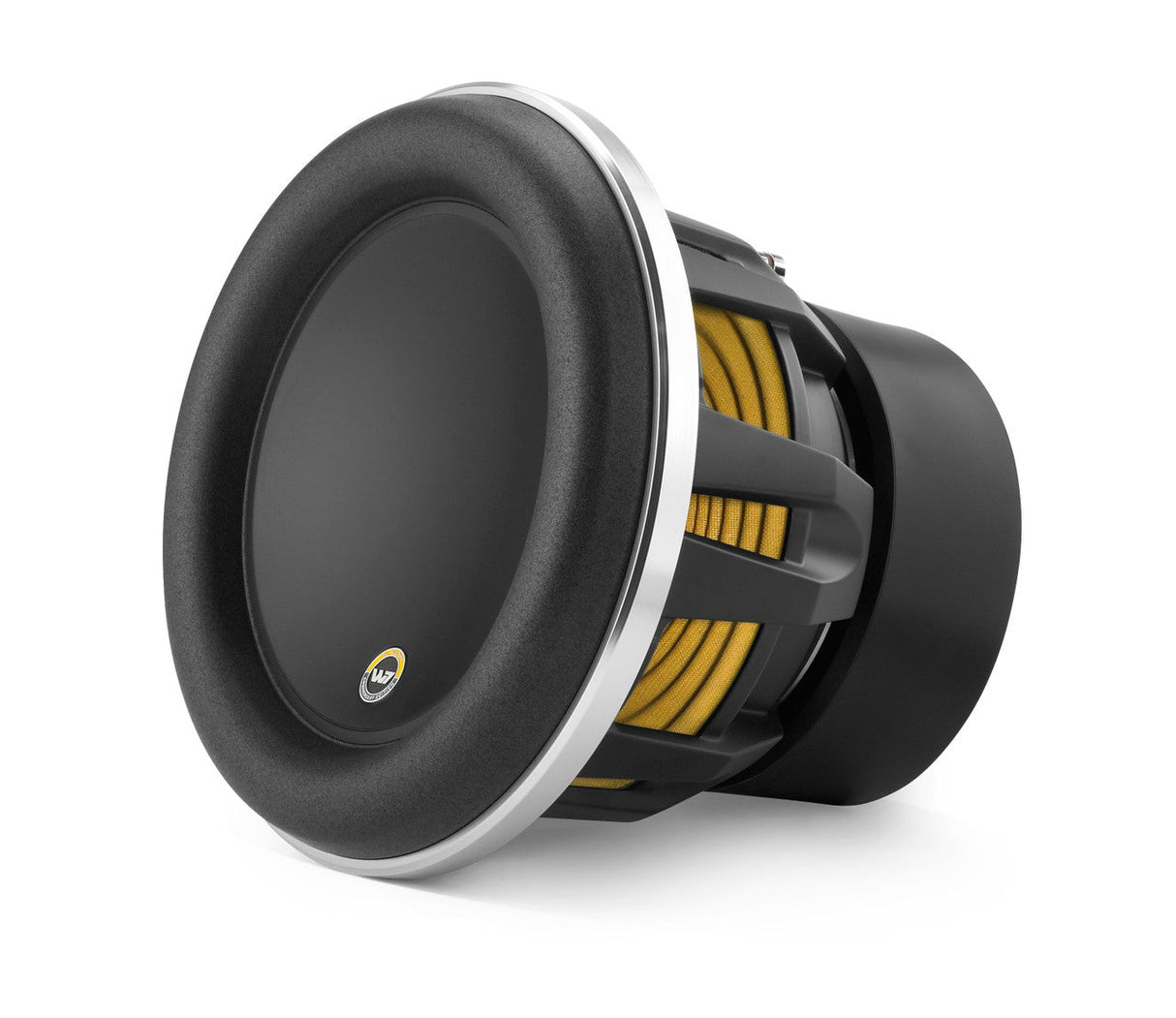

JL Audio 10W7AE 10" 750W RMS Subwoofer SVC 3-Ohm
JL Audio 10W7AE 10" 750W RMS Subwoofer SVC 3-Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio 10W7AE 10" 750W RMS Subwoofer SVC 3-Ohm
JL Audio 10W7AE 10" 750W RMS Subwoofer SVC 3-Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Continuous Power Handling (RMS) | 750 W |
| Recommended Amplifier Power (RMS) | 300 - 750 W |
| Nominal Impedance (Znom) | 3 Ω |
Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 8.74 in / 222 mm |
| Bolt Hole Circle Diameter (C) | 9.34 in / 237 mm |
| Motor Outer Diameter (D) | 6.55 in / 166 mm |
| Mounting Depth (E) | 8.0 in / 203 mm |
| Driver Displacement | 0.09 cu ft / 2.5 L |
| Net Weight | 30 lb / 13.6 kg |
Parameters
| Free Air Resonance (Fs) | 30.6 Hz |
| Electrical “Q” (Qes) | 0.578 |
| Mechanical “Q” (Qms) | 7.647 |
| Total Speaker “Q” (Qts) | 0.537 |
| Equivalent Compliance (Vas) | 1.28 cu ft / 36.1 L |
| One-Way Linear Excursion (Xmax)* | 0.9 in / 23 mm |
| Reference Efficiency (no) | 0.17% |
| Efficiency (1 W / 1 m)** | 84.3 dB SPL |
| Effective Piston Area (Sd) | 59.8 sq in / 0.0386 sq m |
| DC Resistance (Re) | 2.75 Ω |
