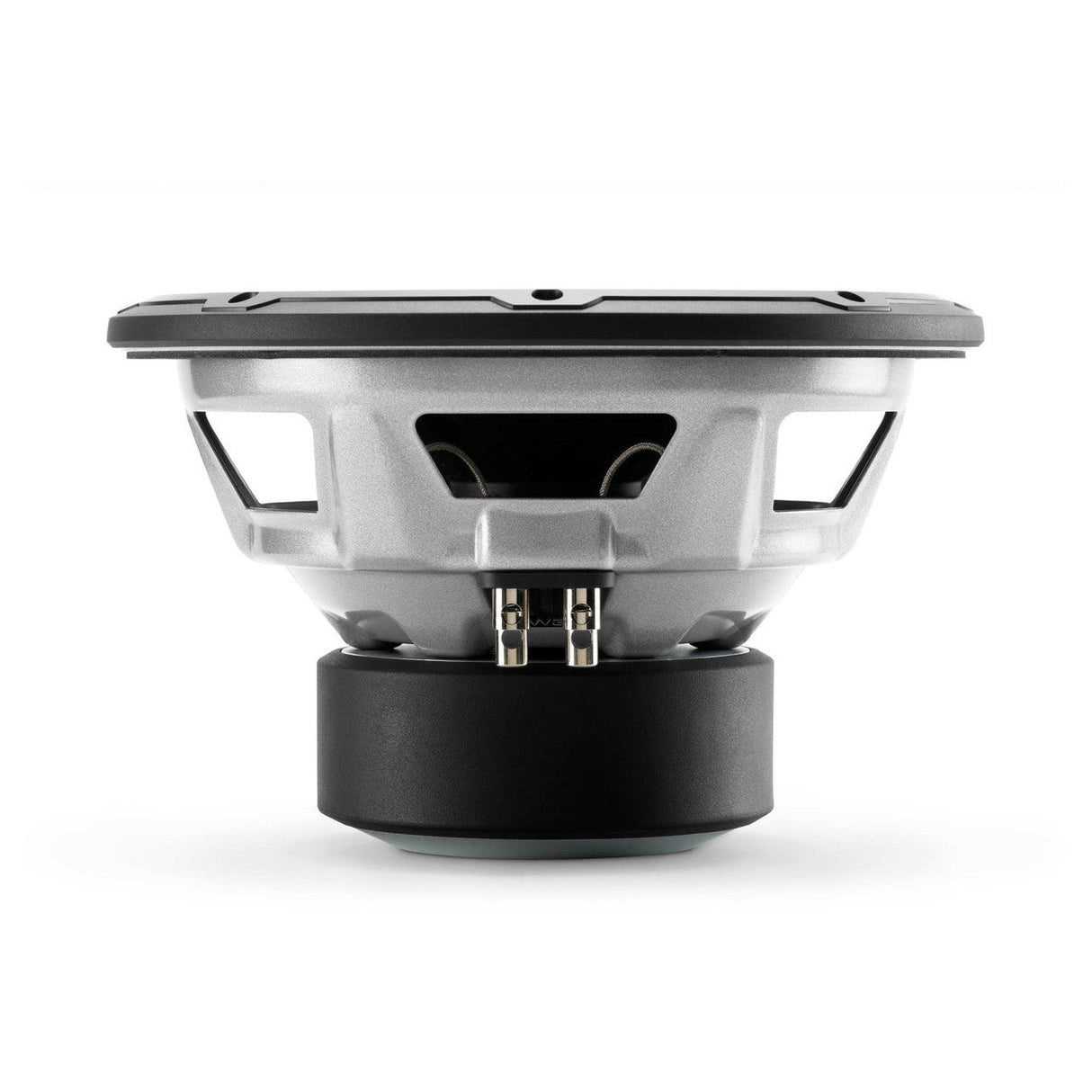

JL Audio 10W3v3 | 10" 500W RMS Subwoofer SVC
JL Audio 10W3v3 | 10" 500W RMS Subwoofer SVC - 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
JL Audio 10W3v3 | 10" 500W RMS Subwoofer SVC
JL Audio 10W3v3 | 10" 500W RMS Subwoofer SVC - 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Continuous Power Handling (RMS) | 500 W |
| Recommended Amplifier Power (RMS) | 150 - 500 W |
| Nominal Impedance (Znom) | 4 Ω or 2 Ω |
Physical Specifications
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246.5 mm |
| Motor Outer Diameter (D) | 5.25 in / 133 mm |
| Mounting Depth (E) | 5.93 in / 151 mm |
| Driver Displacement | 0.049 cu ft / 1.39 L |
| Net Weight | 12.25 lb / 5.56 kg |
Parameters
| Free Air Resonance (Fs) | 31.49 Hz |
| Electrical “Q” (Qes) | 0.523 |
| Mechanical “Q” (Qms) | 7.017 |
| Total Speaker “Q” (Qts) | 0.485 |
| Equivalent Compliance (Vas) | 1.138 cu ft / 32.23 liters |
| One-Way Linear Excursion (Xmax)* | 0.550 in / 14.0 mm |
| Reference Efficiency (no) | 0.19% |
| Efficiency (1 W / 1 m)** | 84.87 dB SPL |
| Effective Piston Area (Sd) | 53.475 sq in / 0.0345 sq m |
| DC Resistance (Re) | 3.567 Ω |
