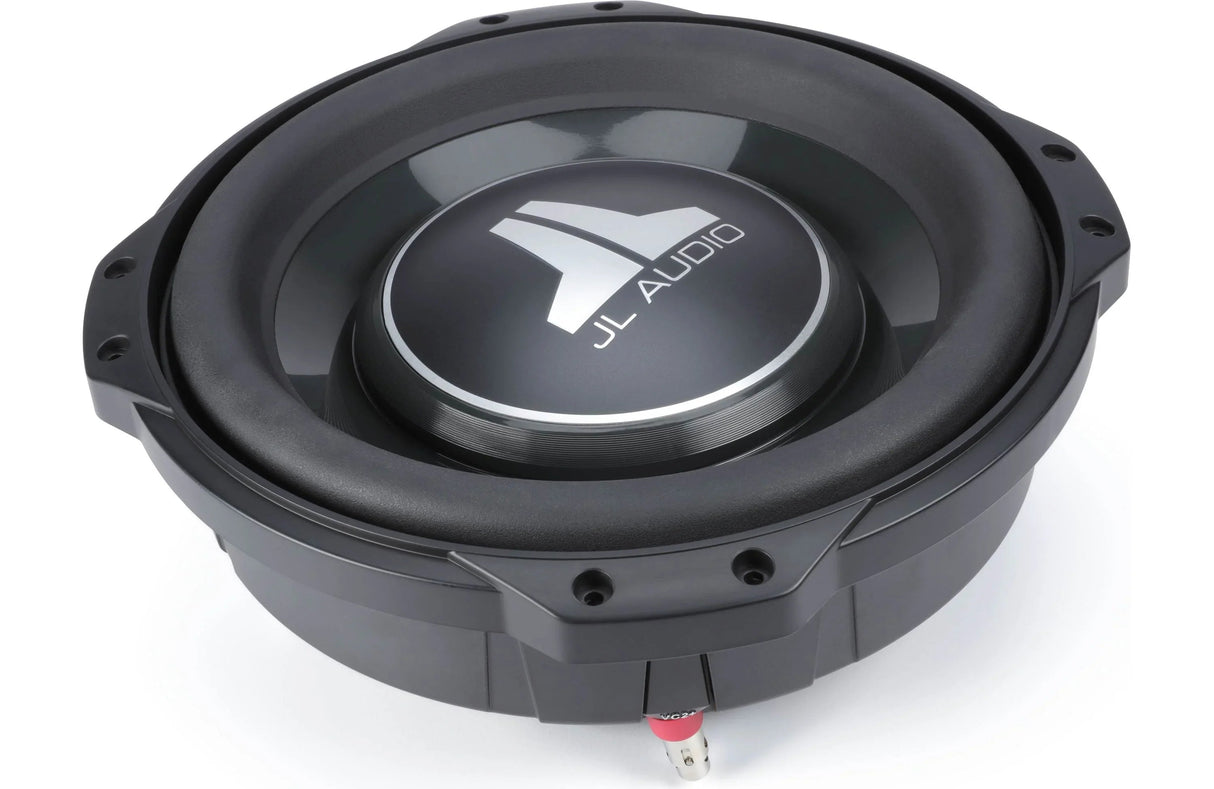

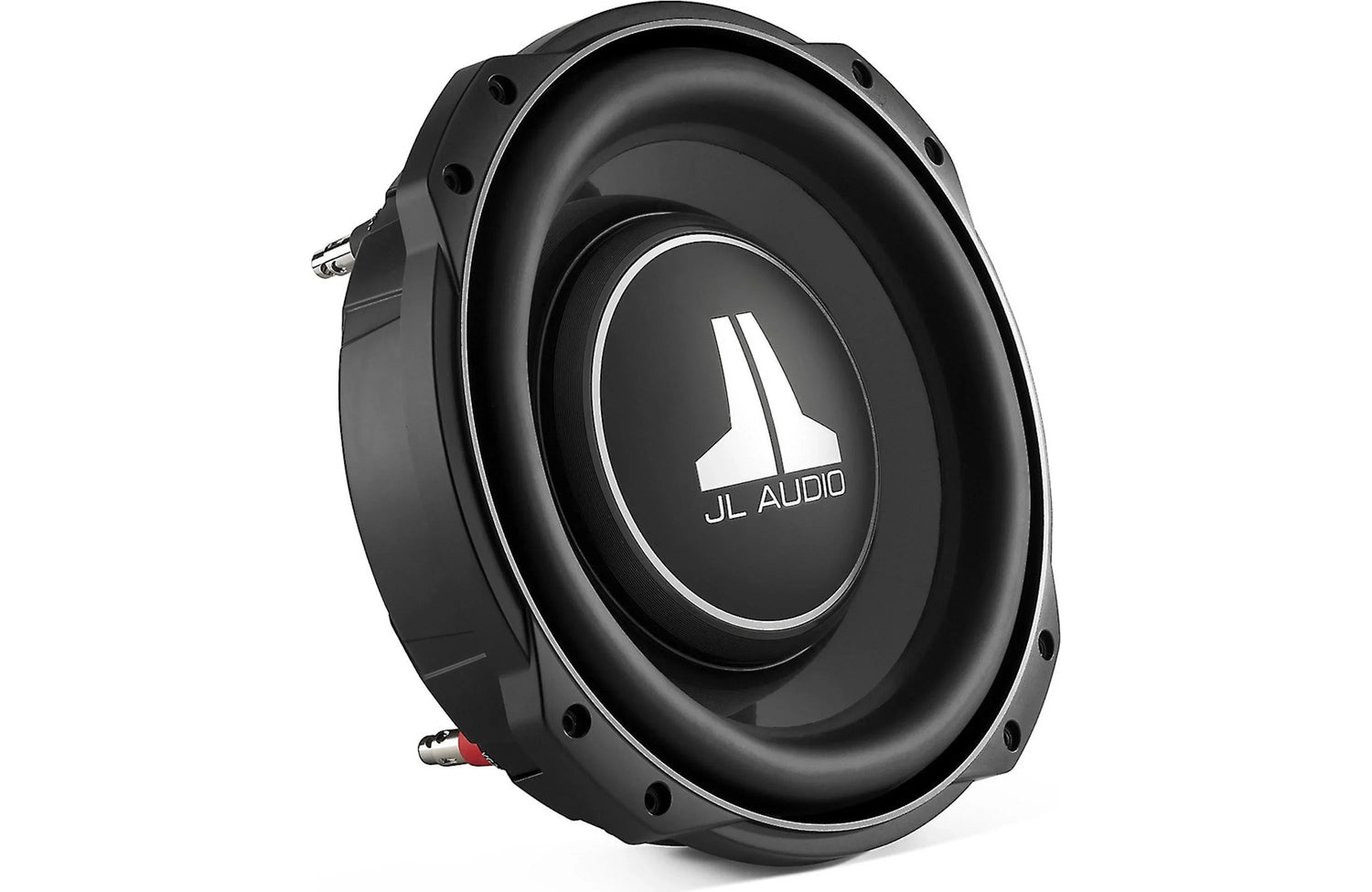

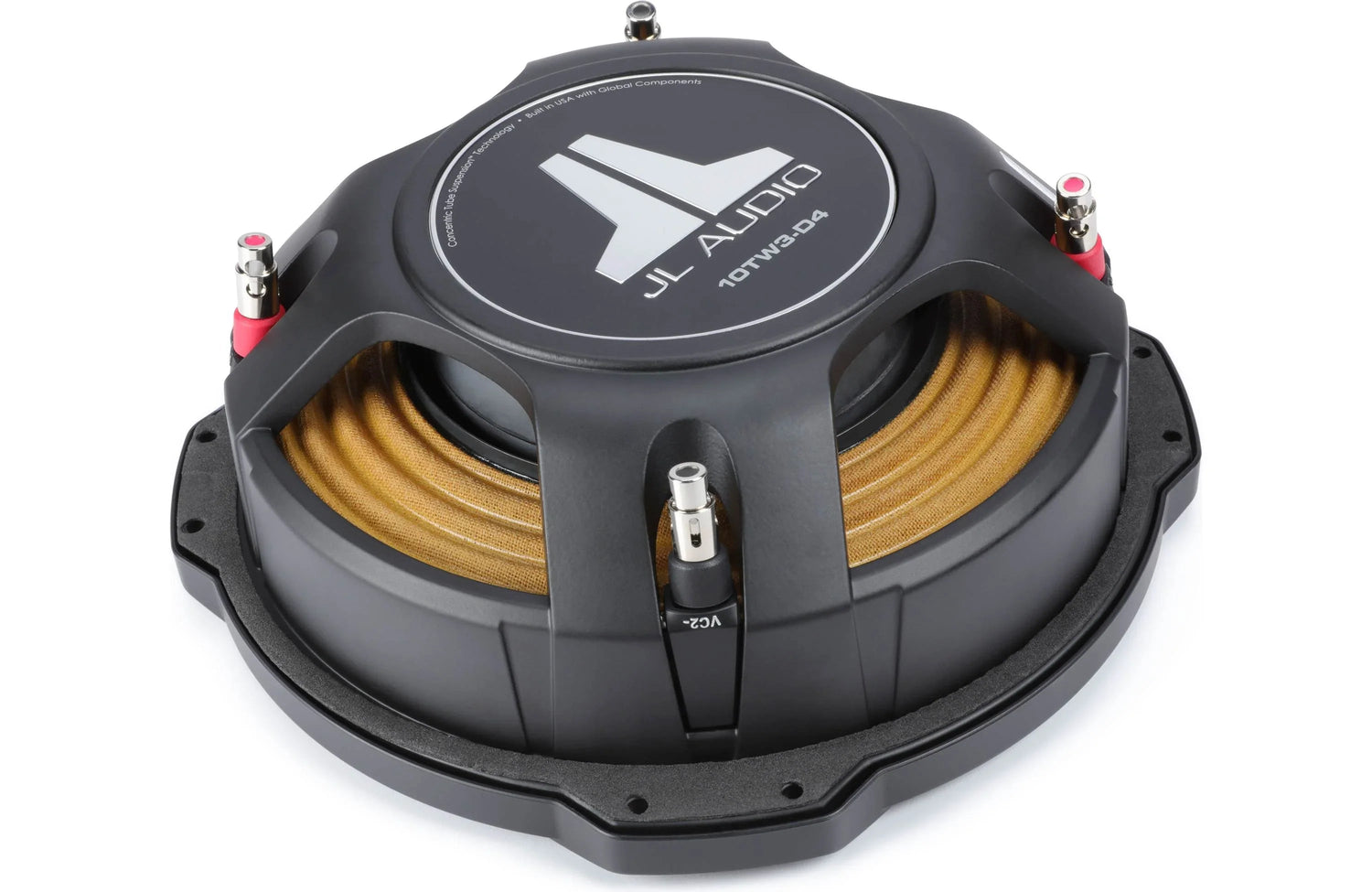

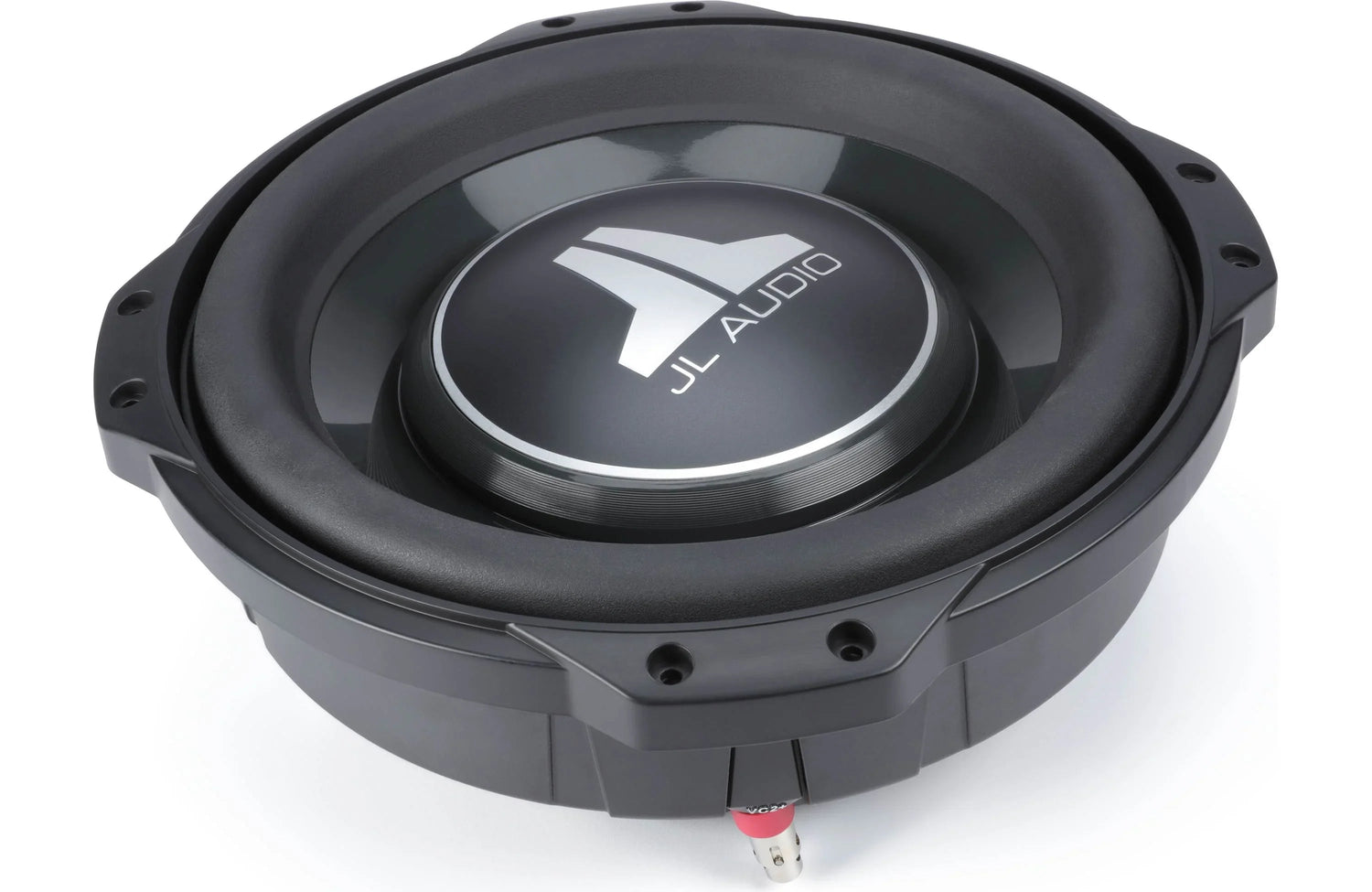

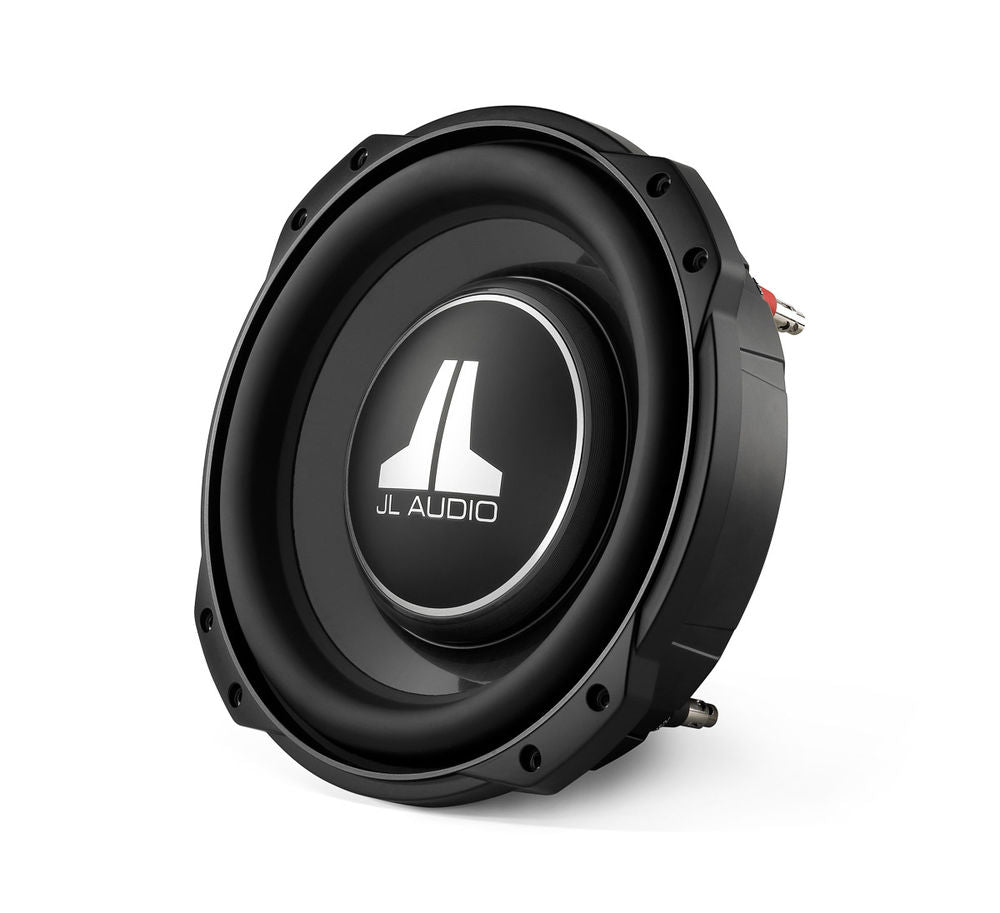

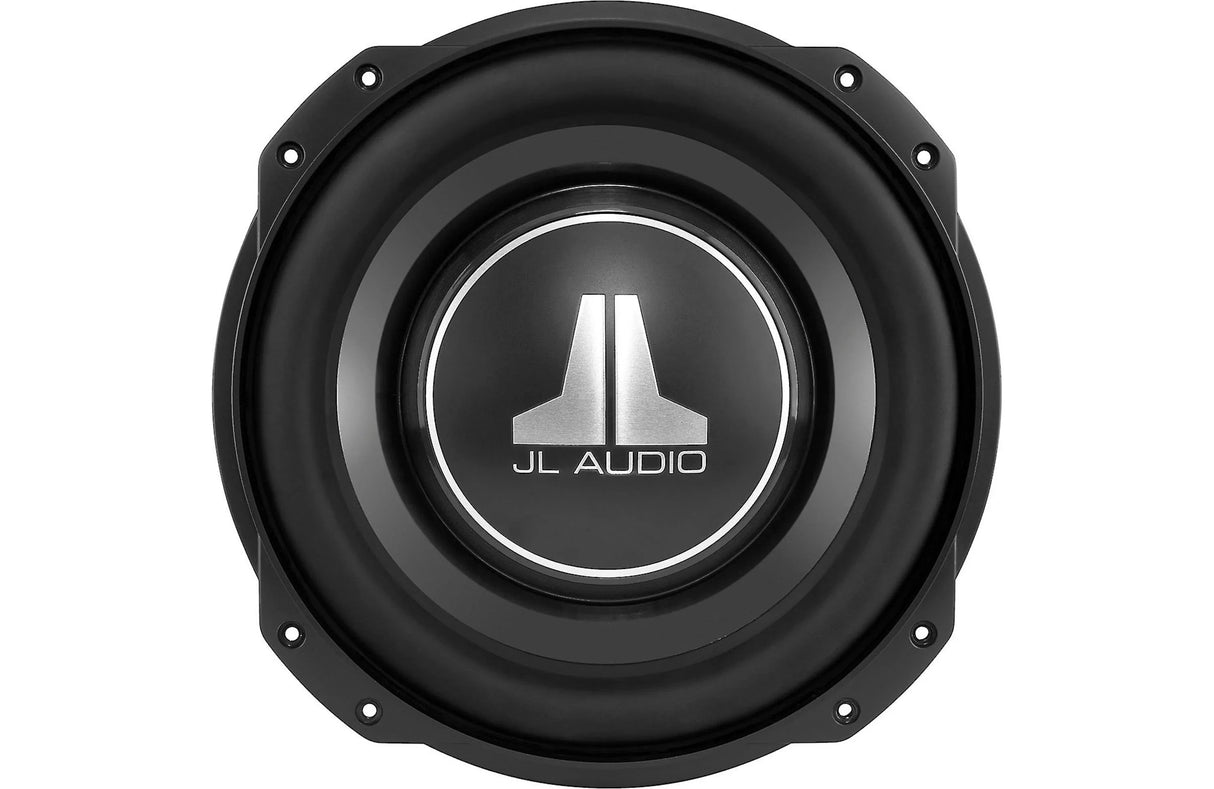

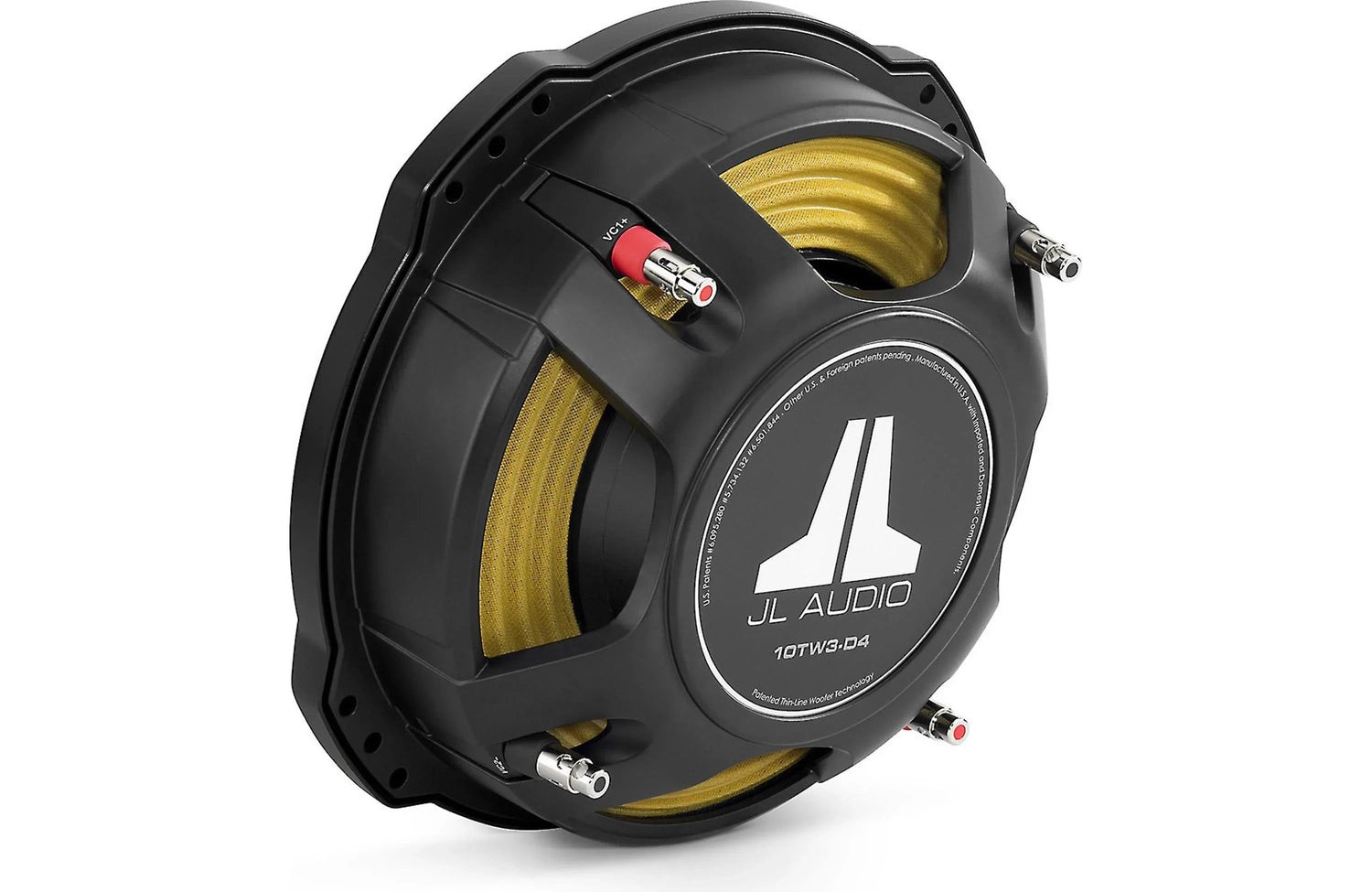

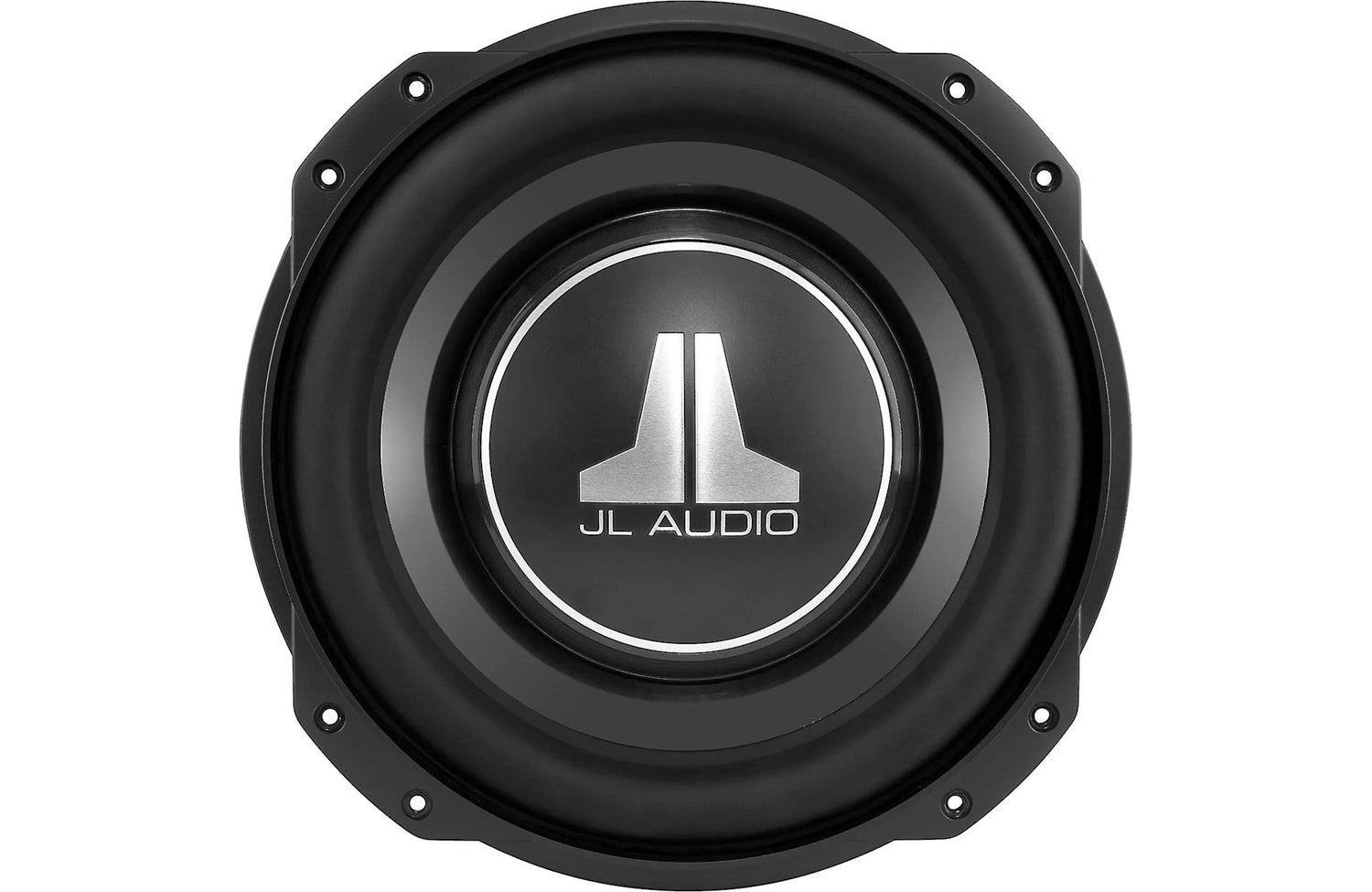

JL Audio 10TW3 | 10" 400W RMS Shallow Subwoofer DVC
JL Audio 10TW3 | 10" 400W RMS Shallow Subwoofer DVC - Dual 4 Ohm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
General Specifications
| Continuous Power Handling (RMS) | 400 W |
| Recommended Amplifier Power (RMS) | 200 - 400 W |
| Nominal Impedance (Znom) | Dual 4/8 Ω |
Physical Specifications
| Nominal Diameter | 10 in / 250 mm |
| Overall Diameter (A) | A1: 11.2 in / 284 mm A2: 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.625 in / 244 mm |
| Bolt Hole Circle Diameter (C) | 10.5 in / 267 mm |
| Motor Outer Diameter (D) | 5.1 in / 130 mm |
| Mounting Depth (E) | 3.25 in / 83 mm |
| Driver Displacement | 0.019 cu ft / 0.54 L |
| Net Weight | 10.1 lb / 4.6 kg |
Parameters
| Free Air Resonance (Fs) | 32.30 Hz |
| Electrical “Q” (Qes) | 0.656 |
| Mechanical “Q” (Qms) | 11.35 |
| Total Speaker “Q” (Qts) | 0.62 |
| Equivalent Compliance (Vas) | 0.700 cu ft / 19.82 L |
| One-Way Linear Excursion (Xmax)* | 0.6 in / 15.2 mm |
| Reference Efficiency (no) | 0.23% |
| Efficiency (1 W / 1 m)** | 82.10 dB SPL |
| Effective Piston Area (Sd) | 56.532 sq in / 0.0365 sq m |
| DC Resistance (Re)*** | 9.036 Ω |
Sealed Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.50 cu ft / 14.16 L |
| External Width (W) | 16 in / 406 mm |
| External Height (H) | 13.875 in / 352 mm |
| External Depth (D) | 6.5 in / 165 mm |
| F3 | 40.09 Hz |
| Fc | 50.04 Hz |
| Qtc | 0.96 |
Ported Enclosure Specifications
| Wall Thickness | 0.75 in / 19 mm |
| Front Baffle Thickness | 0.75 in / 19 mm |
| Volume (net int.) | 0.60 cu ft / 17 L |
| External Width (W) | 30 in / 762 mm |
| External Height (H) | 14.625 in / 372 mm |
| External Depth (D) | 5.125 in / 130 mm |
| Internal Slot Port Width (SW) | 3.625 in / 92 mm |
| Internal Slot Port Height (SH) | 2.125 in / 54 mm |
| Internal Slot Port Length (SL) | 31.0625 in / 789 mm |
| Port Extension Length (EL) | 26.375 in / 670 mm |
| Tuning Frequency (Fb) | 32.14 Hz |
| F3 | 32.11 Hz |
