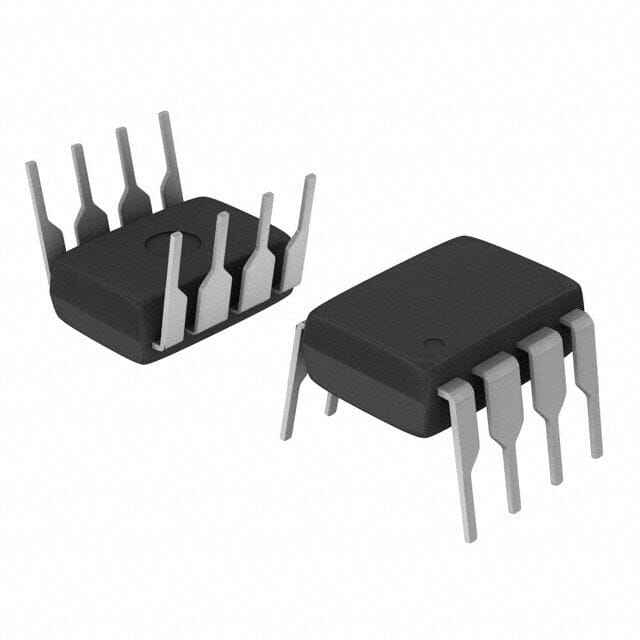

UC3842AN PWM Controller IC - Fixed Frequency SMPS 8-DIP
UC3842AN PWM Controller IC - Fixed Frequency SMPS 8-DIP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
UC3842AN PWM Controller IC - Fixed Frequency SMPS 8-DIP
UC3842AN PWM Controller IC - Fixed Frequency SMPS 8-DIP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
--THIS PRODUCT CONTAINS 1 PIECE--
The UC3842AN is a high-performance current-mode PWM controller designed for off-line and DC-to-DC converter applications. This IC provides all the necessary features to implement cost-effective, efficient switch-mode power supplies with minimal external components.
Key Features:
- Current-mode PWM control for excellent line and load regulation
- Package: 8-pin DIP (Dual In-line Package)
- Operating frequency: Up to 500kHz
- Supply voltage range: 10V to 30V
- Low startup current: 1mA typical
- Automatic feed-forward compensation
- Pulse-by-pulse current limiting
- Enhanced load response characteristics
- Under-voltage lockout with hysteresis
Applications:
- Off-line switch-mode power supplies
- DC-to-DC converters
- Battery chargers
- Forward converters
- Flyback converters
- Boost converters
- Buck converters
- Power factor correction circuits
Technical Specifications:
- Part Number: UC3842AN
- Manufacturer: Texas Instruments / ON Semiconductor
- Package Type: 8-DIP
- Operating Temperature: 0°C to +70°C
- Supply Voltage: 10V to 30V
- Maximum Duty Cycle: 50%
- Oscillator Frequency: Up to 500kHz
- Output Current: 1A peak (source/sink)
- Under-voltage Lockout: 16V turn-on, 10V turn-off
