Conductor's Special 232 24-Volt Train Horn Kit
par HornBlasters
Prix d'origine
$1,079.00
-
Prix d'origine
$1,079.00
Prix d'origine
$1,079.00
$1,079.00
-
$1,079.00
Prix actuel
$1,079.00
♫ 24V MAGIC IN THE AIIIIIRRRRR ♫

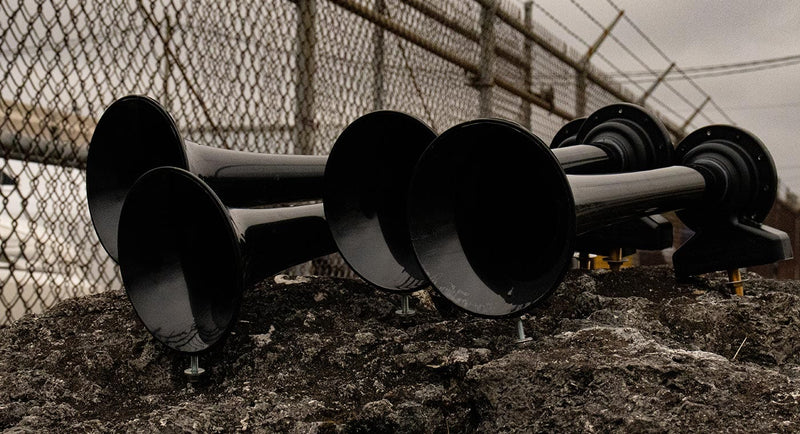

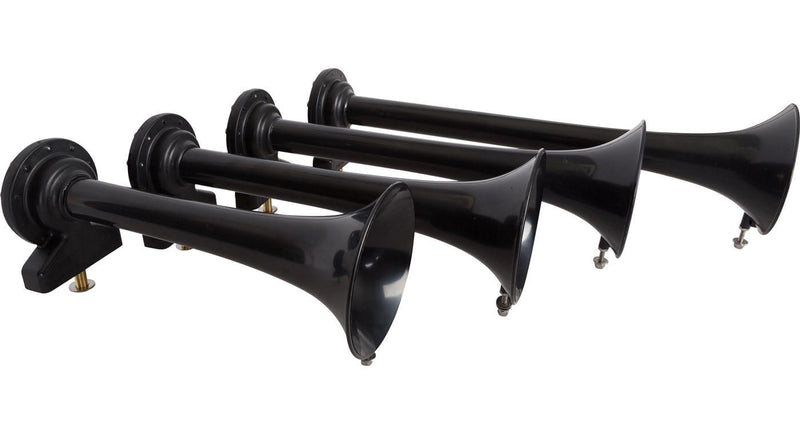

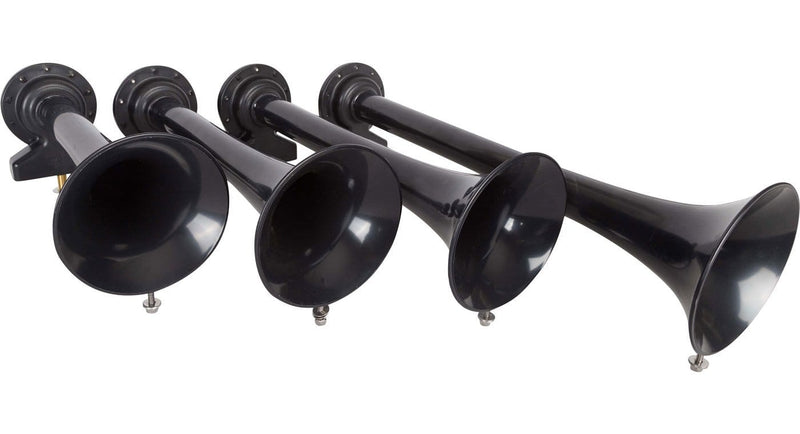

Introducing the Conductor's Special 232 24-Volt Train Horn Kit - our loudest horn kit for 24-volt systems. Modified from the legendary 232 Train Horn Kit, it brings full locomotive power to a compact size. Featuring our powerful Shocker XL Train Horns, which use four bells to create the US Train Horn Chord, this kit provides an authentic tone with unmatched durability.
The HornAir 232 Onboard Air System supports both horn blasting and light pneumatic tasks like emergency tire inflation. With a 2-Gallon 6-Port tank, enjoy up to 5 seconds of continuous honking!
As always, our kit includes all the necessary components and clear instructions for a straightforward setup.
- High efficiency & Extremely Loud
- The horns are constructed from fiberglass-reinforced ABS for extreme durability under harsh conditions.
- Stainless Steel Diaphragms Won't Rust!
- Manifold-less Design For Flexible Installation
- 24 Volt Kit
- All Standard Mounting Hardware
- Max Honk Time: 3-5 Seconds
- It can be heard from almost miles away!
**THIS SYSTEM REQUIRES A 24-VOLT POWER SOURCE! CONNECTING THIS SYSTEM TO A 12-VOLT POWER SOURCE CAN CAUSE SERIOUS DAMAGE TO YOUR VEHICLE AND/OR COMPRESSOR**
CUSTOMER VIDEO REVIEW OF THESE HORNS
This video shows our Shocker XL Train Horn in a third-party decibel test alongside your typical "air horn" honked side-by-side at the same pressure. As you can see, no one even comes close to the insane volume and tone of our Shocker XL Train Horns!

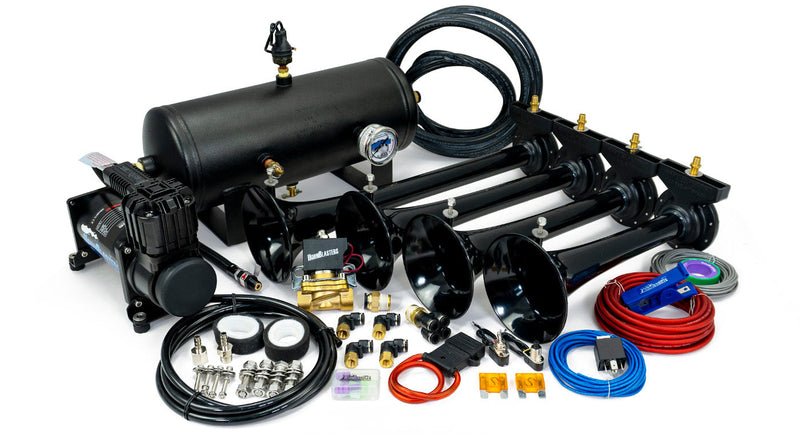

- HornBlasters Shocker S4 Train Horns
- 2 Gallon Air Tank

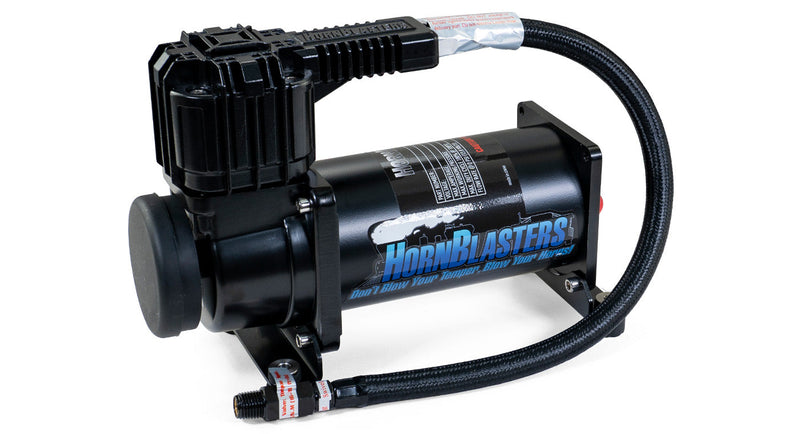

- HornBlasters AC-2 24 Volt Compressor
- HornBlasters 1/2" Brass 24-Volt Electric Air Valve
- HornBlasrers 110/145 PSI Pressure Switch
- 40 Amp 24 Volt Relay
- Remote Mountable Intake Filter Assembly
- Spare Air Filters
- 10 ft of 5/16 in D.O.T. Approved Air Line
- 17 ft of 1/2 in D.O.T. Approved Air Line
- 6 ft of 3/8 in Air Line (For Compressor Intake)
- 22 ft of 10 Gauge Power Wire
- HornBlasters 200 PSI Air Gauge
- Brass NPT Fittings Kit Including Safety Valve and Blow-off
- Wiring & Plumbing Kit
- Compressor Mounting Hardware
- Detailed Instructions
| Part Number | HK-S4-232-24 |
| Horn | Shocker 4 Train Horn Kit |
| Material | High-Impact ABS |
| Horn Measurements | № 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm) № 3 14.75″ (374.65 mm) № 4 12.75″ (323.85 mm) |
| Flare | 5″ (127 mm) |
| Weight | 4.5 lb (2.04 Kg) |
| Fitting Size | ⅛″ M NPT |
| Tank | 2 Gallon Tank |
| Rated Pressure | 300 PSI |
| Burst Pressure | 800 PSI |
| Tank Length | 17" (431.8 mm) |
| Tank Diameter | 6" (152.4 mm) |
| Tank Height | 7" (177.8 mm) |
| Tank Weight | 10 lb (4.54 Kg) |
| Compressor | Viair 325C 24 Volt Air Compressor |
| Voltage | 24 volts DC |
| Air Flow | 1.80 CFM at Free Flow |
| Average Fill Time | 1 Min 10 Sec |
| Max Amperage | 13 amps |
| Maximum Duty Cycle | 33% @ 100 PSI |
| Maximum Working Pressure | 150 PSI |
| Compressor Length | 8.0" (203.2 mm) |
| Compressor Width | 4.0" (101.6 mm) |
| Compressor Height | 7.05" (179.07 mm) |
| Compressor Weight | 6.95 lb (3.15 Kg) |
| Pressure Switch | HornBlasters 110/150 PSI Switch |
| Voltage | 24 volts DC |
| Max Amps | 40A |
| Stop Pressure | 150 PSI |
| Restart Pressure | 110 PSI |
2-Gallon Air Tank Dimensional Drawing
-
