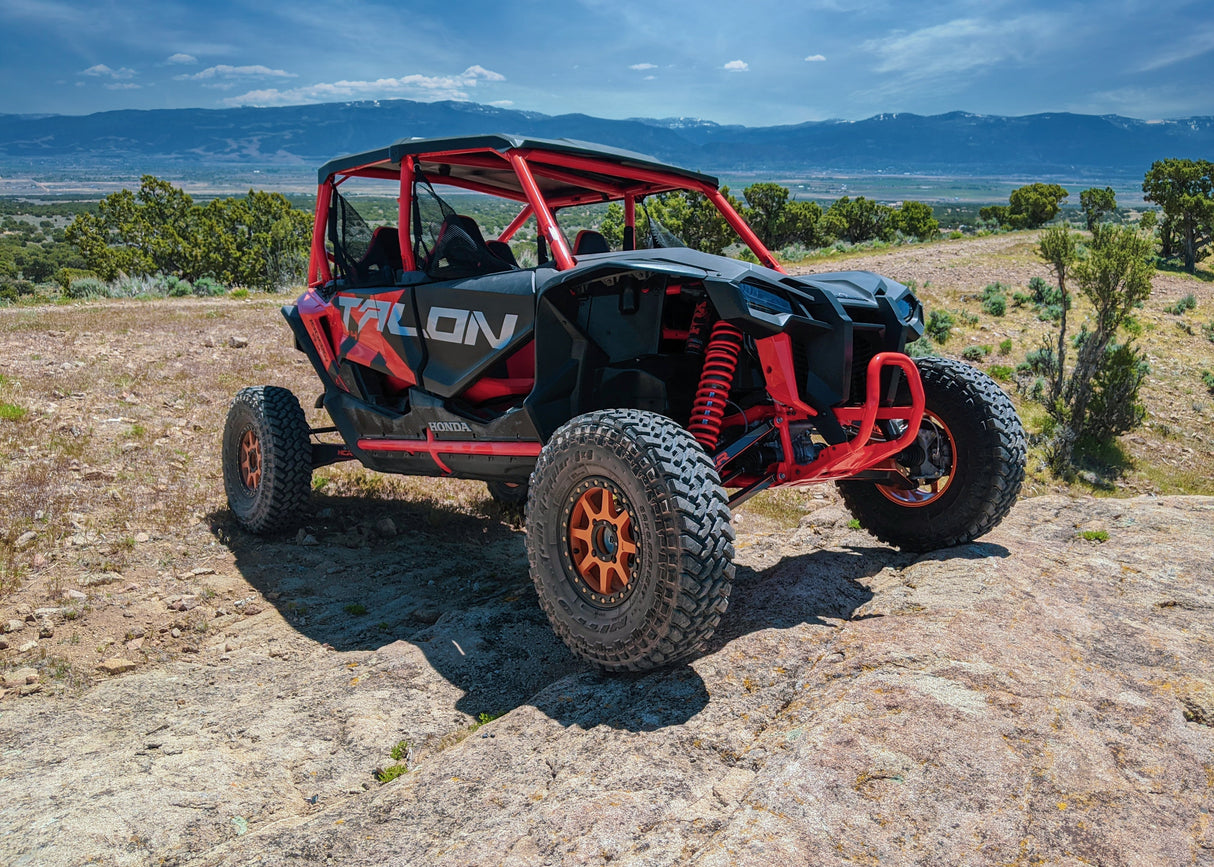

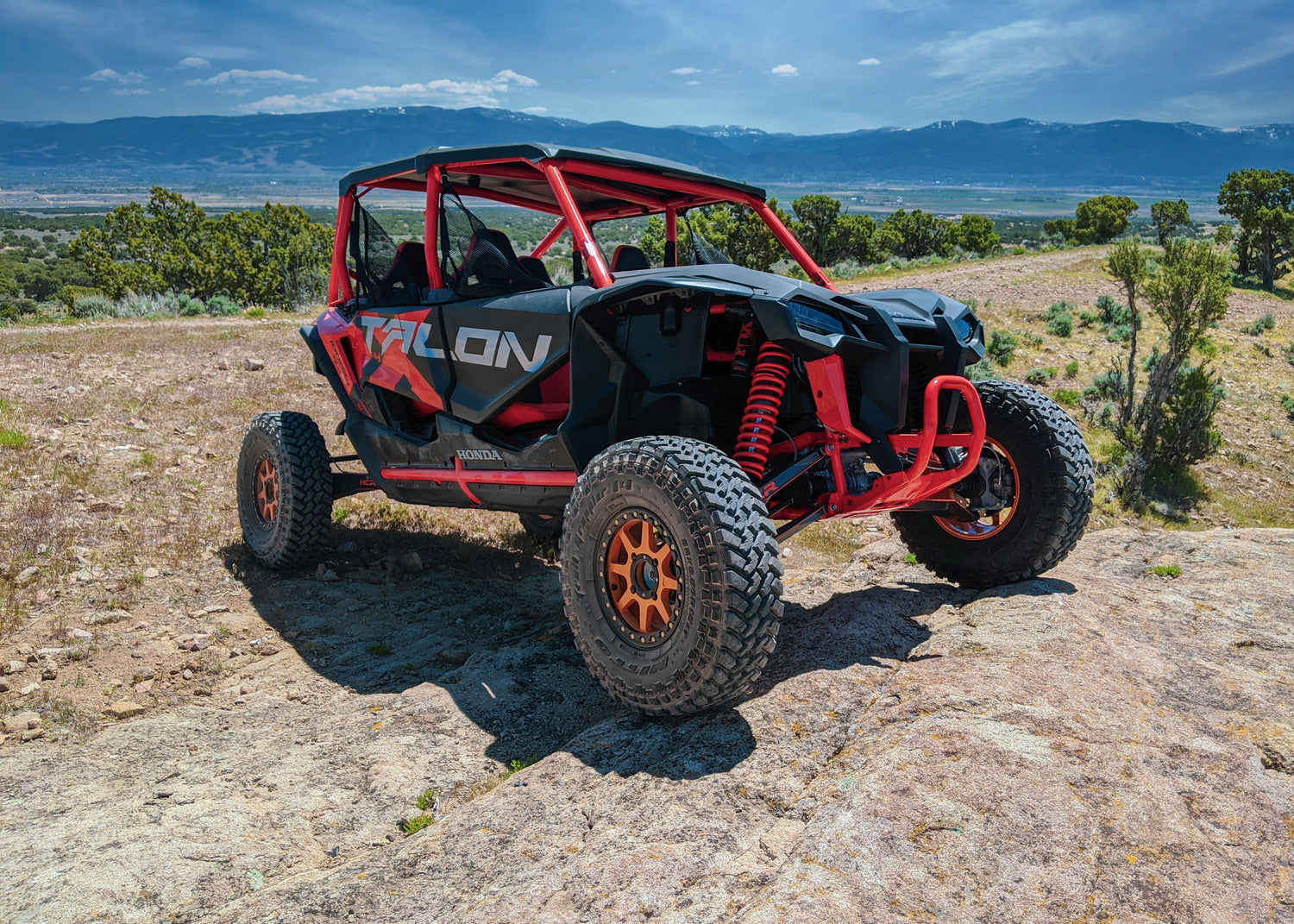

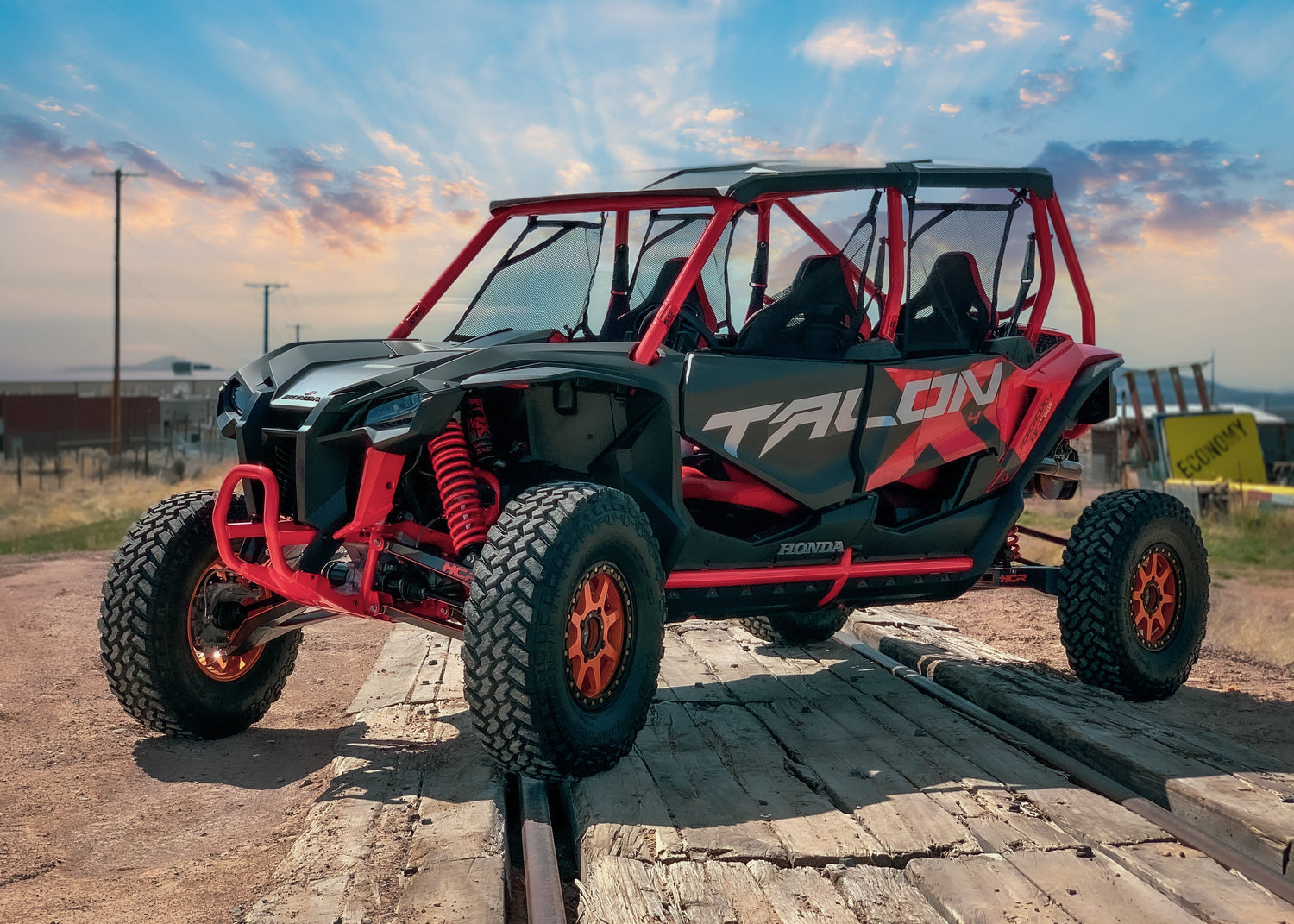

HCR Racing Long Travel Suspension Kit for Honda Talon 1000X (2019-2022)

PART# TAL-05500

Features:

• 4+ inches wider per side on the front and 5+inches wider per side on the rear for a total of 72" width all around to accommodate a uniform offset wheel for tire rotation and overall aesthetics

• Fiber Laser Cut construction for precise fit and finish

• CNC'd 4130 heat treated billet mounting points for increased integrity

• Angled catacomb design for optimal force distribution

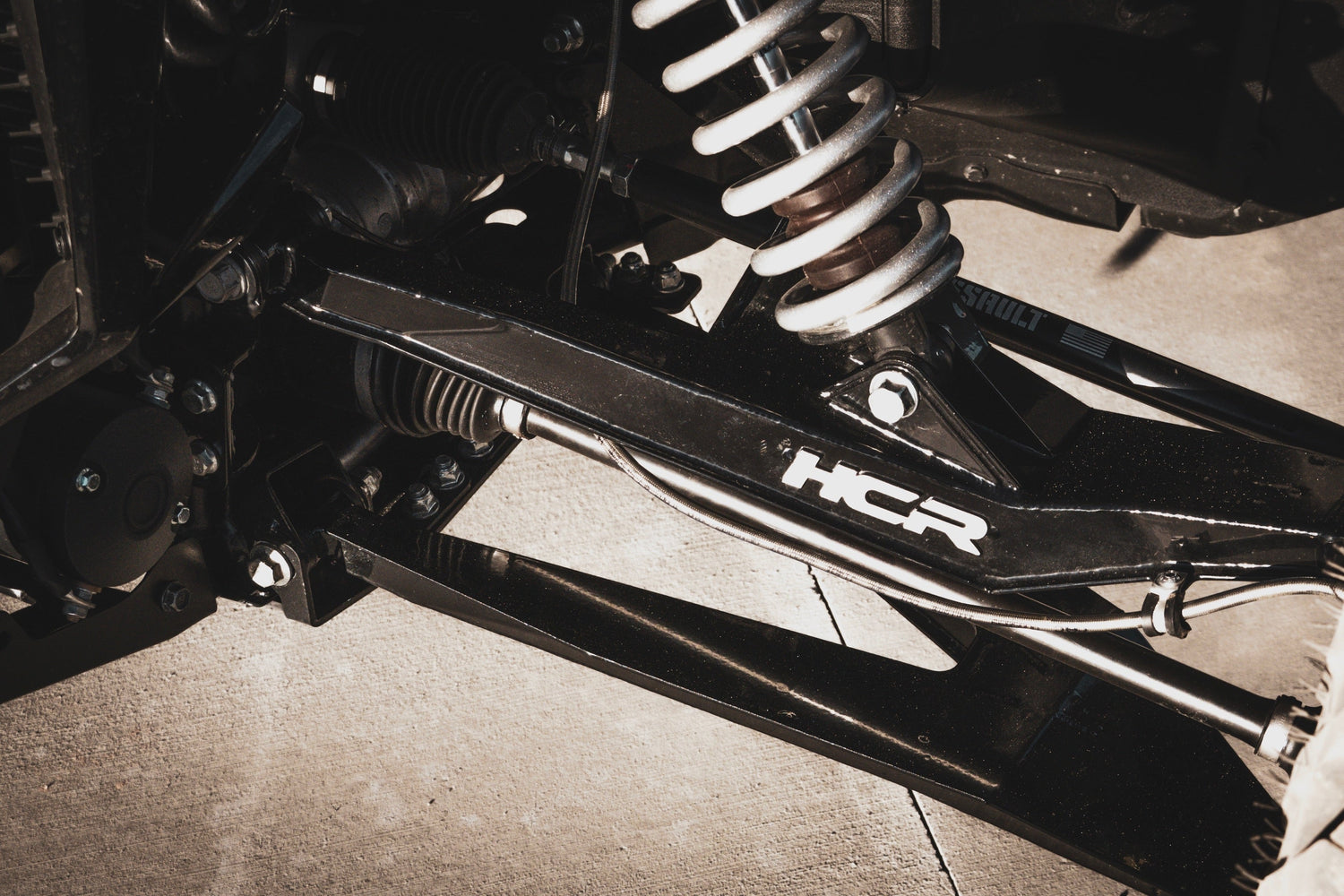

• High Clearance Boxed A-Arm Design

• Hand TIG welded for strength and aesthetics

• High-Clearance Arms provide 1.250" of front and 1.500" of rear added ground clearance

• 100% Bolt-on installation using factory mounting points

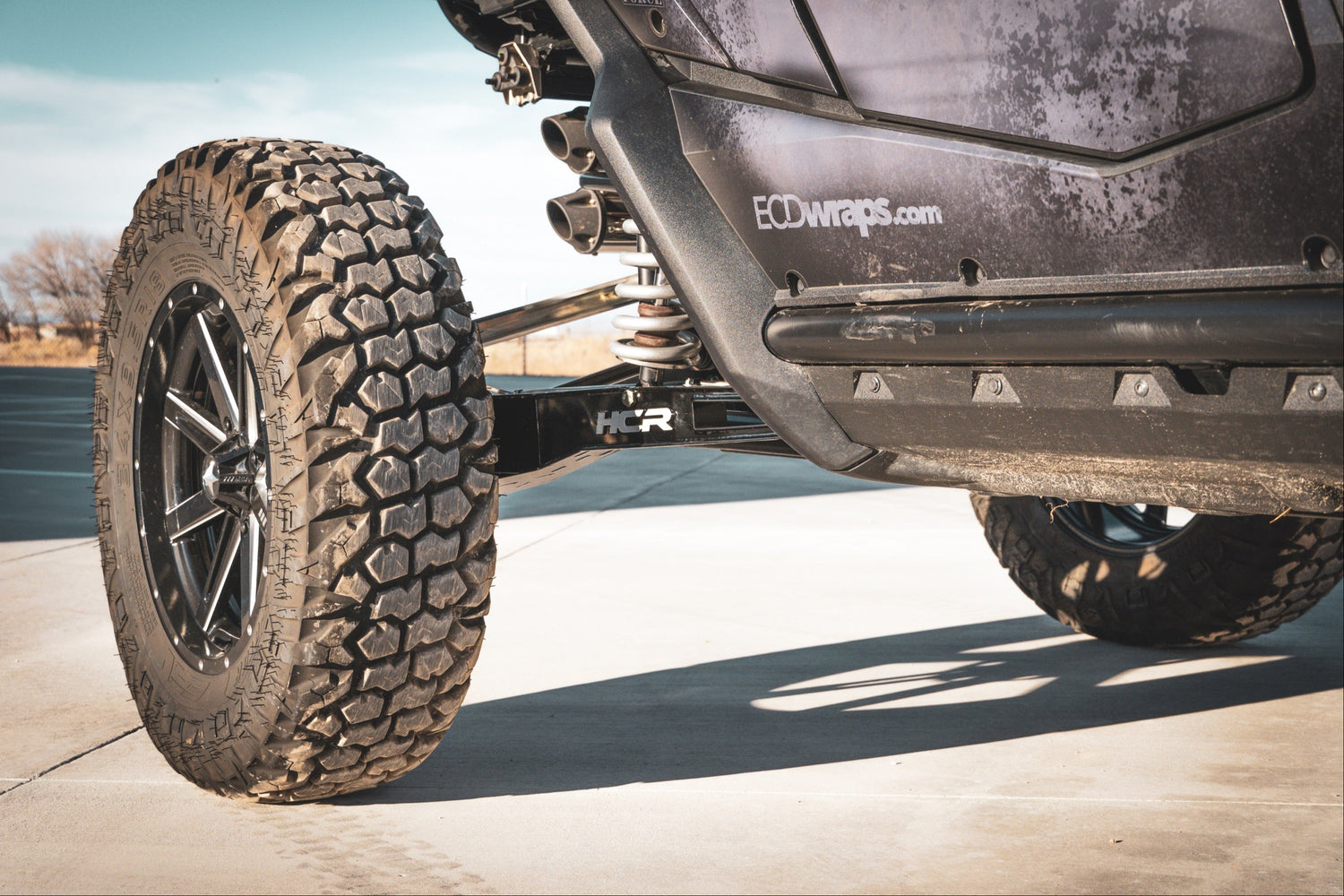

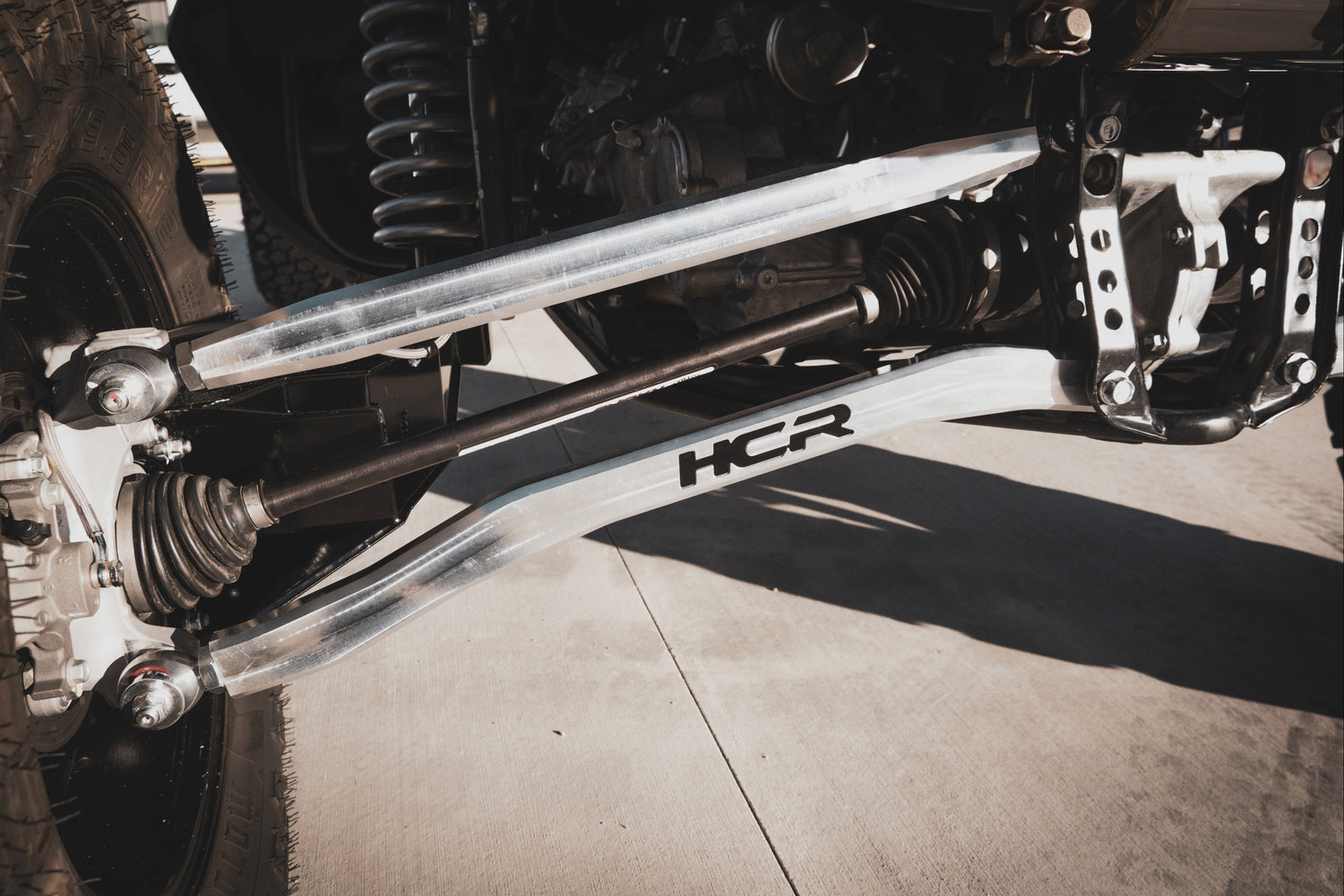

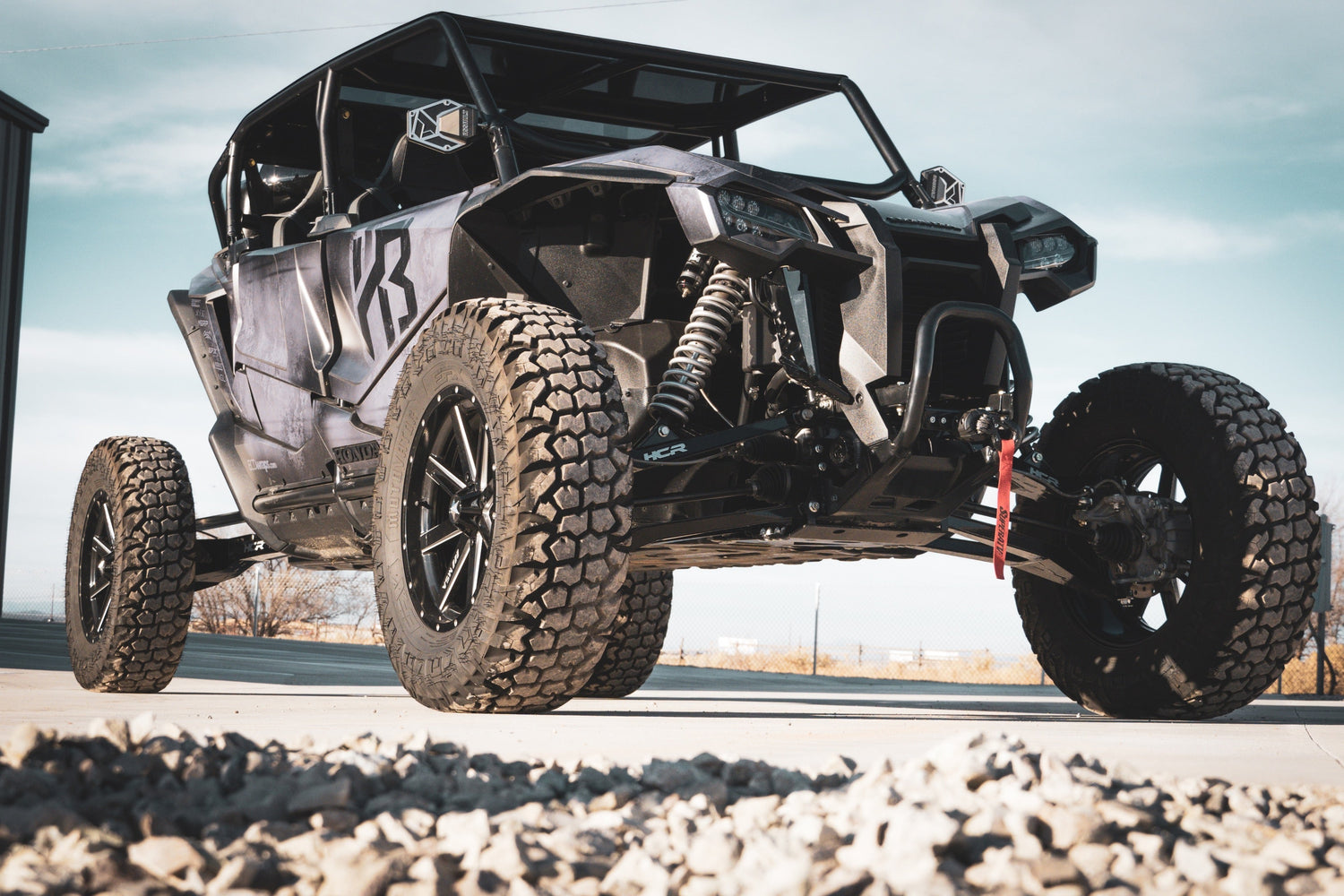

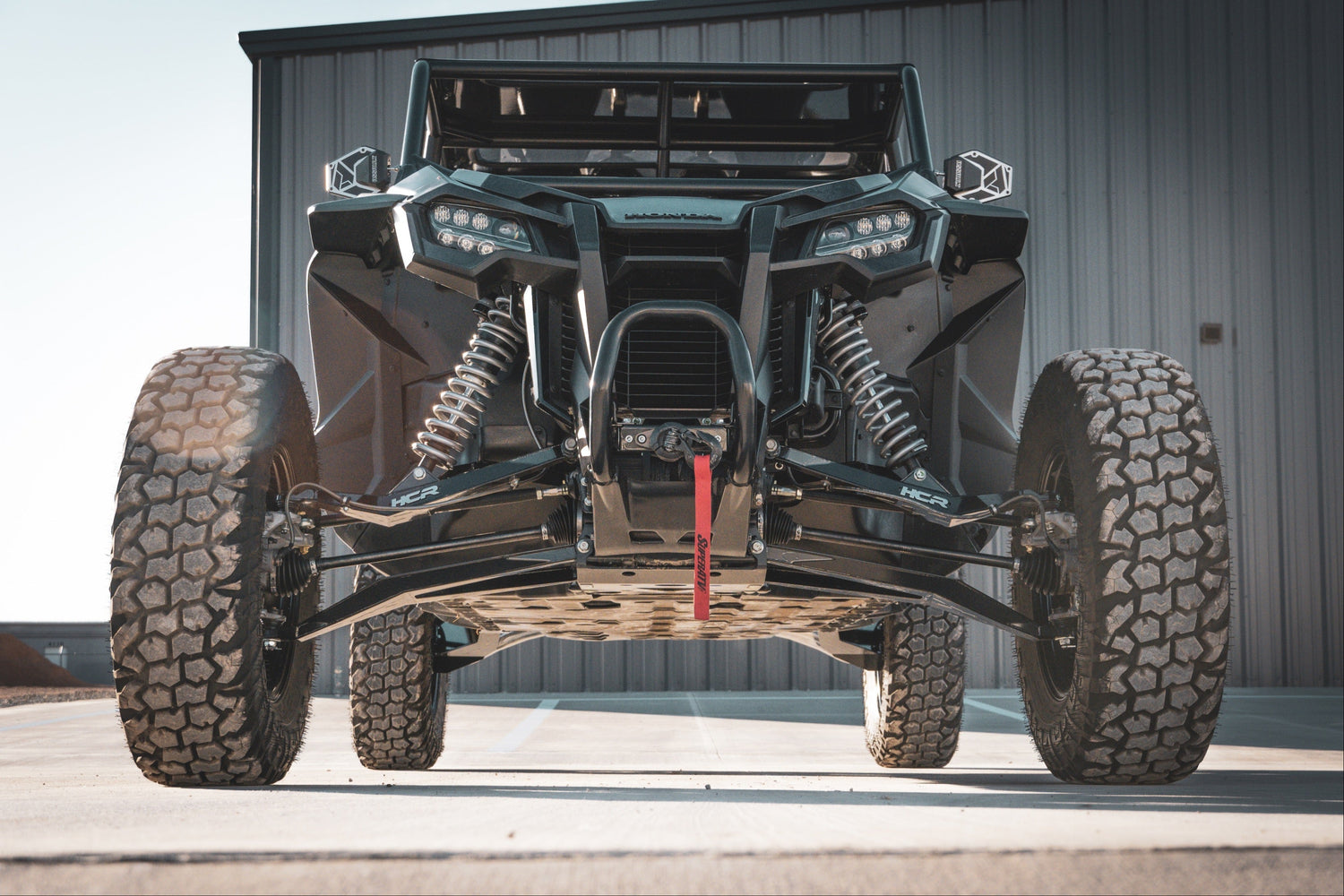

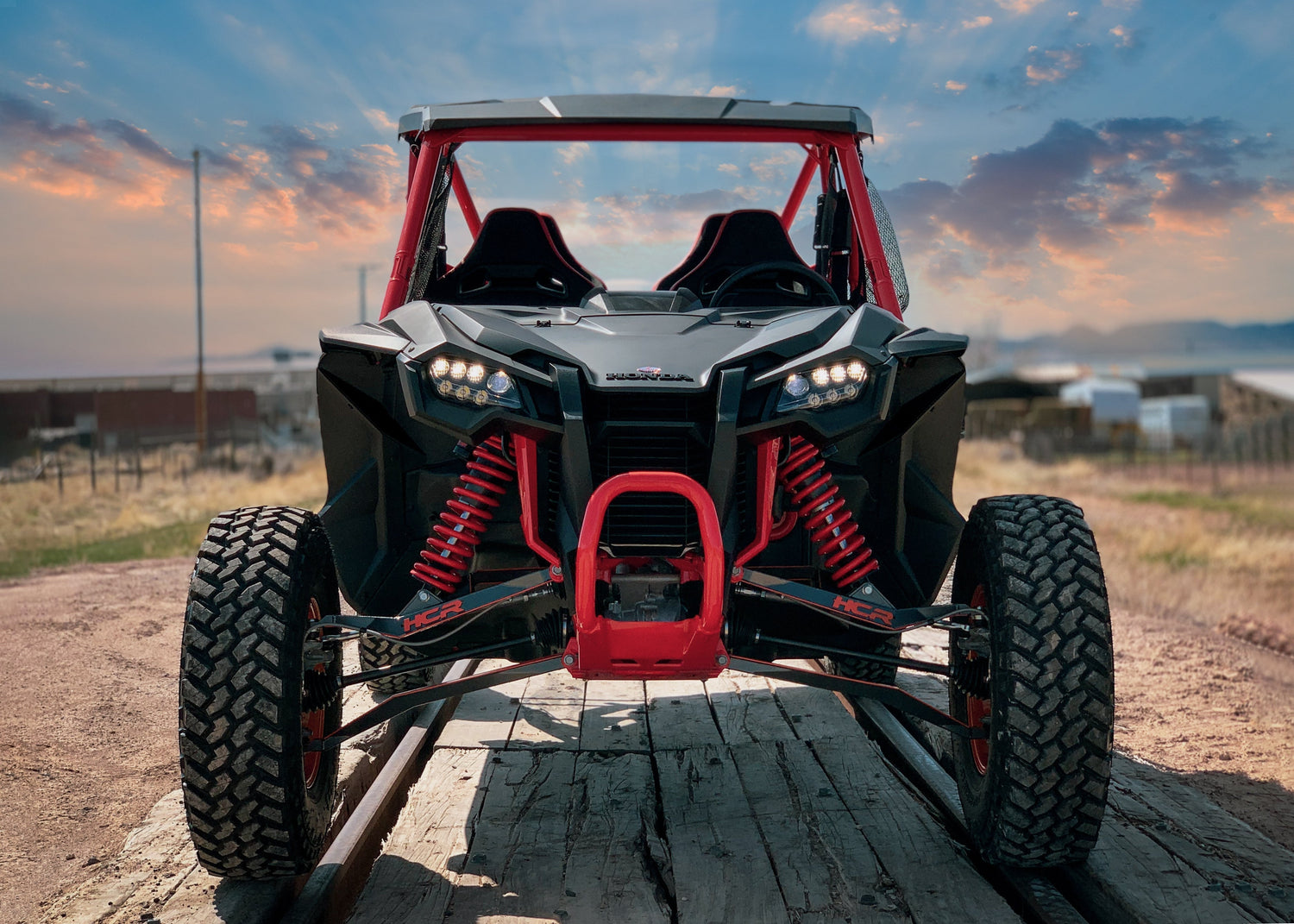

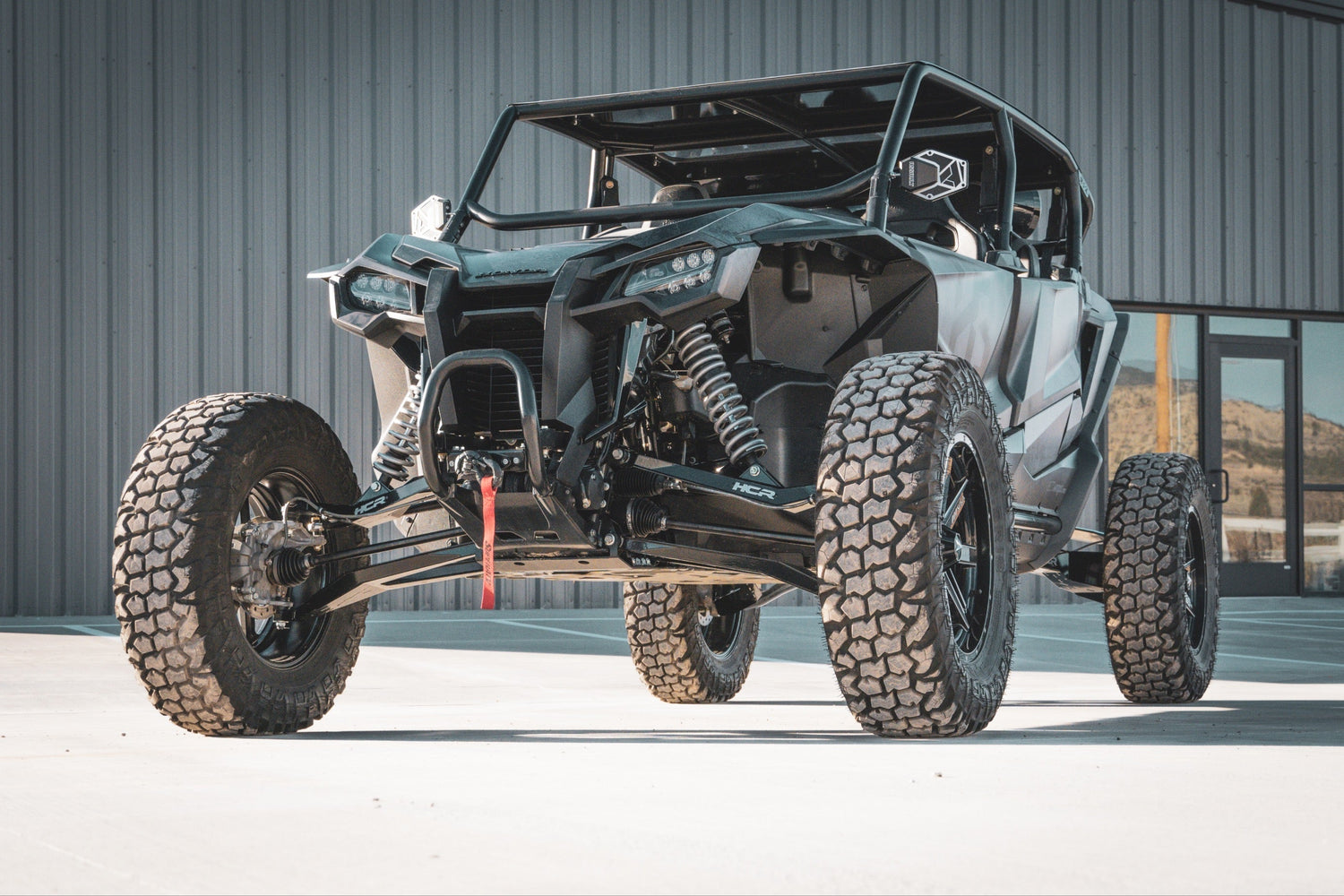

The HCR Racing Long Travel Suspension Kit for the Honda Talon 1000X offers enhanced performance with a fresh design, providing sleek angles, a tougher look, and added clearance. The kit increases ground clearance by 1.25” under the Front A-arms and 1.5” in the rear trailing arms. It delivers extra travel and stability while keeping OEM caster and camber angles, eliminating the need for adjustable heim ends. Each kit includes 4 Front A-arms, 2 trailing arms, 4 rear links, and 4 axles.

Rhino 2.0 Axles:

• Uses 4340 chromoly steel bars, CVs, and components

• Trusted by thousands of riders

• 18-month warranty

HCR High-Clearance Billet Aluminum Radius Rods

• 7075 billet aluminum construction

• Black anodized finish

• 5/8-18 right-hand thread heim joints

• Bolt-on replacement

Fitment

• Honda Talon 1000X : 2019-2022
• Honda Talon 1000X-4 : 2020-2022

Kit Includes:

• (4) Front A-arms

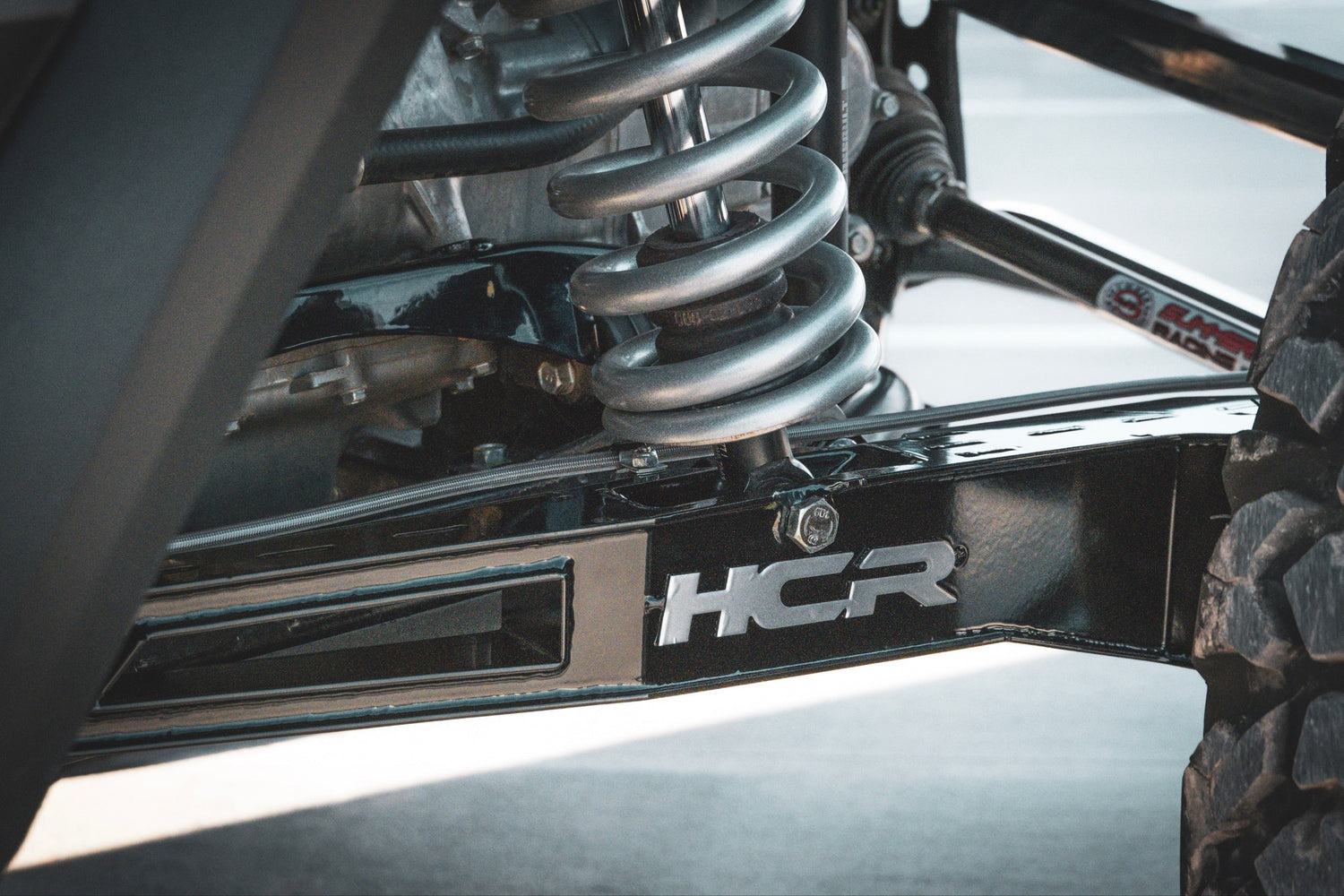

• (2) Rear Trailing arms

• (4) Rear High Clearance Radius Rods

• (4) Rhino 2.0 Axles


• Hardware Pack

• Tie Rod Extensions

NOTE: HCR kits are made to order. Quality takes time
