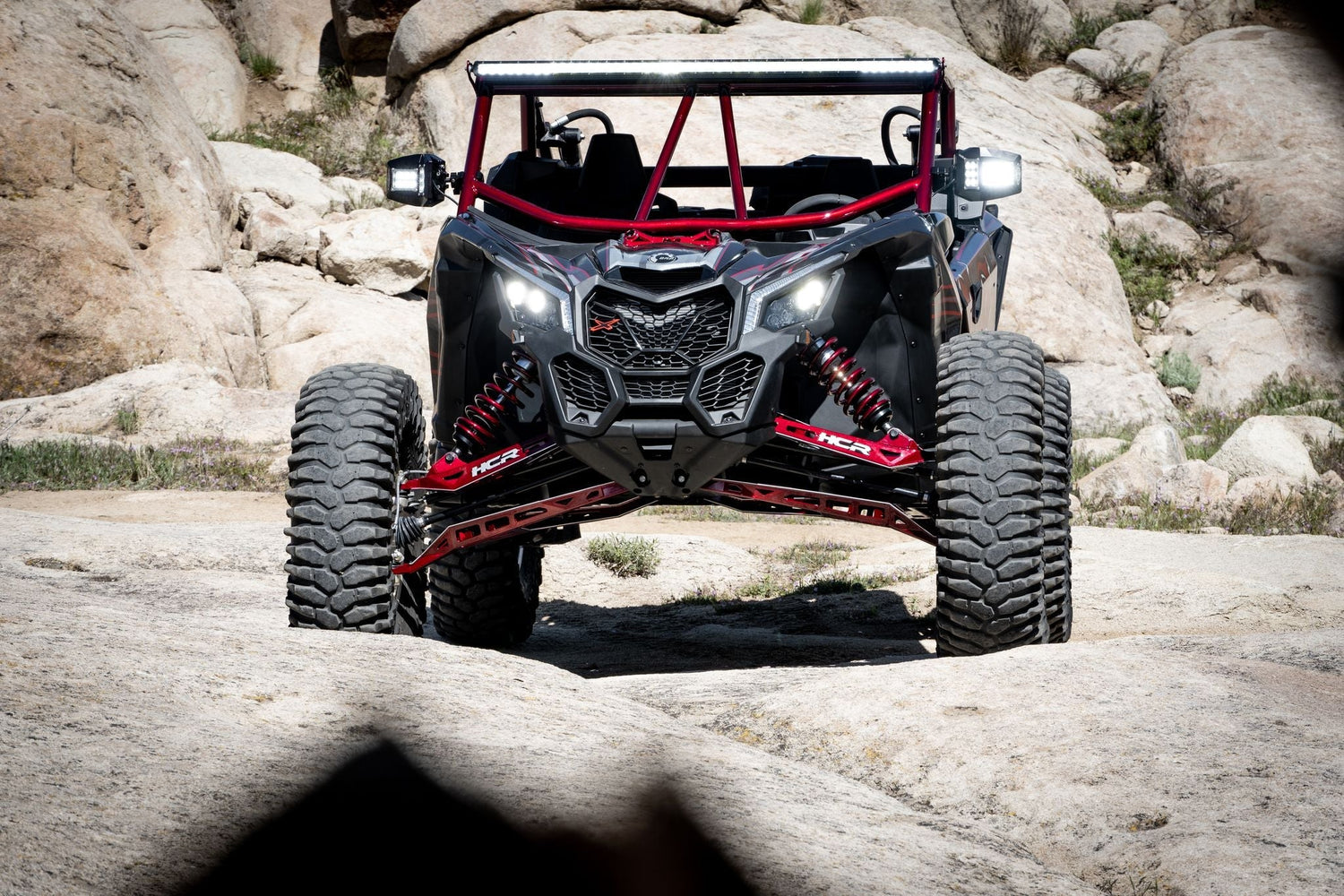

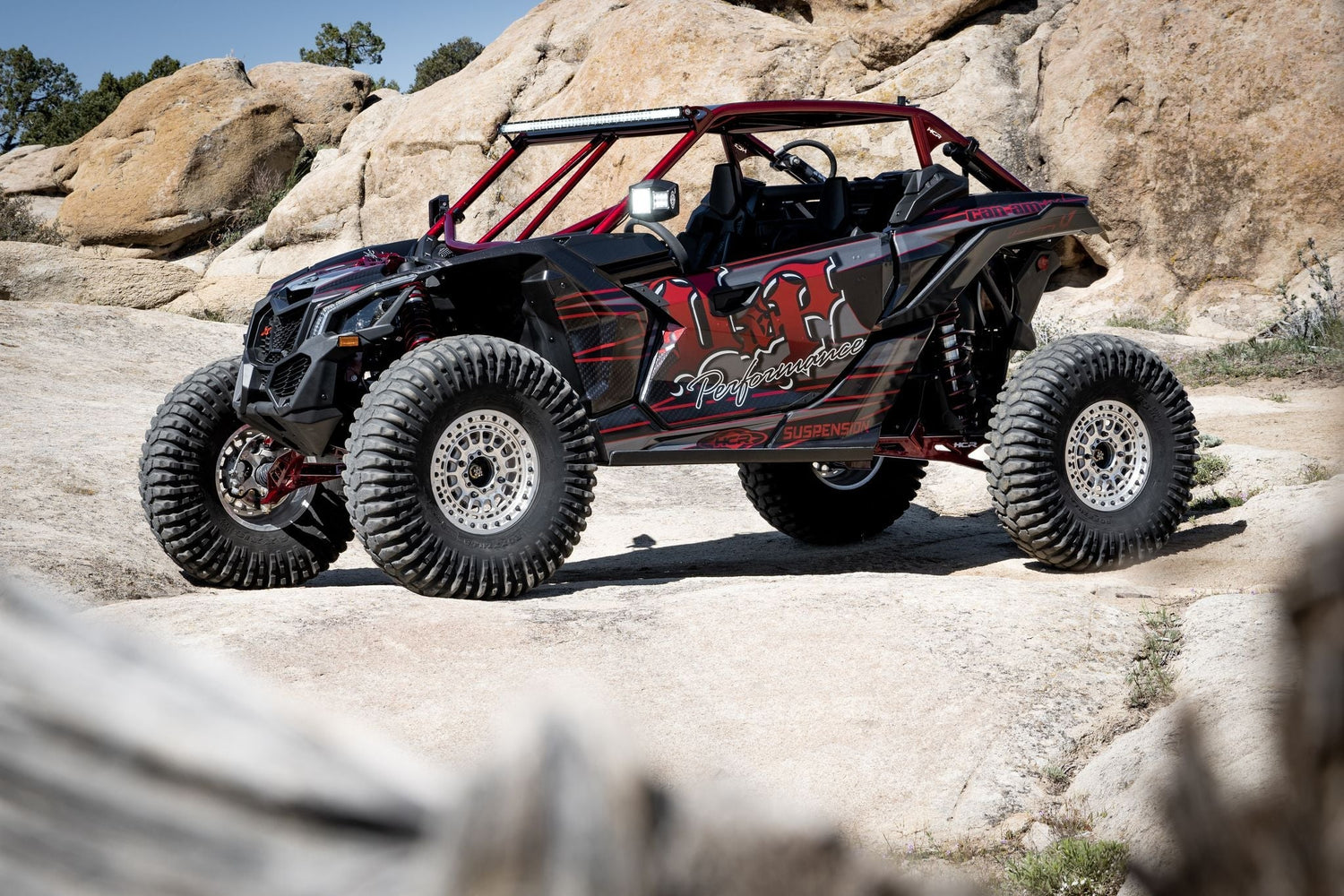

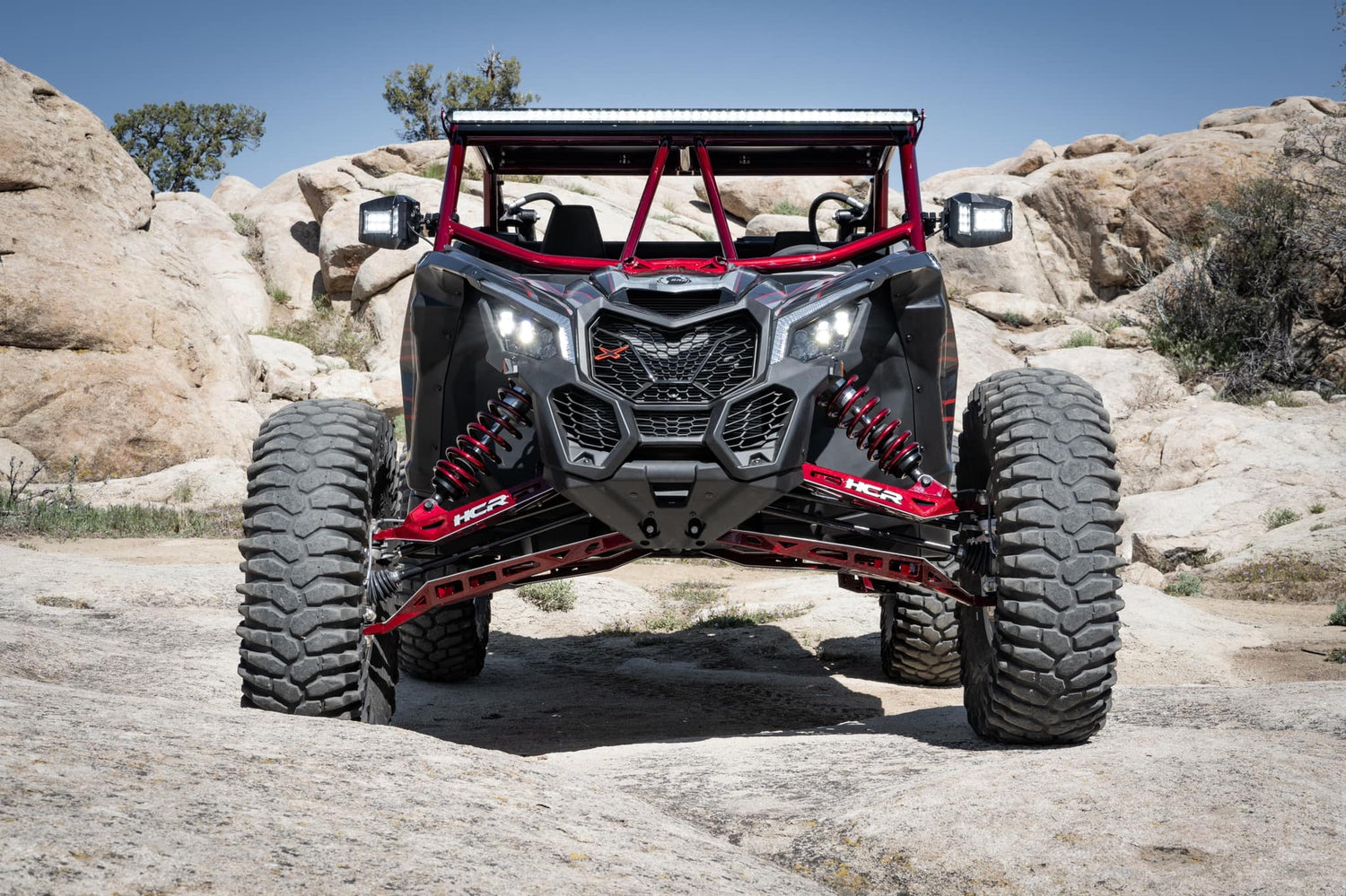

HCR Racing Duner Suspension Kit for Can-Am Maverick X3 72"

Part # MAV-05600

Features:

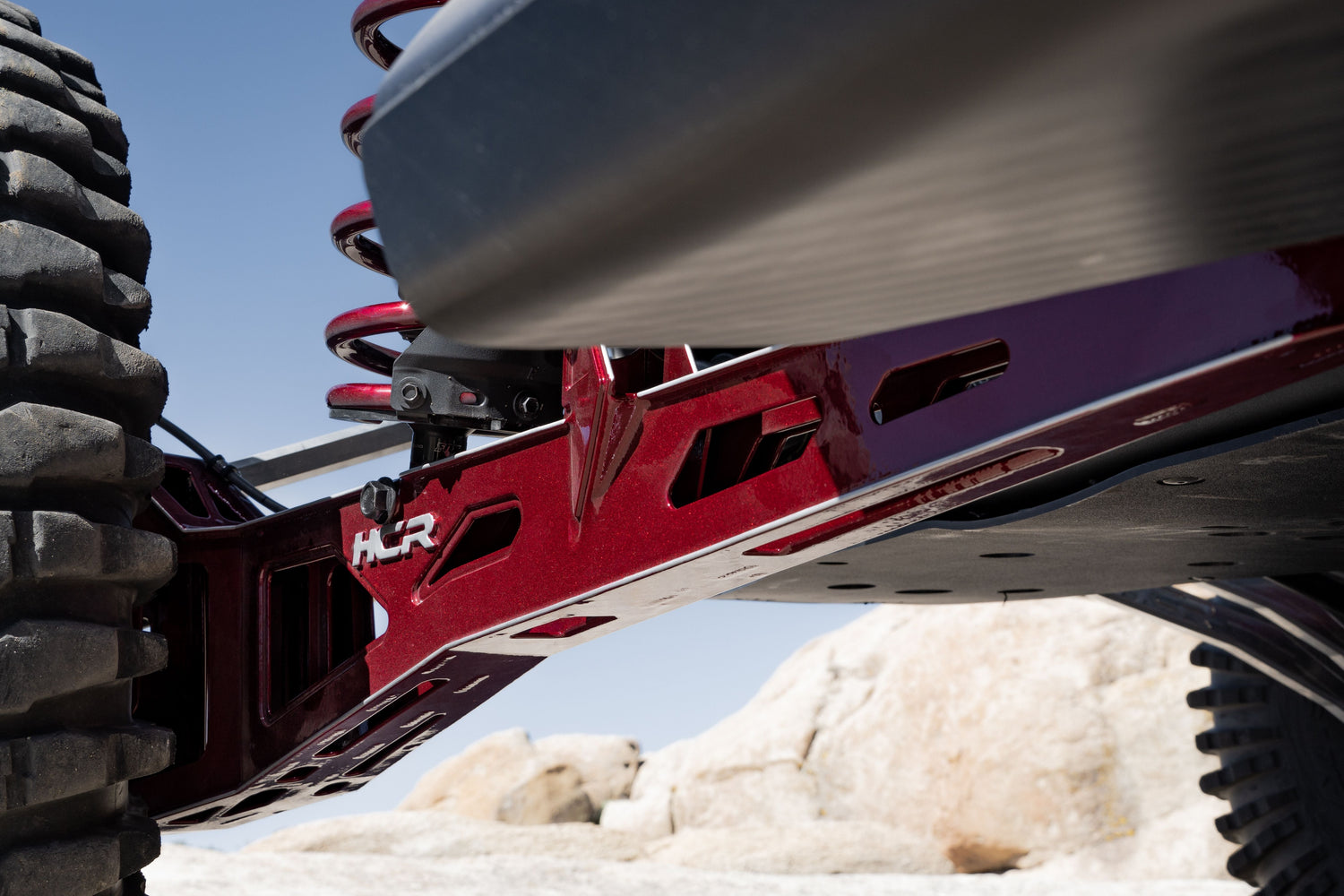

• High-clearance boxed front A-arms and high-clearance rear trailing arms provide 1.25” of added ground clearance

• Laser-cut construction for precise fit and finish

• Chromoly mounting points for increased structural integrity

• Manufactured with HCR Elite Alloy, 30% stronger than 4130 chromoly

• TIG-welded by hand for strength and aesthetics

• Internal catacomb design improves strength without adding weight

• Improved approach angles reduce surface attraction and friction

Description:

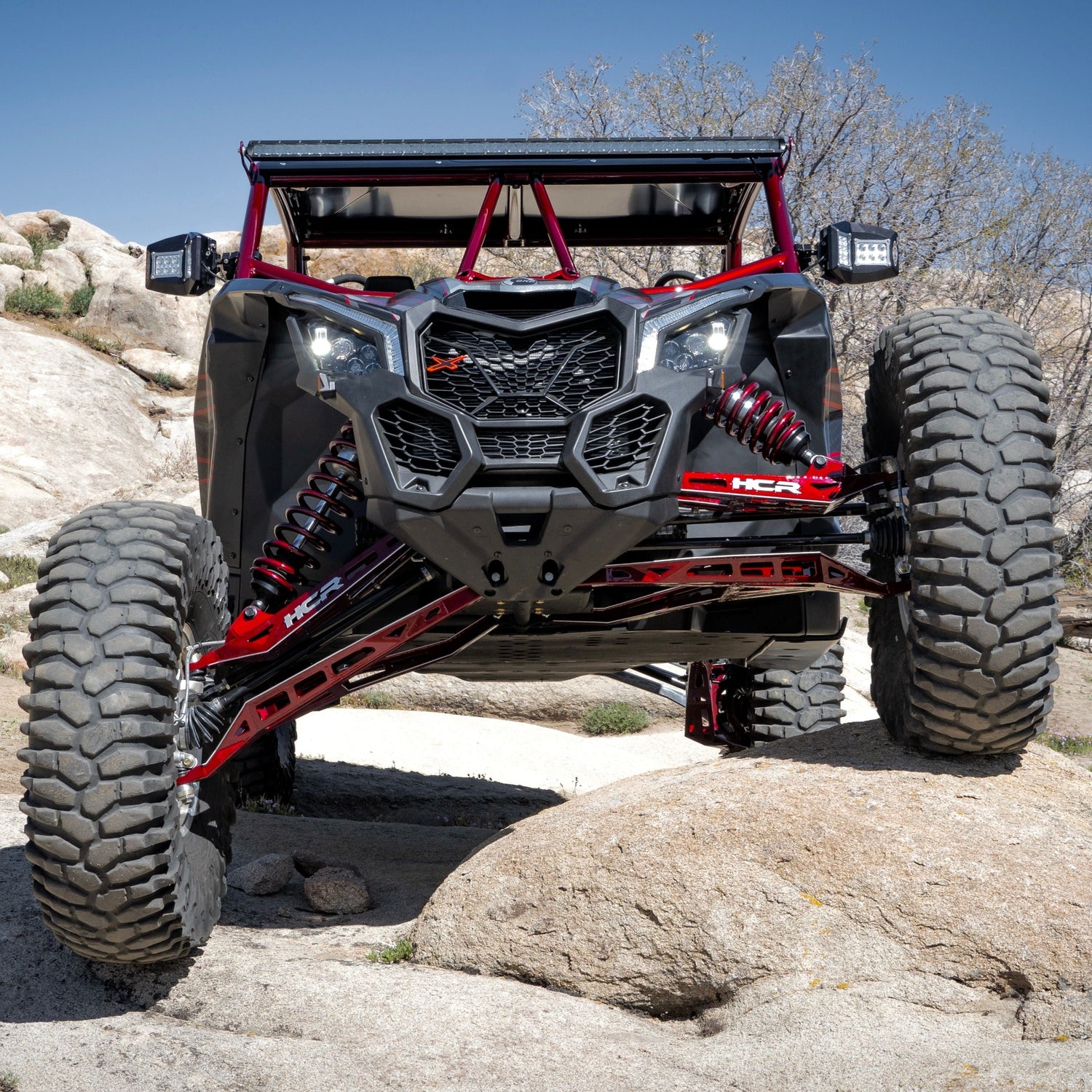

HCR’s Can-Am Maverick X3 Duner Suspension Kit uses high-clearance A-arm and trailing arm design to increase ground clearance 1.5 inches. Approach angles have been improved to reduce surface attraction and friction. This suspension kit is manufactured with HCR’s proprietary elite material. This custom alloy is 30% stronger in yield and tensile strength than 4130 chromoly and goes through several treatments to improve wear resistance and overall strength.

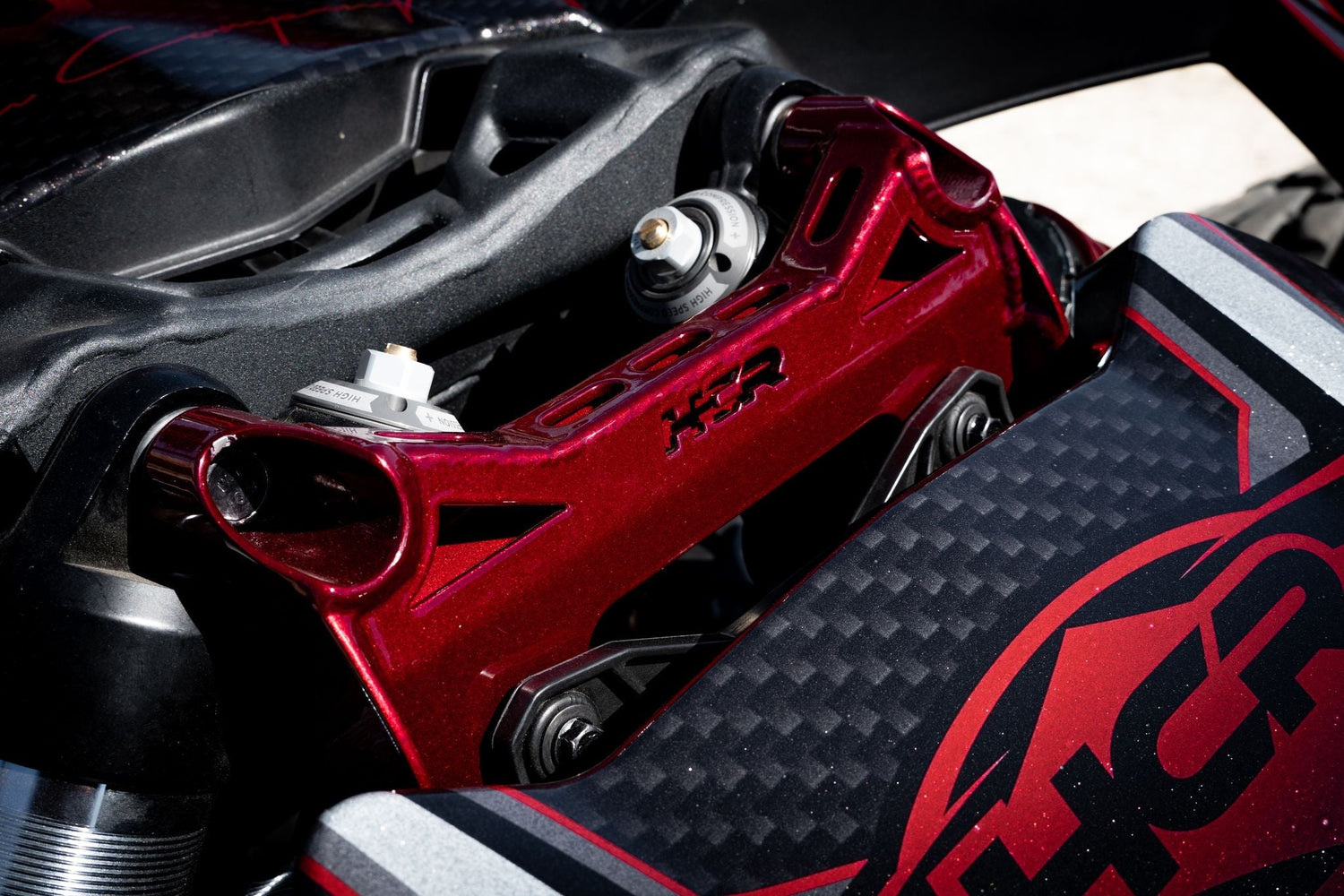

Improved Shock Tower

HCR includes an upgraded shock tower with your suspension upgrades. Enhanced durability supports your shocks, providing improved rigidity all around.

Kit Includes:

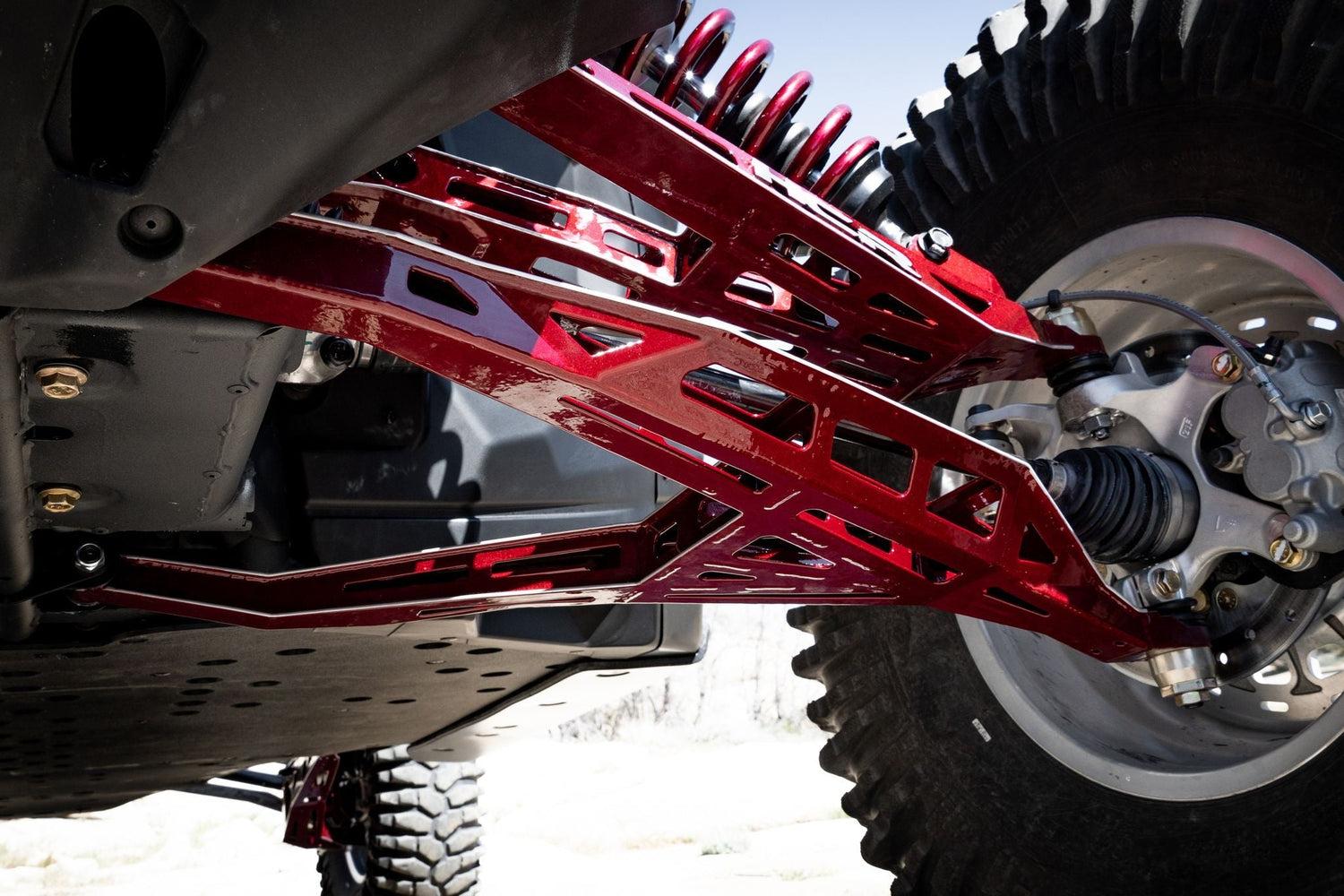

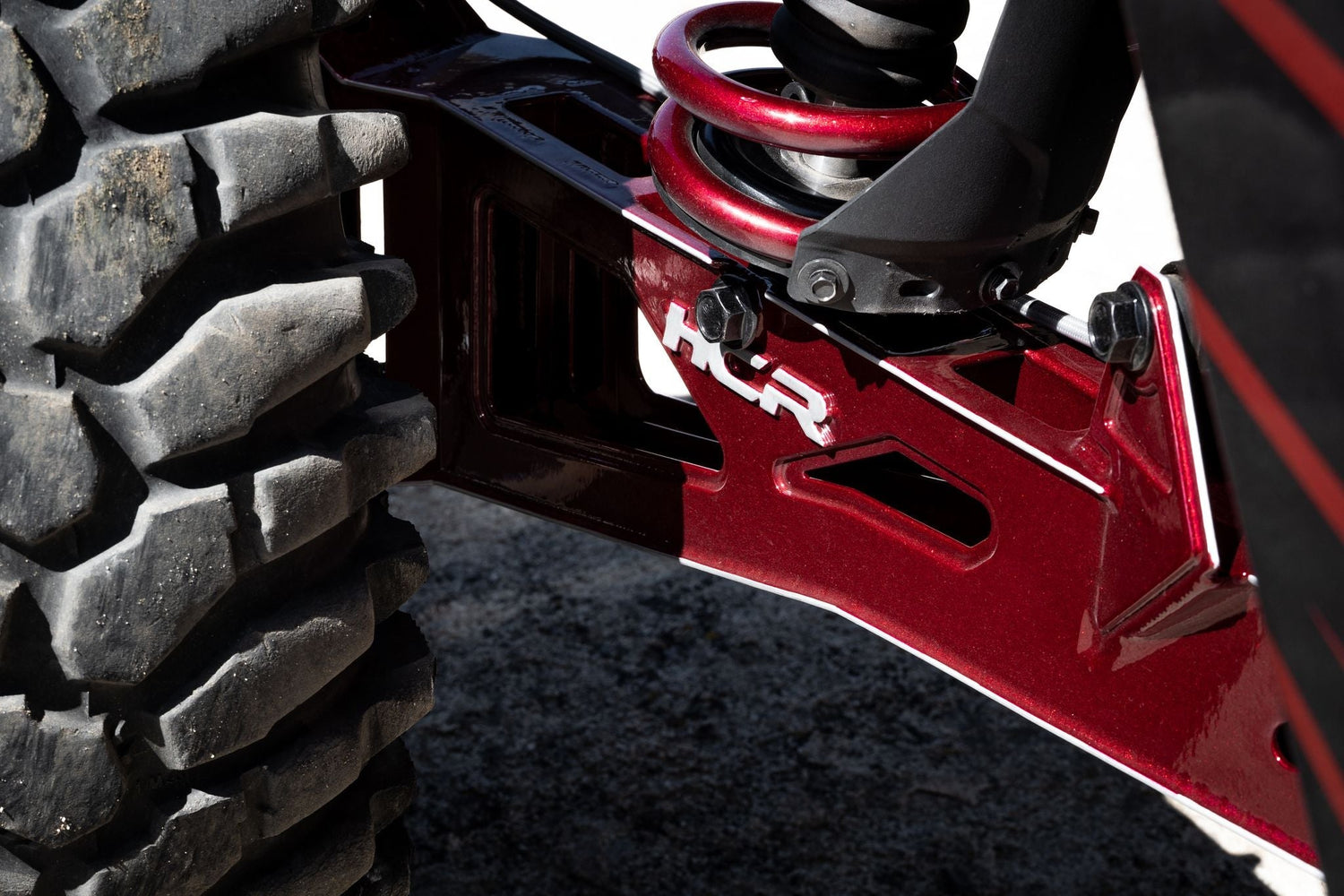

• 4 front A-arms (2 upper, 2 lower)

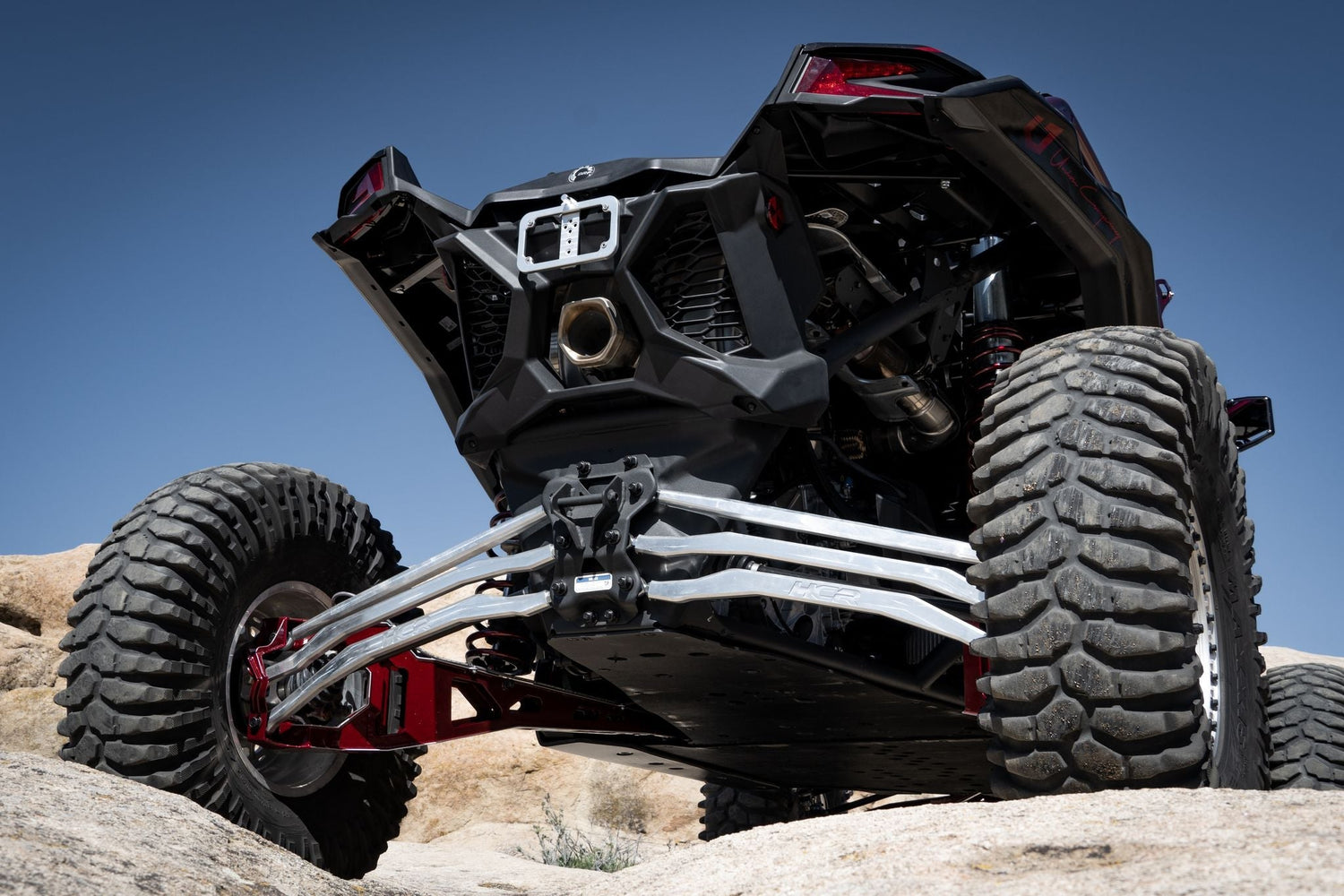

• 2 rear trailing arms

• Replacement bushings

• Brake line mounting hardware

• Shock bolts

Fitment:

• Can-Am Maverick X3 RS Turbo R : 2021
• Can-Am Maverick X3 RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 X MR Turbo R : 2018-2019
• Can-Am Maverick X3 X MR Turbo RR : 2020-2021
• Can-Am Maverick X3 X MR Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RC Turbo R : 2018-2020
• Can-Am Maverick X3 X RC Turbo RR : 2020-2021
• Can-Am Maverick X3 X RC Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RS Turbo R : 2017-2020

• Can-Am Maverick X3 X RS Turbo RR : 2020-2021
• Can-Am Maverick X3 X RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+
• Can-Am Maverick X3 MAX RS Turbo R : 2021
• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021
• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021
• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021
• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020
• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020

• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+
• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+


Special Notes:

• Will not fit 14” wheels

• Must reuse or replace OEM trailing arm radial bearings, front ball joints, crush sleeves, wear plates, mounting bolts, and other hardware

• HCR kits are made to order. Quality takes time
