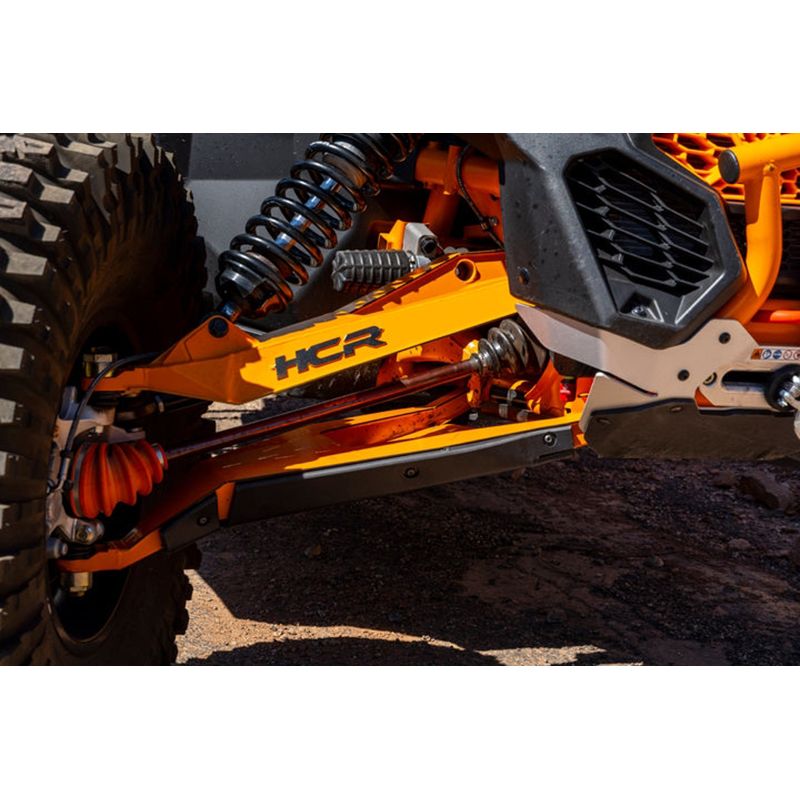

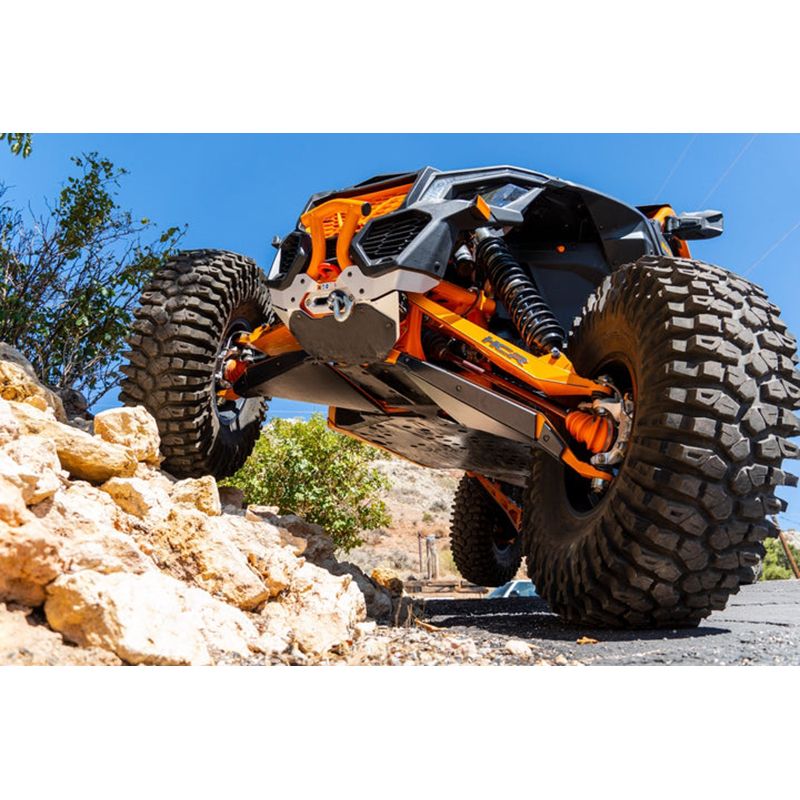

HCR Racing Dual Sport OEM Replacement Front A-Arms for the Can-Am Maverick X3 72"

Part#: MAV-05400-1

FEATURES

• Easy installation

• High-clearance A-arms

• Made out of HCR proprietary alloy—30% stronger than chromoly steel.

• Proudly made in the USA

HCR took the already powerful X3 and made it even better. This American-made upgrade is built to look, feel, and perform better than stock parts. The HCR X3 suspension is a direct replacement for the factory front A-arms on 72" models. The Dual Sport kit for the Can-Am Maverick X3 is made with HCR’s exclusive material—a custom alloy that’s 30% stronger than 4130 Chromoly. It also goes through several processes to boost strength and resist wear.

The Shock Brackets You Need

Strong suspension deserves strong brackets. Our Smart Shock Brackets are made from durable HCR Steel, easy to install, and ultra-strong for improved performance.

Smart Shock Brackets—Rear Kit

• Optimize the angle and positioning of shocks

• Easy bolt-on, no cut, no drill installation

• Made of HCR Steel

• Made in the USA

KIT INCLUDES

• (4) Front A-arms, 2 upper & 2 lower

• (16) Delrin bushings

• Brake line mounting hardware

FITMENT

• Can-Am Maverick X3 RS Turbo R : 2021

• Can-Am Maverick X3 RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X MR Turbo R : 2018-2019

• Can-Am Maverick X3 X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 X MR Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RC Turbo R : 2018-2020

• Can-Am Maverick X3 X RC Turbo RR : 2020-2021

• Can-Am Maverick X3 X RC Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo R : 2017-2020

• Can-Am Maverick X3 X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72 : 2022+

• Can-Am Maverick X3 MAX RS Turbo R : 2021

• Can-Am Maverick X3 MAX RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X DS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo R : 2019-2021

• Can-Am Maverick X3 MAX X MR Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X MR Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo : 2017-2020

• Can-Am Maverick X3 MAX X RS Turbo R : 2018-2020

• Can-Am Maverick X3 MAX X RS Turbo RR : 2020-2021

• Can-Am Maverick X3 MAX X RS Turbo RR 72 : 2022+

• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72 : 2022+


NOTES

• You will need to use OEM crush sleeves, wear plates, and bolt hardware

• 14” wheels will not fit

• Front sway bar link mounting holes are 10mm—newer models must drill hole to 12mm

• Smart Shox models will need additional brackets

• 2021 Smart shock Models will need an additional bracket

• HCR kits are made to order. Quality takes time
