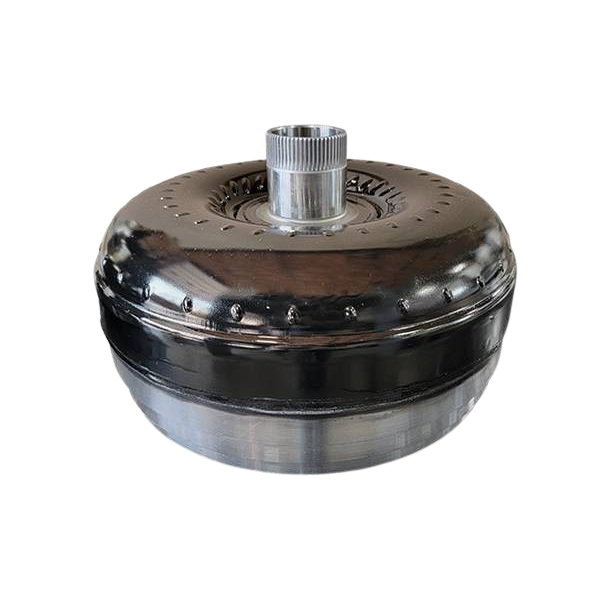

Quad Disc Torque Converter 6R140

Features & Details:

• Designed and manufactured in-house by Goerend from start to finish
• K-factor and torque ratio tested on in-house dynamometer
• Forged Billet steel bottom cover
• Forged Billet steel piston with complete damper assembly
  • Insulates shock of crank pulses from rest of driveline
  • Extends life of converter and transmission
• Stator guaranteed to never break

  • Designed to rotate better when going into coupling mode
  • Creates a venturi effect to help torque multiplication
  • Dual Torrington bearing stator design
  • Lugged stator race prevents one-way roller clutch from spinning out
• Patented Internal Lock Up Design
  • Insures lock up on computer and valve body signal
  • Eliminates need to feather throttle to reach lock up
• Proprietary high-performance multi-disc lock up clutches
• TIG welded, furnace brazed, and silicon bronze reinforced turbine
• Below 0.005 blueprinted runout tolerances
• Blueprinted internal clearances
• Fully pressurized and leak tested
• Computerized robotic welding
• 4140 hardened turbine hub & flanged impeller hub
• Precision machined pilot
• Computerized balancing

Stall Speeds:

• BF (2300-2500): OEM Style Stall
• BG (1300-1500): Ideal for Sled Pull

Call us at 480-688-7160 if you have any questions on what converter is right for your application!

Description:

Stators are only as strong as their weakest link. Other aftermarket converter manufacturers may use a billet stator, but will also use the weak factory one-way roller clutch designed for stock horsepower applications. The stock factory inner and outer races that make up the one-way roller clutch can barely hold up to stock conditions and can easily crack or strip out in medium to high horsepower applications. When this happens, the stator will start to freewheel and the converter will lose all torque multiplication. A damaged stator race will also greatly reduce vehicle drivability.

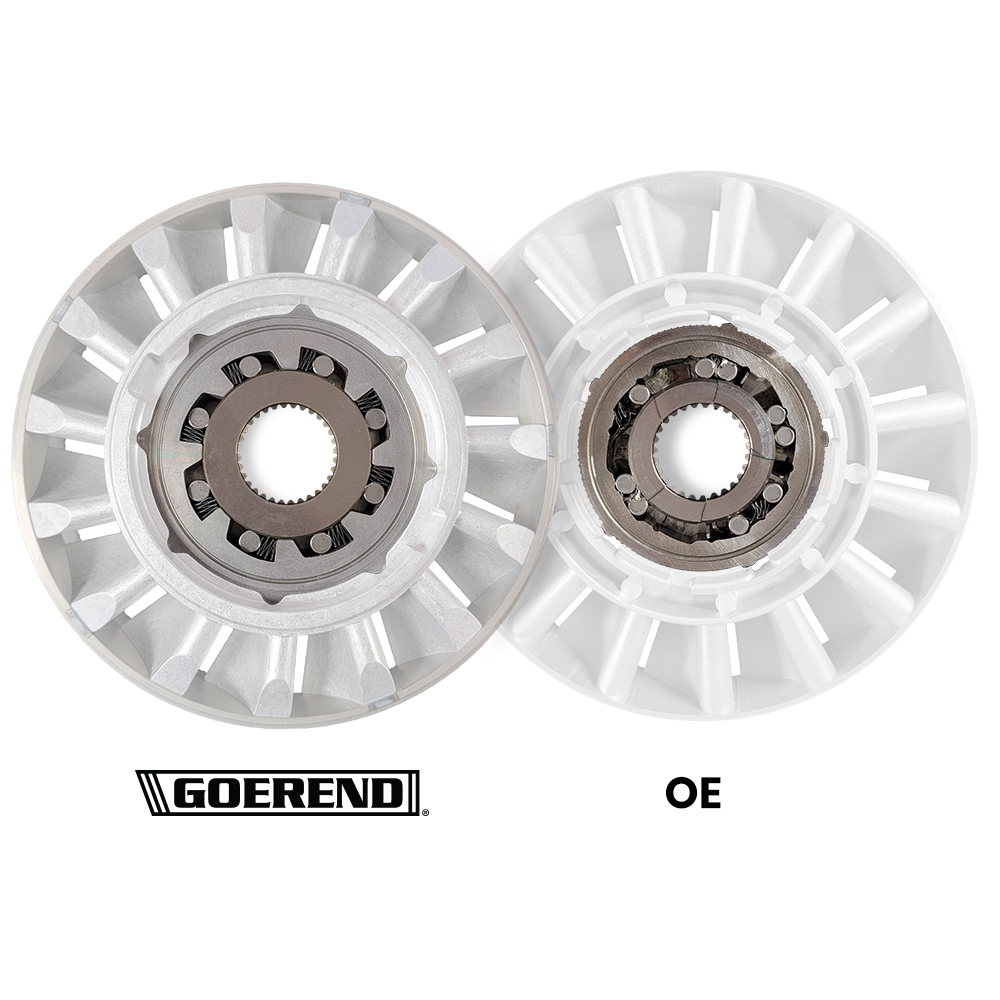

Along with our billet aluminum stator found in all of our Ford converters, we utilize lugged outer races that will not strip out. Both the inner and outer races are wider and more substantial than OE to increase surface area and holding power, while preventing cracking failure. The steel outer ring is pinned to the stator, preventing it from being displaced and destroying the converter.
