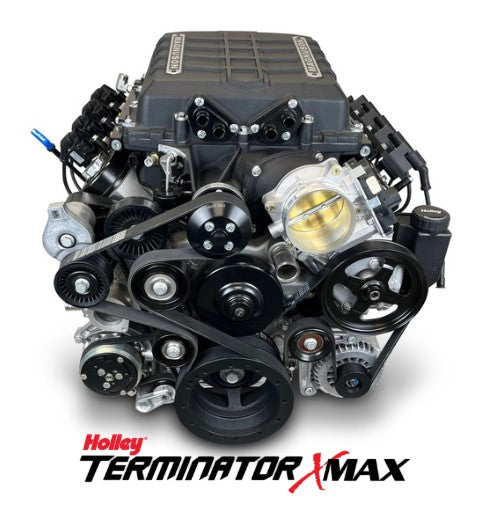

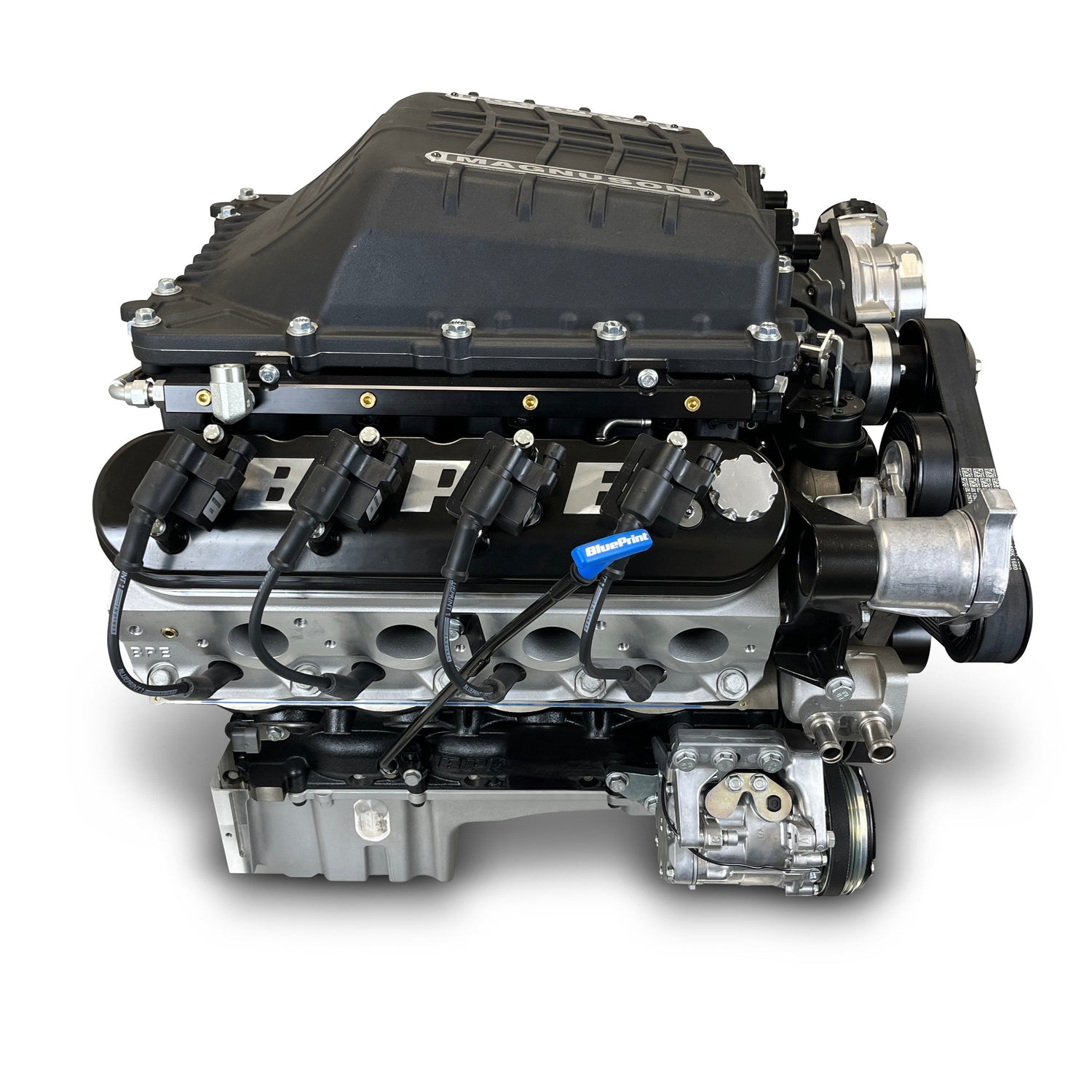

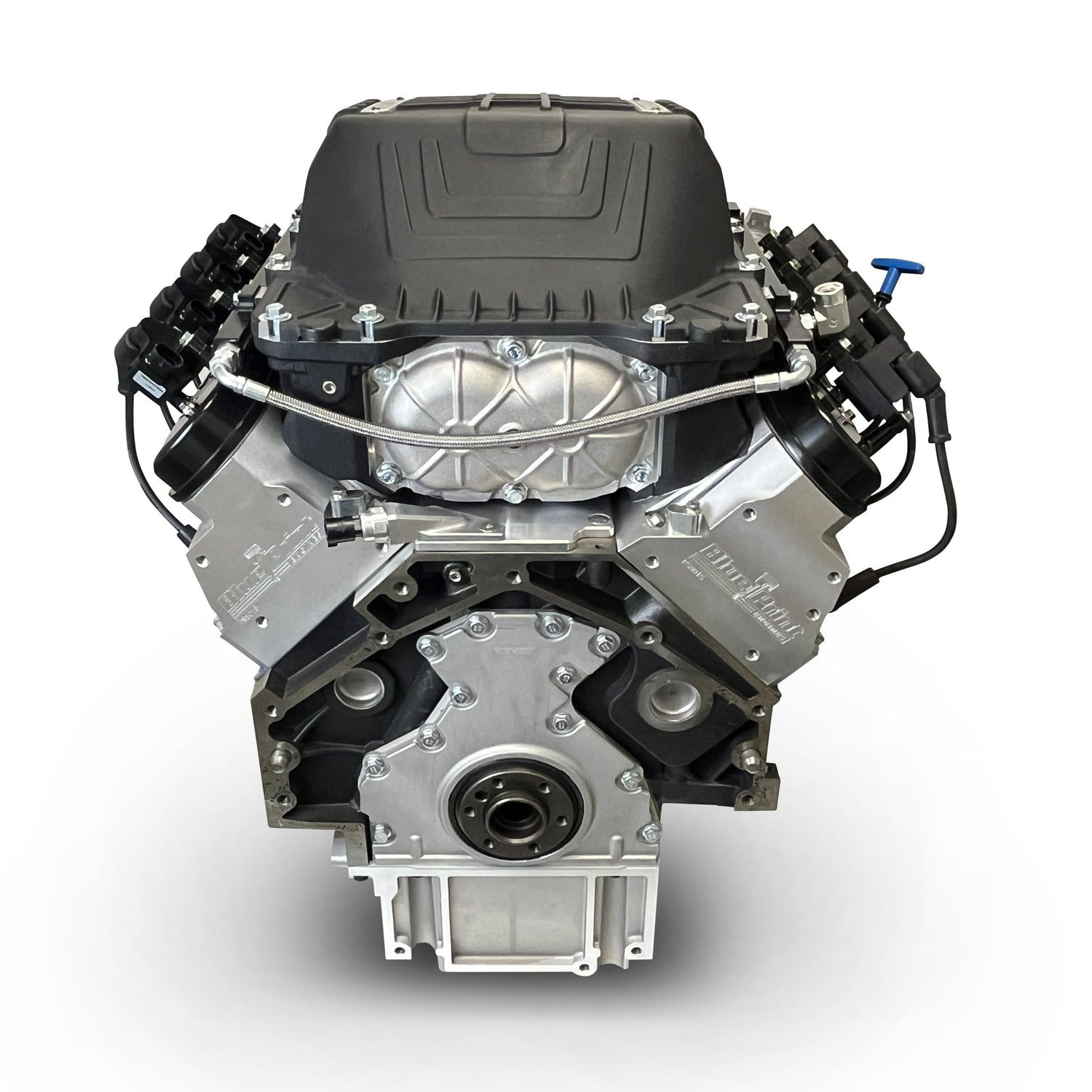

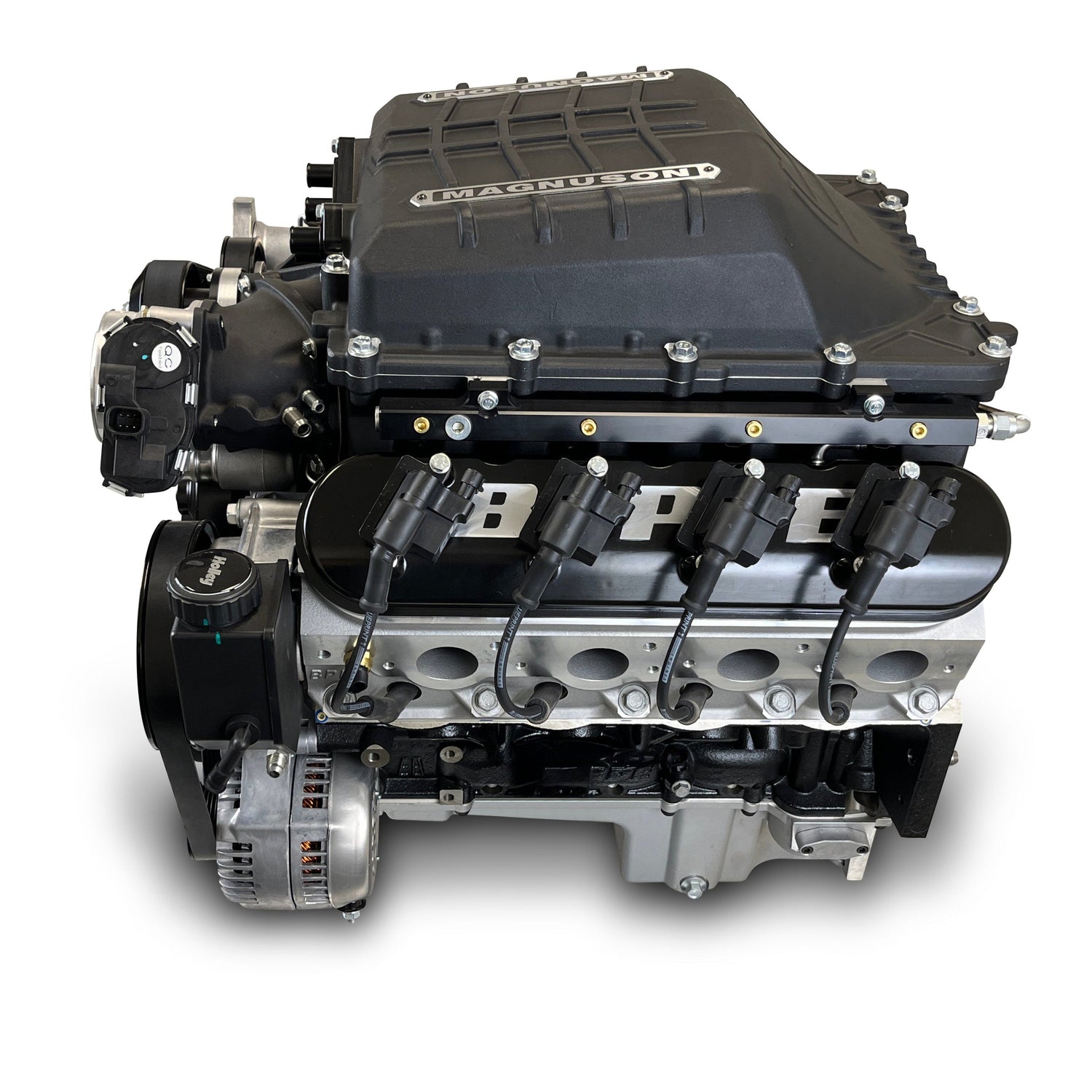

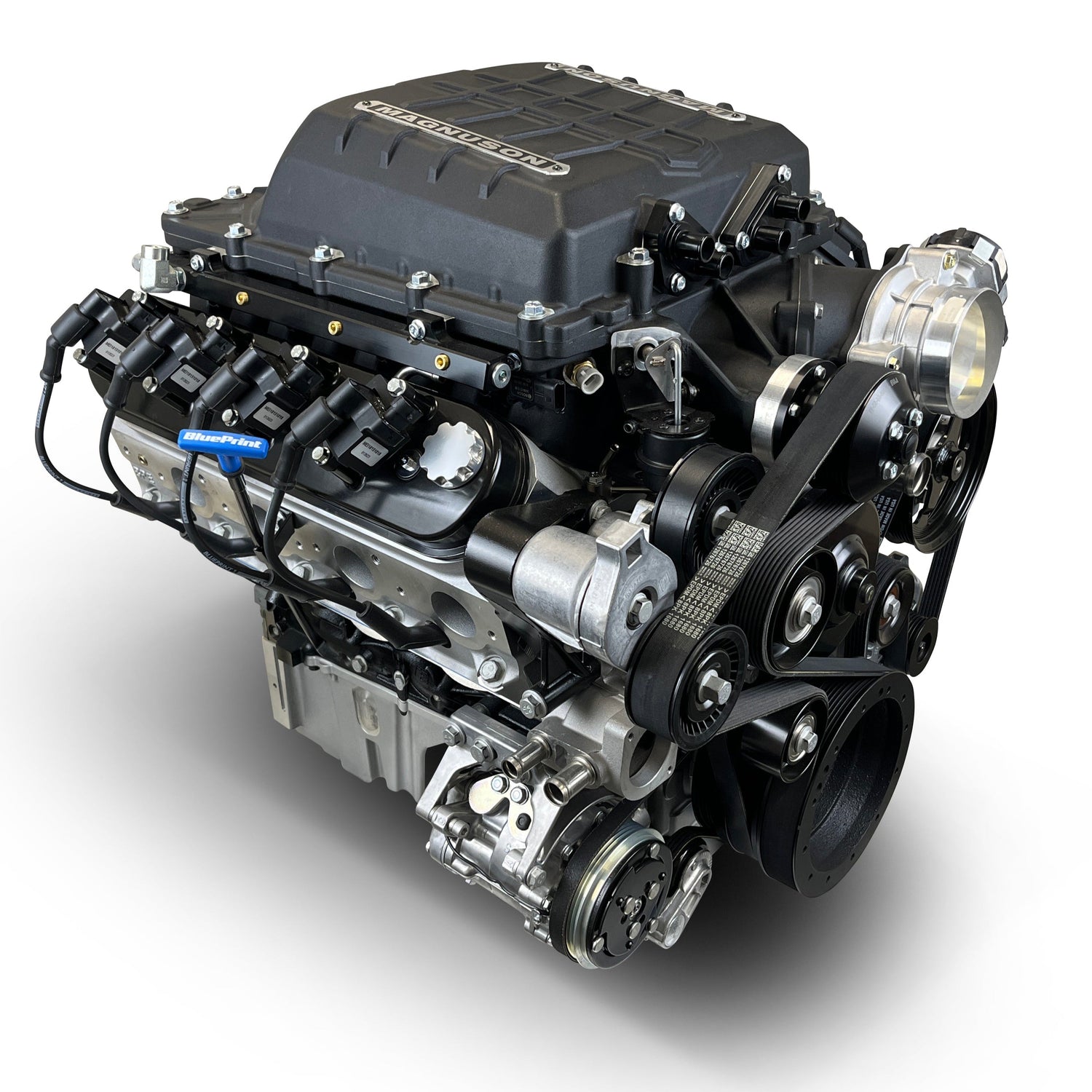

GM LS Compatible 427 c.i. Pro Series Engine - 830 Horsepower - Deluxe Dressed - Black Pulley Kit - Holley Terminator X EFI System

Overview:

The LS-compatible platform is the undisputed king of street machines, and this BluePrint Engines 427 C.I. Pro Series LS compatible powerhouse proves exactly why. Built to dominate, this base-dressed beast unleashes a jaw-dropping 830 horsepower and 800 ft-lbs of torque, this base dressed beast packs a 9.5:1 thanks to a combination of BluePrint aluminum heads, hydraulic roller cam, forged pistons, and a forged crankshaft, all securely anchored in a high-strength LSX-style block. Controlling this build is Holley’s Terminator X EFI system preloaded with a base tuning map tailored for this engine. Real-Time Fuel Map Learning simplifies tuning by dynamically adjusting fuel delivery, while the Bosch LSU 4.9 wideband sensor enables precise AFR monitoring and advanced closed-loop tuning. With eight high-impedance injector drivers, it’s compatible with both stock LS and Holley EFI injectors. An integrated 1-bar MAP sensor supports naturally aspirated or mild nitrous setups, with optional harnessing for higher-bar sensors. Four configurable inputs and two outputs give you control over accessories like electric fans, boost solenoids, or nitrous. Fine-tune via free PC software or on-the-fly with the included 3.5" touchscreen handheld, complete with setup wizard, real-time gauges, and data logging.

Description:

• Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
• Compression Ratio: 9.5:1
• BluePrint Engines LS3 Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength (LSX Style) Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-Piece Rear Main Sea
• Priority Main Oiling
• 4.070" Bore
• 6-Bolt Main


Rotating Assembly:

• Forged Crankshaft
• 4.125" Stroke
• Forged 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 70cc Chamber
• 2.165" Intake / 1.600" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .624 Intake / .624 Exhaust Lift
• 239 Intake / 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

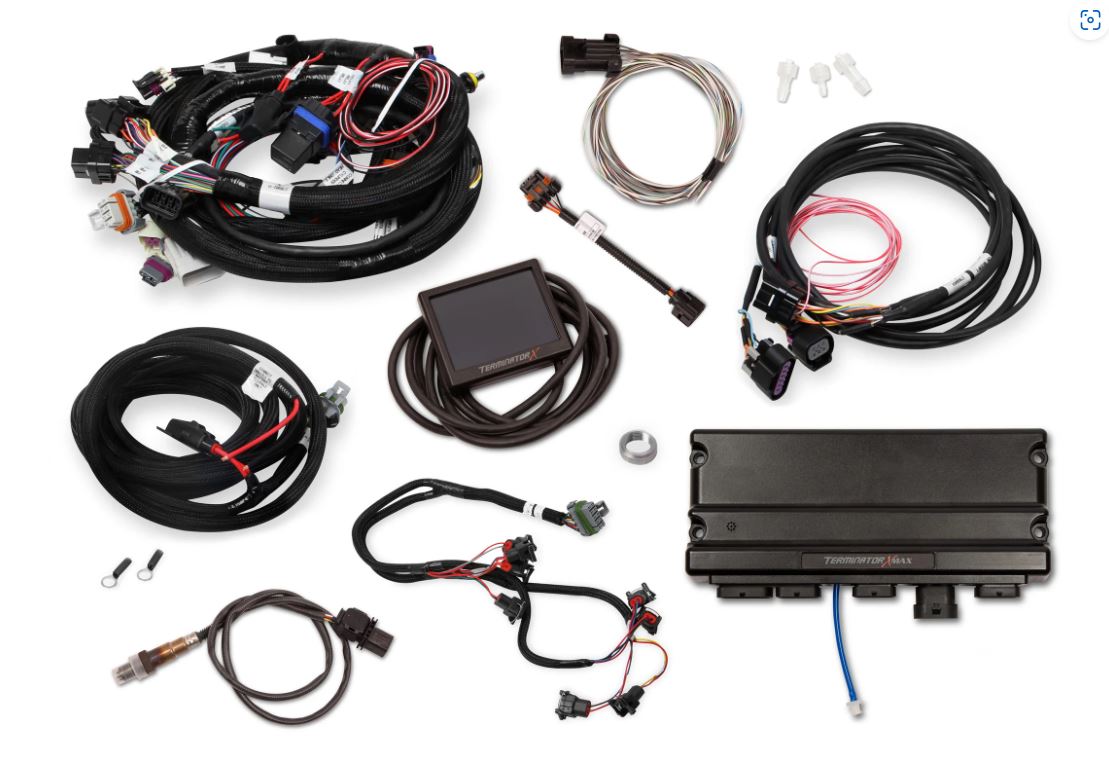

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

Also Includes:

• Low Profile Rear Sump Oil Pan - BPP81074
• All Sensors Required for Engine to Run
• DBW Throttle Body - BPP12191019
• Magnuson TVS2650 Supercharger
• Spark Plugs & Wires
• Harmonic Balancer
• Timing Cover

• Valve Covers

• Coil Packs

• Black Front Accessory Drive -
  • LS3 Style Water Pump
  • 150amp Alternator
  • Compact Style Air Conditioning Compressor
  • Power Steering Pump with Attached Reservoir

Notes:

• This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
• Not for use in pollution-controlled vehicles.

• BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct calculations and Dyno calibration are maintained with the provided ECU / tuning.
• Terminator X MAX is capable of transmission control but requires additional Transmission harness Such as BPP558405 if pairing to 96-08 4L60E or 4l80E.
