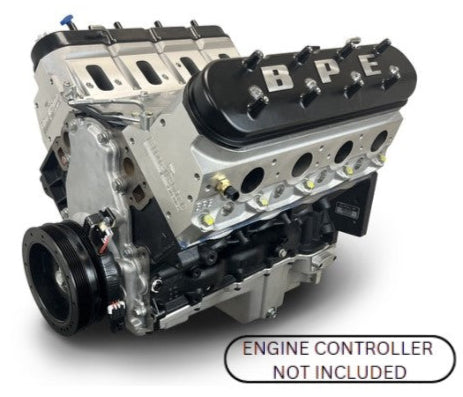

GM LS Compatible 376 c.i. Pro Series Engine - 530 Horsepower - Long Block - No ECU / Harness

Overview:

The LS-compatible platform is the king of street machines—and this BluePrint Engines 376 C.I. Pro Series monster proves why. Unleash raw, LS-powered fury with a street-scorching 530 horsepower and 495 ft-lbs of torque. This beast has BluePrint aluminum heads, a hydraulic roller cam, and hypereutectic pistons, and nodular iron crankshaft, all locked into a high-strength LSX-style cast iron block.

Description:

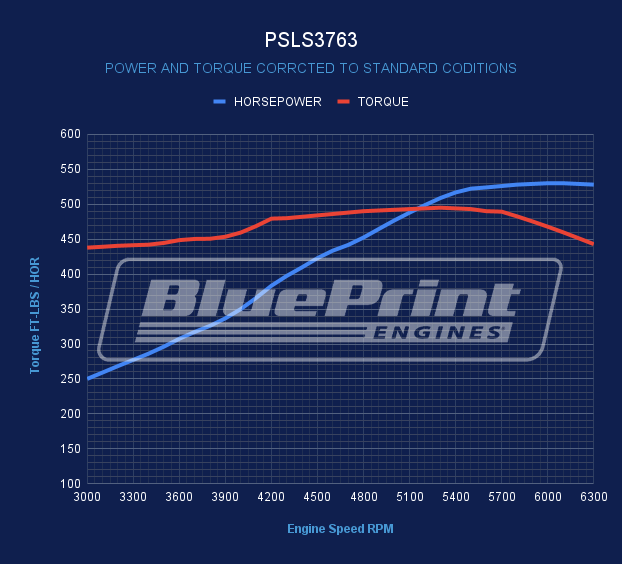

• Horsepower & Torque: 530 Horsepower / 495 FT. LBS
• Compression Ratio: 10.7:1
• BluePrint Engines LS3 Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Hypereutectic Pistons
• Nodular Iron Crankshaft


Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Utilizes OEM LS3 Front and Rear Covers
• Improved Water Jacket Design
• Extended Cylinder Skirt
• 1-piece Rear Main Seal

• Priority Main Oiling
• 4.0662"Bore
• 6-bolt Main

Rotating Assembly:

• Nodular Iron Crankshaft
• 3.622" Stroke
• 6.125" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .612 Intake / .585 Exhaust Lift
• 225 Intake / 238 Exhaust Duration
• @.050-113 Degree Lobe Separation

Ignition Timing:

• Controlled by Customer Provided ECU.

Also Includes:

• LS Valve Cover

• LS Swap Oil Pan
• Harmonic Balancer
• This engine Does NOT come with a Fuel Injection ECU and Wiring Harness.

Notes:

• Does NOT include engine controller. This is a dressed long block only. No Harness/ECU provided. This is for customers wishing to use their own engine controller package.

• BluePrint Engines recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and dyno calibration are maintained.
