Fabtech 07-15 Toyota Tundra 2WD/4WD 4in UCA Kit w/Uniballs w/Dlss 2.5 C/O Resi & Rr Dlss

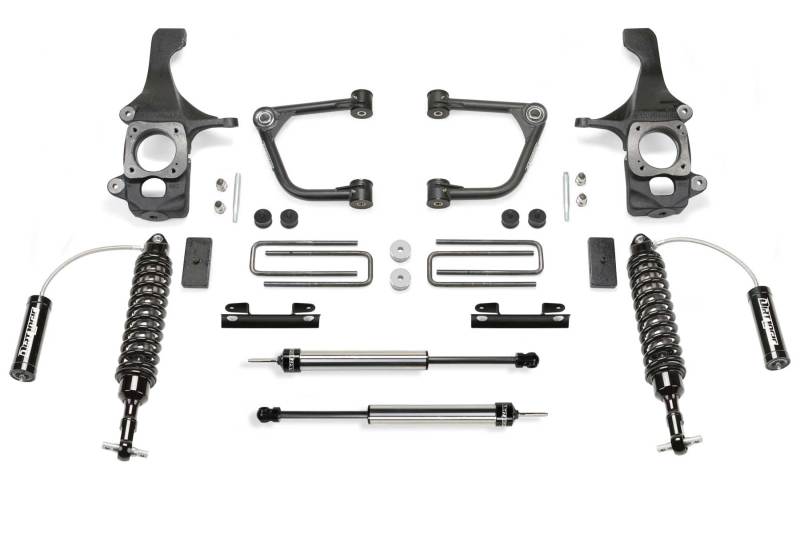

This 4'' System capitalizes on Toyota Tundra's large wheelwell opening to allow use of 35'' tall tires with minimum lift height. The design of this 4'' System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control arms constructed with .120'' wall 4130 Chromoly and 1'' FK Stainless Uniballs. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35'' tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1'' lift block and u-bolt system to level the stance of the vehicle. The 4'' System is available with Dirt Logic 2.50 front Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.

This Part Fits:

Year	Make	Model	Submodel
2014-2015	Toyota	Tundra	1794 Edition
2007-2013	Toyota	Tundra	Base
2007-2015	Toyota	Tundra	Limited
2013-2015	Toyota	Tundra	Platinum
2014-2015	Toyota	Tundra	SR
2007-2011,2014-2015	Toyota	Tundra	SR5
2015	Toyota	Tundra	TRD Pro
