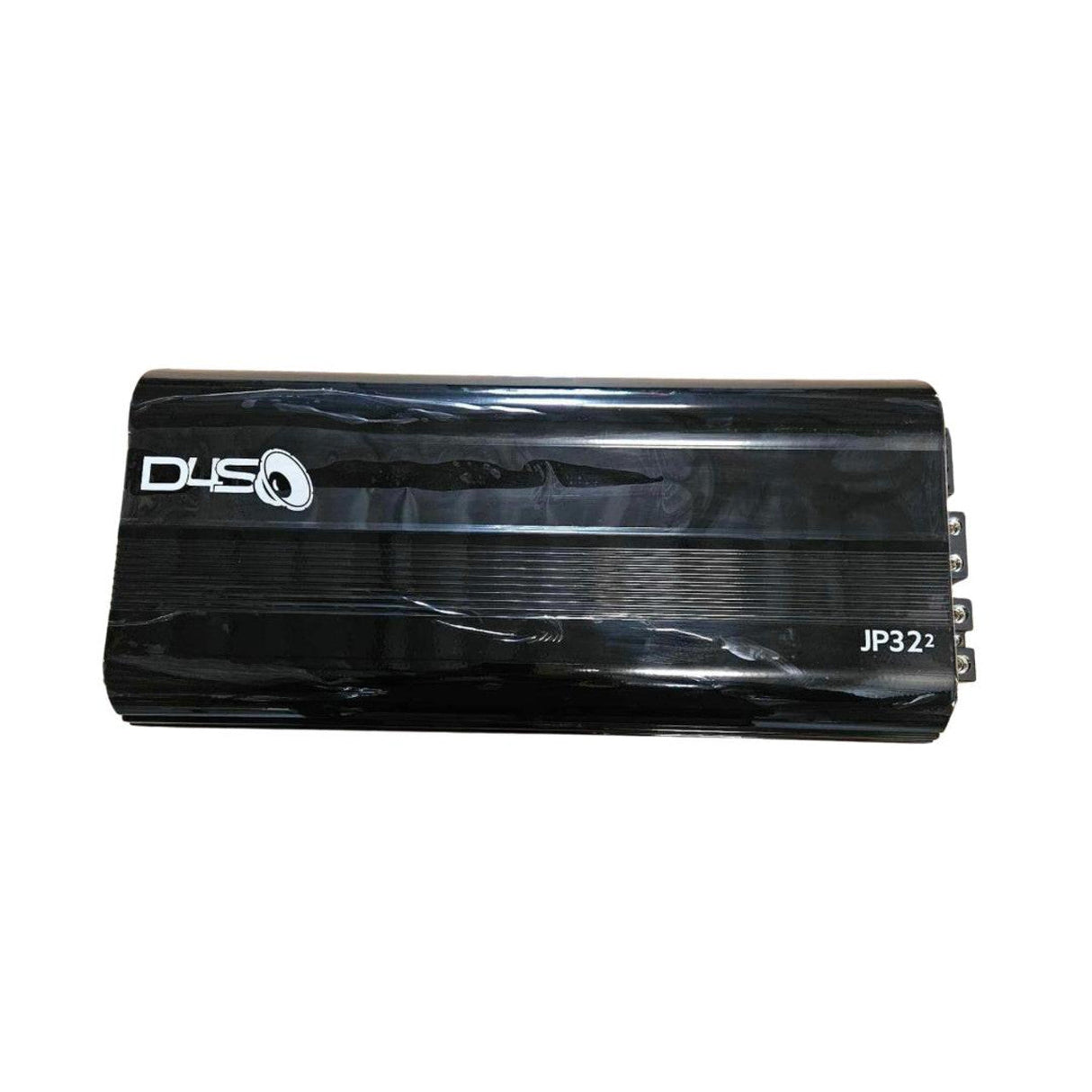

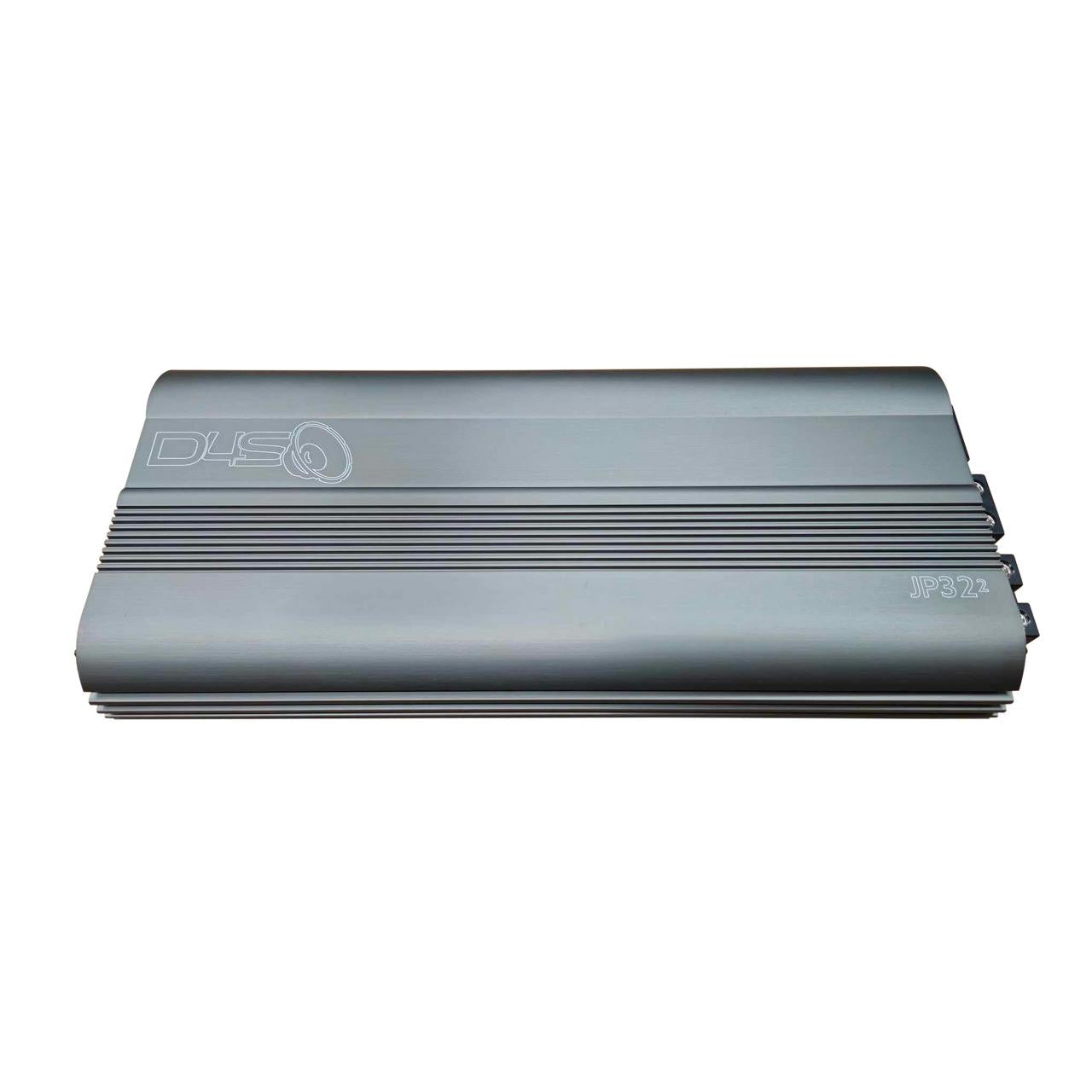

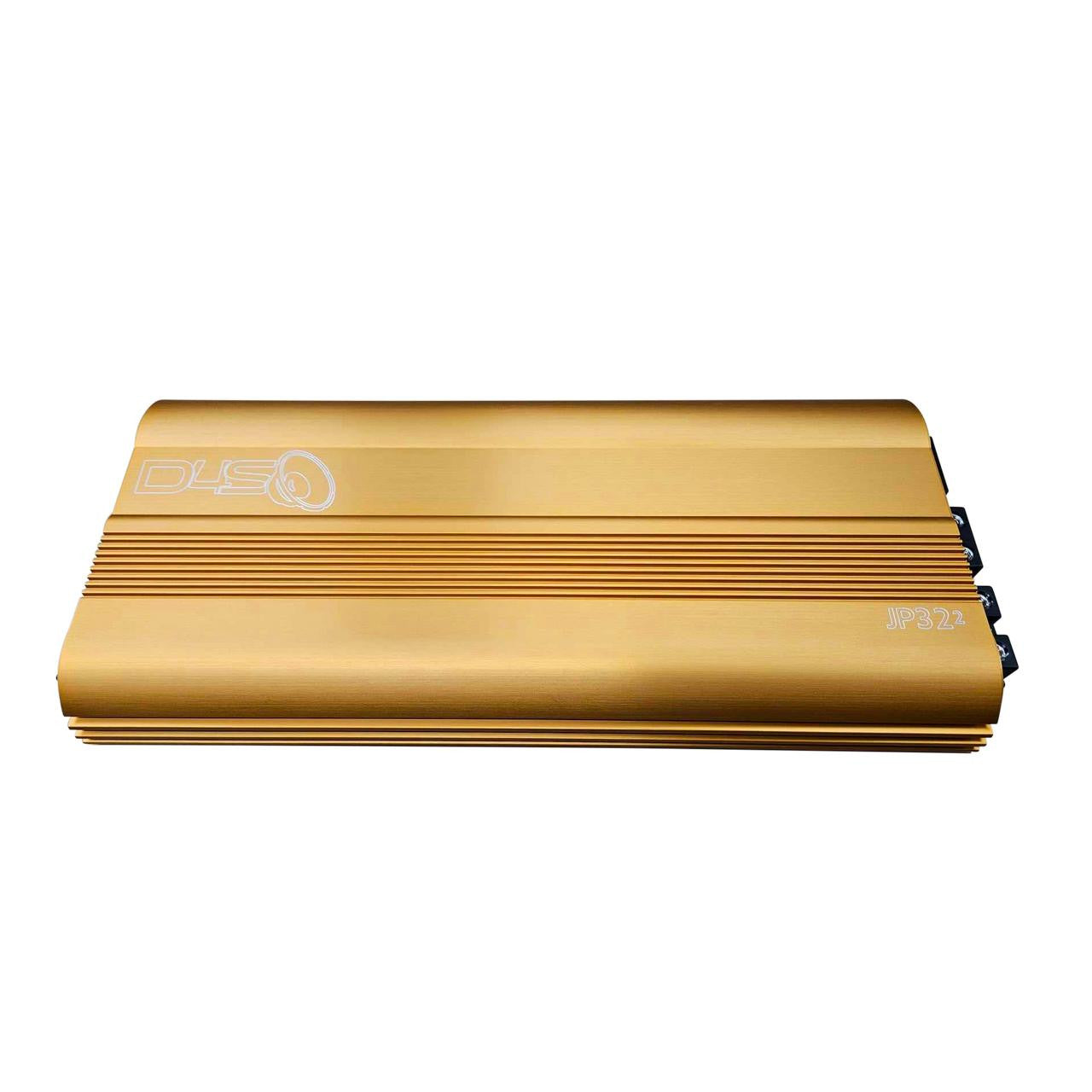

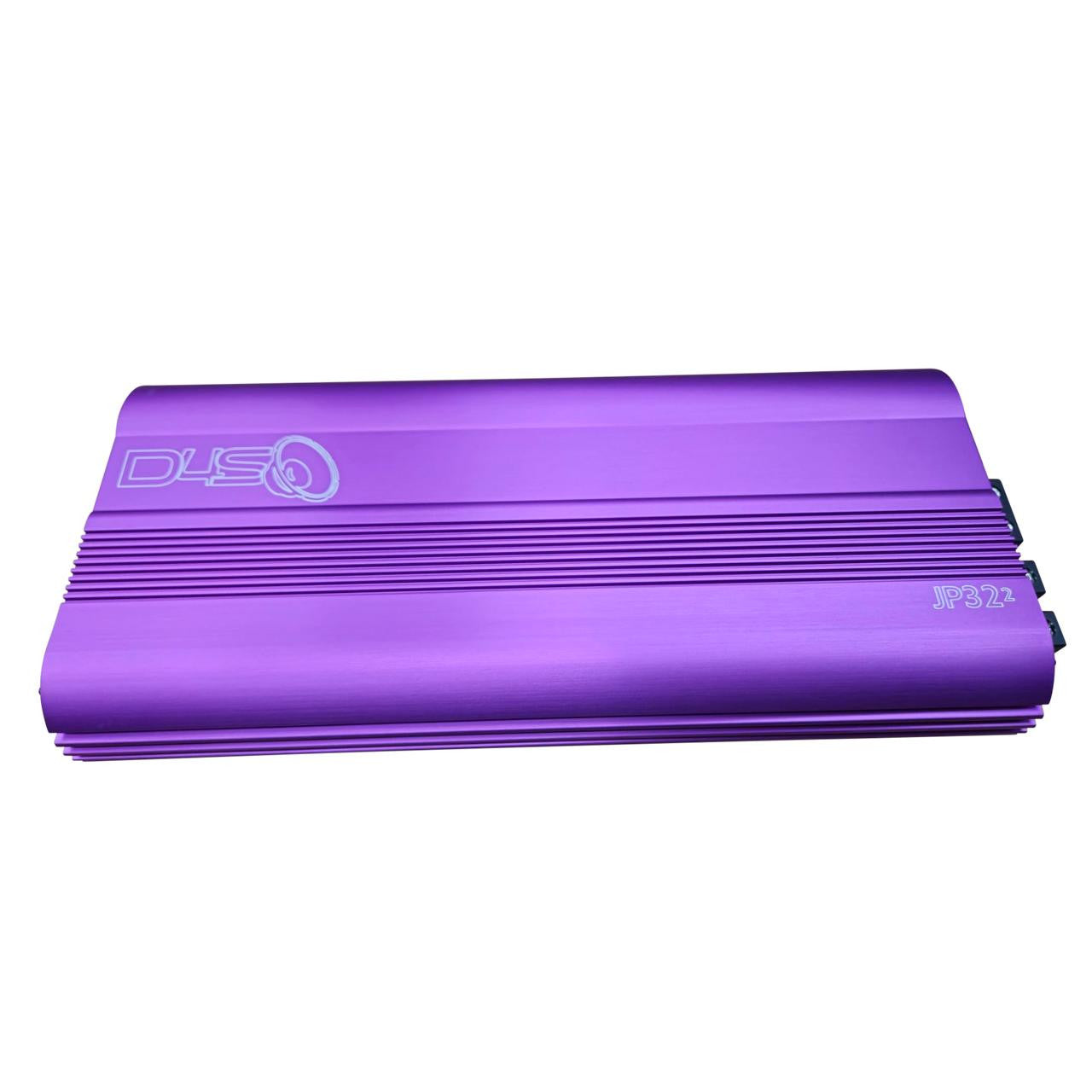

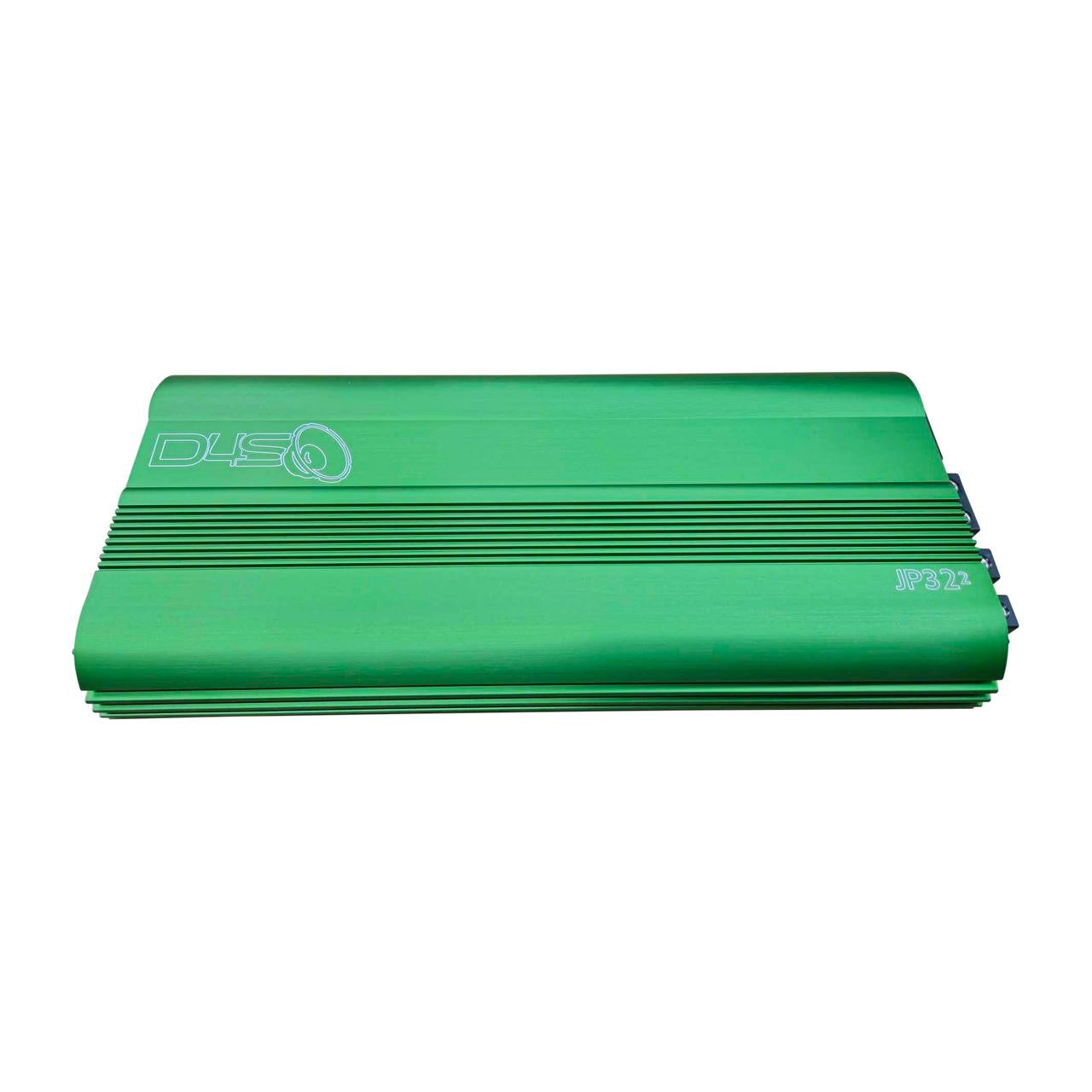

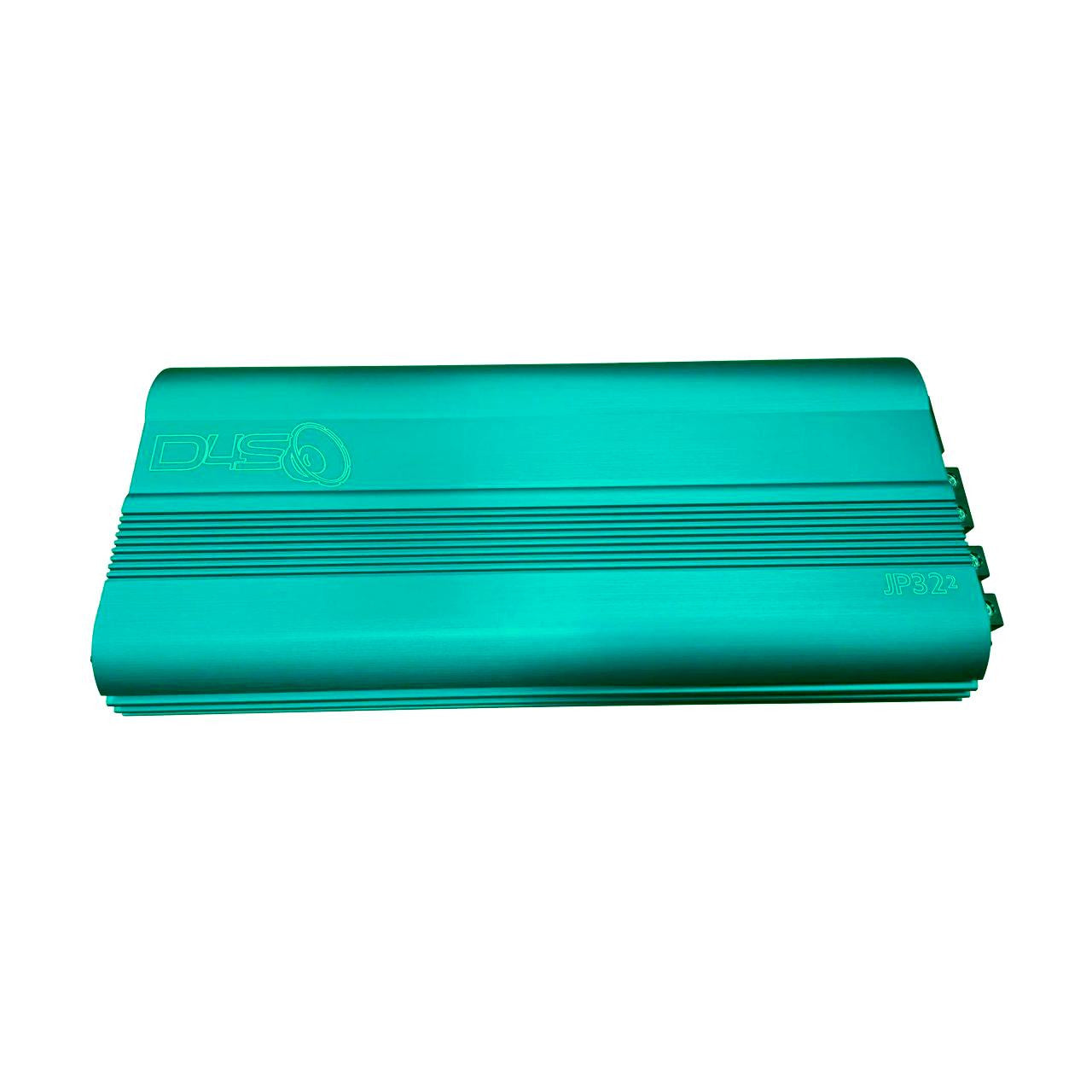

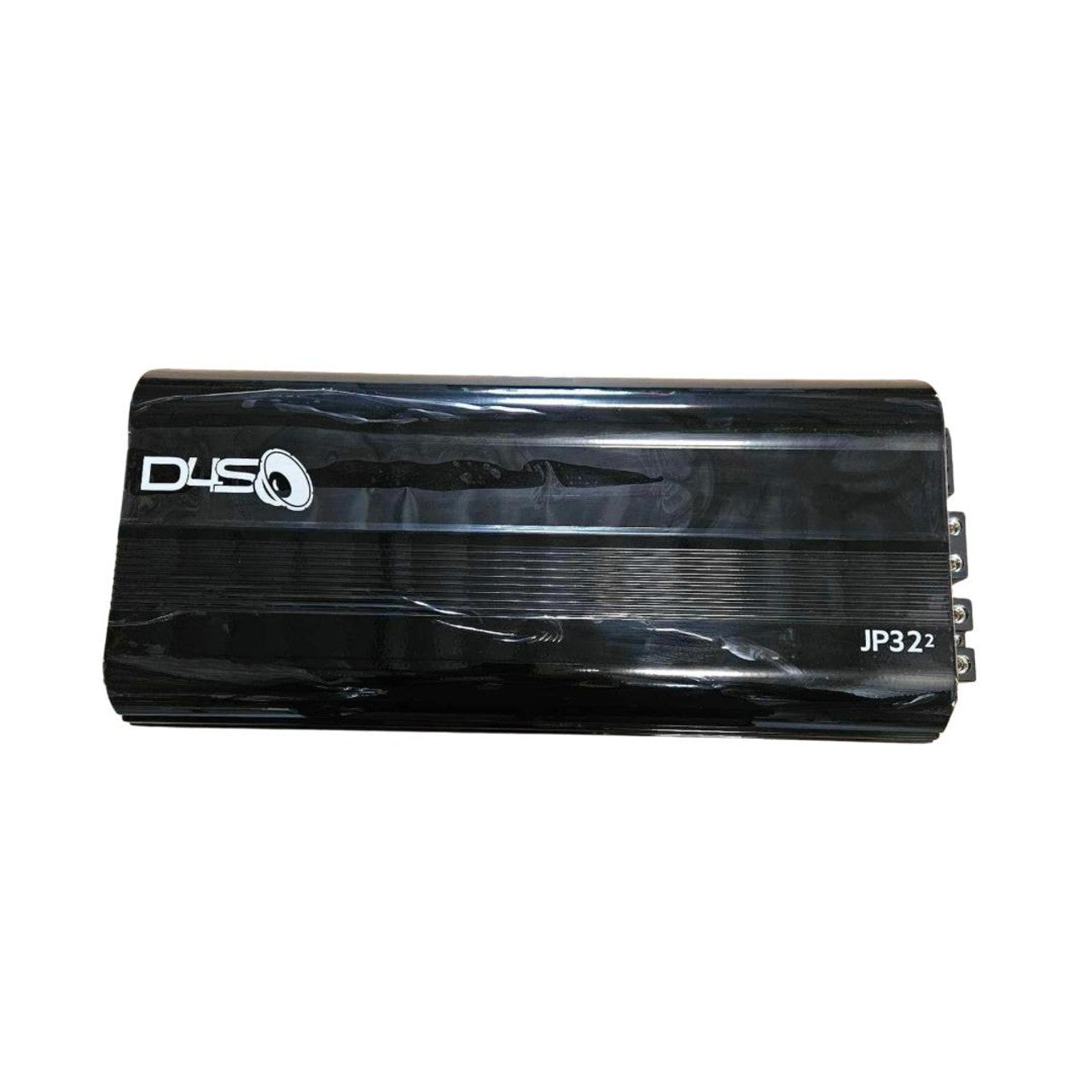

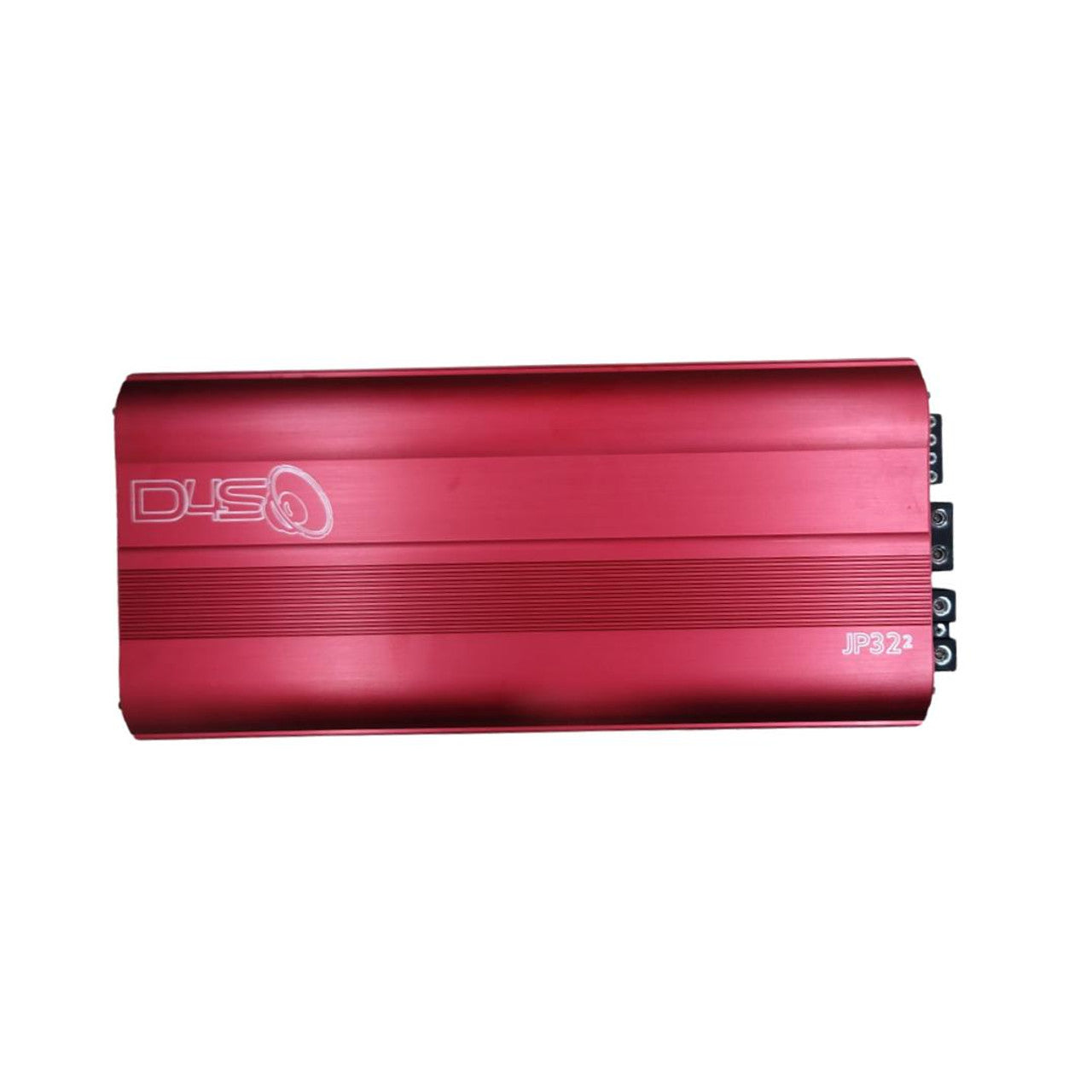

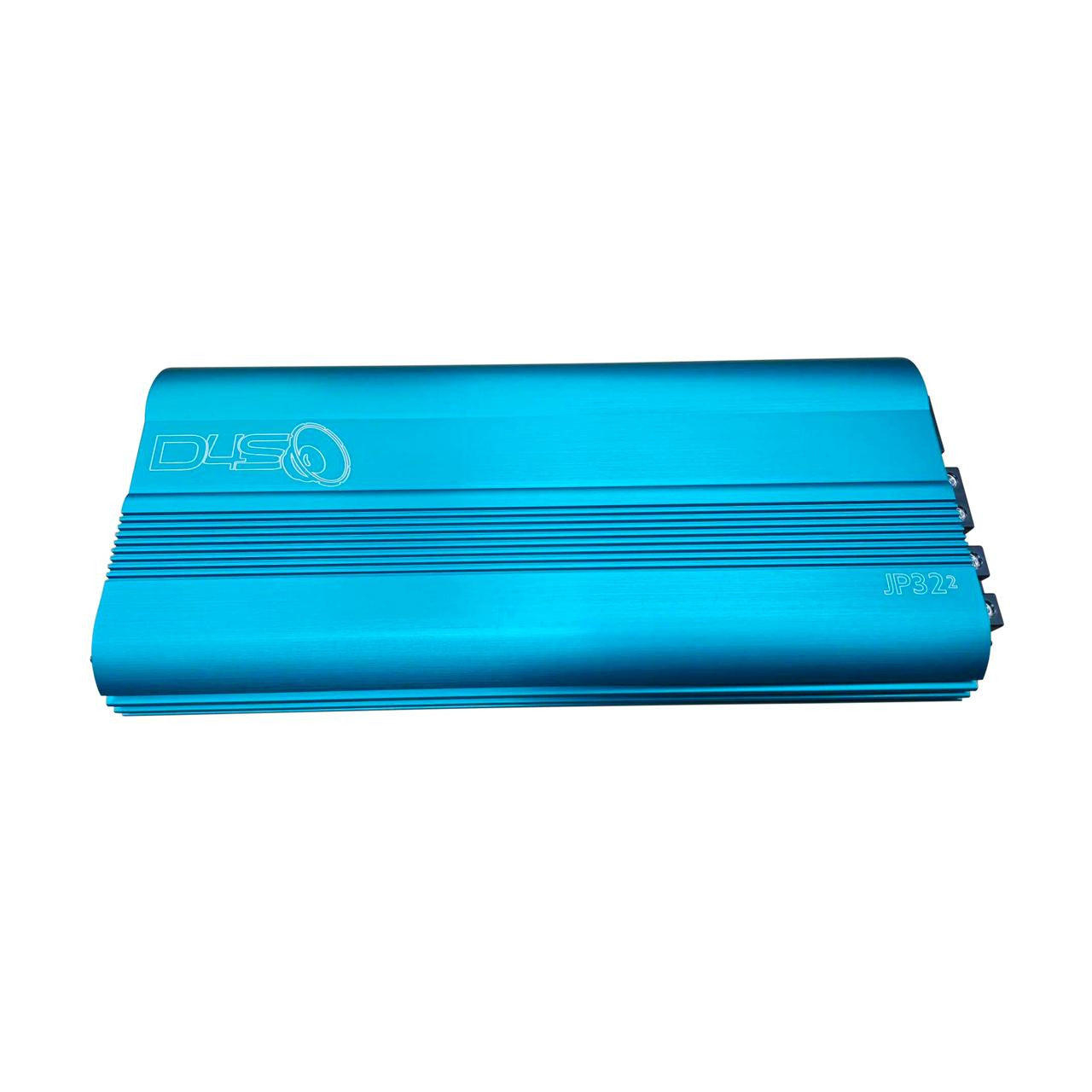

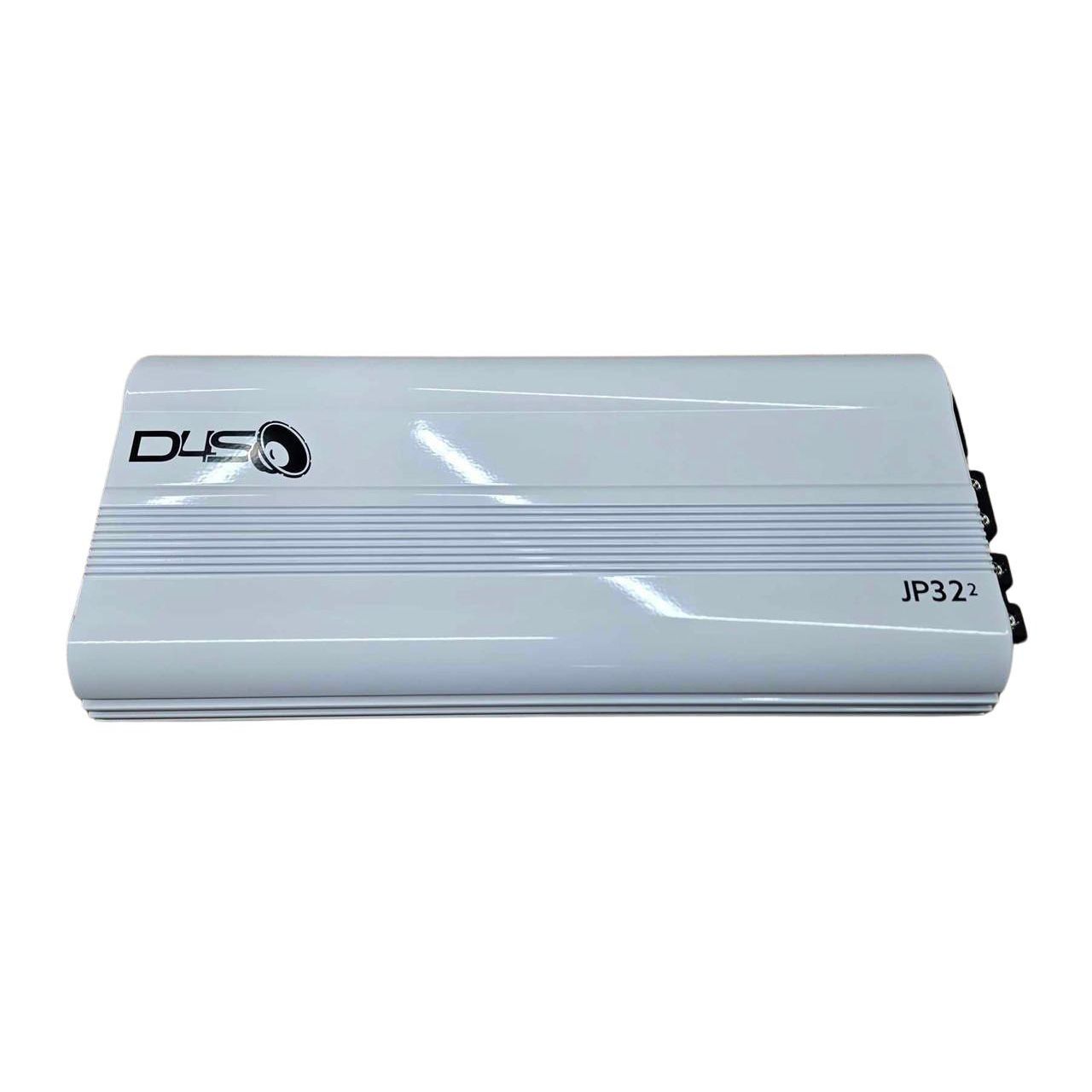

Down4Sound JP322 6000W RMS 2-Channel Class D Amplifier

Unleash unparalleled audio performance in your vehicle with the Down4Sound JP32.2. This 6000W RMS 2-channel amplifier is engineered for those who demand the best in car audio. With a high-speed MOSFET power supply and consistent output for 1ohm stereo or 2ohm bridged, the JP32.2 ensures your tracks resonate with clarity and vigor.

Special Highlight: Dive deeper into its unmatched prowess by checking out the amplifier dyno video located in the VIDEOS TAB.

CLASS D AMPLIFIER

 Key Features

• Advanced Audio Customization: The JP32.2 comes loaded with features to tailor your sound. With variable high-pass and low-pass filters, crossover multiply x10, and band-pass filter capabilities, you're in complete control. The adjustable bass boost and frequency further allow you to dial in the perfect bass levels.
• Safety First: The JP32.2 is designed with a 4-way protection circuit to shield against overheating, voltage fluctuations, speaker shorting, and DC damage. Its high-purity copper printed circuit board guarantees reliability and longevity.
• Easy Installation: With a pair of 0-gauge power and ground terminals (2 power + 2 Grounds = 4 Total), setting up the JP32.2 is both secure and straightforward.

Clipping and Distortion Indicators

• CLIP IN: Red
• CLIP OUT: 0.5% THD (Blue), 5% THD (Violet), 10% THD (Red)

Technical Specifications

• RMS Power:
  • 1 Ohm: 3200W x 2
  • 2 Ohm: 2000W x 2
  • 4 Ohm: 1200W x 2
  • 2 Ohm Bridged: 6000W x 1
  • 4 Ohm Bridged: 4000W x 1
• Frequency Response: 10 Hz - 23 kHz
• Origin: Made in South Korea
• Filters:
  • High-Pass: 20 (200) Hz - 800 (8K) Hz, x1, x10
  • Low-Pass: 50 (500) Hz - 800 (8K) Hz, x1, x10
• Bass Boost: 0 - 18dB
• Bass Frequency: 20Hz - 80Hz
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: 80dB
• THD @ 4 Ohm: 0.1%
• Working Voltage: 9V - 14.8V
• Fuse Rating: 500A
• Dimensions: 19.68" L x 9.37" W x 2.71" H
• Inputs: 4 - 0 gauge

Additional Features

• Wired Metal Bass Knob: This included feature showcases Power, Clip, Protect, and Voltage indicators.

Important: To harness the full potential of the JP32.2's 6000W RMS, a robust electrical system is mandatory. Please note that issues arising from weak electrical systems are not covered under warranty.

Elevate your car audio experience with the Down4Sound JP322. Order now and feel the difference!
