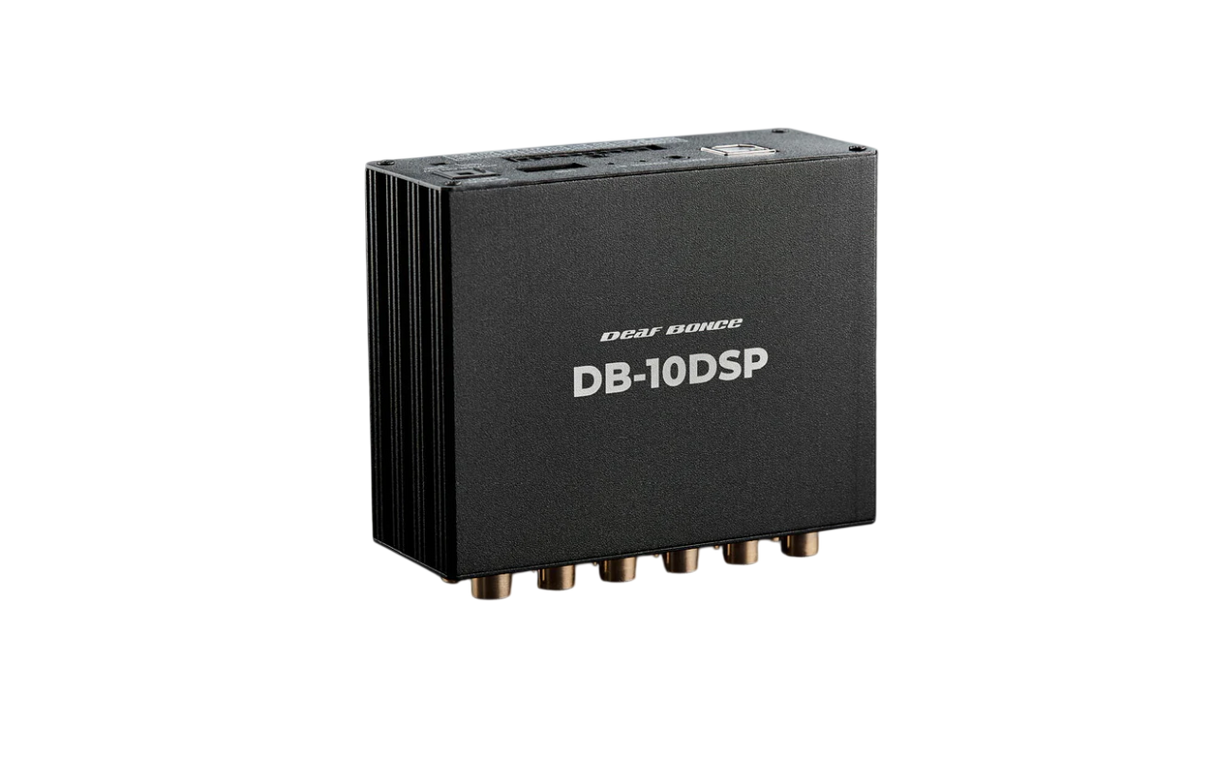

Deaf Bonce DB-10DSP
Deaf Bonce DB-10DSP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Deaf Bonce DB-10DSP
Deaf Bonce DB-10DSP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
| Model | DB-10DSP |
|---|---|
| Input Sensitivity (Low Level Inputs) | 0.38 – 0.72 V |
| Input Sensitivity (High Level Inputs) | 6 – 36 V |
| High Pass Filter (Hz) | 20 – 20,000 |
| Low Pass Filter (Hz) | 20 – 20,000 |
| Crossover (dB/Oct) | 6 – 48 |
| Phase Shifter | 0 / 180° |
| Frequency Response (Hz) | 20 – 20,000 |
| Signal to Noise Ratio (Master Inputs) | ≥98 dB |
| Signal to Noise Ratio (Optical Input) | ≥100 dB |
| Time Alignment Delay (ms) | 0 – 678.6 / 0 – 20.01 |
| Time Alignment Distance (cm/inch) | 0 – 269.7 |
| Equalizer | 31-band parametric equalizer |
| Bluetooth | Yes (Settings, Music – SBC, AAC Audio, AptX HD Audio) |
| Automatic Turn On/Off | ACC, high-level input |
| Number of High-Level Inputs | 8 |
| Number of RCA Inputs | 2 |
| Number of RCA Outputs | 10 |
| Optical Input | Yes |
| Input Terminal Connection (AWG) | 22 |
| Working Voltage (V) | 10 – 17 |
| Size (LxWxH, mm) | 97 × 84 × 38 |
| Size (LxWxH, inch) | 3.82 × 3.31 × 1.5 |
