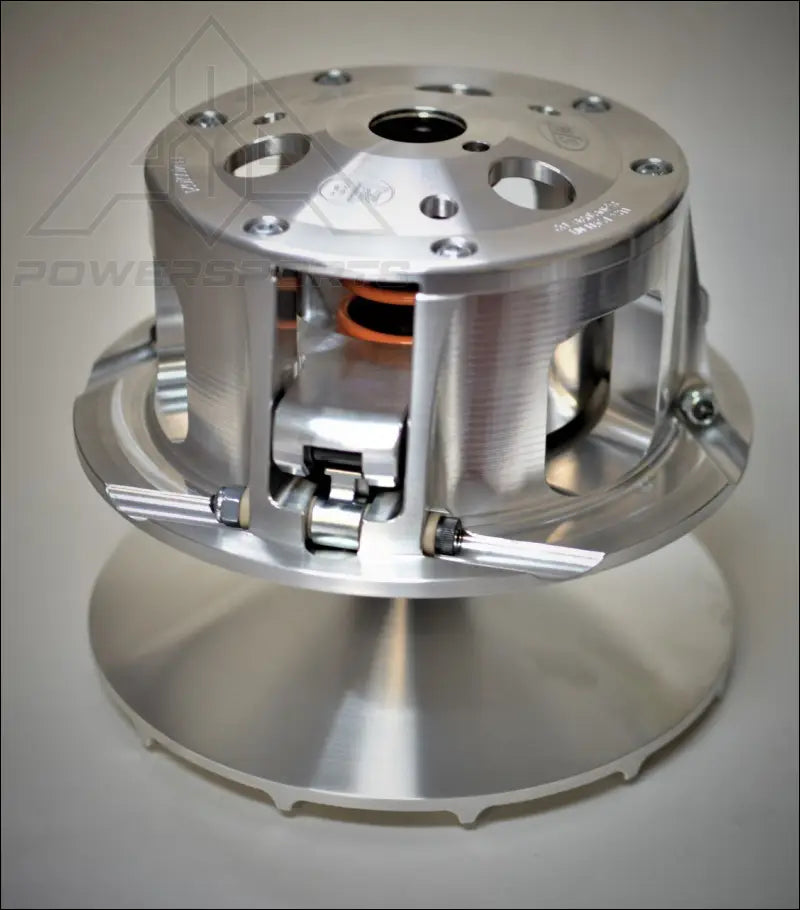

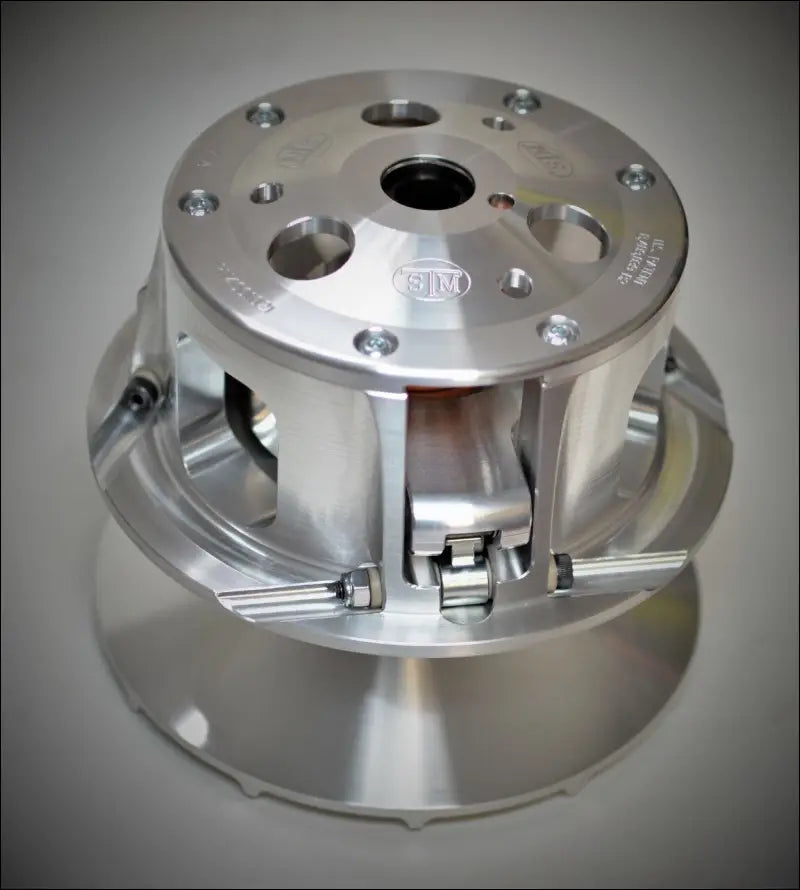

STM Rage 3P Billet Primary Clutch

• Locked sheaves
• Lower starting gear ratio
• Improved torque and throttle response
• Lower belt temperatures
• Longer belt life

This clutch offers extremely smooth low engagement with improved torque. New improved two-way bearing design. The main shaft bearing is now smaller with a 47mm outside diameter allowing a lower initial takeoff ratio than our past design. Allows tighter belt deflection and smoother transmission shifting. An affordable replacement for the stock primary clutch. Complete billet design that out performs the existing primary. Using our adjustable SUPERTIP CAM ARMS with the Rage 3 is the perfect recipe for your stock or modified Can-Am. These STM clutches will fit under the stock cover with no interference. The Rage 3 is capable of using most cam arms that are available on the market. We incorporate a fixed pin design that pivots the cam arm between two bushings and attaches the cam arm to the pin providing more durability to the cam arm pivot points. All parts are replaceable and stocked. The cover is designed to use Polaris ATV springs which provides a wide variety of spring rates to choose from. The Rage 3 comes calibrated with a spring and set of our own adjustable SUPERTIP CAM ARMS. Includes a new bolt for installation. Each clutch is assembled and setup to run the BRP OEM belt

This primary clutch will work with the stock secondary clutch.

Options

• Engine HP - Let us know about your bike - Is it naturally aspirated/stock? Big Bore Kit? Does it have a turbo? If you choose turbo - how much boost? This gives us an idea of how to set the weights up.

Please keep in mind we can only get you close with set up. Everyone's riding style is different so it's up to the customer to do the fine tuning!

INCLUDES

Item

1. Primary Clutch - QTY 1
2. Supertip Cam Arms - QTY 1
3. Spring - QTY 1
4. Bolt - QTY 1

DETAILS

Shipping

• Box Dimensions: 14x14x14
• Weight: 20.0 lbs.

DOWNLOADS

Instructions

No Installation Guide Exists
