Borg Warner S369SXE Turbocharger

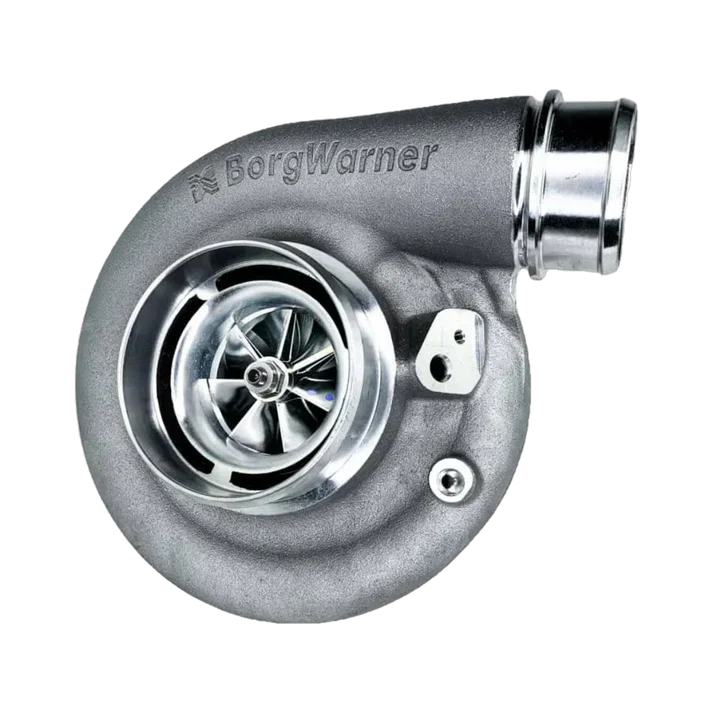

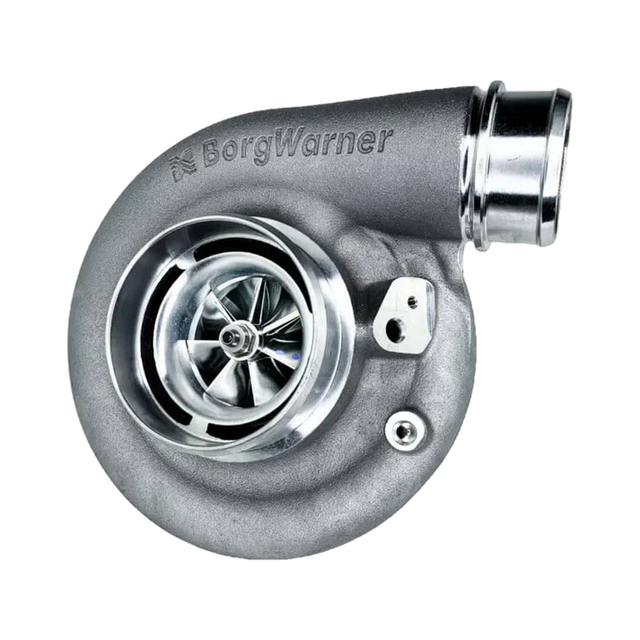

Borg Warner S369-SXE Supercore Turbocharger Assembly

The Borg Warner S369-SXE Supercore Turbo delivers high-performance capabilities with advanced engineering tailored for demanding applications. Featuring a billet compressor wheel, ported compressor housing, and pre-tapped ports for speed sensors and boost pressure, this turbocharger is the perfect upgrade for maximizing airflow, efficiency, and overall power.

Features & Specifications

Compressor Housing:

• 4" Inlet / 2.5" Outlet Ported Housing.
• Port shroud map width enhancement for increased flow and stability.
• Pre-machined for Speed Sensor (sensor not included) and Boost Pressure Port.

Compressor Wheel:

• 69/91mm Billet Compressor Wheel with Extended Tip Technology for optimal airflow and boost performance.
• Forged milled (billet) construction for exceptional durability and lightweight efficiency.

Turbine Wheel:

• 73/80mm Turbine Wheel designed for efficient exhaust gas flow and reduced turbo lag.

Bearing System:

• 360° Thrust Bearing ensures reliability and longevity under extreme conditions.
• Non-water-cooled bearing housing with a 1/4" NPT Oil Inlet.
• Compatible with standard T3-T4 oil drain setups.

Versatility:

• Flexible compressor cover outlet options specific to S300SX-E models.
• Interchangeable with existing SX turbine housings for enhanced compatibility.
• Compatible with Borg Warner factory and AGP custom cast turbine housings (not included).

Included in the Kit

• Complete S369-SXE Supercore Assembly (excluding turbine housing).
• Turbine housing mounting hardware, clamp plates, cap screws, and mounting gaskets for a straightforward installation.
• Note: Speed sensor and turbine outlet V-band are not included.

Benefits

• Advanced Airflow: The extended tip compressor wheel and optimized housing aerodynamics maximize efficiency and power output.
• Durability and Precision: High-quality materials and a robust 360° thrust bearing ensure long-term reliability and consistent performance.
• Easy Integration: Designed to seamlessly fit into existing S300 setups, simplifying upgrades and new installations.
• Enhanced Monitoring: Pre-tapped ports for speed and boost sensors offer flexibility for tuning and real-time data.

Applications

• Suitable for performance builds requiring high boost capabilities.
• Ideal for racing, heavy-duty towing, and off-road vehicles.
• Perfect for upgrading or replacing existing S300 turbo systems.

Elevate your vehicle’s performance with the Borg Warner S369-SXE Supercore Turbocharger Assembly, built to provide exceptional power, precision, and reliability for the most demanding applications.
