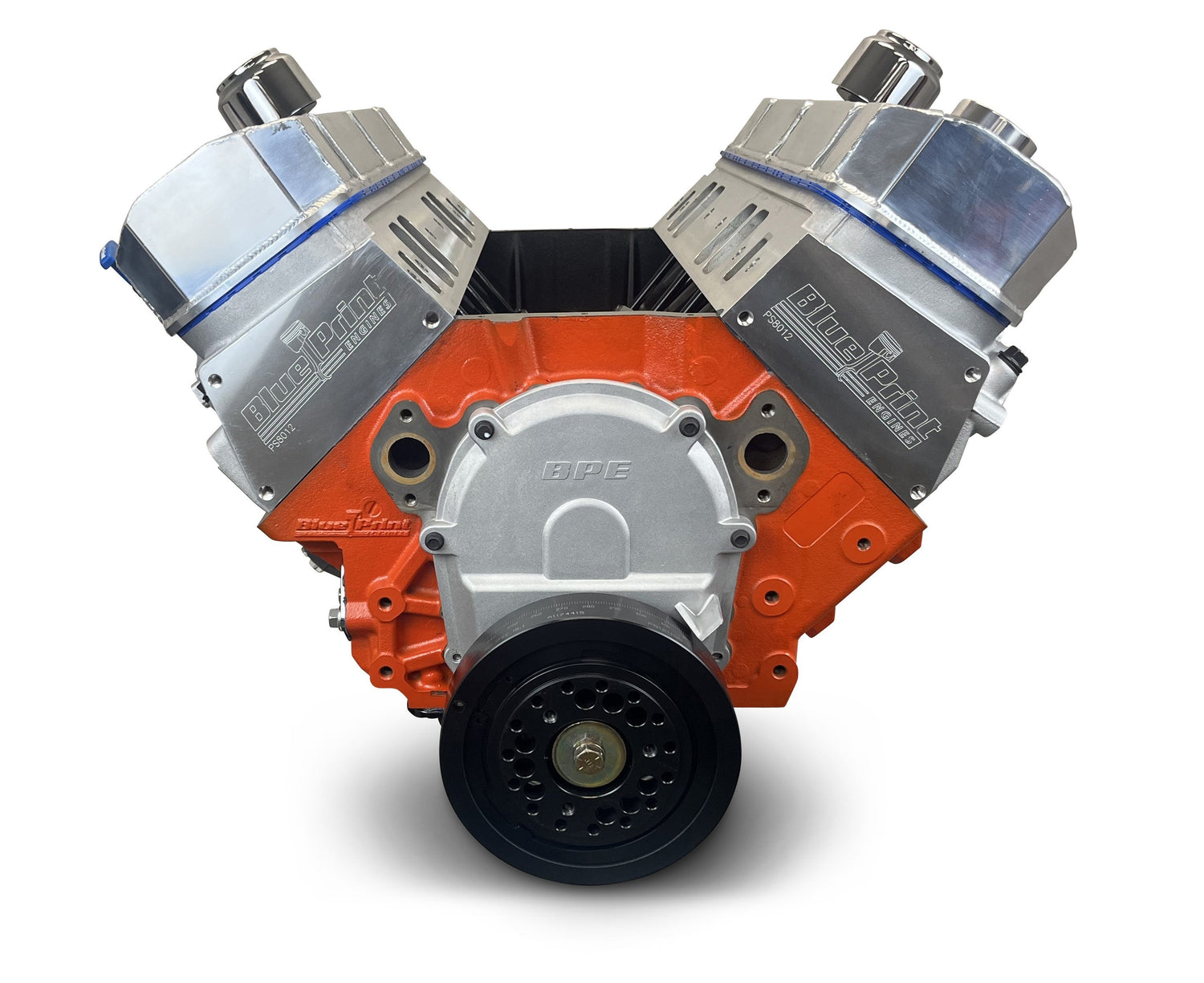

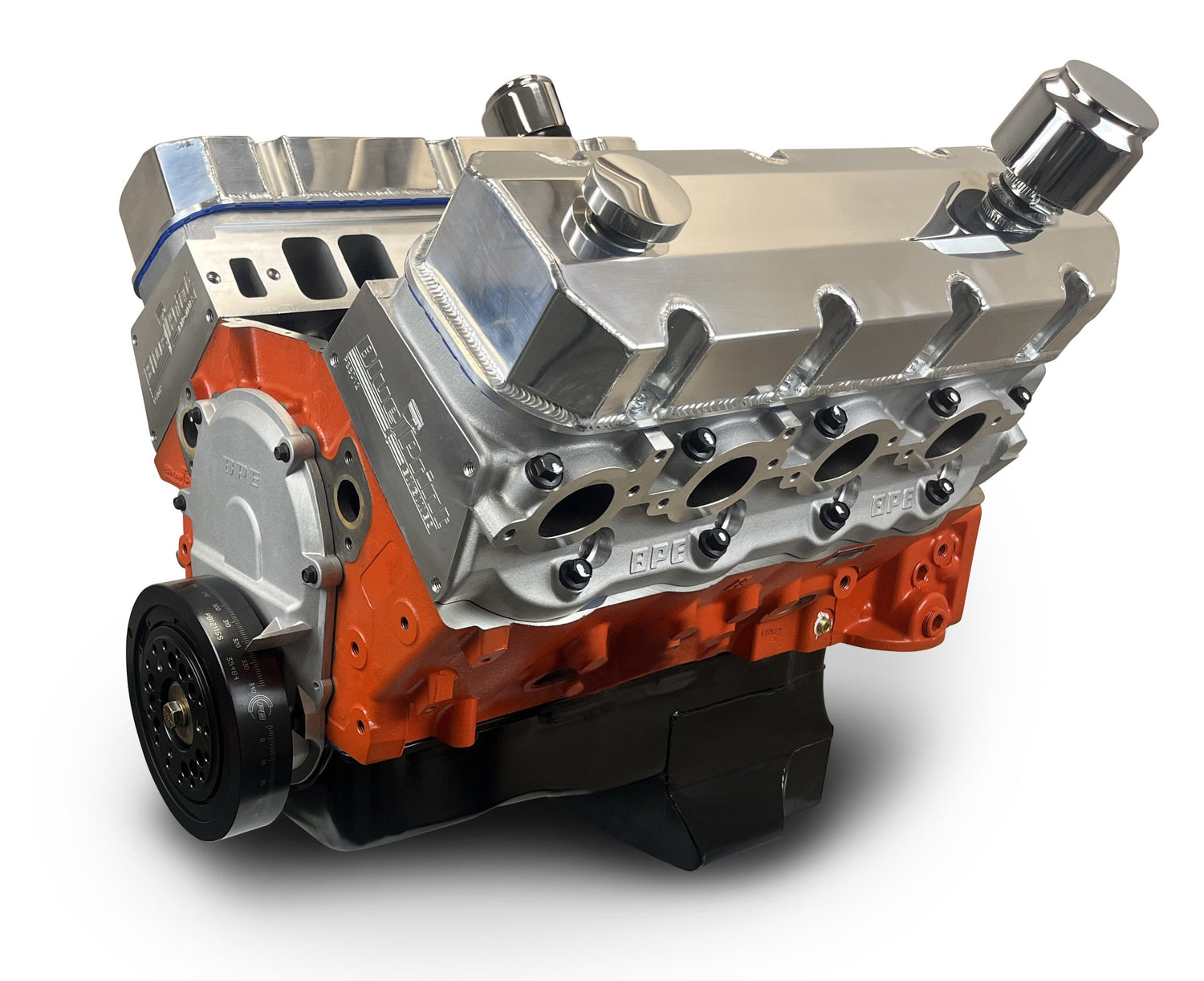

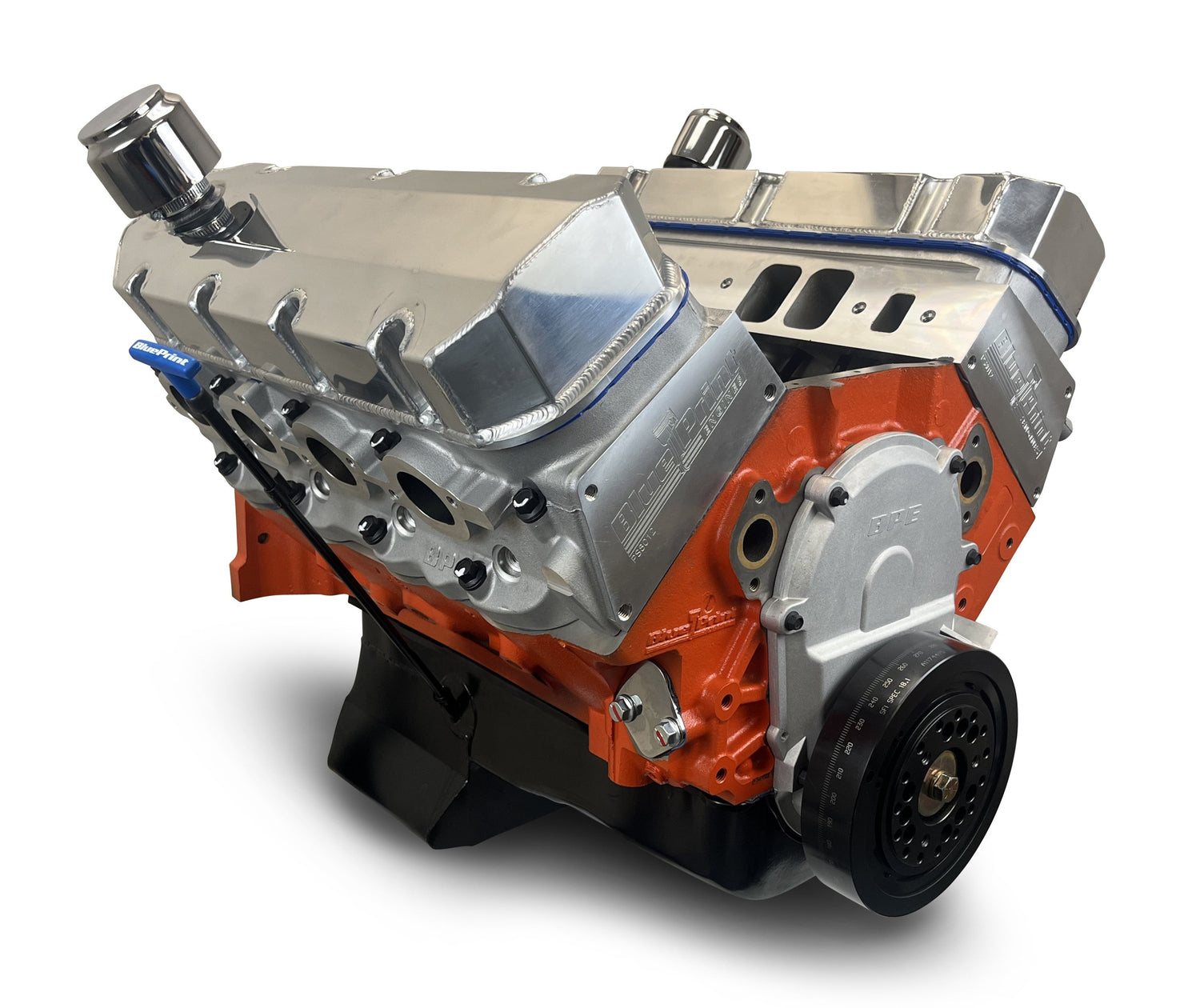

BluePrint Motorsports GM Big Block Compatible 632 c.i. Power Adder Engine - 775 Horsepower - Long Block

**BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.

Overview:

Meet the monster that’s powerful enough to dominate the track yet tame enough to rule the streets. Packing a jaw-dropping 775 horsepower and 750 ft-lbs of torque, this 632 cubic inch Pro Series BBC compatible engine is the ultimate blend of raw performance and street-friendly manners. This power adder engine is engineered to handle any type of forced induction. Whether you’re adding nitrous, a supercharger, or turbos, this long block has the strength and reliability to take the boost.

Description:

• Horsepower & Torque: 775 Horsepower / 750 ft. lbs. Naturally Aspirated
• Compression Ratio: 9.6:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• Mahle Motorsports Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block

• Manufactured and Machined in the USA!
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.600" Bore

• Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)

Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.750" Stroke
• Forged H-beam 6.635" Connecting Rods
• ARP 2000 Series Bolts
• Mahle Motorsports Forged Pistons
• Precision Gap, Power Adder Piston Rings
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• MLS Head Gaskets
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting


Cam Specs:

• Hydraulic Roller
• .698 Intake / .698 Exhaust Lift
• 272 Intake / 282 Exhaust Duration
• @.050-110 Degree Lobe Separation

Also Includes:

• SFI Rated Dual Keyway 8 in. Balancer
• Timing Cover
• Valve Covers
• Oil Pan


Notes:

• This engine is built and designed to run on 92 octane pump gas for street use only. For racing or extended wide-open throttle use, race fuel (100+ octane) is required.
• BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
