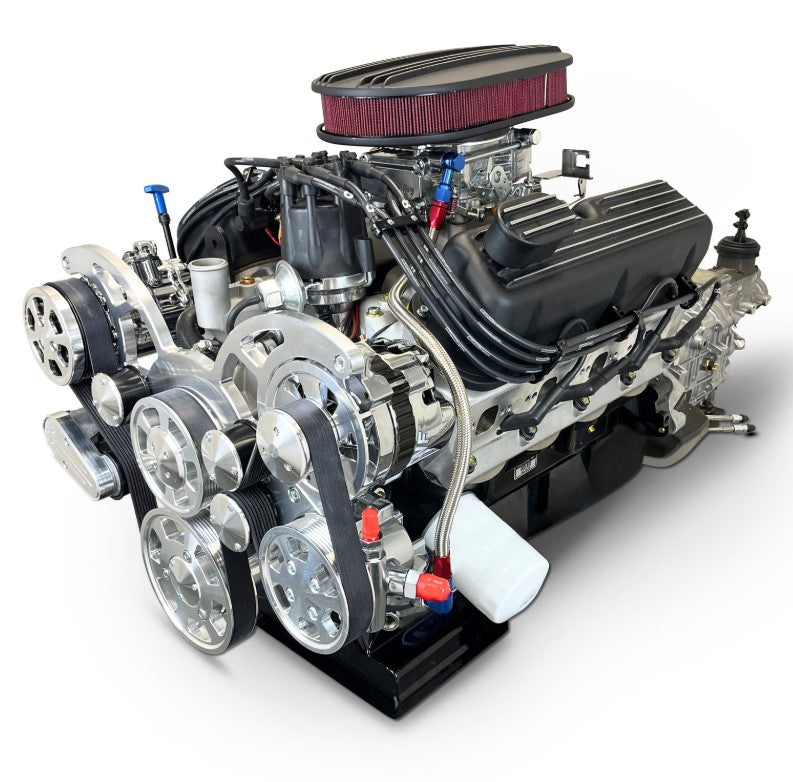

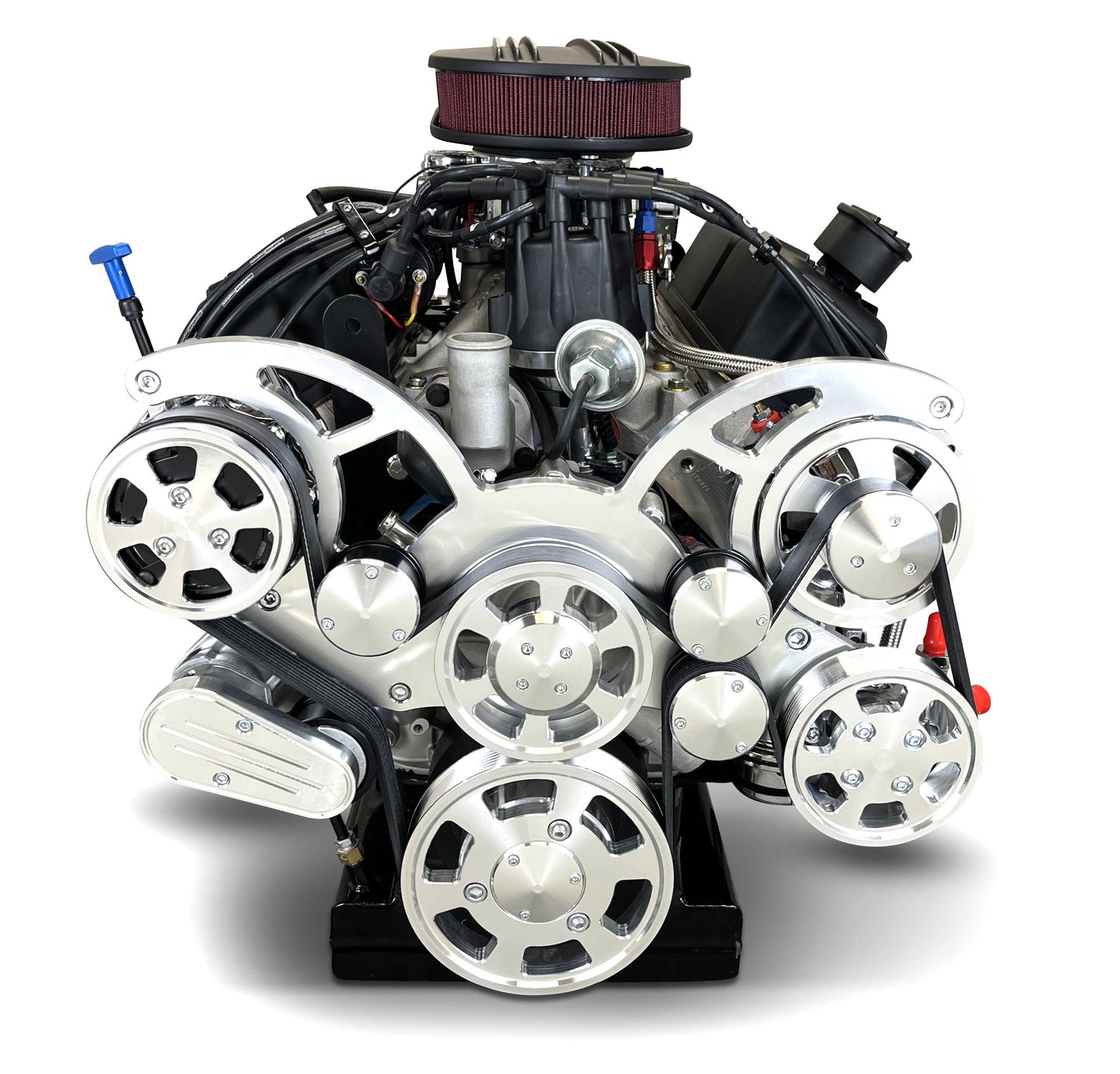

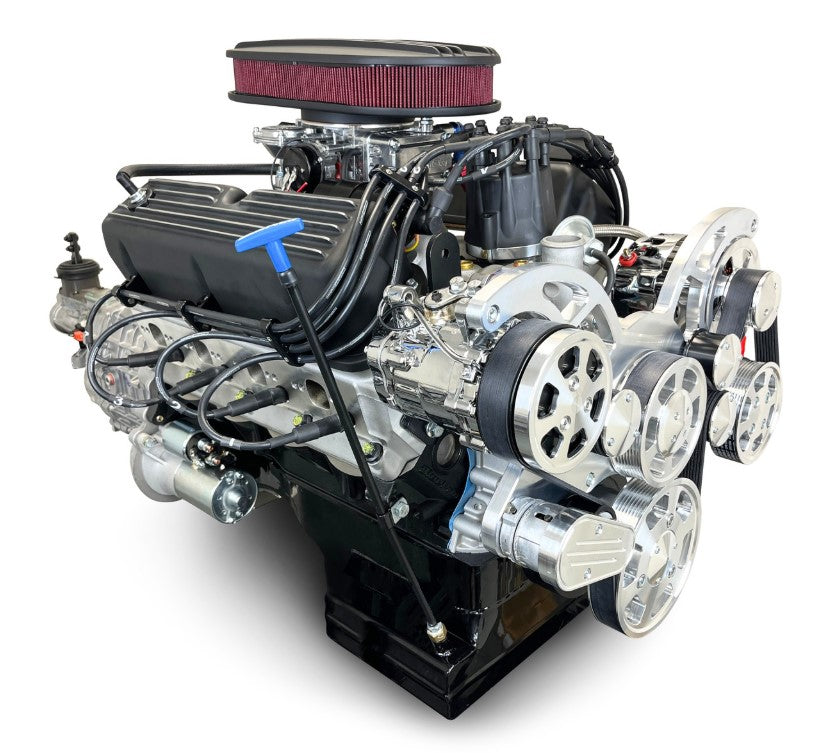

Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted
Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmis...
Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
Description:
- Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
- Compression Ratio: 9.5:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High-Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Ford, Machined and Balanced by BluePrint Engines
- 3.000" Stroke
- OEM Type 5.090” Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP9009
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Holley 600 CFM Street Warrior Carburetor - BPP080457SA
- Fuel Pump
- Intake Manifold
- Water Pump
- Spark Plugs and Wires
- Valve Covers
- MSD Pro Billet Distributor
- Harmonic Balancer
- Painted Oil Pan 7qt
- Thermostat and Thermostat Housing
- Polished Front Accessory Drive - BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor

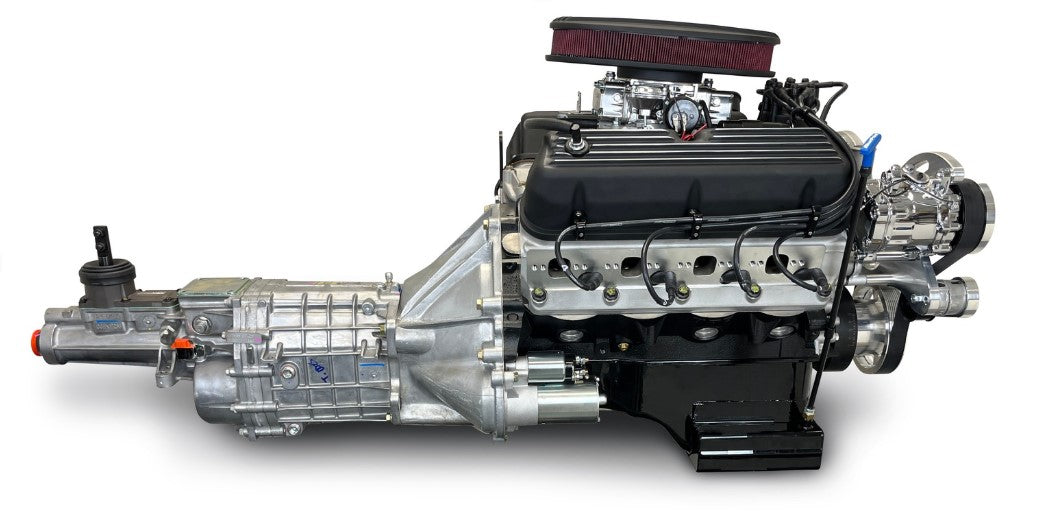

Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Not for use in pollution-controlled vehicles.
-
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- This engine is not compatible with factory fuel injection.
- PACKAGE SHIPS ASSEMBLED AS PICTURED.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
*A bronze distributor gear is NOT recommended on this engine
