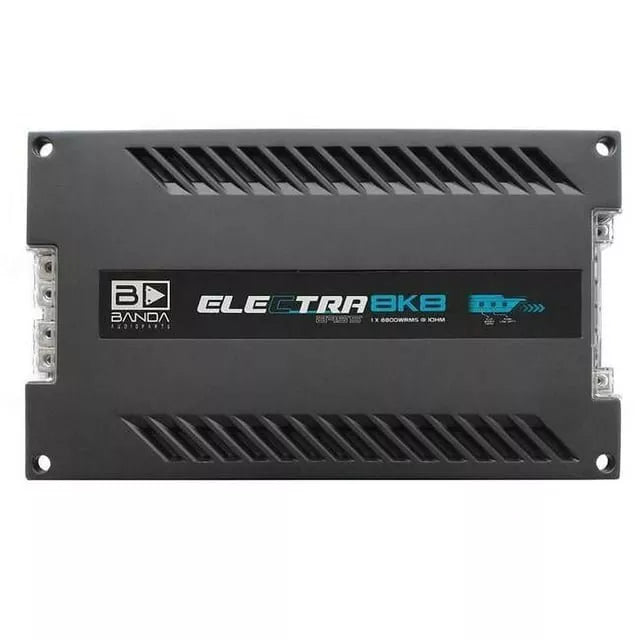

Banda Electra BASS 8k1 Car Amplifier 8800 Watts RMS 1 Ohms

Banda Electra Bass 8K8 Amplifier Module Power 1 OHM - 8800 WATTS RMS

The ELECTRA line was developed especially for those looking for an incomparable bass. It has a frequency response from 5 to 500Hz (-3dBs). Due to this, ELECTRA will only play Subwoofers, Bass. The BASS BOOST @ 45Hz feature is a plus, further boosting your system's bass.

Designed in a 100% aluminum chassis, it works with a power of 8800 WRMS with 1 input channel for connection and 1 Ohm impedance. It has very low harmonic distortion (less than 1%) and Clipping indicator, forced ventilation and short circuit protection.

- Operating class: Class D bridged
- Maximum Power 14.4v @ 1 Ohm: 11000 WRMS
- Maximum Power 14.4v @ 2 Ohms: 7000 WRMS
- Maximum Power 12.6v @ 1 Ohm: 8800 WRMS
- Maximum Power 12, 6v @ 2 Ohms: 5100 WRMS
- Efficiency @ 2 Ohms: 84%
- Efficiency @ 1 Ohm: 79%
- Input Voltage: 9 - 15V
- Input Impedance: 100K Ohms
- Total Harmonic Distortion + Noise: <1%
- Sensitivity Input: 180mV to 2.5V
- Signal to Noise Ratio: 85dBs
- Frequency Response: 18 to 500Hz (-3dBs)
- HPF (Subsonic): 20 - 80Hz @ 12dB/octave Linkwitz-Riley
- LPF (Crossover): 80 - 500Hz @ 12dB/octave Linkwitz-Riley
- Bass Boost @ 45Hz: Variable 0 to +18dBs
- Recommended Fuse: 500 A
- Resting Current: ~4.0A
- Maximum Current (music signal): 880A
- Power Cables (recommended min.): 2 x 50mm / 2 x 0 AWG
- Output Cables (recommended min. recommended): ): 2 x 10mm / 2 x 6 AWG
- Gain control
- Signal input in differential mode
- Forced ventilation through micro fans
- Blue LED indicator of: Power supply and amplifiers on/On
- Red LED indicator of: Output distortion ( Clipping) or short-circuit at the output
- Yellow LED indicator of: Battery voltage below specified.
- Weight (Kg): 8
- Height (mm): 60
- Width (mm): 264
- Depth (mm): 443
