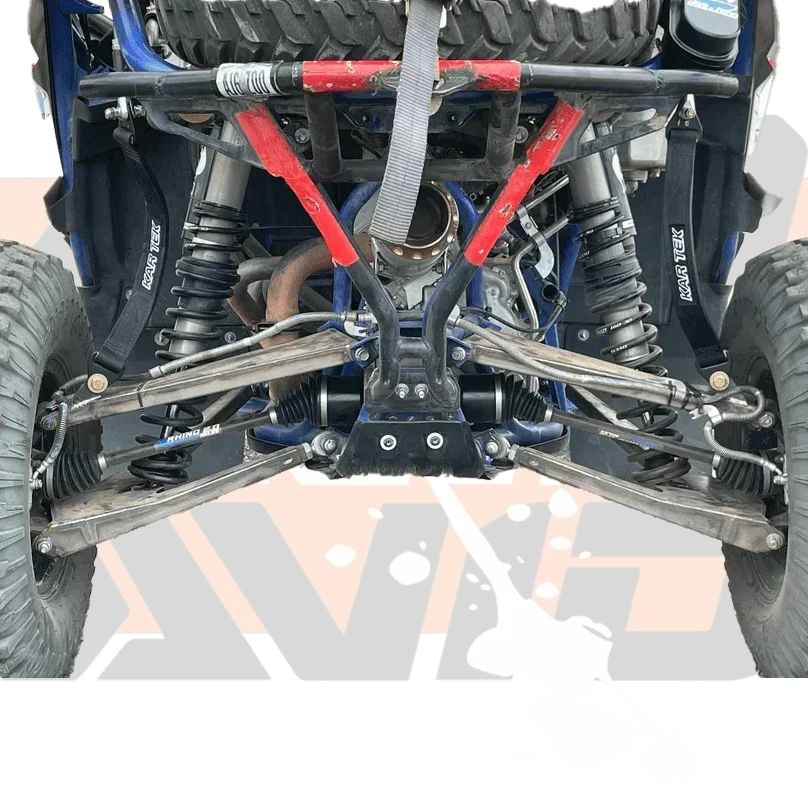

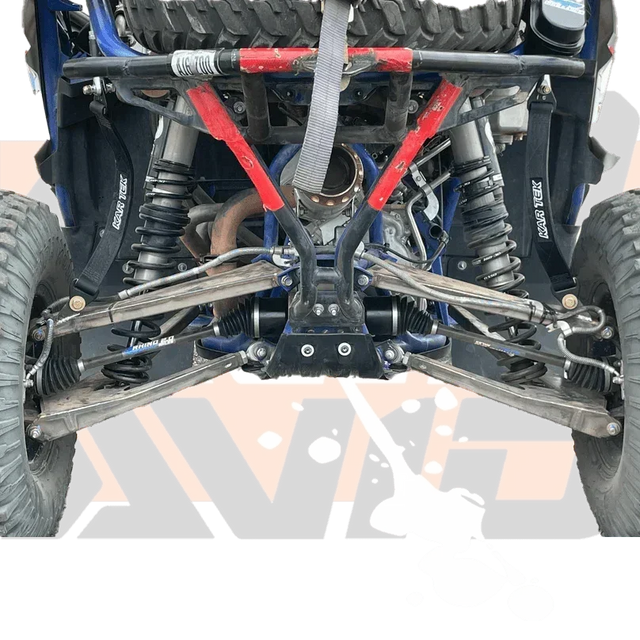

AVID YXZ XC 64" Rear Arm Kit

The AVID XC 64" Rear Arm Kit is the first stock-width, high-performance suspension upgrade designed for the YXZ1000. Shock placement is critical, so we have relocated the rear shocks vertically to provide correct geometry and cycling, which allows for better and easier shock tuning. Built from 4130 chromoly plate and TIG welded, this kit provides the strength and geometry needed for aggressive off-road use. 3/4" rod ends secure the suspension to the chassis mounting points, allowing for fine-tuned alignment and maximum durability.

Key Features

• Stock-width (64") rear suspension performance kit
• Vertical shock relocation for correct geometry, improved cycling, and easier shock tuning
• Constructed from 4130 chromoly plate and TIG welded
•  3/4" rod ends provide strength and adjustability
• Engineered for durability and precise alignment tuning

What’s Included

• Complete rear upper and lower control arm set
• All rod ends
• All misalignments, bushings, and crush sleeves

Important Notes

•  Upper shock mount is required and sold separately. AVID offers two options: a weld-on version and a full bolt-on version. CLICK HERE

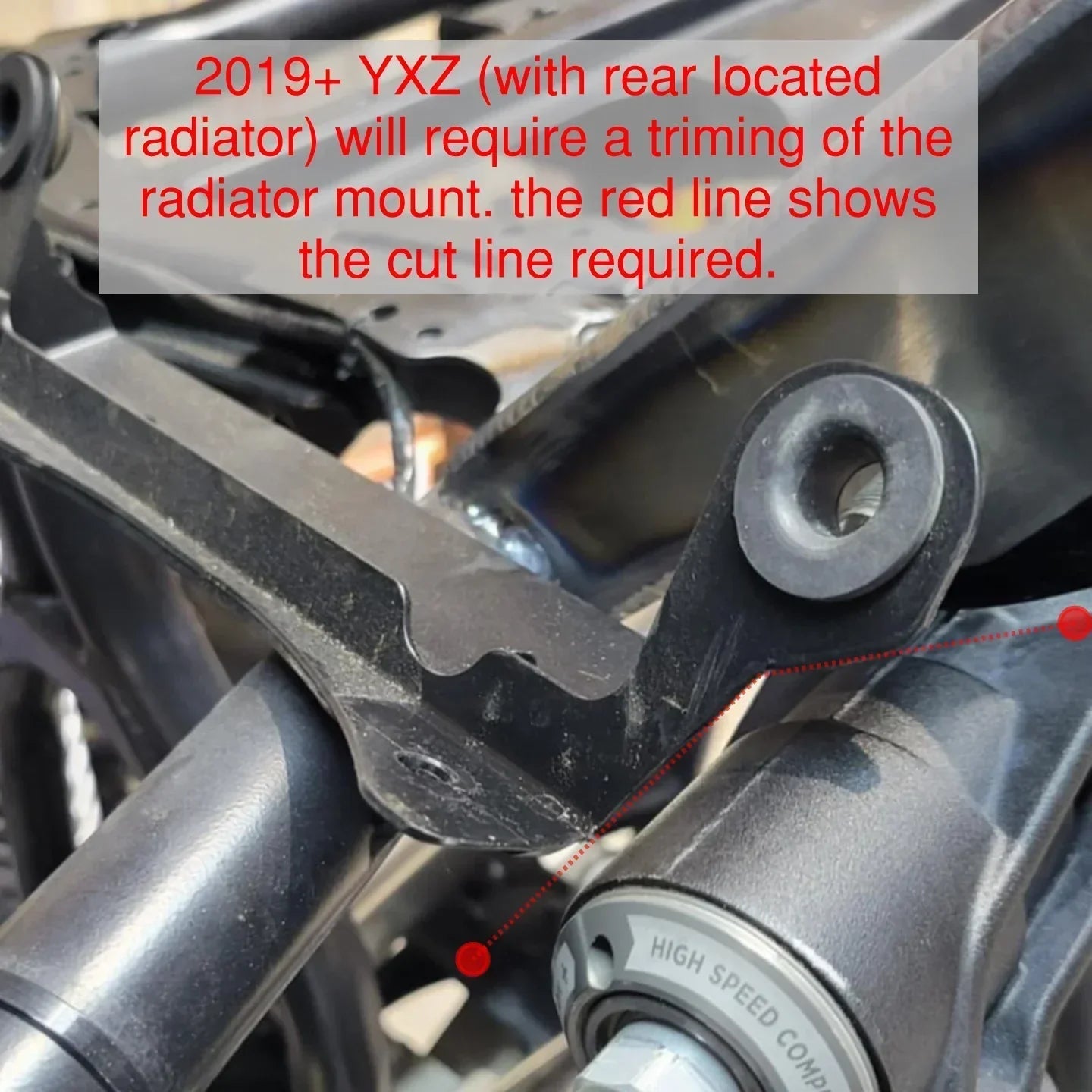

•  2019+ YXZ models with rear radiator location will require trimming for proper clearance. See picture for details.

Fitment

• Yamaha YXZ1000 (64" models)
