99-06 Silverado / Sierra 1500 4WD Race Suspension Kit by LSK

LSK Is Proud To Introduce The 1996-2006 GM 1500 4wd Race Kit. Our Race Kit Uses A Set Of Custom Upper & Lower Control Arms, Fully Fabricated Spindle, Extended Heimed Tie Rod w/ Machined Steering Clevis And Plate Shock Tower w/ Integrated UCA Mounts To Vastly Improve The On & Off Road Ride Quality. This Kit Is Best Suited For Those Who Use Their Vehicle As A Dedicated Off Road Rig Or One That Sees Occasional Street Use.

PERFORMANCE SPECS

• Wheel Travel – Averages 13.5″ Of Useable Wheel Travel (Ranges 12″ – 14.5″ Depending On RCV Axle Assembly / Limit Strap / Bump Stop / Shock Configuration)
• Wheel Base: Extended 1.25″ Forward
• Track Width: Extended 4.5″ On Each Side
• Recommended Tire Size: 37″
• Recommended Wheel: 17 x 9″ w/4.5″ Backspacing (0mm Offset)

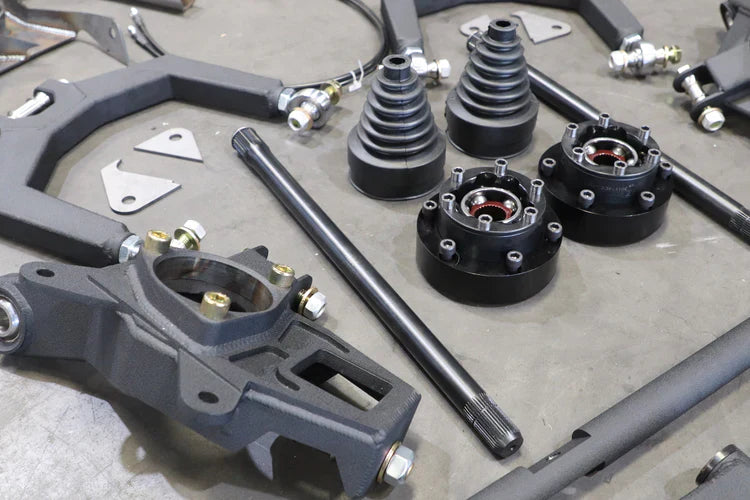

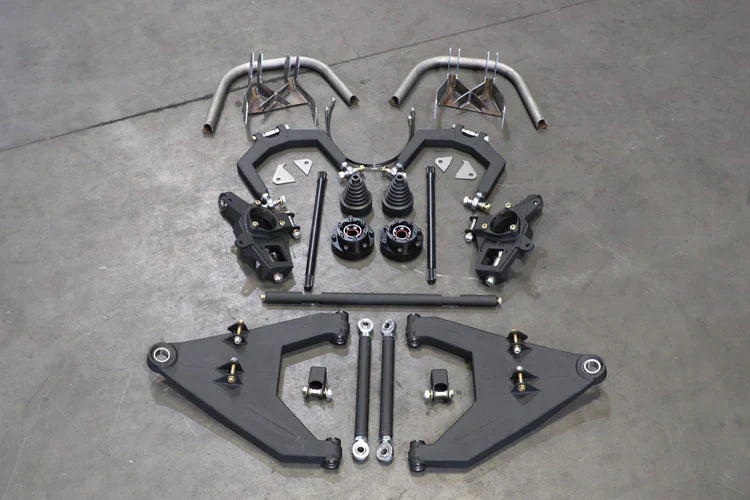

INCLUDES

• Upper Arms
• Lower Arms
• Spindles
• Machined Centerlink
• Tierods w/ Machined Steering Clevis
• Shock Towers w/ Integrated UCA Mounts
• Grade 8 Hardware

REQUIRES

• 8″ 2.5″ Coilovers (NOT INCLUDED IN KIT ABOVE)
• 8″ 3.0″ Bypasses (NOT INCLUDED IN KIT ABOVE)
• Welding Is Required – This Is Not A Bolt On System And Will Require Proficient Knowledge In Fabrication To Perform The Installation
• RCV Axle Assemblies – You Must Contact Our Sales Team To Discuss The Correct Axle Option For Your Application – Axle Assemblies Are NOT Included With This Kit (An Old Style Is Pictured With This Kit, We No Longer Offer That Axle Assembly)
• Extended Brake Lines (Minimum 33″ Line End To End)
• Shock Hoop (Either LSK Pre-Bent Available Below Or Custom Tie In To Shock Tower)
• Possible Extension Of Factory ABS Sensor Line (Depends On Wire Routing)
• Bumpstops – Can Be Configured To Bump Off Of Lower Control Arm, Upper Control Arm Or Spindle Uniball Cup – Typically Recommend a King 2.0″ x 2″ Stroke With King Fabricated Cans
• Limit Straps – Recommend 10″ Limit Strap With Adjustable Clevis Kit (Can be Purchased In The Builders Components Section of Our Store)

OPTIONAL UPGRADES

• Extended Brake Lines – Stainless Steel Braided Brake Lines With Black Covers Specifically Engineered For This Application
• Shock Hoops – Our Pre-bent Shock Hoops Orient Off Of The Tabs On Our Fabricated Shock Tower – Includes Frame Standoffs And Plastic Plugs
• Finish – Black Powdercoat Or Raw Finish (Note: Raw Kits Ship Unassembled)

IMPORTANT NOTES

• WHILE WEBSTORE MAY DISPLAY AN IN STOCK STATUS, WEBSTORE DOES NOT TRACK KIT INVENTORY IN REAL TIME – PLEASE CONTACT OUR SALES TEAM FOR CURRENT LEAD TIME ON KIT COMPONENTS
• Coilovers And Bypasses Are Custom Ordered And Not Always Stocked Per Application. Please Email Our Sales Team For Current Lead Time On Shock Packages
• Finish – Black Powdercoat Or Raw Finish (Note: Raw Kits Ship Unassembled)
• Upper Control Arm: Use 7/8″-14 Rod Ends – Replacement Rod Ends Can Be Purchased Through Our Online Store Under Builders Components
• Spindles: Use A 1.00″ FK Uniball (PN: WSSX16T) And Replacements Can Be Purchased Through Our Online Store Under Builders Components
• Lower Control Arms: Use A 1.50″ FK Uniball (PN: COMH24T) & LSK 1.75″ Delrin Bushings. Replacements Can Be Purchased Through Our Online Store Under Builders Components
• Permanent Frame Modification – Shock Tower Is Installed In Place Of Factory Shock & Upper Control Arm Mounts
