05+ Coil Swap Track Bar (Over The Top) - 1992-1997 Ford F-Series

Sky's Over The Top Extendable Rod (Adjustable Track Bar)

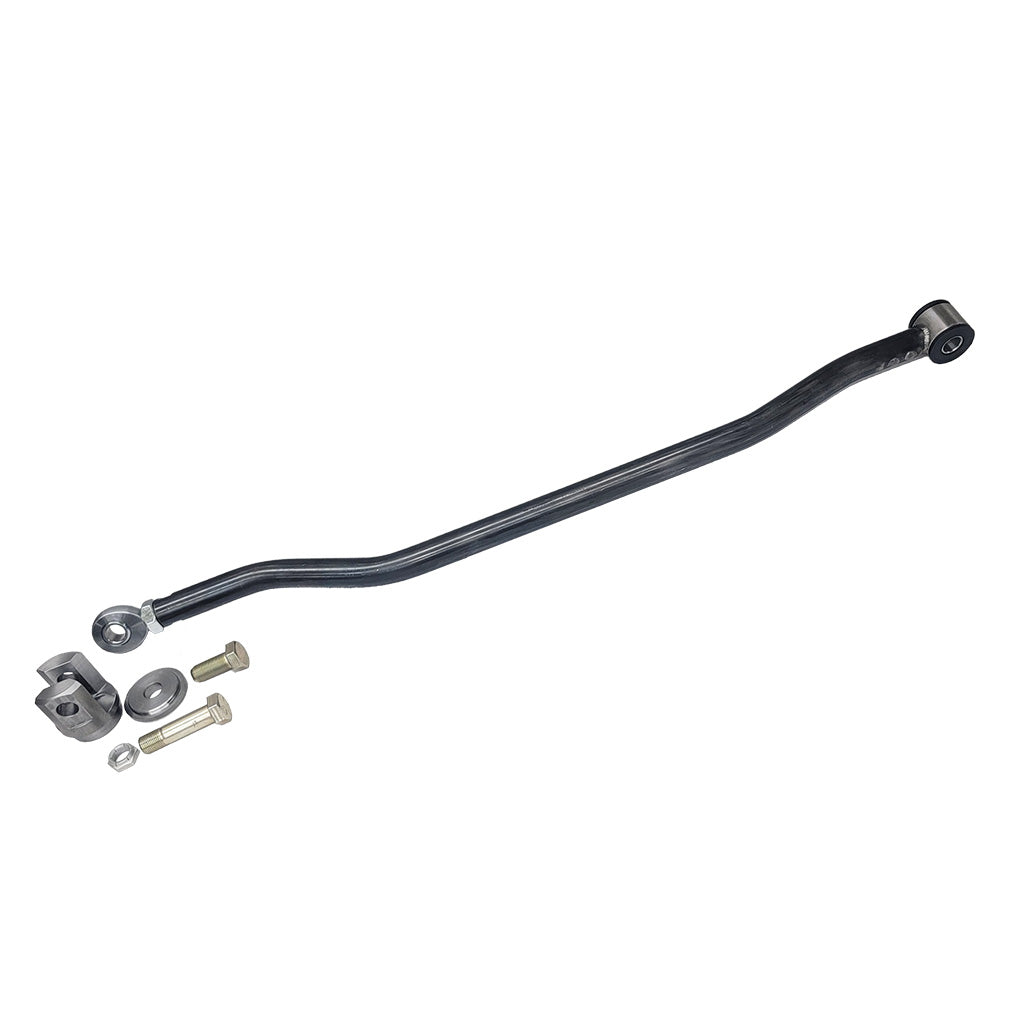

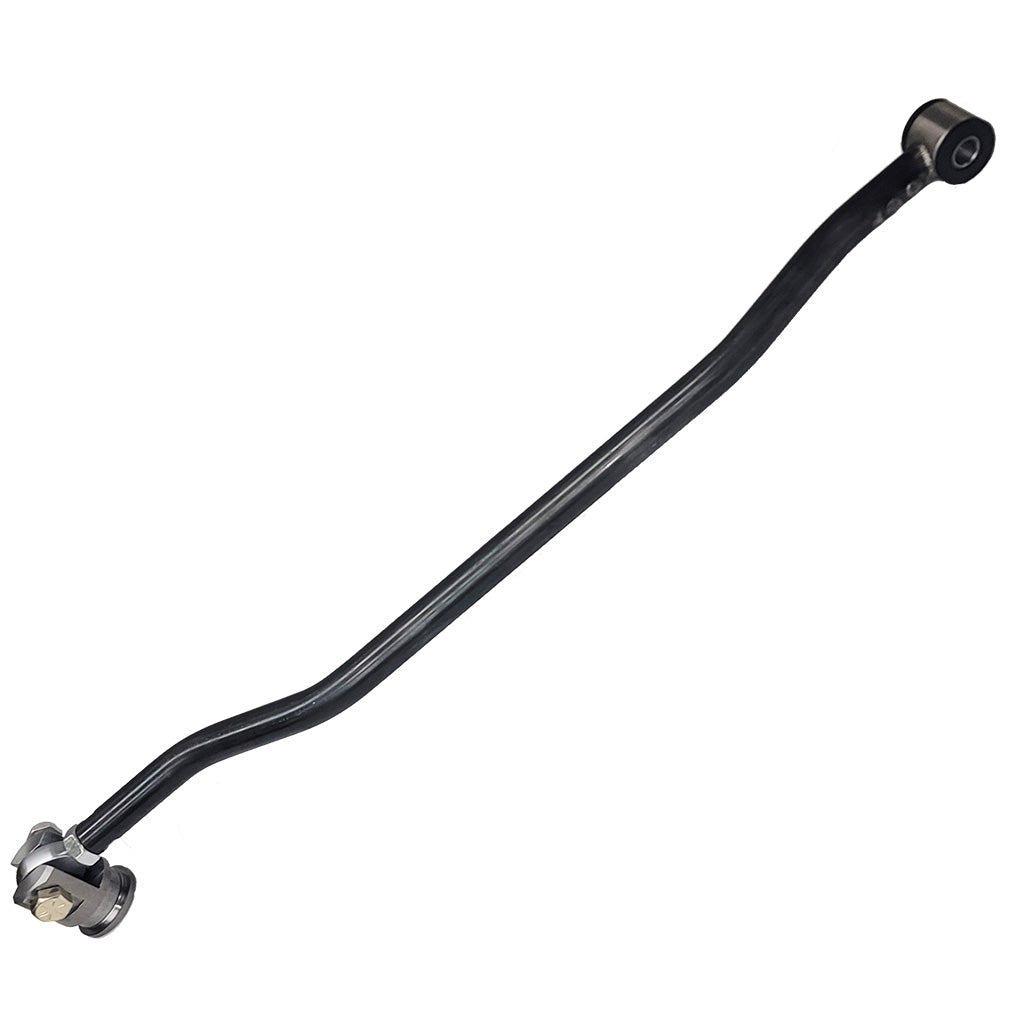

Tackle poor track bar geometry with Sky’s (Over The Top Extendable Rod) – an adjustable track bar system built to handle anything from stock height to 12" lifts while eliminating the failure-prone factory Super Duty ball joint at the axle.

Key Features:

• Adjusts for 4" to 12" lifts – custom-tuned geometry for improved handling at any height

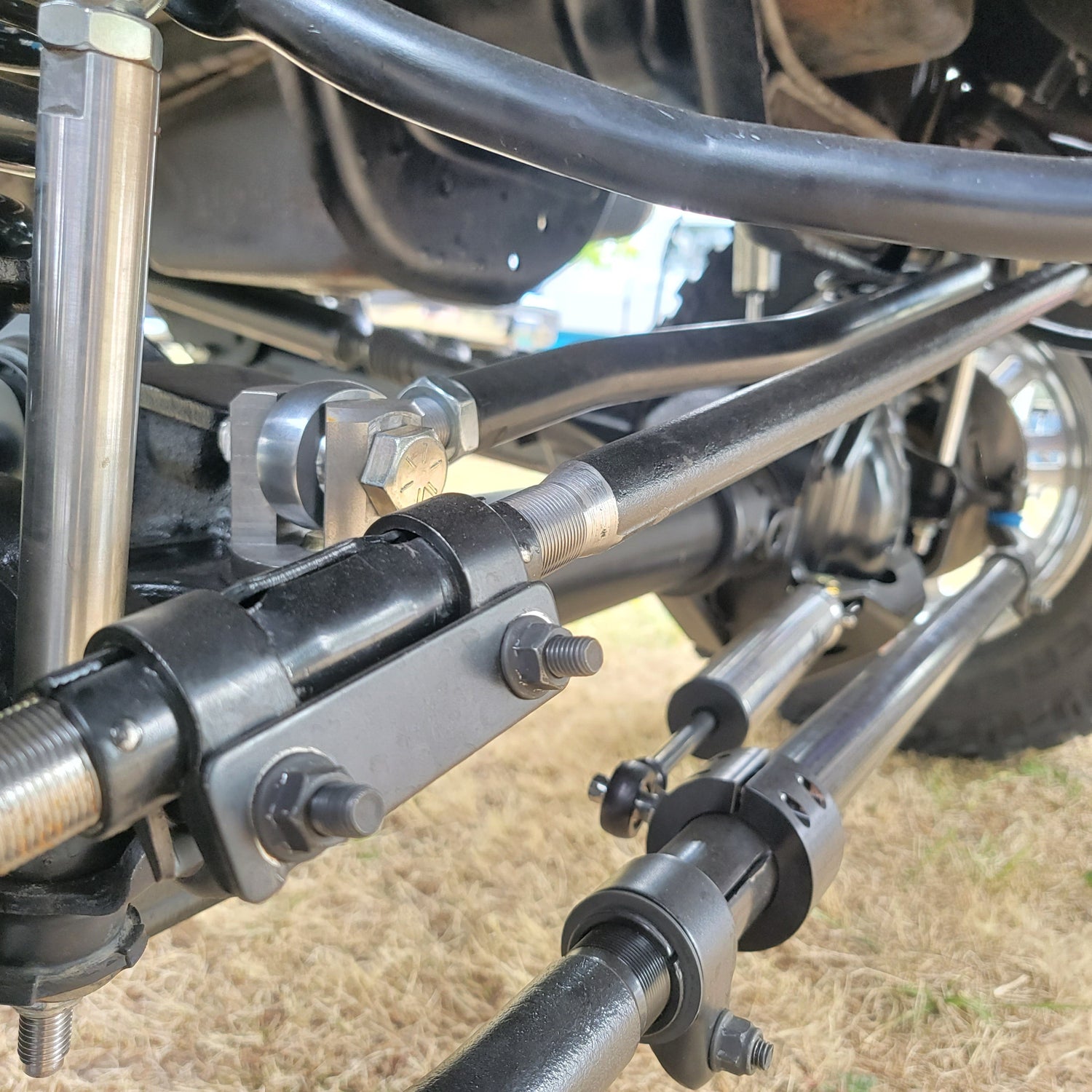

• Eliminates factory-style ball joint with a robust 7/8" chrome moly heim joint

• CNC-machined billet heim cup with an upper locking bracket and inset washer

• Poly bushing at frame end for reduced road vibration

• .250 wall DOM steel bar with integrated bushing plug – no weld bungs

• Grade 8 hardware included throughout for maximum strength

• Clears engine crossmember on OBS trucks without trimming (when used with Sky's kits)

Why It Matters: Factory track bars are known to wear out quickly and perform poorly at higher lift heights. Sky’s track bar fixes this by replacing the factory axle connection with a heavy-duty heim joint secured in a billet cup, and using a poly-bushed frame end to maintain on-road comfort.

Installation Notes:

• Removal of the OEM axle joint may require heat and force (or a press).

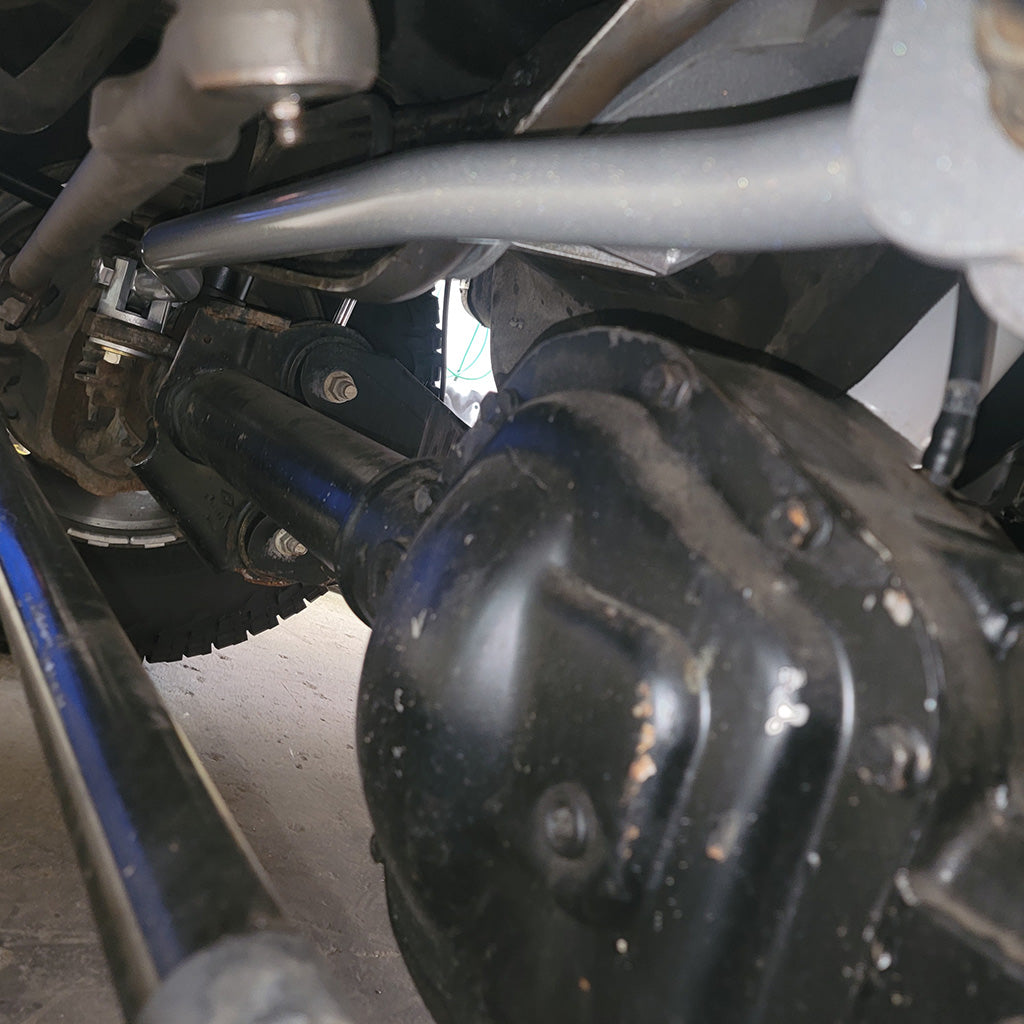

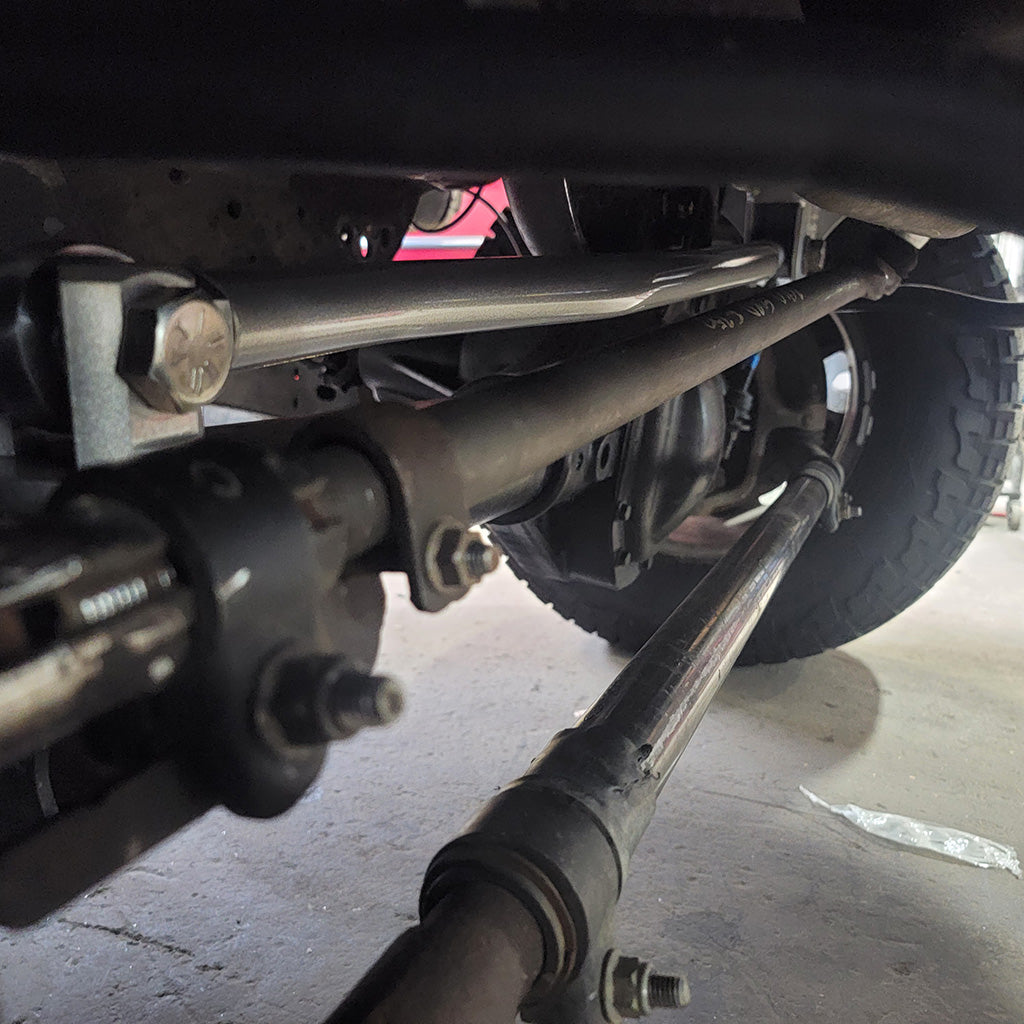

• Heim cup installs in factory location—upward for 4”+ lift, downward for under 4”.

• Torque specs:

  • Heim bracket short bolt: 225 ft-lbs

  • Heim lower bolt: 110 ft-lbs

  • Frame side (OEM bolt): 160 ft-lbs

• Use red thread locker on all threaded hardware

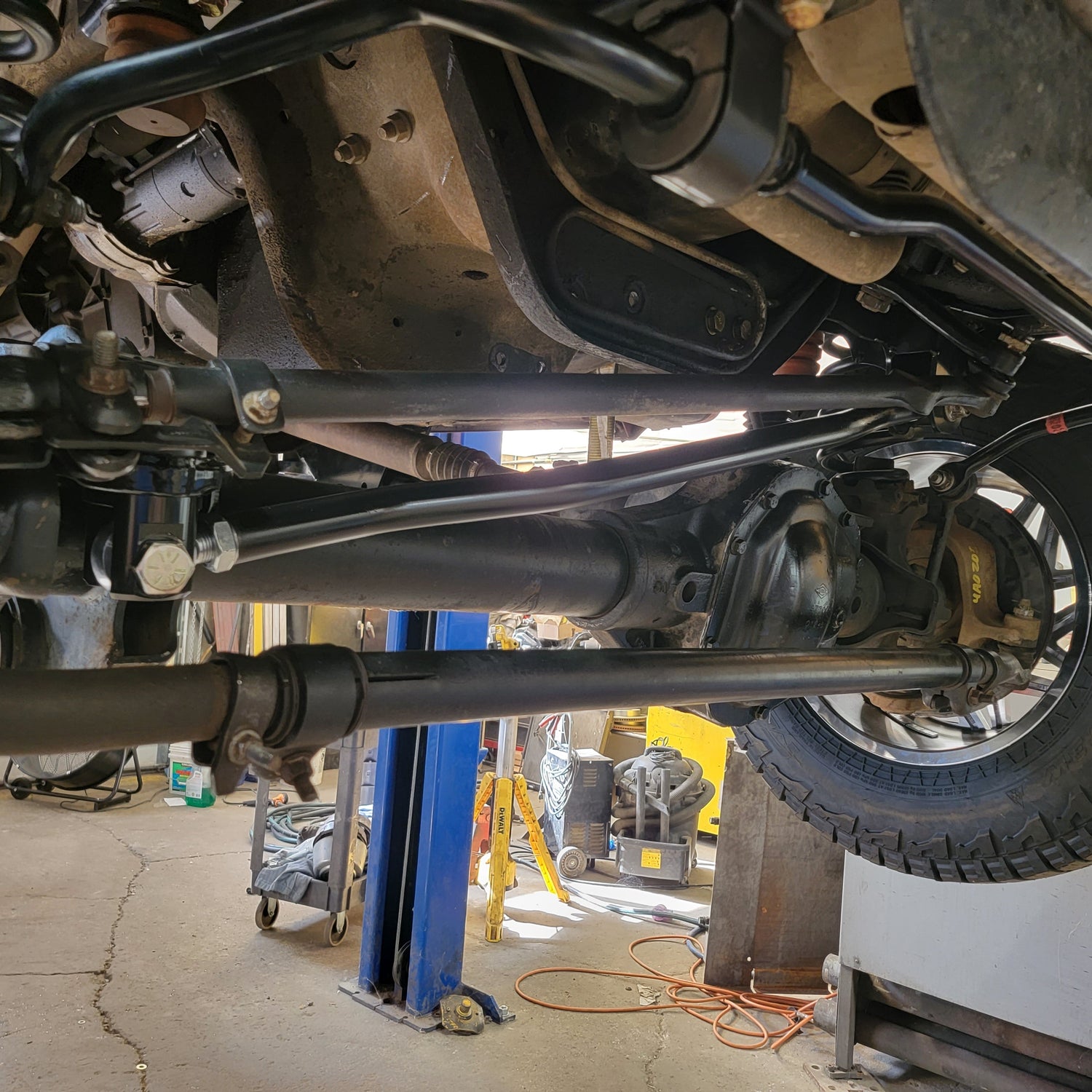

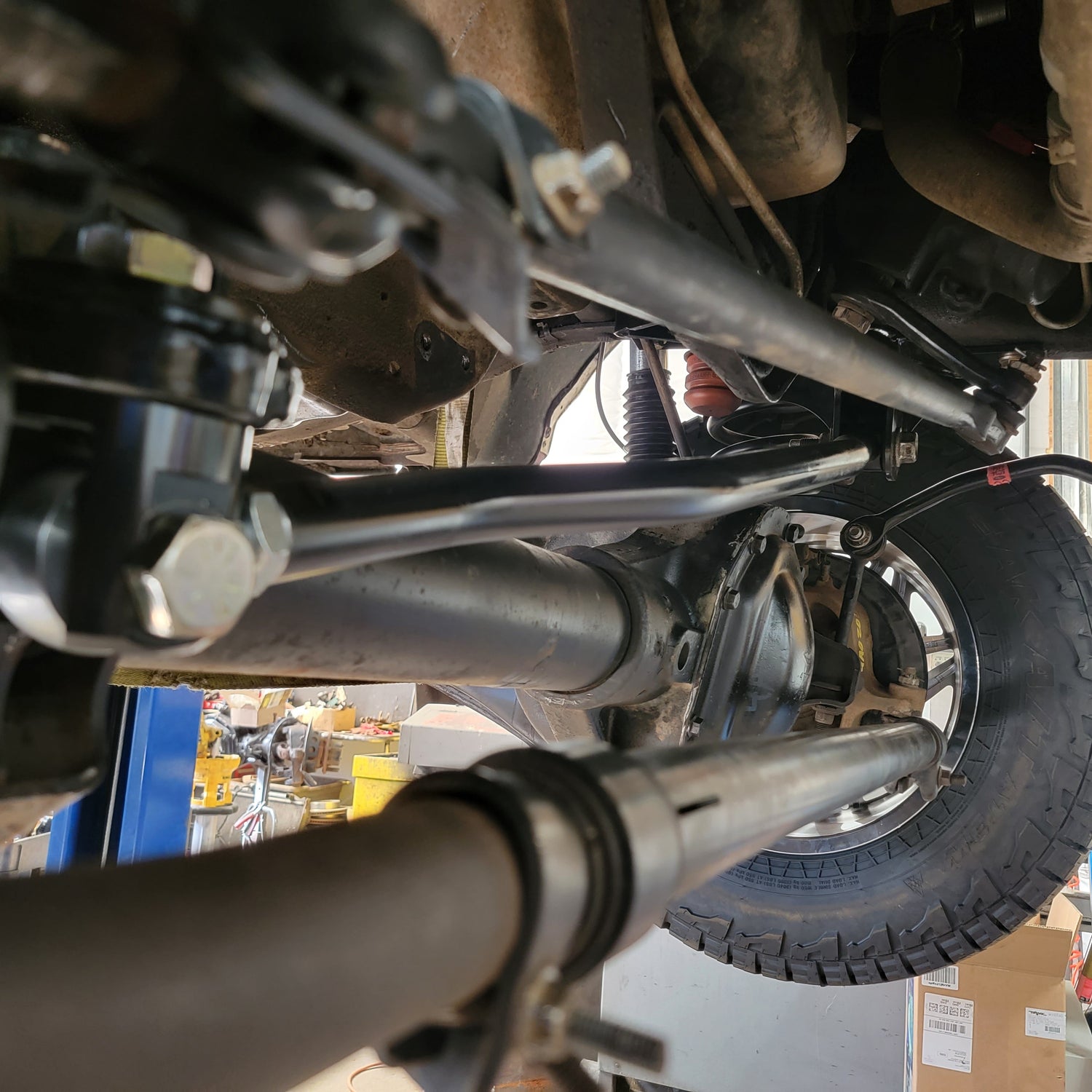

Designed for OBS Ford trucks running Dana 60 axles, this track bar is built in the USA and engineered for strength, adjustability, and confidence-inspiring performance on and off-road.
