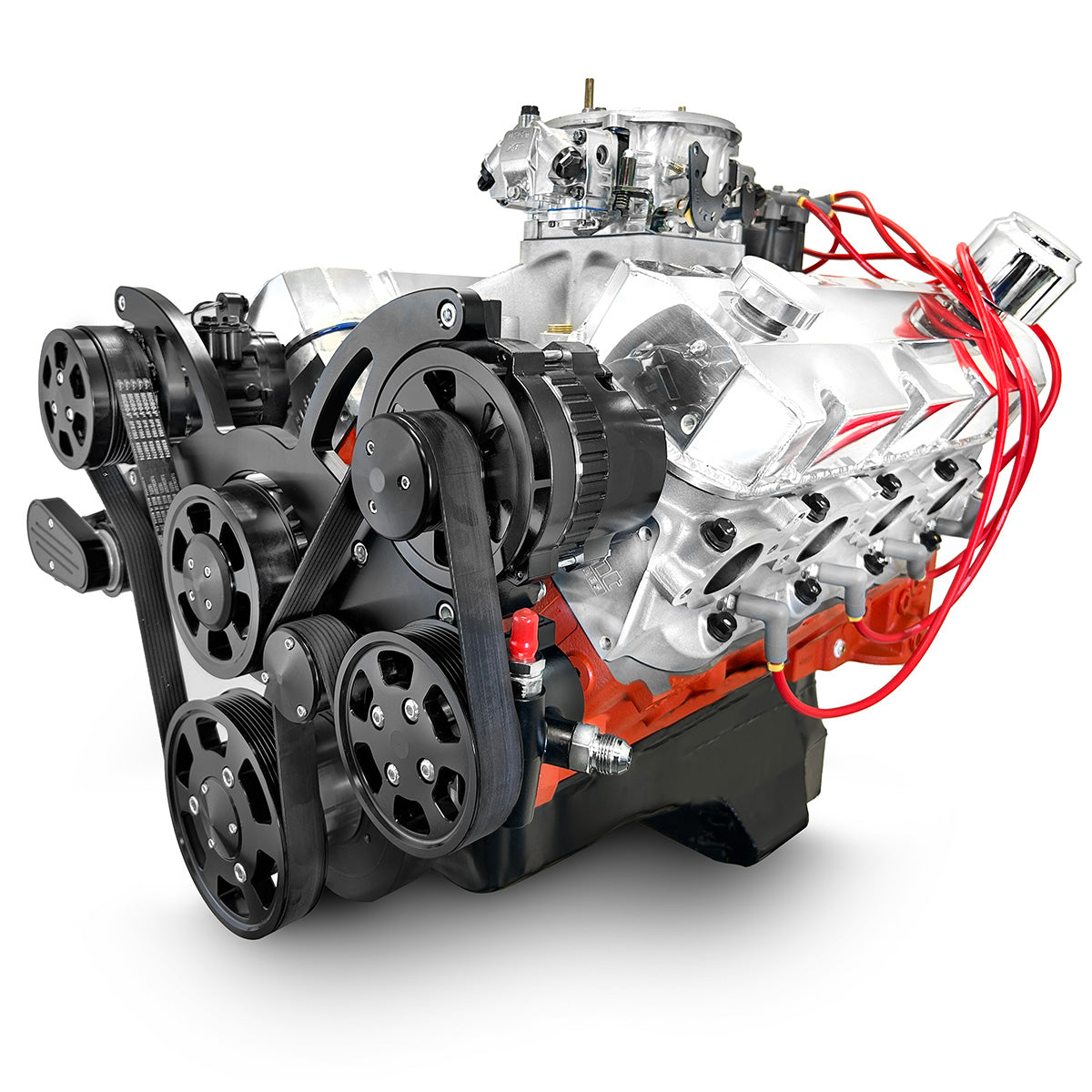

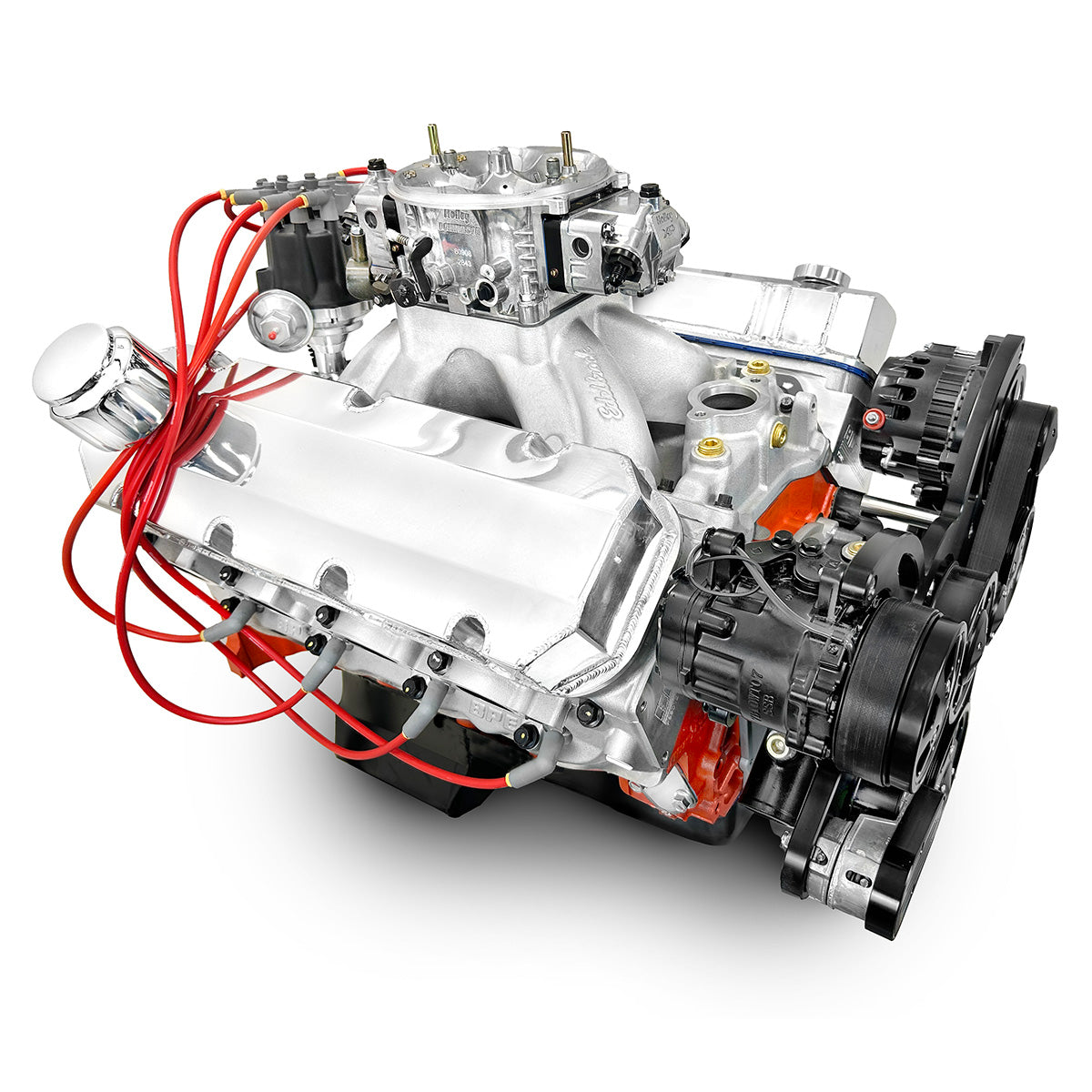

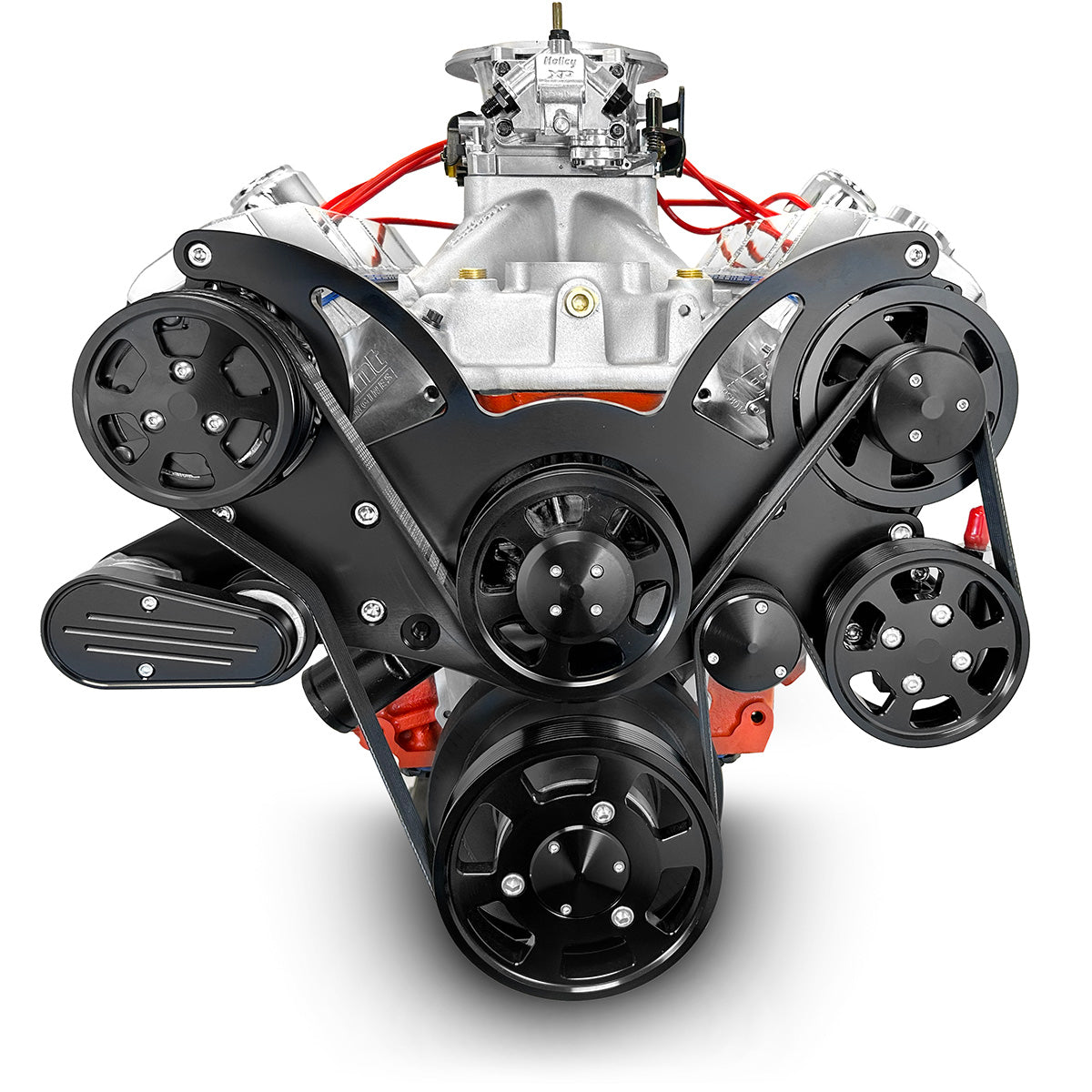

GM Big Block Compatible 632 c.i. Pro Series Engine - 815 Horsepower - Deluxe Dressed - Black Pulley Kit - Carbureted

Description:

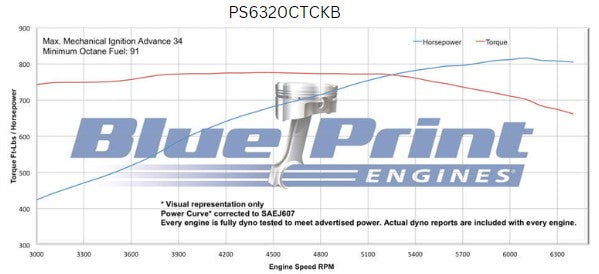

• Horsepower & Torque: 815 Horsepower / 775 FT LBS
• Compression Ratio: 11.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!

• Tall Deck (Cylinder Deck is Approx .400 taller / Wider than OEM Block)
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.600" Bore


Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.750" Stroke
• Forged H-beam 6.635" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting


Cam Specs:

• Hydraulic Roller

• .698 Intake / .698 Exhaust Lift
• 272 Intake / 282 Exhaust Duration
• @.050-110 Degree Lobe Separation


Also Includes:

• Pro Series Ready Run Distributor - BPP3503BK
• Holley GEN III Ultra Dominator Carburetor
• Harmonic Balancer - BPP454I
• Spark Plugs - BPP7938
• Spark Plug Wires
• Intake Manifold
• Timing Cover
• Valve Covers
• Oil Pan
• Black Pulley Kit - BPP454FDPSAC4BK

  • Reverse Rotation Short Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

Notes:

• Not for use in pollution-controlled vehicles.
• This engine features .300 raised exhaust ports and .400 deck height increase over OEM.
• Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.

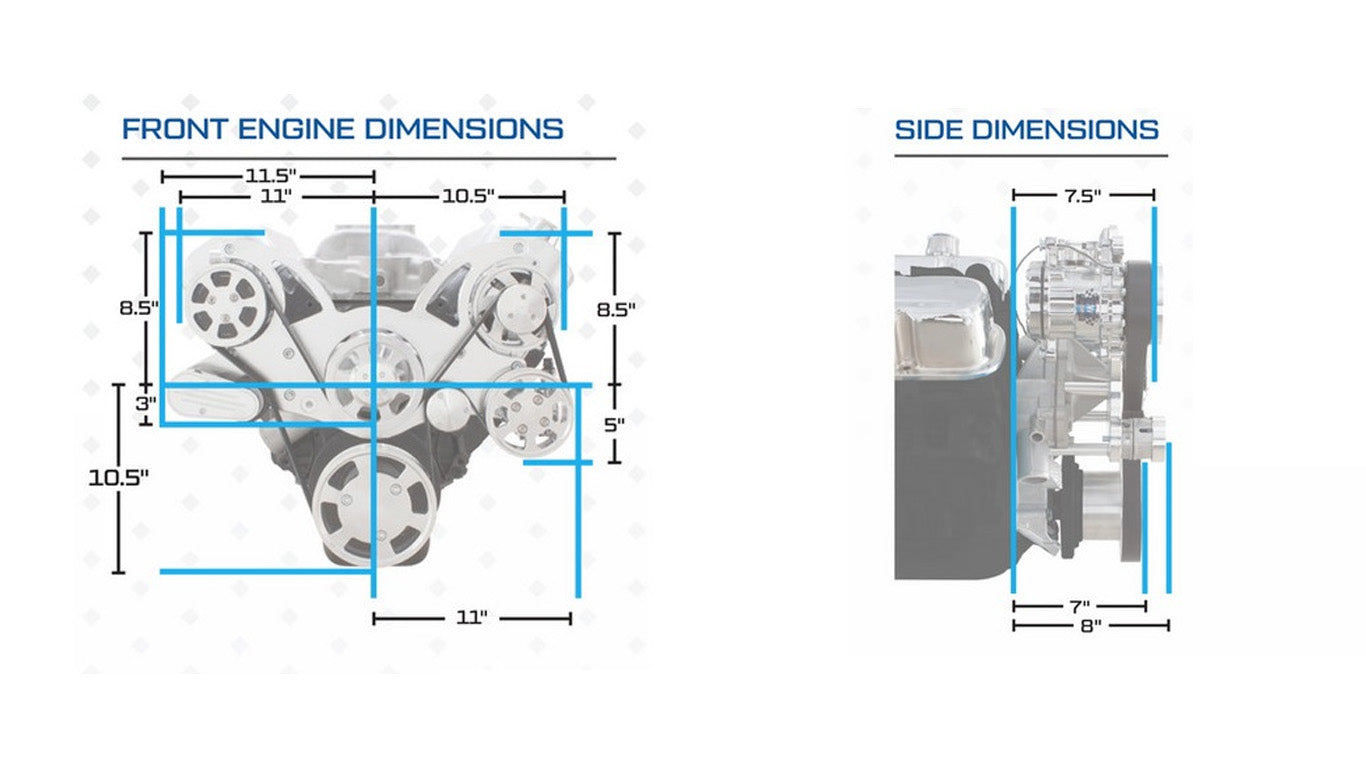

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

.
