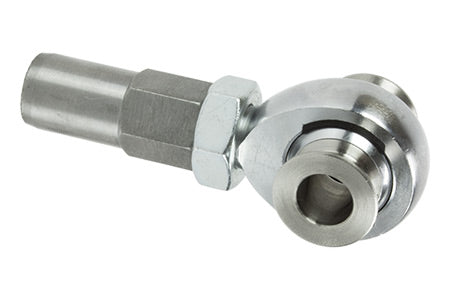

This is our 5/8" Rod end set, comes as a single rod end, with a tube adapter for either 3/4" or 1" ID tubing, as well as a jam nut and spacers of your choice.
With spacers, the mount width of this 5/8" rod end is 1.5" and is available for either a 1/2" or 5/8" bolt size. 5/8" Spacers offer limited misalignment, whereas the 1/2" misalignment spacer allow for 30 degrees of articulation.
This rod end set is rated to just over 17,900 lbs.*Tips to help prevent any seized or warped threads:
Correctly adjust welder settings and start your puddle on the tube. (Too much heat will warp the threads)Do not weld the tube adapter with the rod end threaded inside. (The two pieces cool at different rates and will lock them together) Wait until everything has completely cooled before threading your rod ends into the adapters
