2003-2008 Powerstroke 6.0L/6.4L 5R110W TransGo Shift Kit (5R110W-A)

2003-2008 Powerstroke 6.0L 5R110W TransGo Shift Kit (5R110W-A)

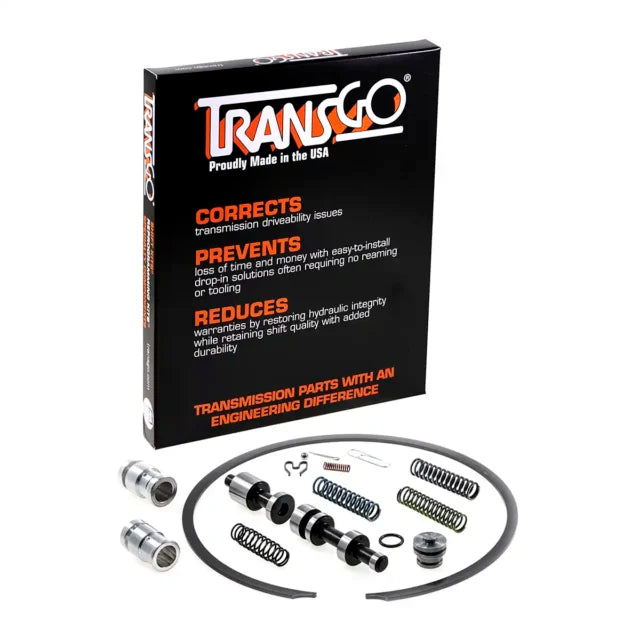

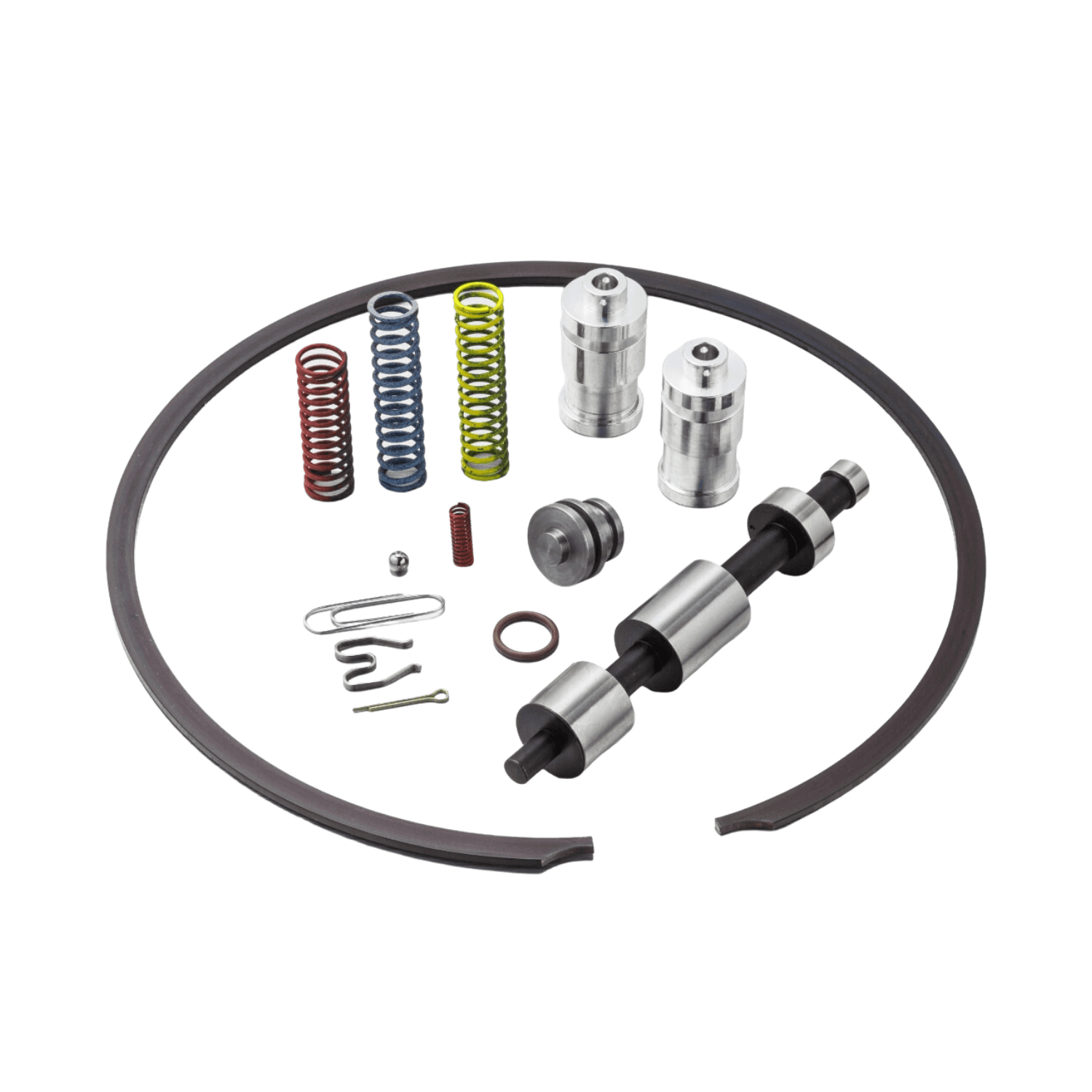

This TransGo 5R110W-A SHIFT KIT® Transmission Repair Kit fits 2003 and later Ford vehicles equipped with the 5R110W automatic transmission. Common complaints with this transmission are run-away reverse pressure, case lug blow out, no movement, slips or no reverse, neutralize at stops as well as converter clutch slippage or codes.

The pressure regulator (PR) valve is prone to sticking it its bore in part due to the pump casting distortion. When the PR valve sticks in the exhaust position, naturally there will be low or no line pressure. If the PR valve sticks in the exhaust position while engaging forward or reverse the driver will intuitively rev the engine up to see if the transmission is in gear or not. The increase in engine RPM’s will cause a surge in pump volume that can cause a dangerous pump pressure spike.

If the lever is in the reverse range, this pressure spike will blow out the low reverse clutch case lugs. On the other hand, if the lever is in the drive position it will create a neutral drop condition and damage the low diode assembly resulting in a no forward condition. Also, in hard working vehicles the converter clutch apply pressure is insufficient from factory, resulting in TC clutch slippage or codes.
