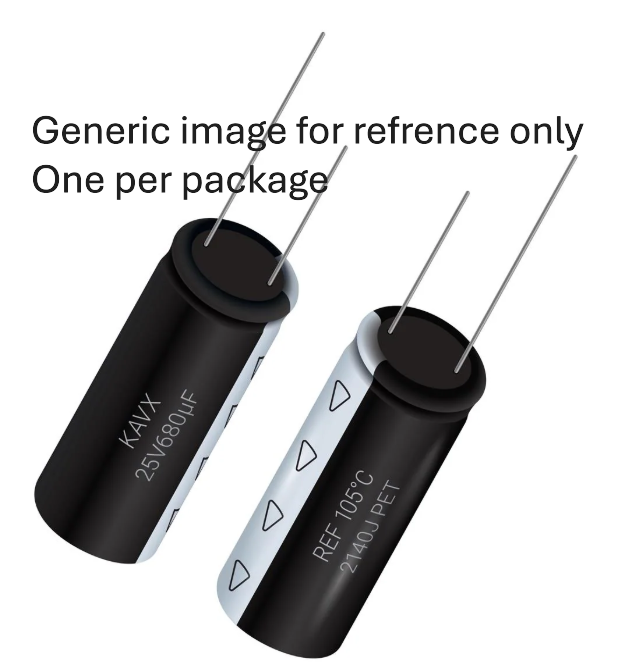

180UF 450V Radial Electrolytic Capacitor

1 per package

This UBR Series radial aluminum electrolytic capacitor delivers 180µF capacitance at a high 450V DC rating, ideal for power supply filtering, energy storage, and decoupling in industrial and high-voltage electronic applications.

Encased in a durable 18mm × 50mm body with 7.5mm lead spacing, it supports straight radial leads for easy mounting in through-hole assemblies. Rated for 5000 hours of operation at 125°C, it ensures excellent endurance under demanding conditions. With a low dissipation factor of 0.24, ripple current handling of 1.23A, and leakage current of 3.34mA, it offers both performance and stability across a wide temperature range of -40°C to +125°C.

Specifications:
- **Capacitance:** 180µF
- **Voltage Rating:** 450V DC
- **Tolerance:** ±20%
- **Series:** UBR
- **Type:** Radial Leaded Aluminum Electrolytic Capacitor
- **Diameter:** 18mm
- **Length:** 50mm
- **Lead Spacing:** 7.5mm
- **Lead Style:** Straight
- **Termination Style:** Radial
- **Ripple Current:** 1.23A
- **Leakage Current:** 3.34mA
- **Dissipation Factor (DF):** 0.24
- **Operating Temp Range:** -40°C to +125°C
- **Life Expectancy:** 5000 hours @ 125°C
- **RoHS:** Not specified

Key Features:
- **High 450V rating with 180µF capacitance** for demanding circuits
- **Ripple current support of 1.23A** for stable energy delivery
- **Low DF (0.24) and 3.34mA leakage** for reliable filtering
- **5000-hour life at 125°C** enables high-temperature endurance
- **Sturdy 18×50mm form** with 7.5mm lead spacing for secure PCB fit

A rugged, high-voltage capacitor designed for filtering and energy storage in power electronics and industrial-grade systems.
