Y Link Steering Using GM 1 Ton TRE

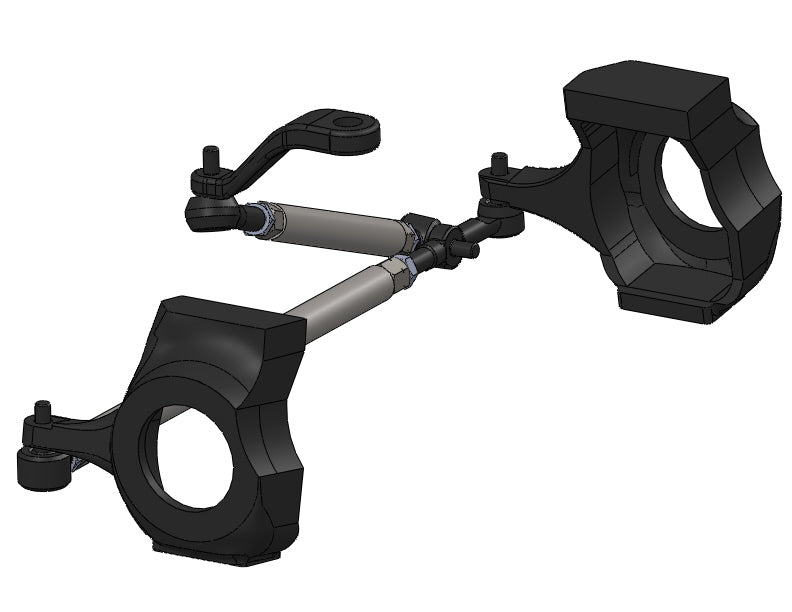

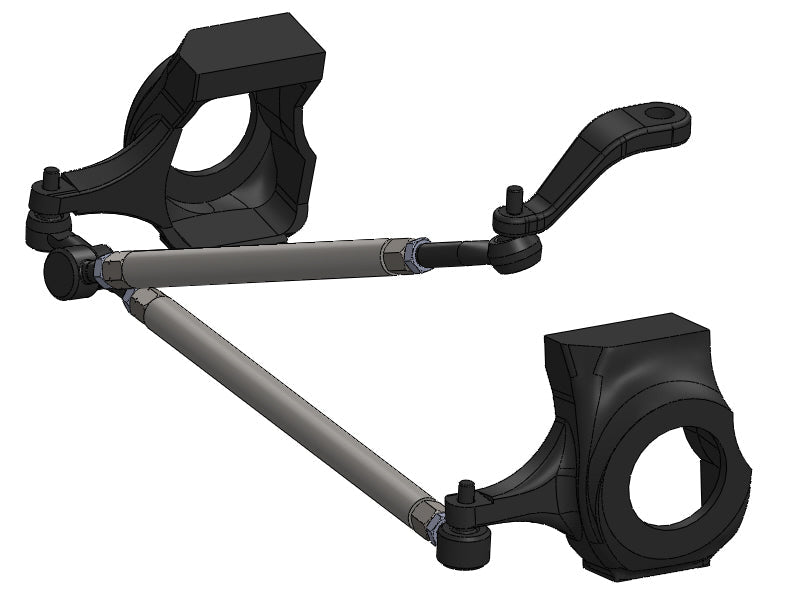

This is your not so basic steering setup that mocks the factory setup with easier adjustment & much stronger tubing. The kit can be used with stock steering position on the knuckle or High Steer arms. The taper is the standard GM 1 ton.

The adjustment is easier because we add Hex Head TRE weld bungs so a crescent wrench is your adjustment tool, not a pipe wrench, which will scar the tube and if too deep, cause a major stress riser. Not to mention what it does to the paint...

These are stronger than stock because we use 1.5" X .25" Wall DOM tubing and the TRE's are made for a 1 ton rig and much larger than stock.

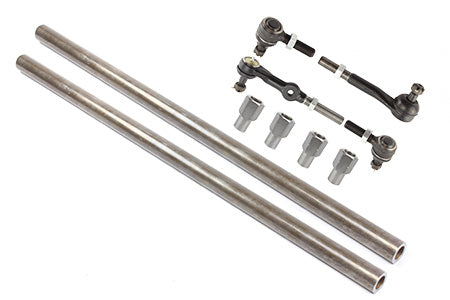

You will receive:

• 2 - 54" of 1.5" X .25" wall DOM tubing
• 2 RH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 2 LH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 2 RH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends
• 2 LH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends

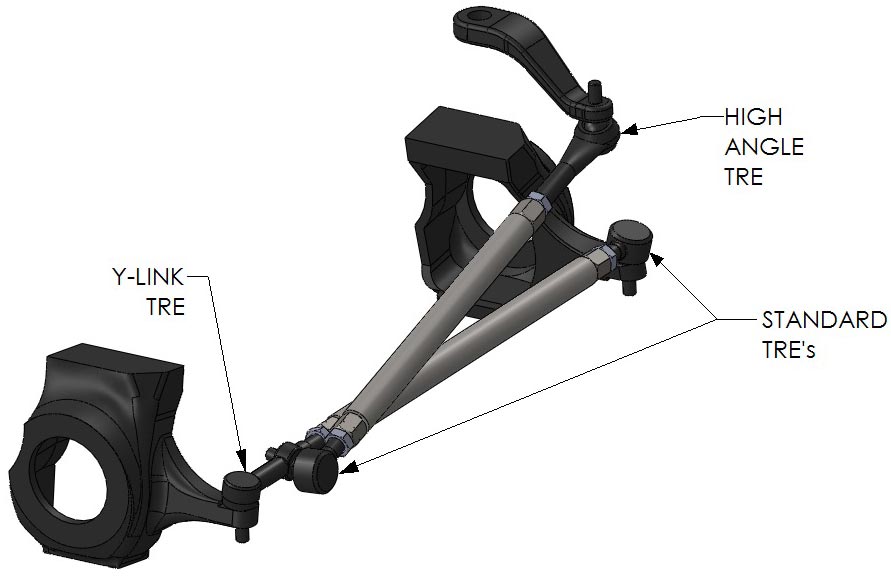

• 4 - Tie Rod Ends, 1 for the Y Link, 2 for the Tie Rod, & 1 High Angle TRE for the pitman arm

We supply more DOM than you need because it is way too easy to make a mistake in your calculations and you can always cut tube, growing it back is the hard part!

This is a do it yourself style kit that requires welding by a competent person with the right equipment, don't skimp, do it right! You will need to check clearances with the steering at lock to see if you need to add any bends before you cut it down to clear diff covers, sway bar mounts, etc.

Additional Products you may need to install this kit:

Tapered knuckle inserts. (Qty 2 for this kit)

High angle tapered knuckle inserts (Qty 1 for this kit)

90 degree steering stabilizer bracket

Flat mount steering stabilizer bracket
