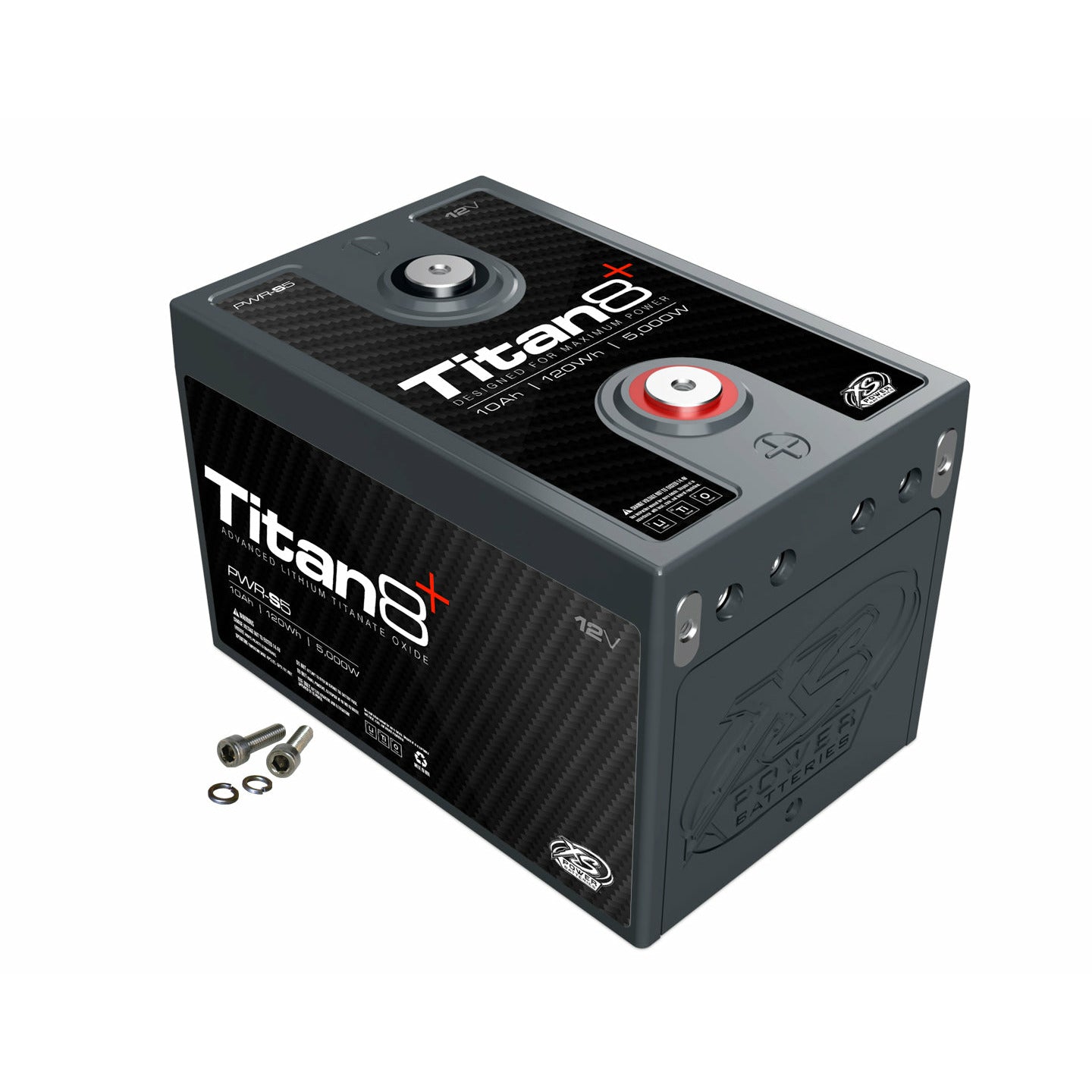

XS Power Titan 8 PWR-S5 12V Lithium Modular Battery

DESCRIPTION

Power Modules - Designed for Peak Power

This Titan8 Series Lithium Titanate Oxide (LTO) series uses a very high power lithium cell that is designed for very high burst output (up to 100 times its capacity) as well as very high charge current (30-60 times its capacity).  This translates to a single 10Ah module that can support burst current up to 1,000A, and can accept 300A of continuous charge current.  The built in 2/0 bussing allows up to 4 Positive and 4 Negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12V, 24V, 36V, or any configuration imaginable.

Weight Lbs. – 8lbs
Weight Kgs. – 3.63kgs

Length – 7.4 in
Height – 5 in
Width – 4.85 in

Voltage – 12V
Wattage – 5,000
MAX Amps – 2,000
Energy Wh – 120
CA – 1,000A
CA Pb Eq – 1,500A
Ah – 10
Ah Pb Eq – 30

M6 Terminal Hardware Included
