WG2500Ti PRV 2" Exit High Frequency Compression Driver With Horn
WG2500Ti PRV 2" Exit High Frequency Compression Driver With Horn is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
WG2500Ti PRV 2" Exit High Frequency Compression Driver With Horn
WG2500Ti PRV 2" Exit High Frequency Compression Driver With Horn is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

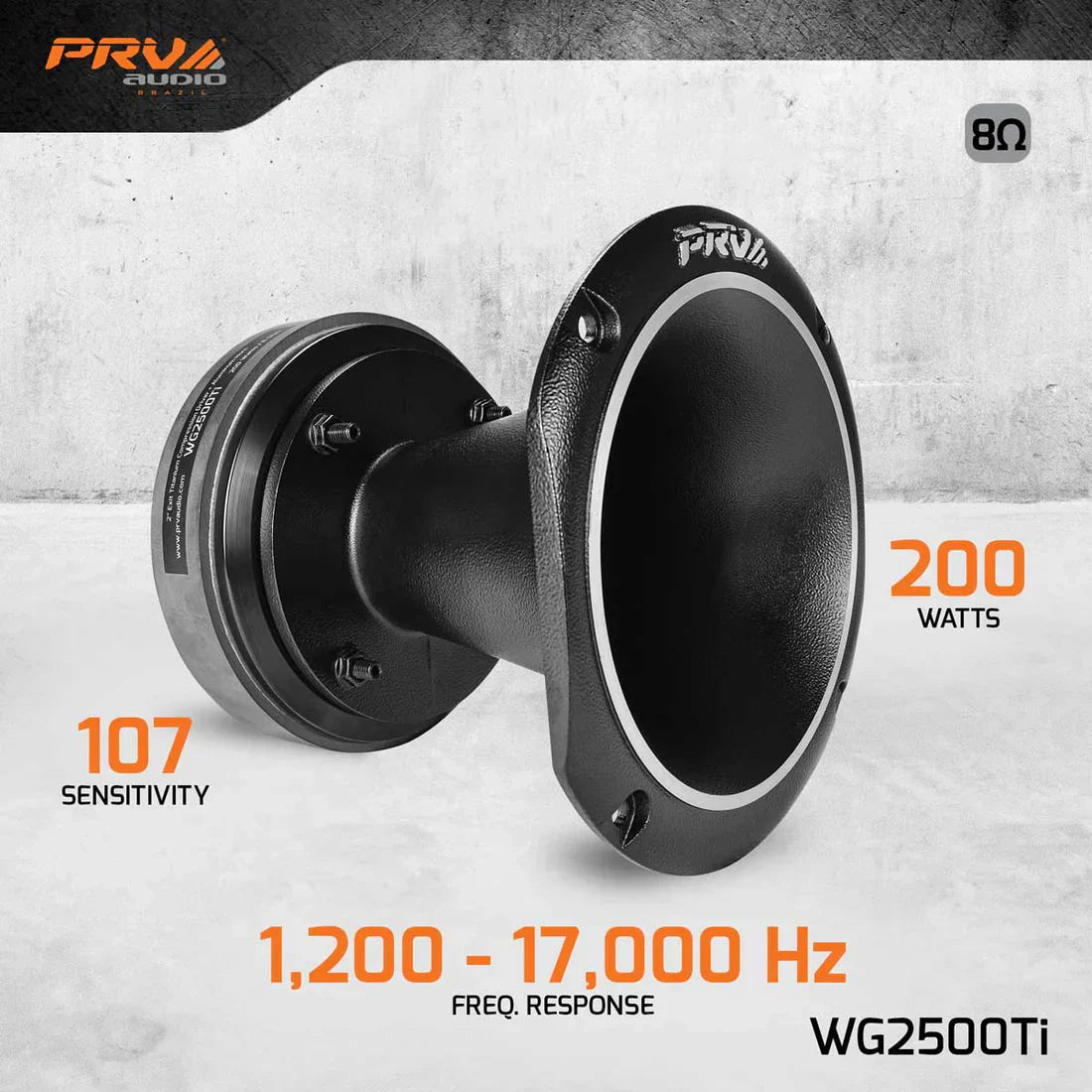

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2” exit waveguide that features a special 2.5” size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.
- 2″ Exit Titanium diaphragm with 2.5″ Voice coil
- Type: Combo – Driver + Horn WG14-50CR
- Nominal Impedance: 8 Ohm
- 200 Watts Continuous Program Power (RMS)
- Extremely high efficiency is perfect for high output systems
GENERAL SPECIFICATIONS
| Exit Throat Diameter | 2” (50 mm) |
| Nominal Impedance | 8 Ohm |
| Nominal Power Handling* | 100 Watts |
| Continuous Power Handling (RMS)** | 200 Watts |
| Max Peak Power*** | 400 Watts |
| Sensitivity 2.83V at 1m | 107 dB |
| Recommended Hi Pass Crossover For Full Power Handling | 1700 Hz 12db Per Octave Crossover |
| Frequency Response at -10dB | 1,200 – 17,000 Hz |
| Voice Coil Diameter | 2.5″ (65 mm) |
| Voice Coil Wire | CCAW |
| Voice Coil Former Material | Kapton |
| Diaphragm Material | Titanium |
| Flux Density | 21.1 T |
| Magnet Material | Ferrite |
EXTRA INFO

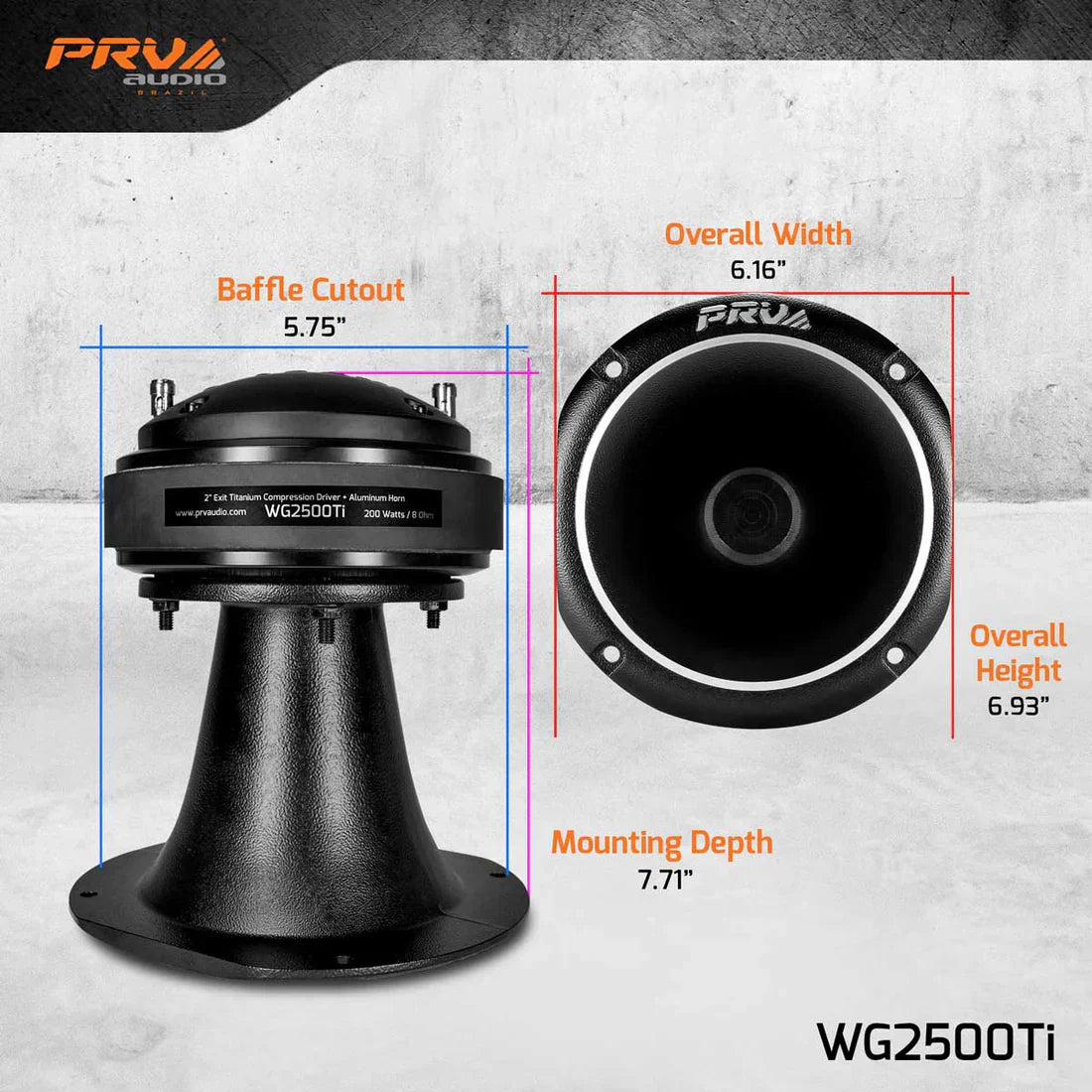

| Overall Depth | 8.07” (205 mm) |
| Mounting Depth | 7.71” (196 mm) |
| Overall Width | 6.16″ (156.5 mm) |
| Overall Height | 6.93″(176mm) |
| Baffle Cutout | 5.75” (146 mm) |
| Net Weight | 10.32lbs (4.68 kg) |
| Shipping Weight | 11.02lbs (5.00 kg) |
| Carton Dimensions W x L x H | 8.26” x 7.58” x 9.45” (210 x 190 x 240 mm) |
