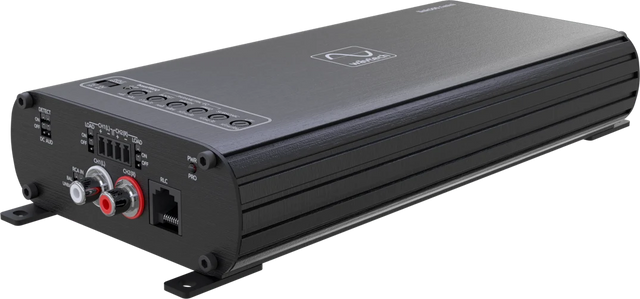

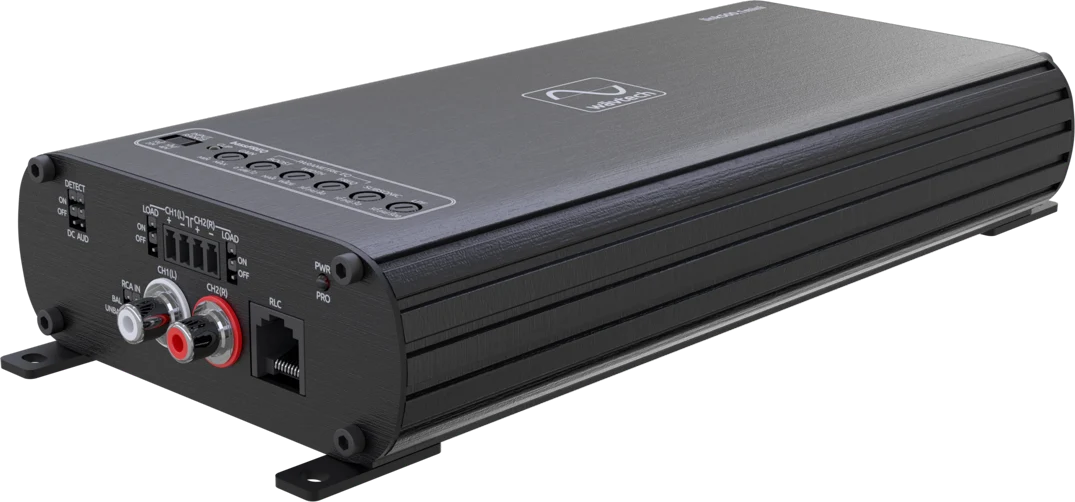

Wavtech Link500.1mini 500W RMS Monoblock Amplifier 2-Ohm

The link500.1mini amplifier was engineered from the ground up to be the best possible option for adding bass to any system. The speaker level input can handle up to 40V and features our adaptive loading technology, while the RCA input accepts up to 10V, making it the perfect solution for both factory and aftermarket head units. The link500.1mini produces 500 watts RMS @ 2ohms, and its incredibly small size means it will fit almost anywhere.

The link500.1mini utilizes Wāvtech’s proprietary bassFREQ preamp. It features a 24dB per octave crossover, adjustable parametric EQ and a subsonic filter, providing the fine tuning required to get the best out of any subwoofer. Like all Wāvtech amplifiers, the link500.1mini is compatible with start/stop systems. The optional linkRC remote provides for even more system control.

link500.1mini Features

• 500 Watt Mono Amplifier

• 300 watts x 1 @ 4 ohms

• 500 watts x 1 @ 2 ohms

  • Small Footprint Only 9.2”x4.5”x1.65”

  • Fully Adjustable Parametric EQ

  • Variable Low-Pass Crossover (-24dB/oct)

  • Variable Subsonic Filter (-24dB/oct)

• Remote Level Control (RLC) w/Optional linkRC

• bassFREQ Bass Processor w/Parametic EQ

• Active Thermal Management

• Start/Stop System Compatible

• Adaptive OEM Load Technology

• 40V Input Capability

• Differential Balanced Inputs

• Variable Gain Adjustment w/Clip LED

• Auto Turn-On via DC-Offset or Audio Signal Detect

• Locking Detachable Hi-Level Speaker Terminals

• 4 Gauge Power/Ground Terminals

• Professional Grade Panel Mount RCA’s

• Compact Aluminum Chassis w/Detachable Mounting tabs

link500.1mini Specifications

• Input Sensitivity

  • SPK --------------------------- 1-20Vrms, 2-40Vrms

  • RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms

• Max Input Voltage (SPK) ------ 40Vrms

• Frequency Response ----------- <10Hz to >500Hz (=0/-3dB)

• THD+N ------------------------------- <1% at rated power

• S/N ------------------------------------- >81dBA (1W, 4Ω)
