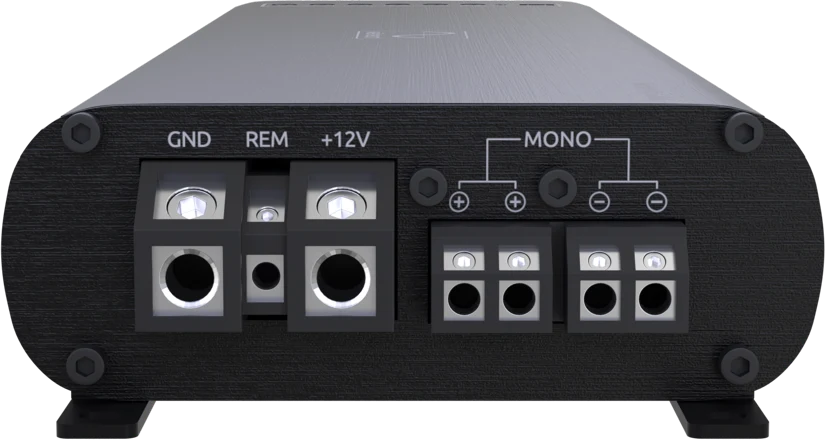

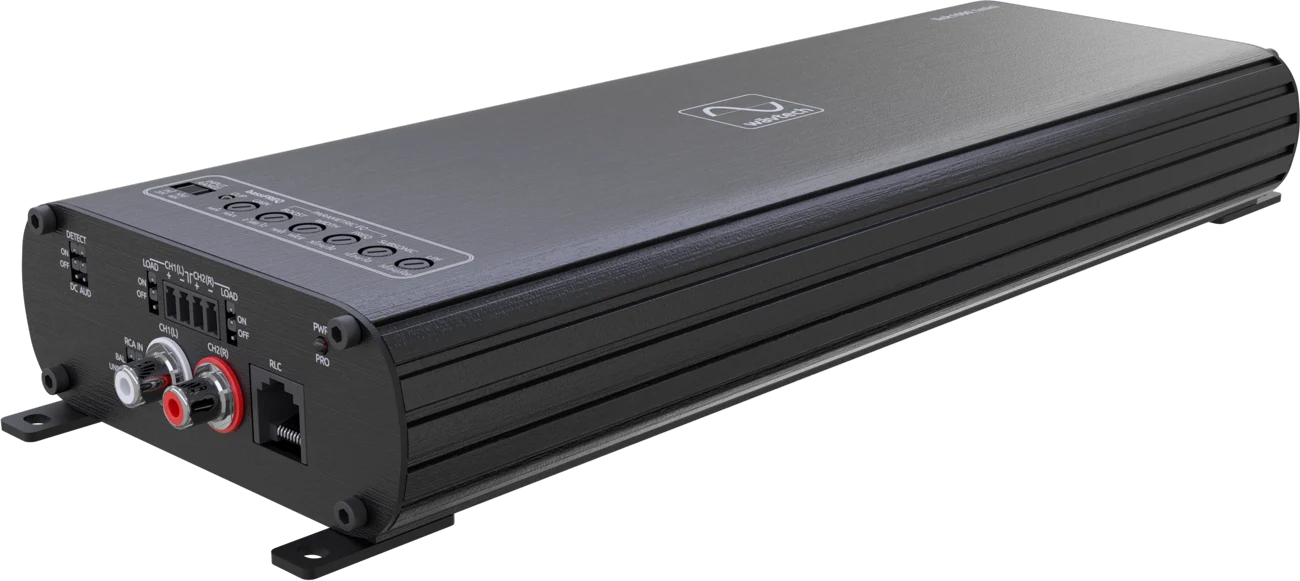

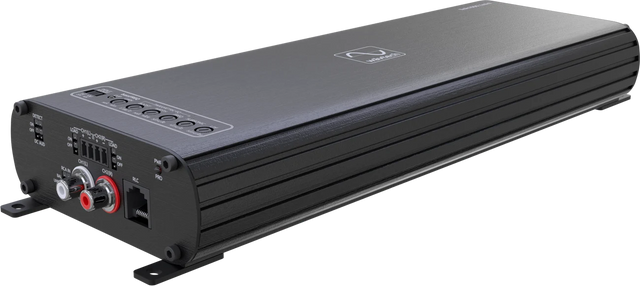

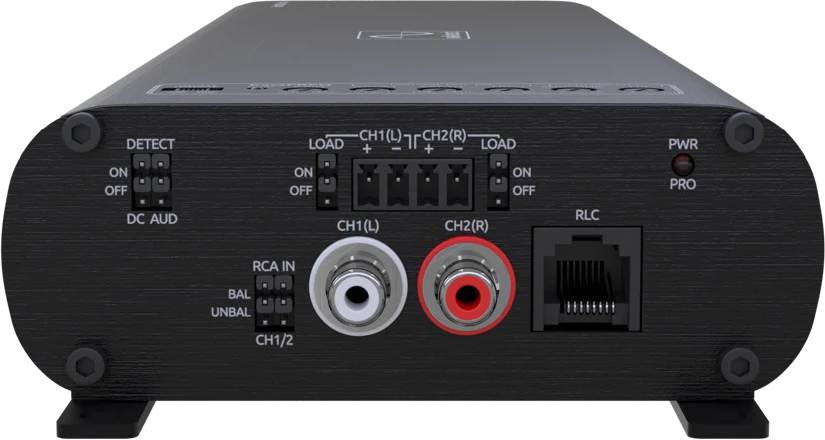

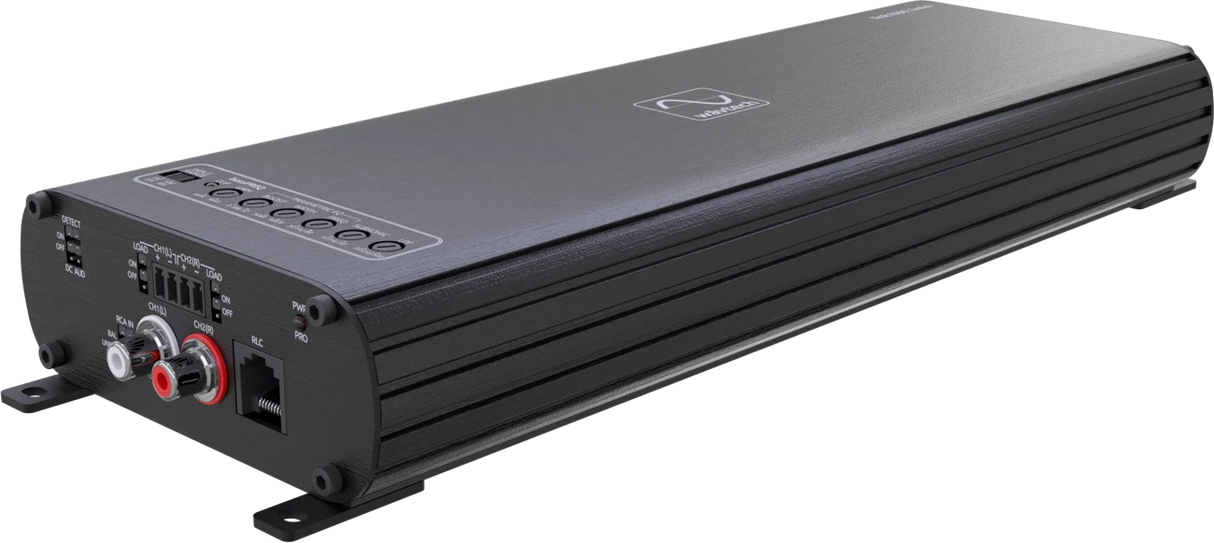

Wavtech Link1000.1mini 1000W RMS Monoblock Amplifier 2-Ohm

The link1000.1mini is the most powerful amplifier in the Wāvtech mini series. This amp makes 1000 watts RMS @ 2ohms. The speaker level inputs of the link1000.1mini can handle up to 40V and have our adaptive loading technology, making for easy connection to both factory and aftermarket head units. At 12.2”x4.5”x1.65”, it is easily one of the smallest 1000 watt RMS amplifiers available today.

The link1000.1mini has Wāvtech’s bassFREQ preamp, with a 24dB per octave crossover, an adjustable parametric EQ and a subsonic filter. This provides the fine tuning required to get the most out of any subwoofer system. The optional linkRC remote allows for control of the subwoofer system from the vehicles front seat. The link1000.1mini is also compatible with OEM start/stop systems.

link1000.1mini Features

• 1000 Watt Mono Amplifier

• 600 watts x 1 @ 4 ohms

• 1000 watts x 1 @ 2 ohms

  • Only 12.2”x4.5”x1.65”

  • Fully Adjustable Parametric EQ

  • Variable Low-Pass Crossover (-24dB/oct)

  • Variable Subsonic Filter (-24dB/oct)

• Remote Level Control (RLC) w/Optional linkRC

• bassFREQ Bass Processor w/Parametic EQ

• Active Thermal Management

• Start/Stop System Compatible

• Adaptive OEM Load Technology

• 40V Input Capability

• Differential Balanced Inputs

• Variable Gain Adjustment w/Clip LED

• Auto Turn-On via DC-Offset or Audio Signal Detect

• Locking Detachable Hi-Level Speaker Terminals

• 4 Gauge Power/Ground Terminals

• Professional Grade Panel Mount RCA’s

• Compact Aluminum Chassis w/Detachable Mounting tabs

link1000.1mini Specifications

• Input Sensitivity

  • SPK --------------------------- 1-20Vrms, 2-40Vrms

  • RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms

• Max Input Voltage (SPK) ------ 40Vrms

• Frequency Response ----------- <10Hz to >500Hz (=0/-3dB)

• THD+N ------------------------------- <1% at rated power

• S/N ------------------------------------- >77dBA (1W, 4Ω)
